Drive Belt: Service and Repair

Accessory Drive Belt

Removal and Installation

1. Remove the air cleaner outlet tube.





2. Remove the accessory drive belt.
1. Rotate the accessory drive belt tensioner counterclockwise.
2. Remove the belt.

3. NOTE: Refer to correct drive belt routing.

To install, reverse the removal procedure.

Drive Belt Routing

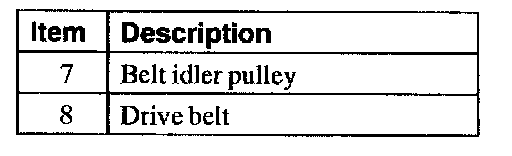

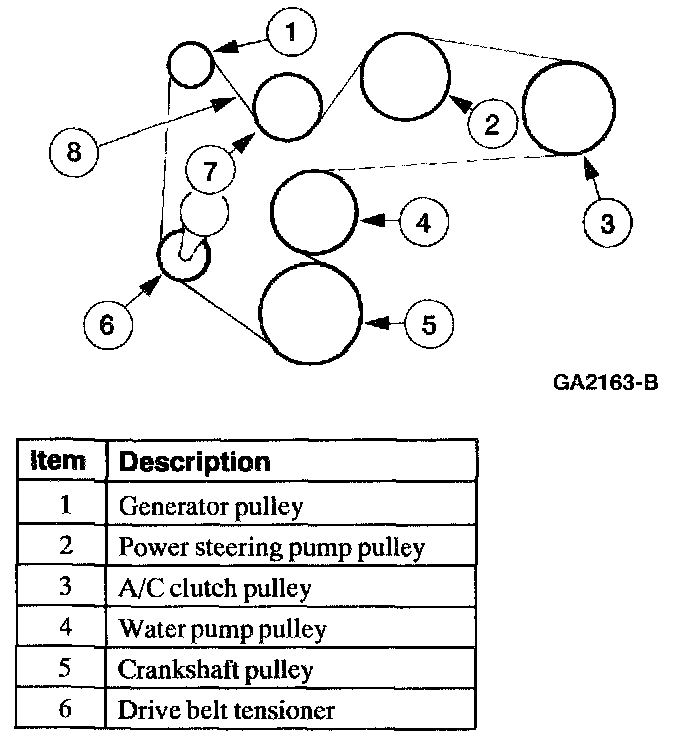

With A/C

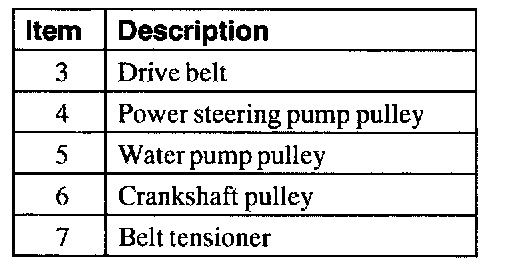

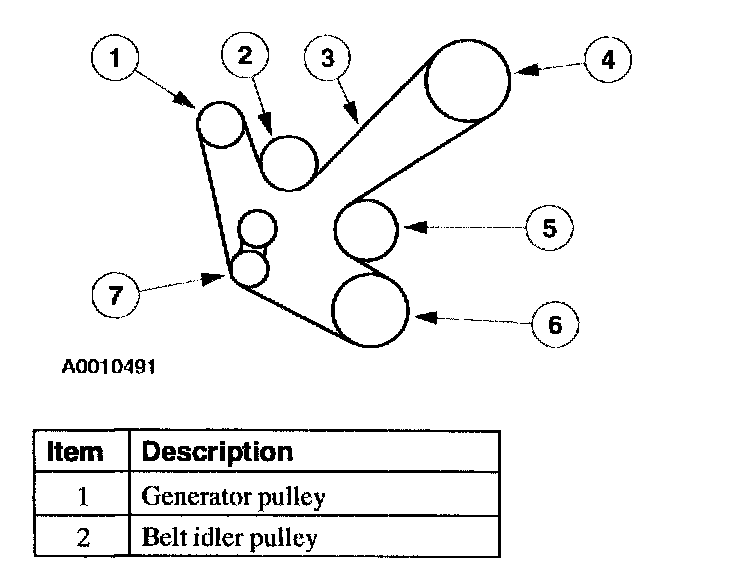

Without A/C
