System Diagram
System Diagram
Refrigerant System Components:

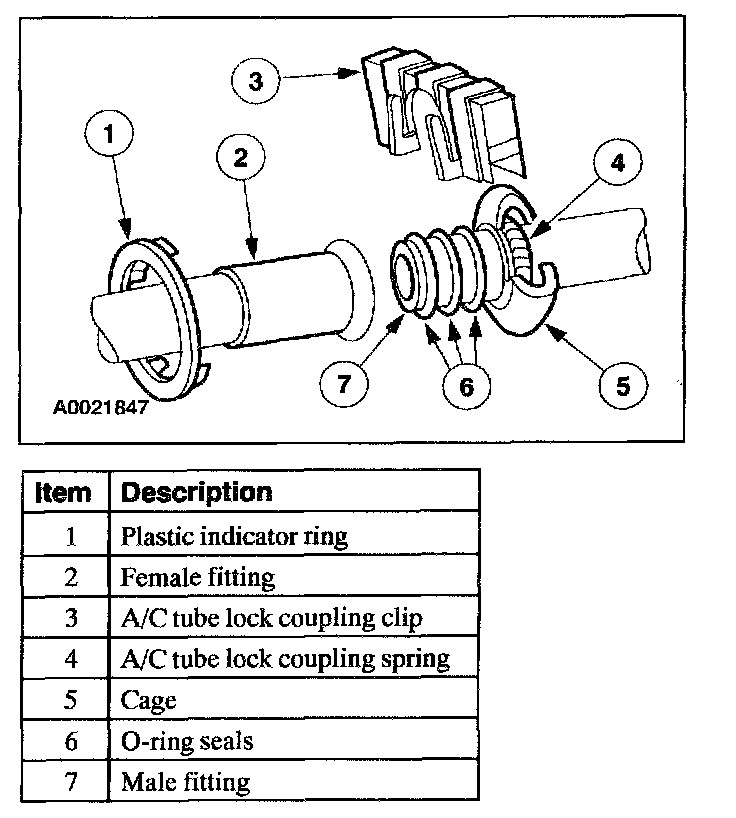

Spring Lock Coupling:

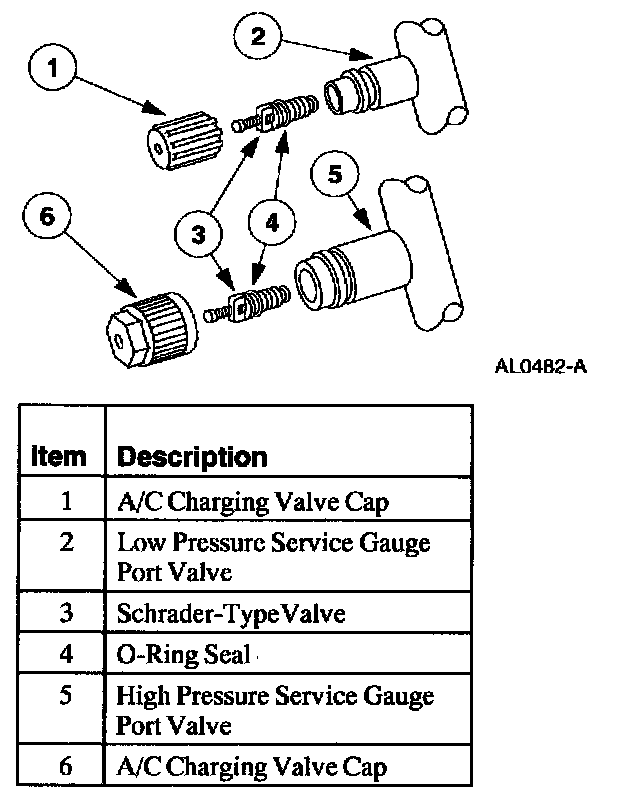

Service Gauge Port Valve:
Blower Motor Resistor Coils:
Blower Motor Thermal Limiter:
