PCM - Engine Lacks Power After PCM Reprogram

Article No.
01-5-1

March 19, 2001

^ DRIVEABILITY - LACK OF POWER AFTER
^ POWERTRAIN CONTROL MODULE (PCM)
^ REPROGRAMMING - VEHICLES EQUIPPED WITH
^ 3.0L OR 4.0L ENGINE

^ ENGINE-LACK OF POWER AFTER POWERTRAIN
^ CONTROL MODULE (PCM) REPROGRAMMING -
^ VEHICLES EQUIPPED WITH

FORD:
2001 RANGER

ISSUE

Some 2001 3.0L and 4.0L Rangers may exhibit a lack of power IF the Powertrain Control Module (PCM) has been reprogrammed in service. The lack of power may be caused by unintended spark retard.

ACTION

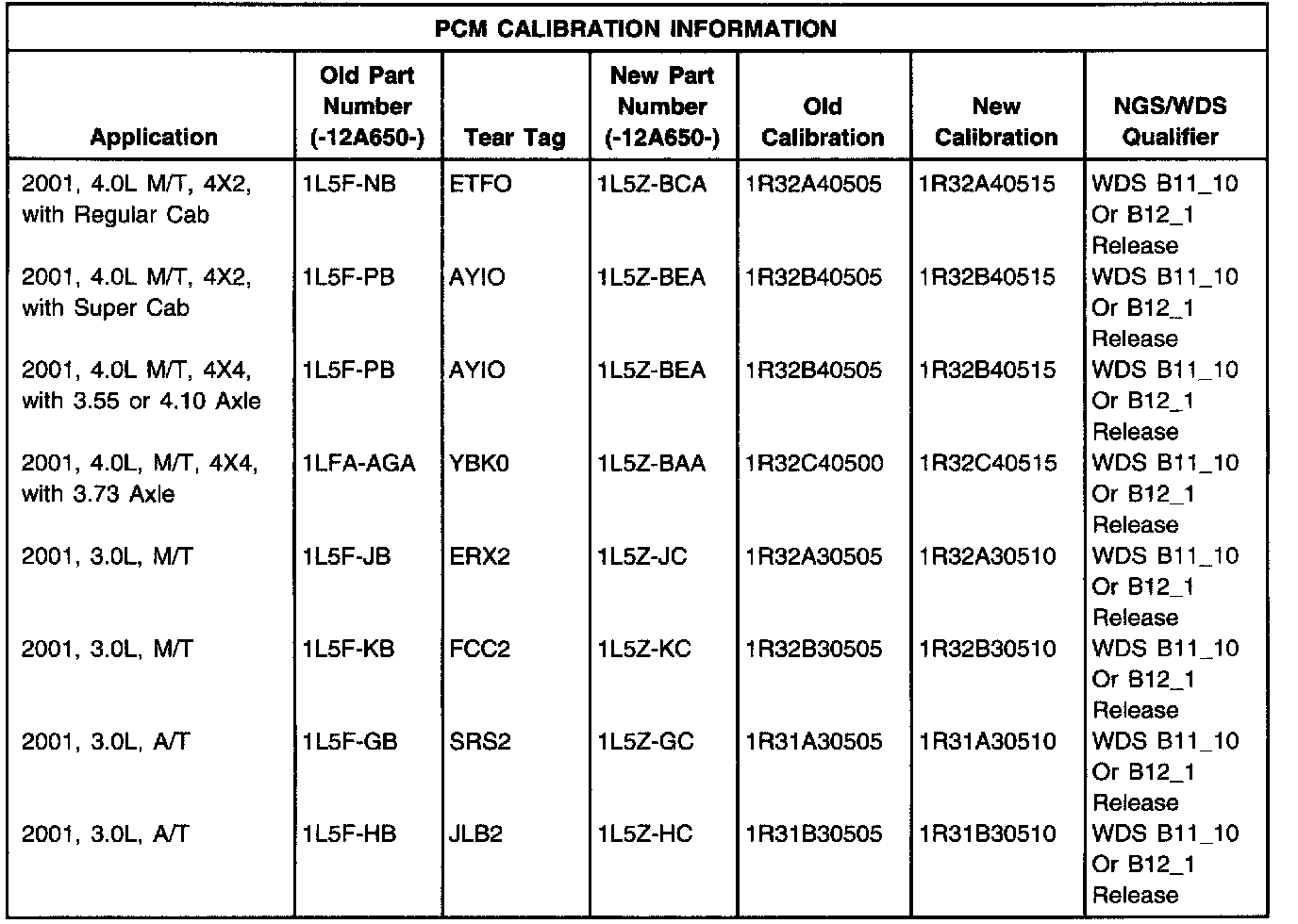

Verify the condition, and if present, reprogram the PCM to the latest level calibration. Refer to the PCM Calibration Information Chart shown.





Obtain an Authorized Modifications Decal (FPS 8262 - obtainable through DOES II, 25/pkg) and list the date, dealer number, and summary of modifications performed. Select a prominent place adjacent to the Vehicle Emission Control Information Decal suitable for installing the Authorized Modifications Decal. Clean the area, install the decal, and cover it with a clear plastic decal shield.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 614000, 614500, 614600
