Radio, Stereo, and Compact Disc
Radio, Stereo, and Compact Disc
DETAILED DIAGRAMS

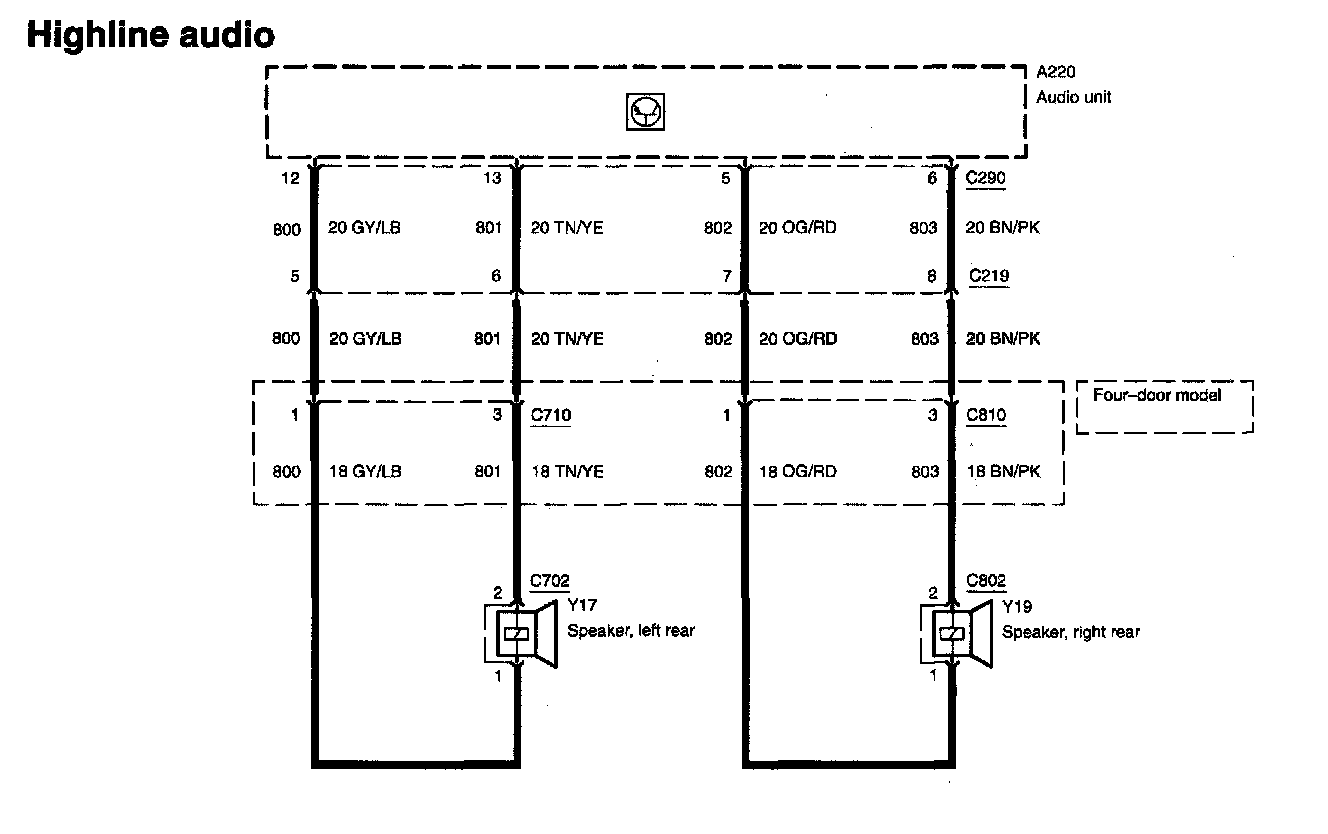

Diagram 415-00-00-1:
Diagram 415-00-00-2:
Diagram 415-00-00-3:
RELATED DIAGRAMS
Diagram 413-00-00-1:
