EGR Tube: Service and Repair

REMOVAL

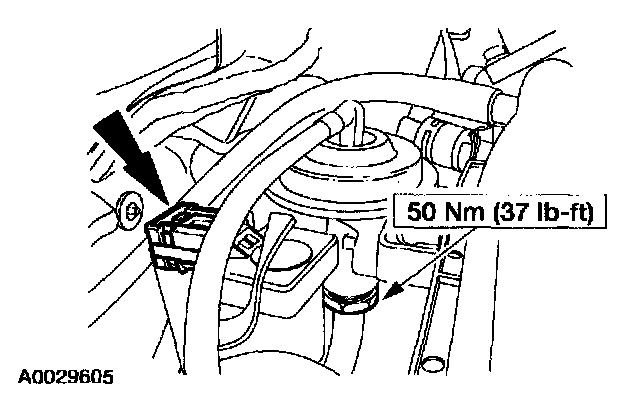

1. Disconnect the EGR valve tube at the EGR valve.

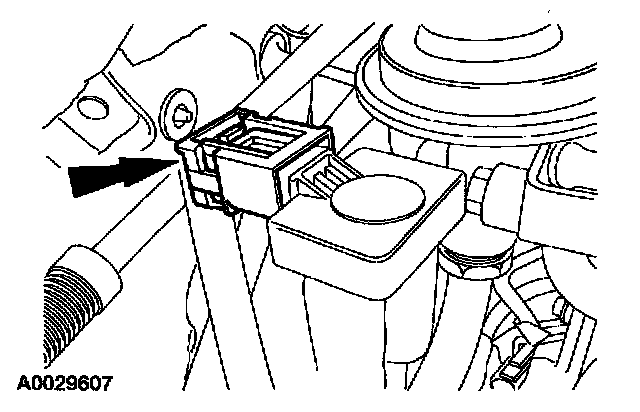

2. Disconnect the differential pressure feedback EGR sensor.

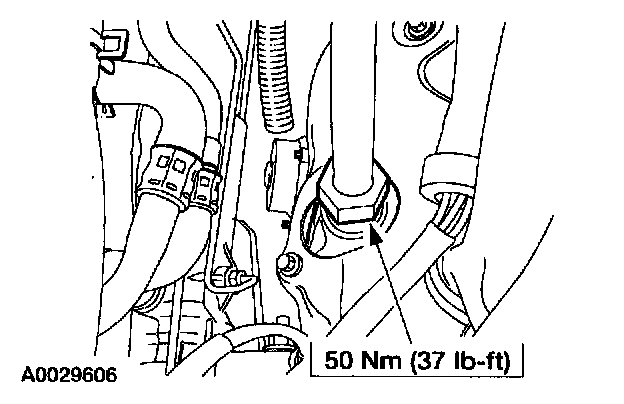

3. Disconnect the EGR tube nut at the exhaust manifold.
4. Remove the EGR tube from the vehicle.
5. If a new EGR tube is being installed, transfer the differential pressure feedback EGR sensor.

INSTALLATION
1. To install, reverse the removal procedure.
