Automatic Transmission/Transaxle

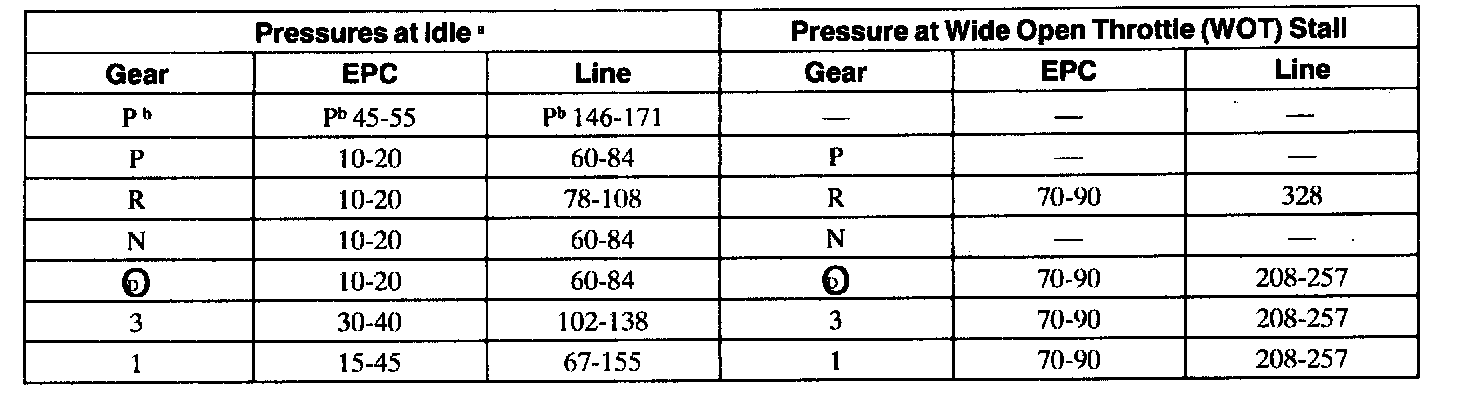

Line Pressure Chart

a All pressures are in PSI and are approximate.
b Special Note: This condition will occur when transmission fluid temperature is below 10°C (50°F) and prior to the initial engagement.
