Test K: Power Sliding Door Does Not Open/Close Using The Remote Transmitter

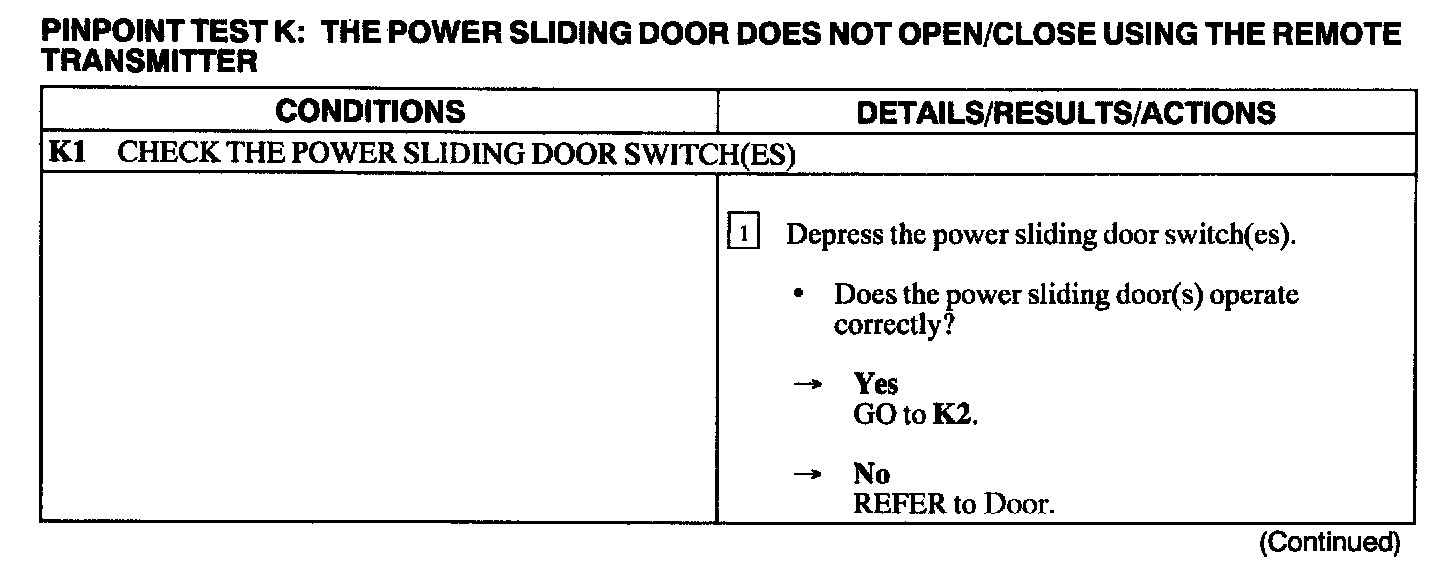

K1:

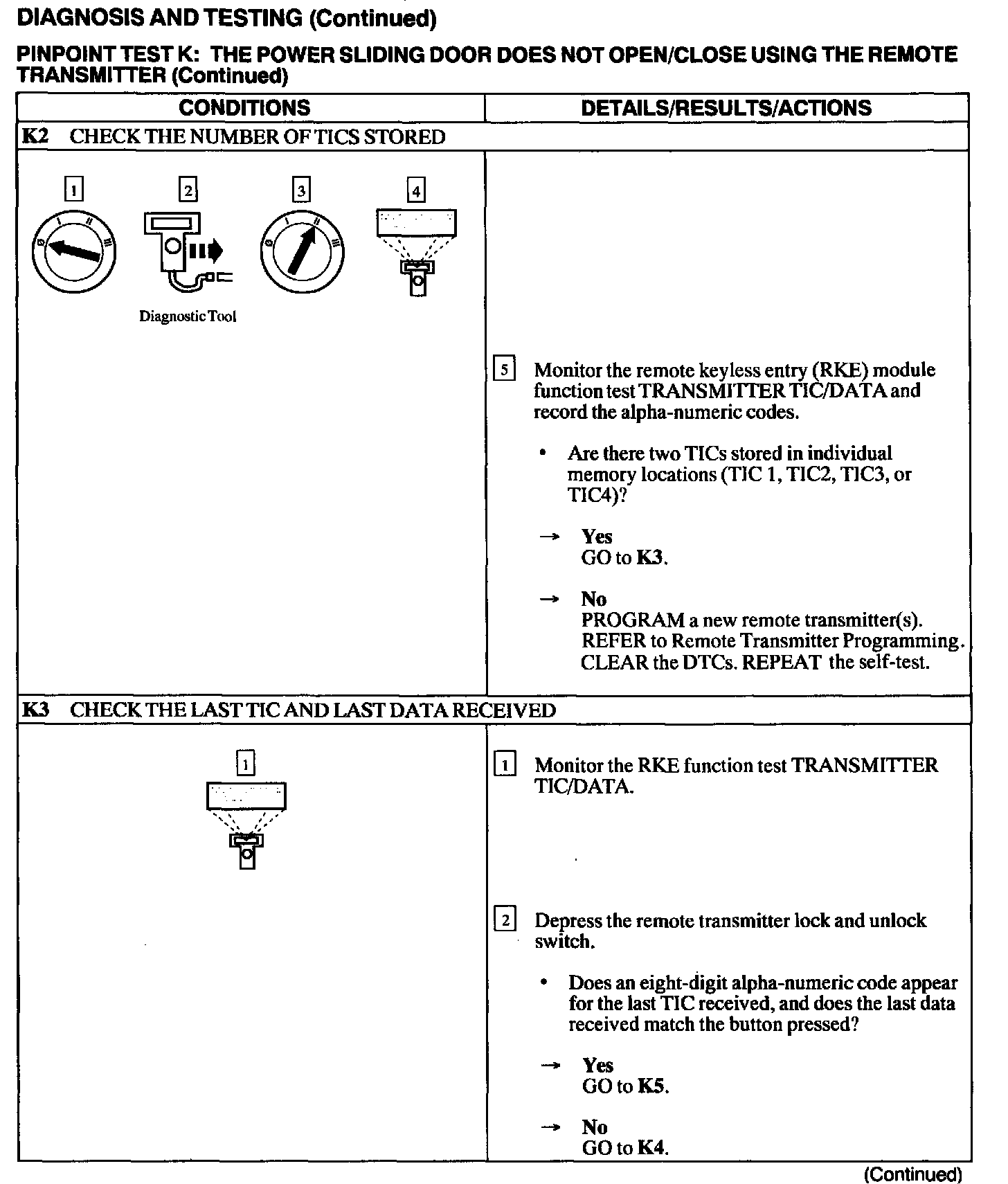

K2 - K3:

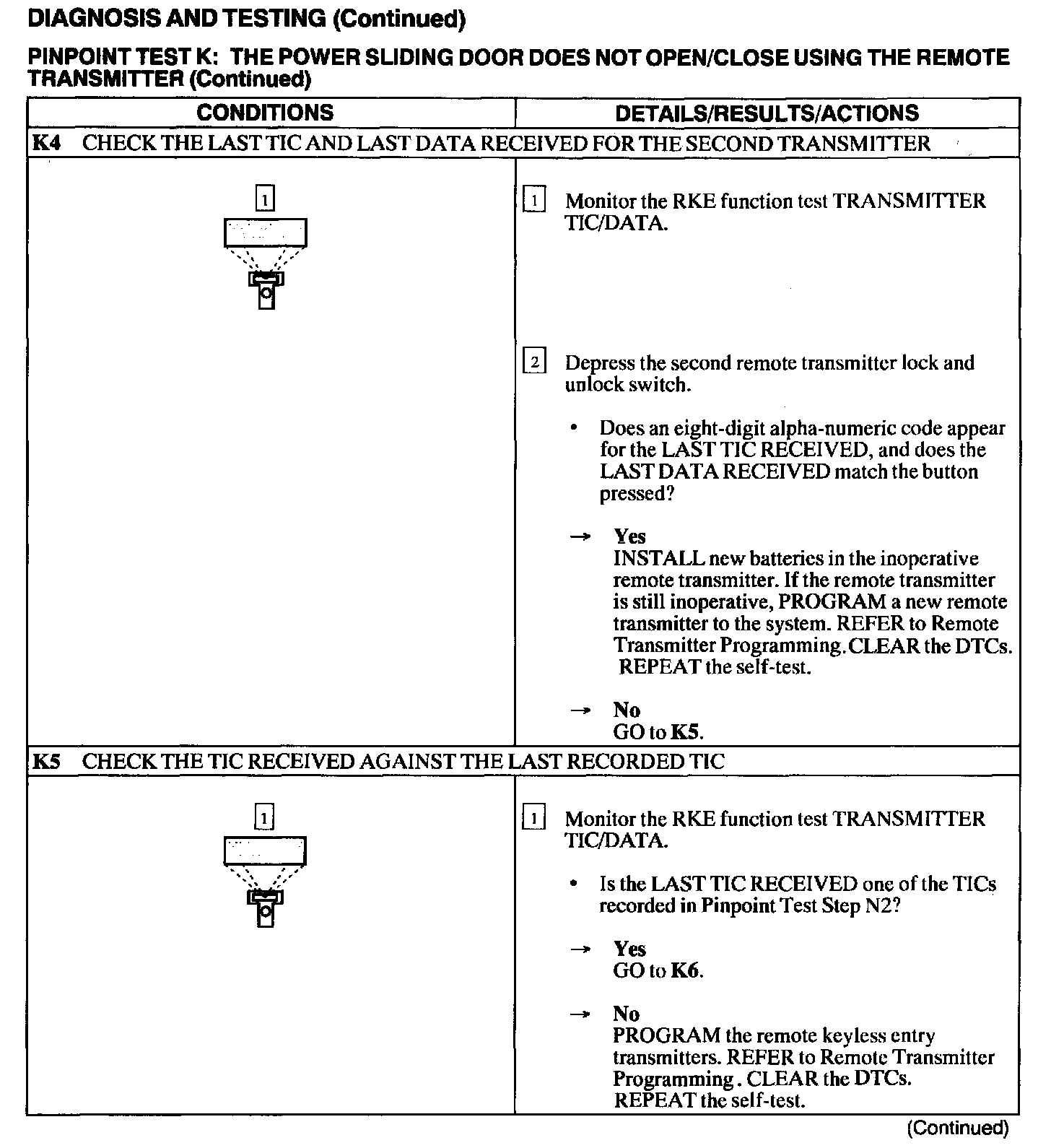

K4 - K5:






K6:
