Test L: Doors Do Not Lock/Unlock Using The Keyless Entry Keypad
Test L: Doors Do Not Lock/Unlock Using The Keyless Entry Keypad

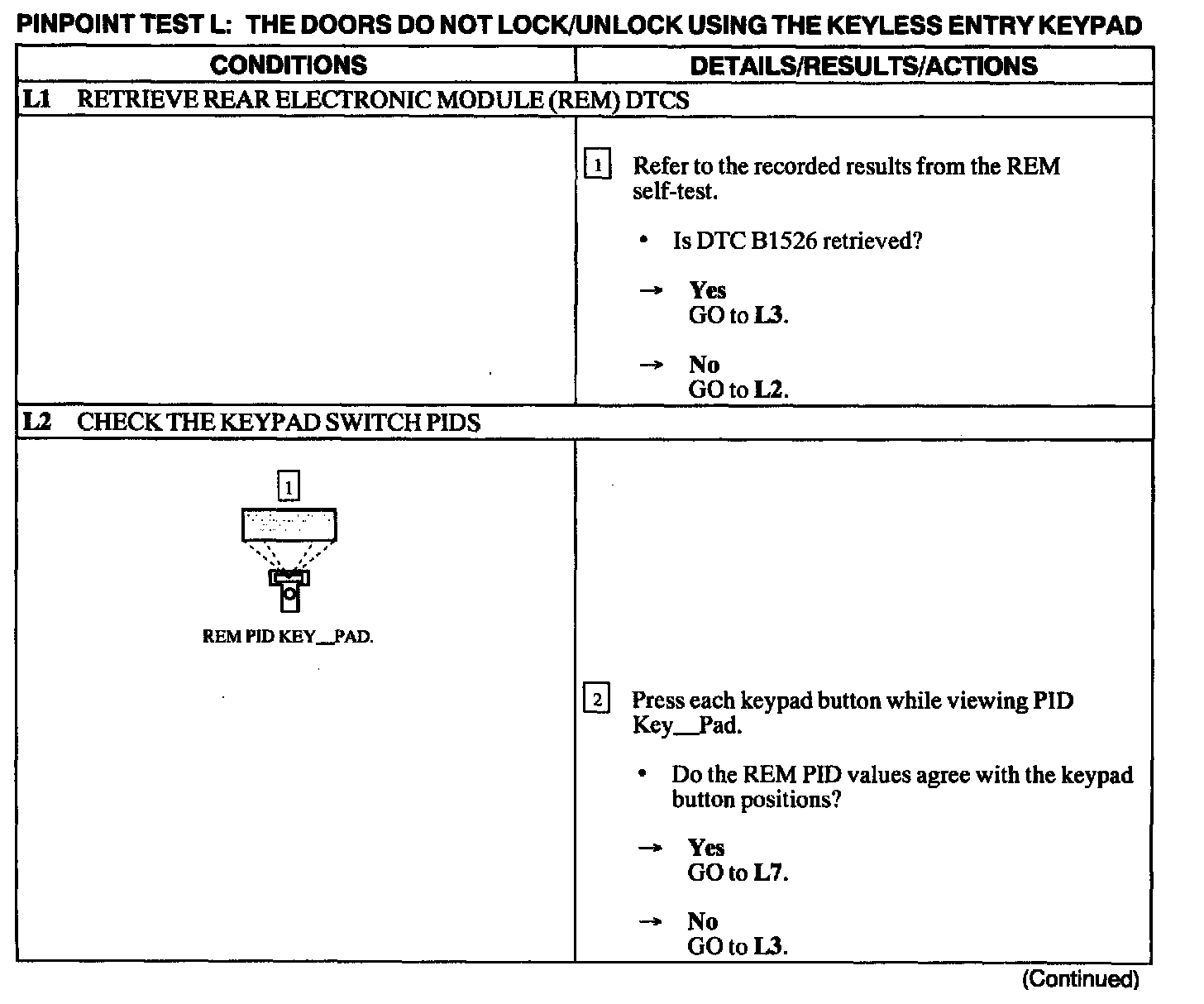

L1 - L2:

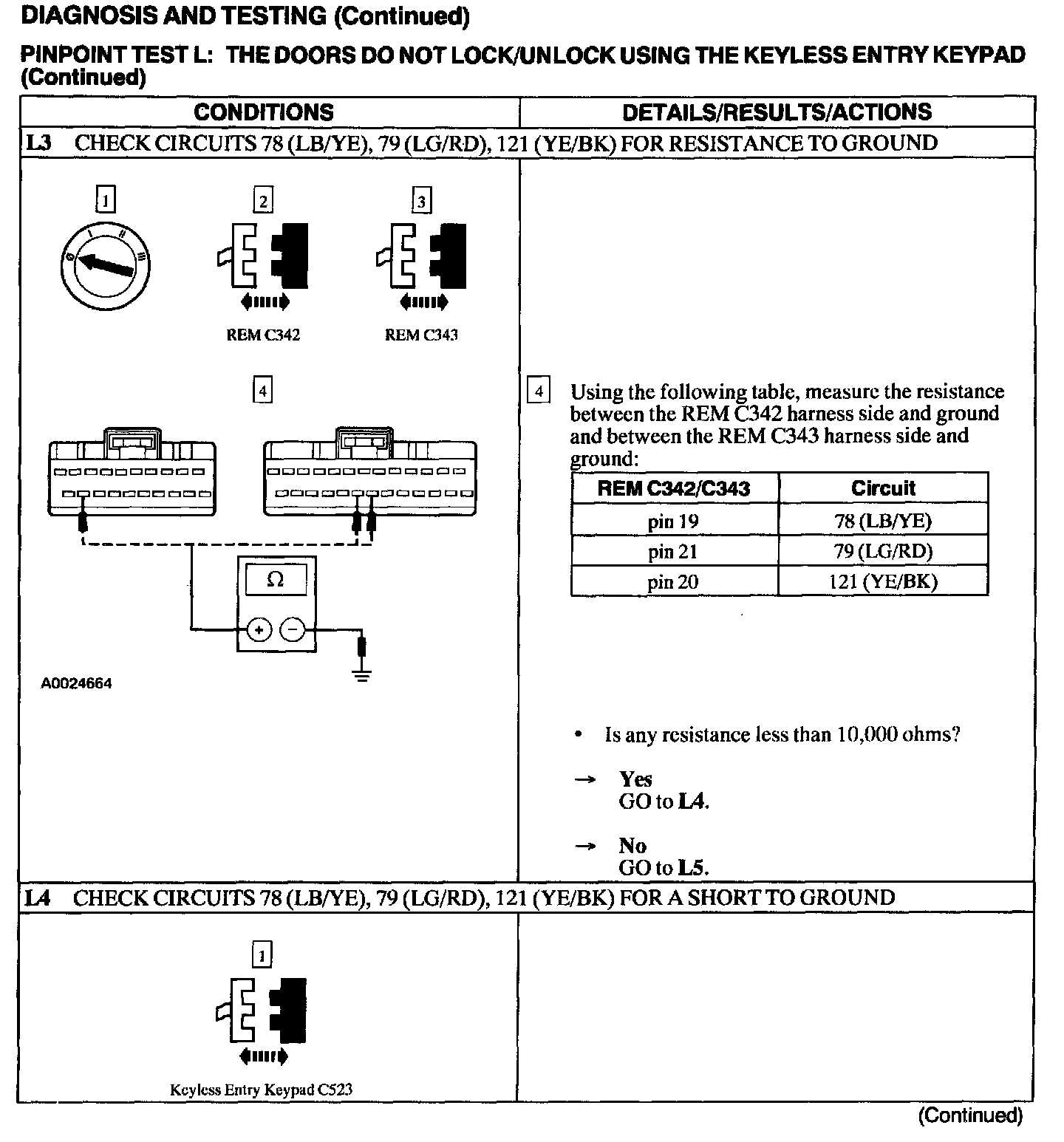

L3 - L4:

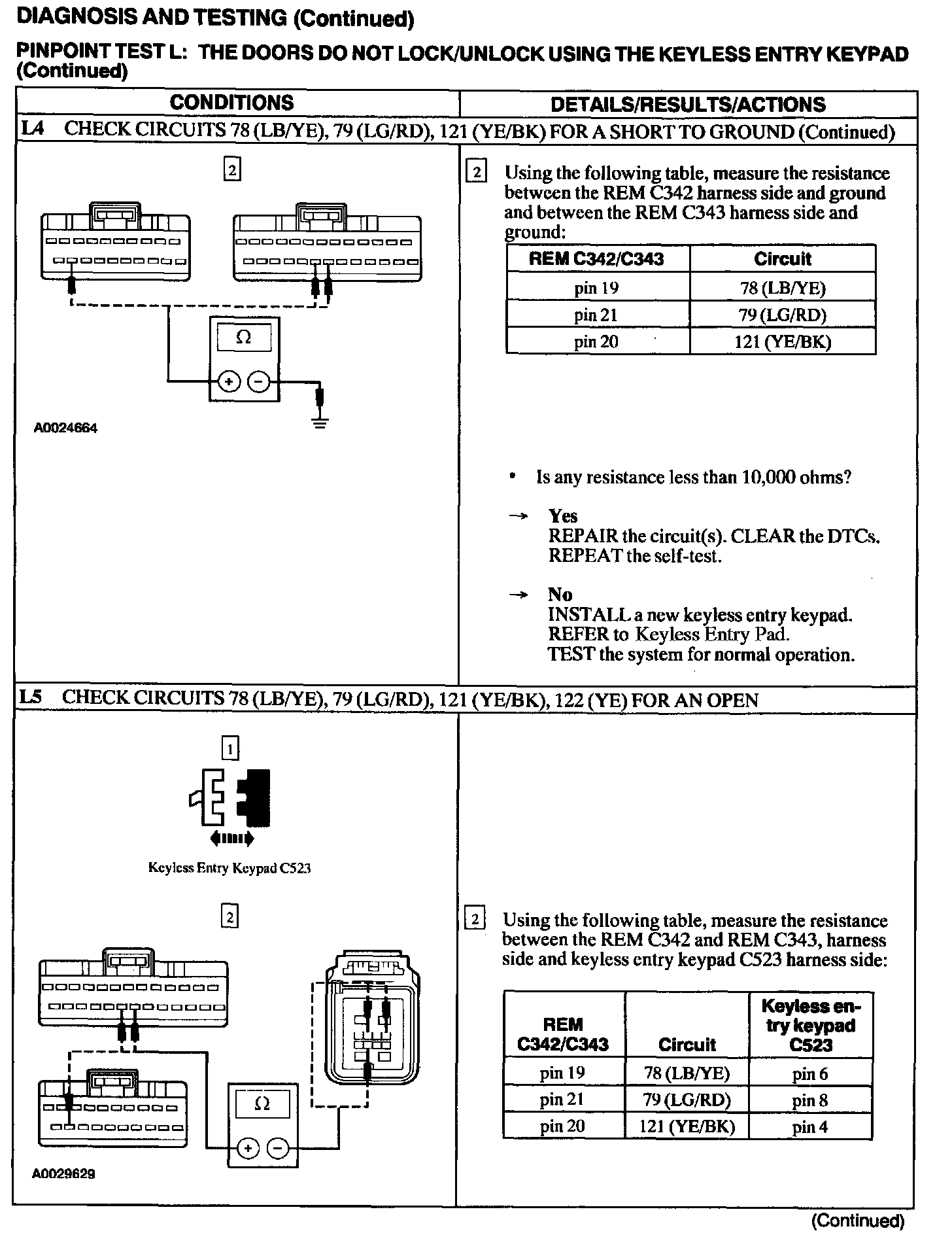

L4 - L5:

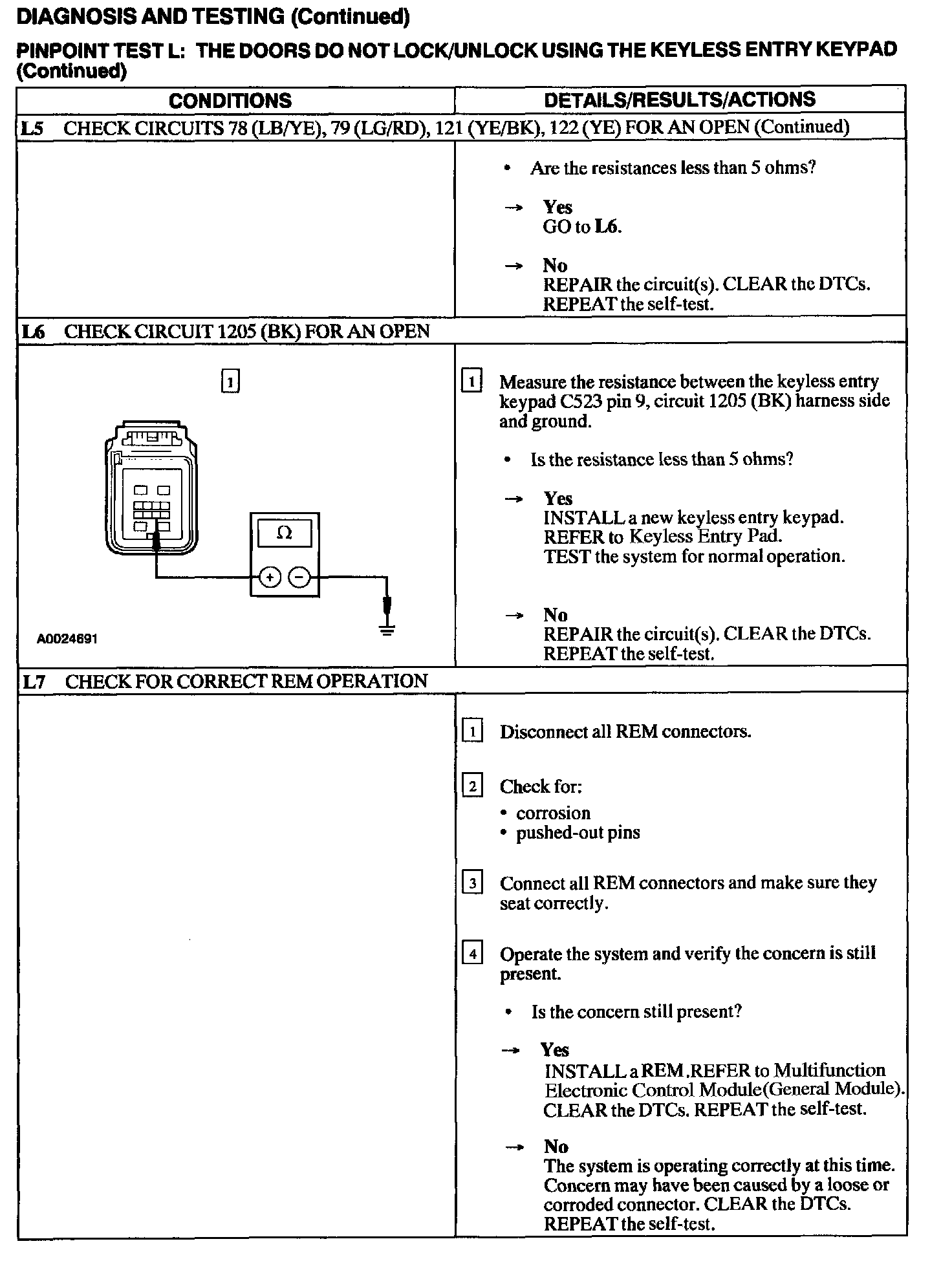

L5 - L7:
