Components

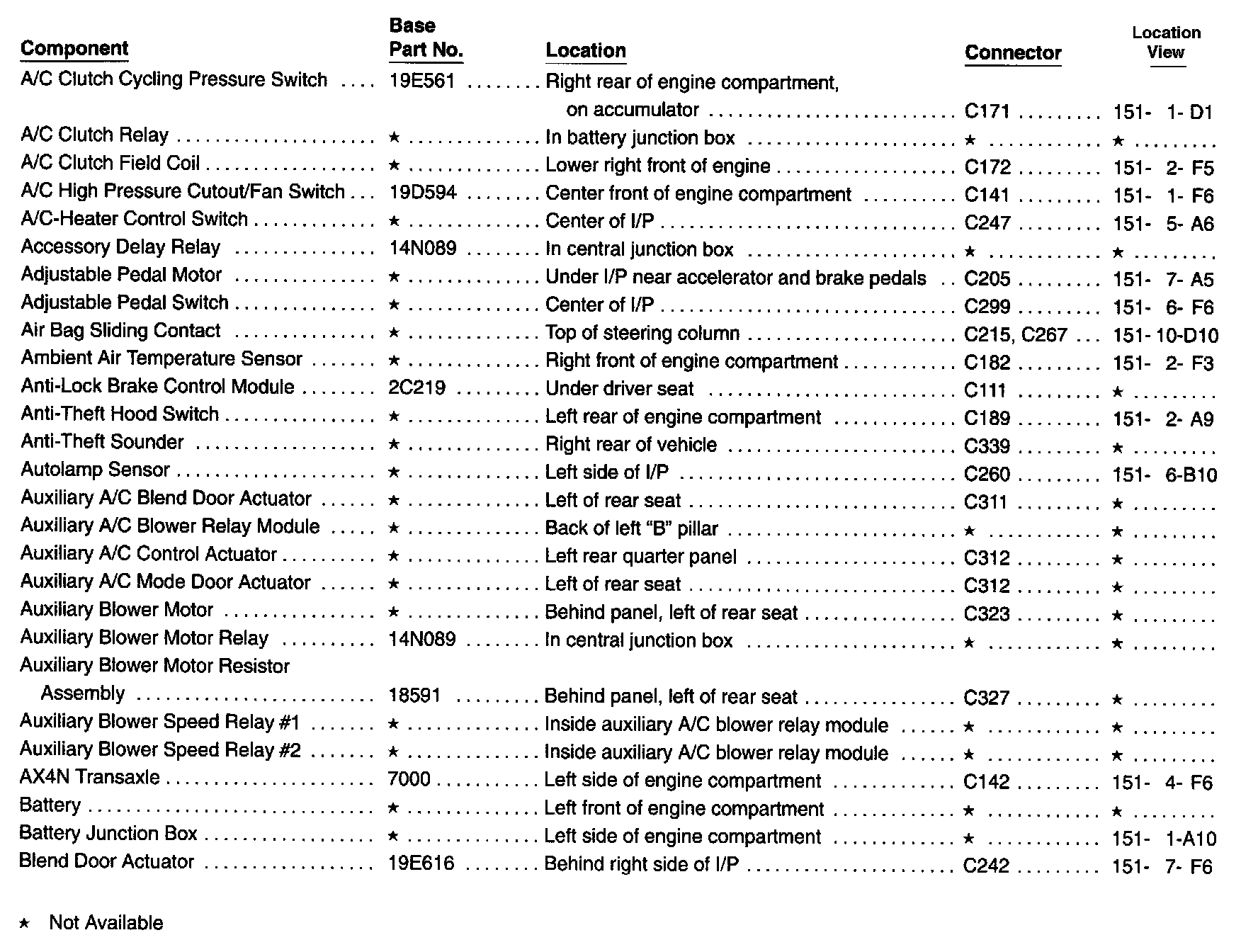

A/C - Bl:
Bl - Dr:

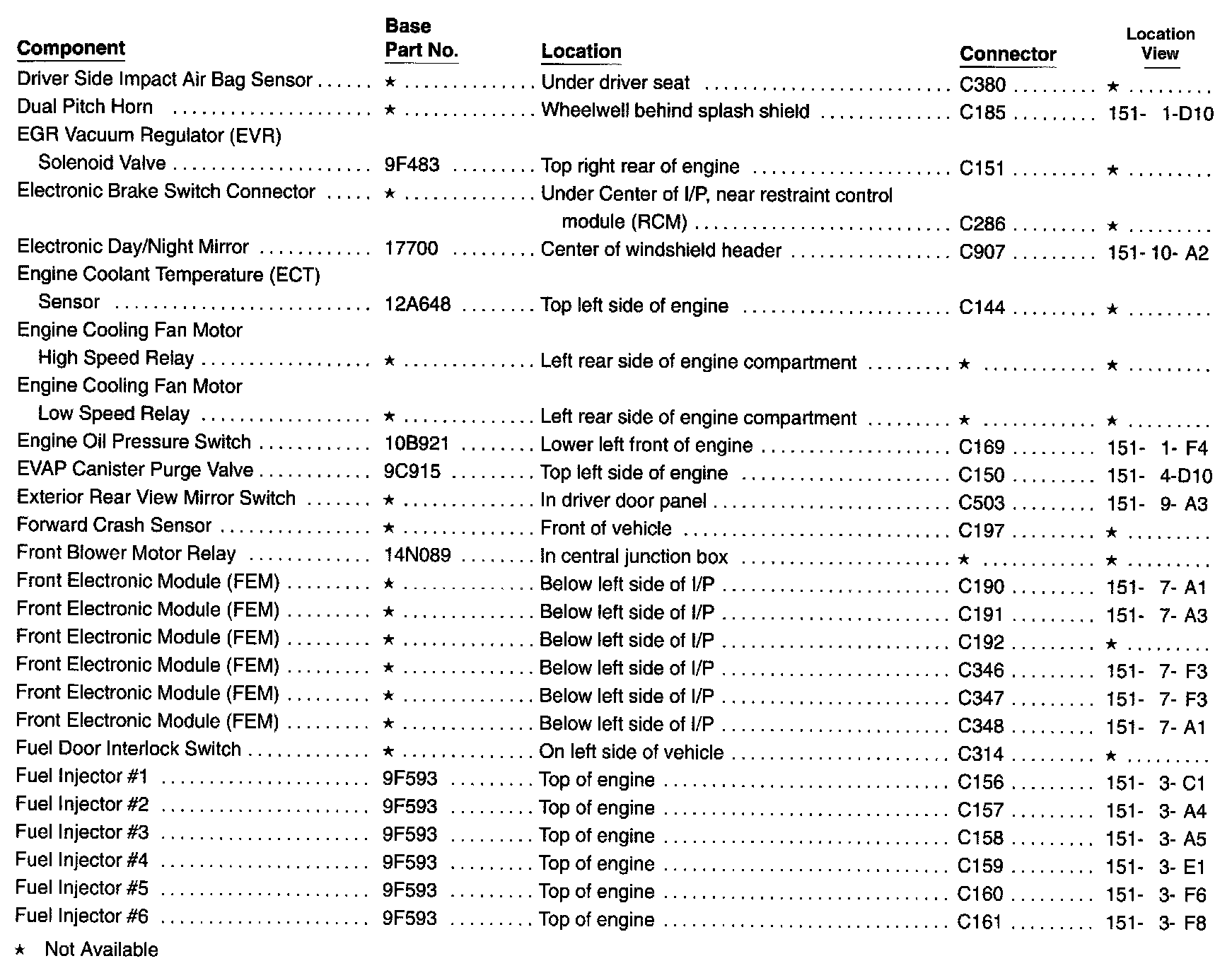

Dr - Fu:
Fu - Le:

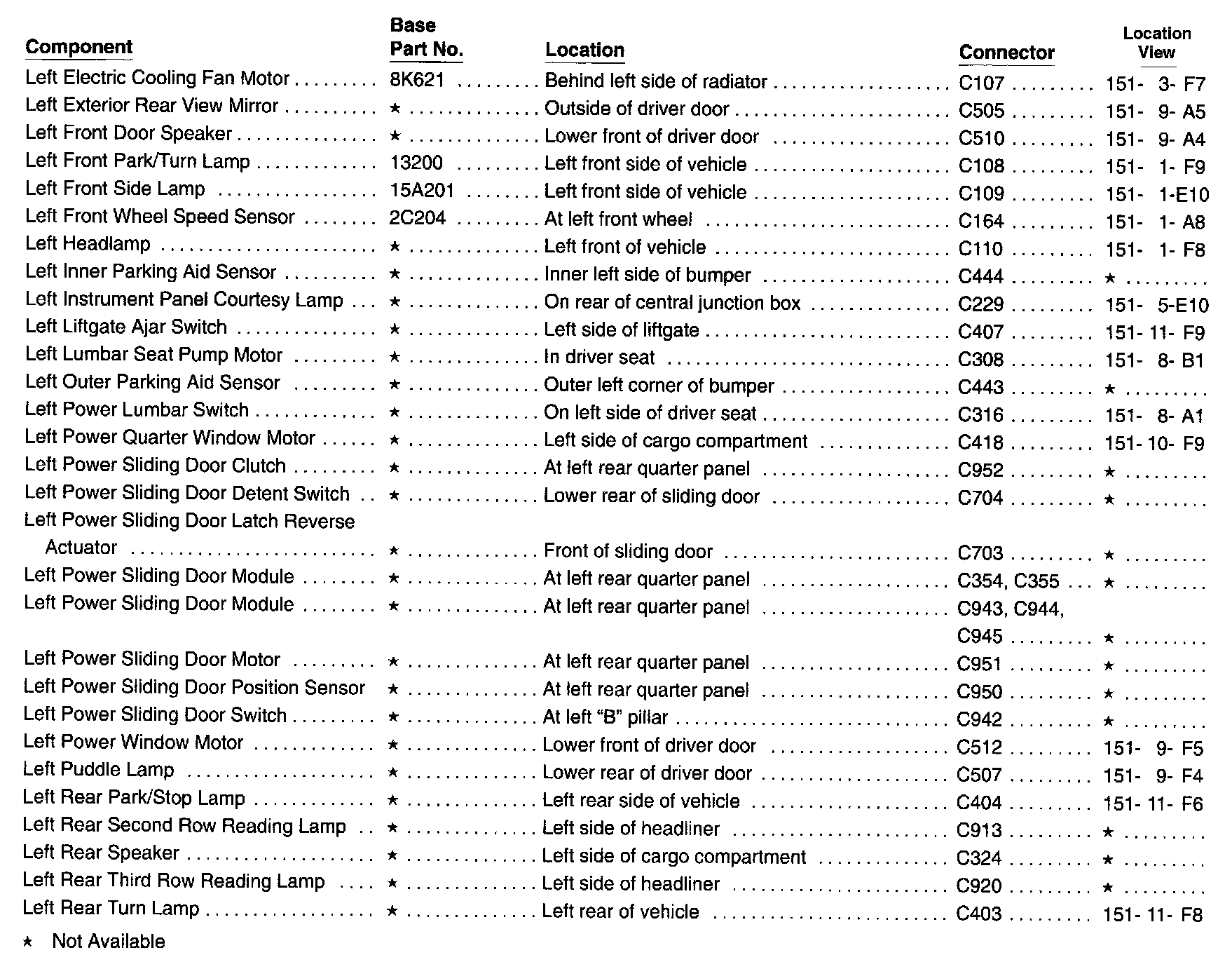

Left Electric - Left Rear:

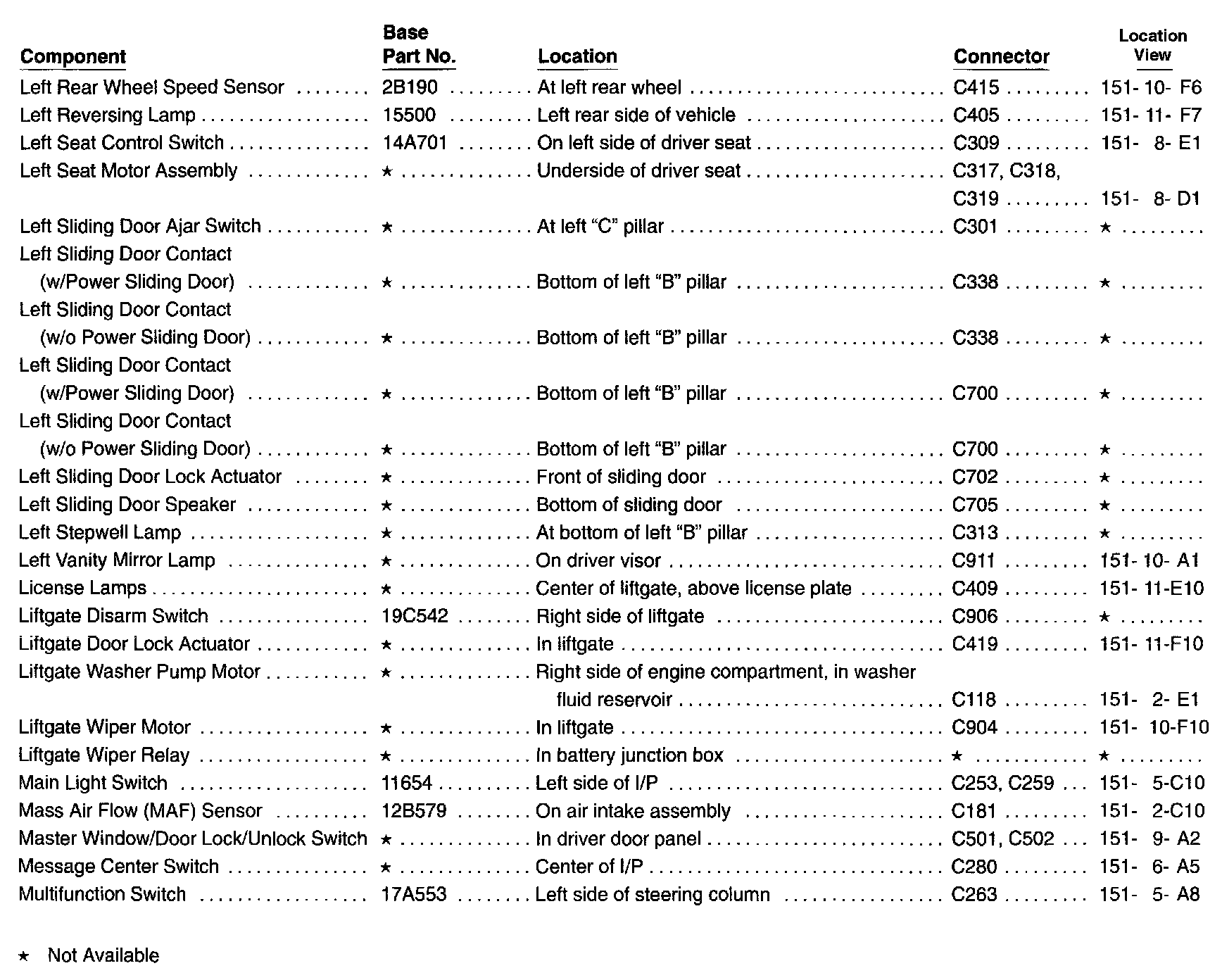

Le - Mu:

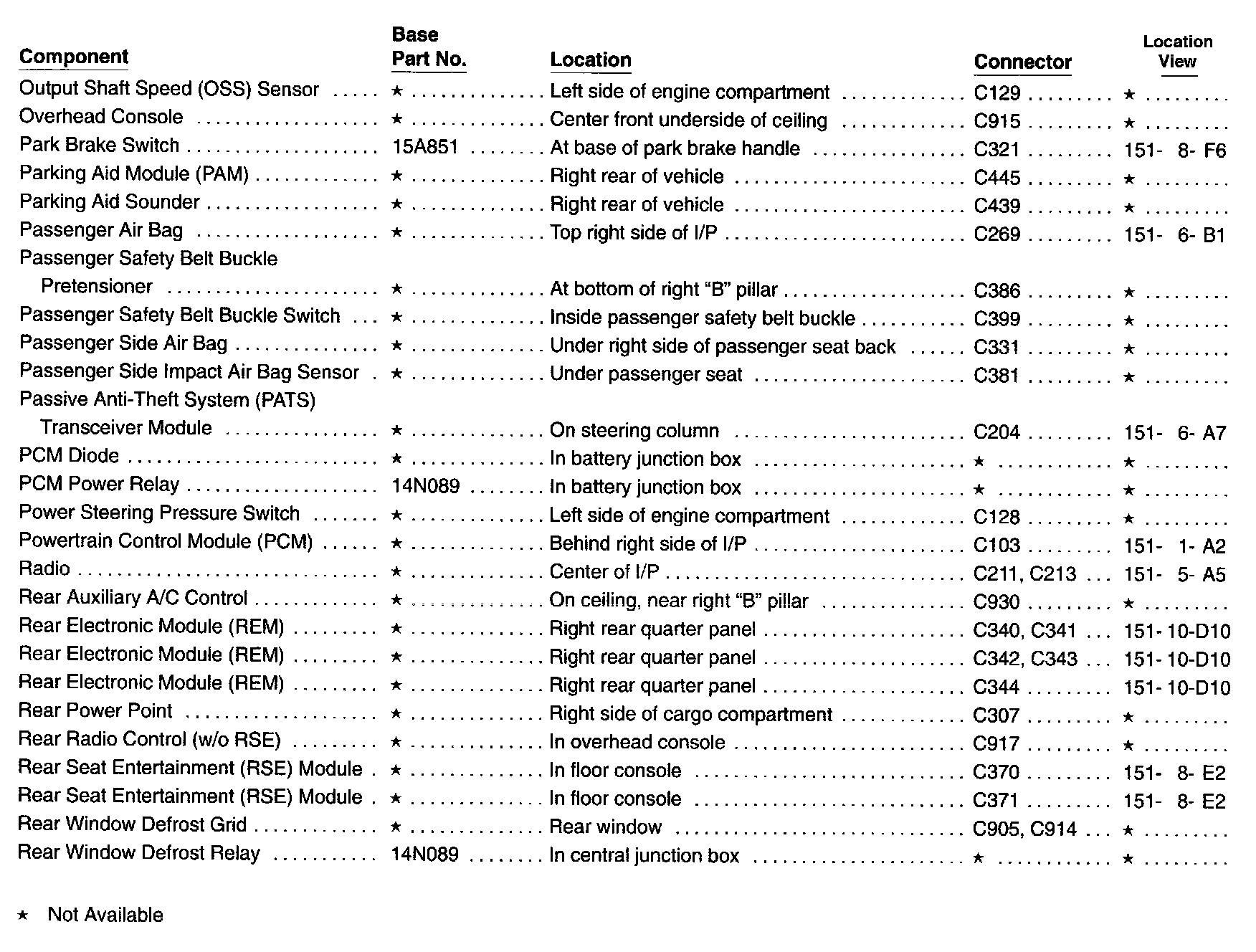

Ou - Re:

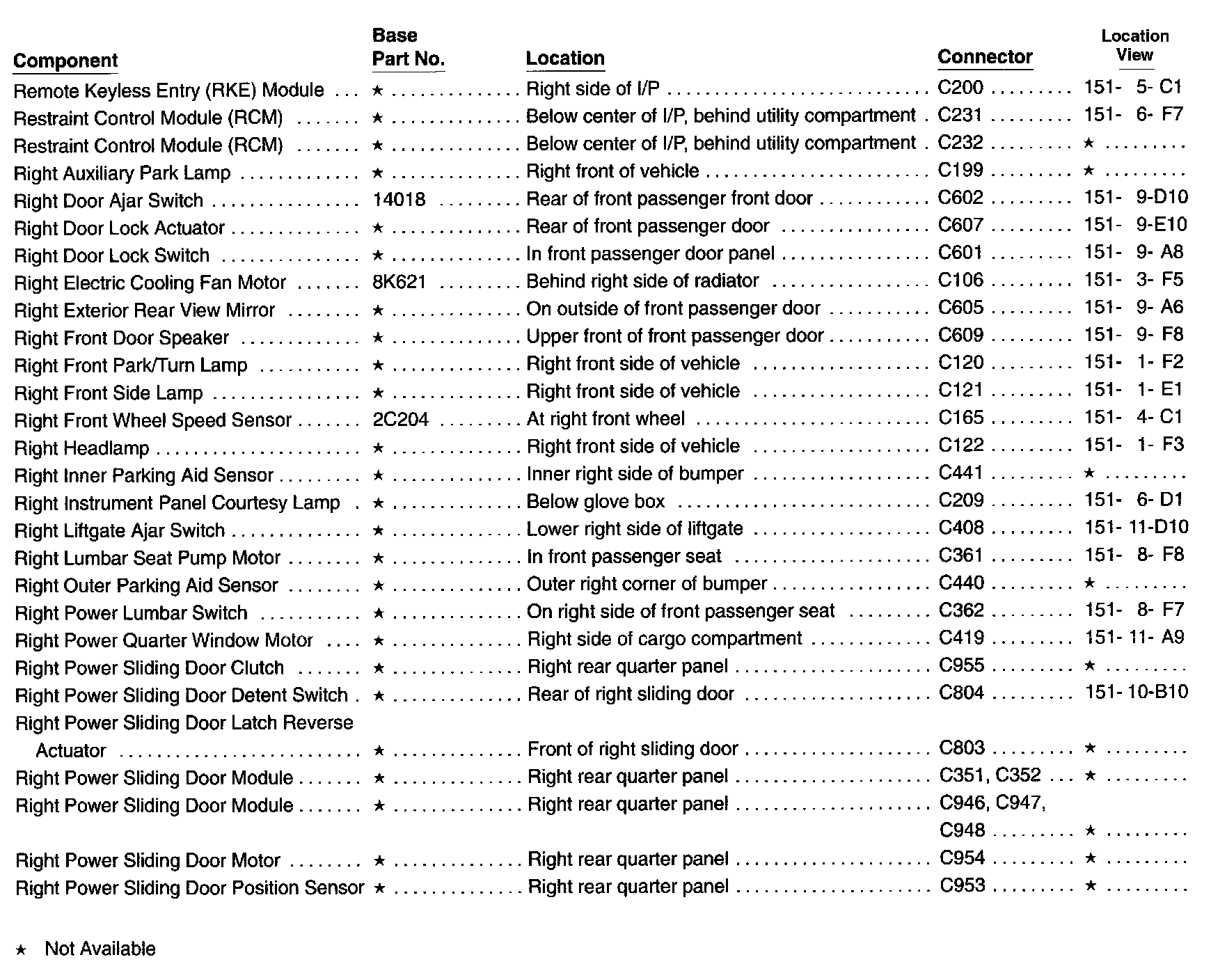

Re - Ri:

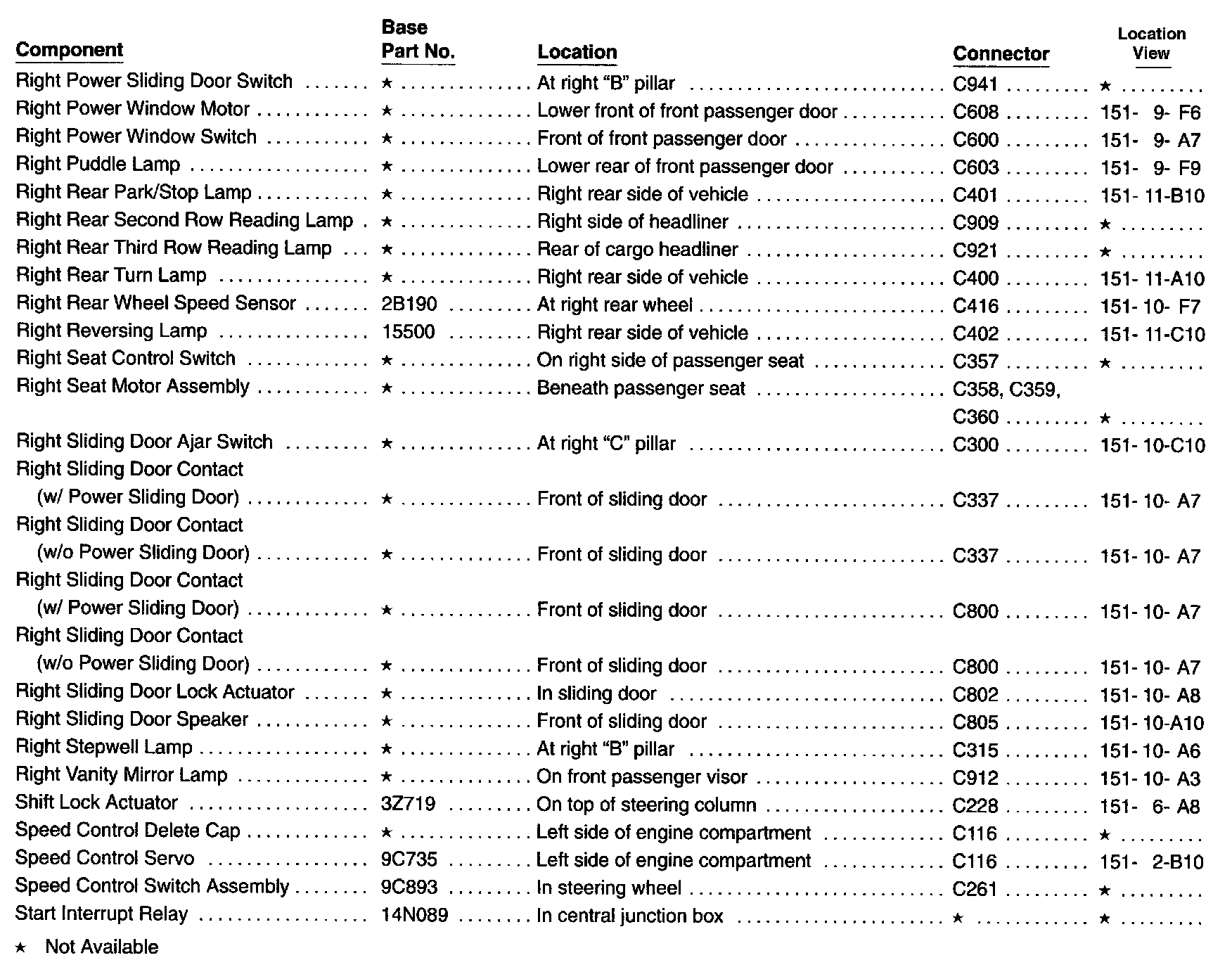

Ri - St:

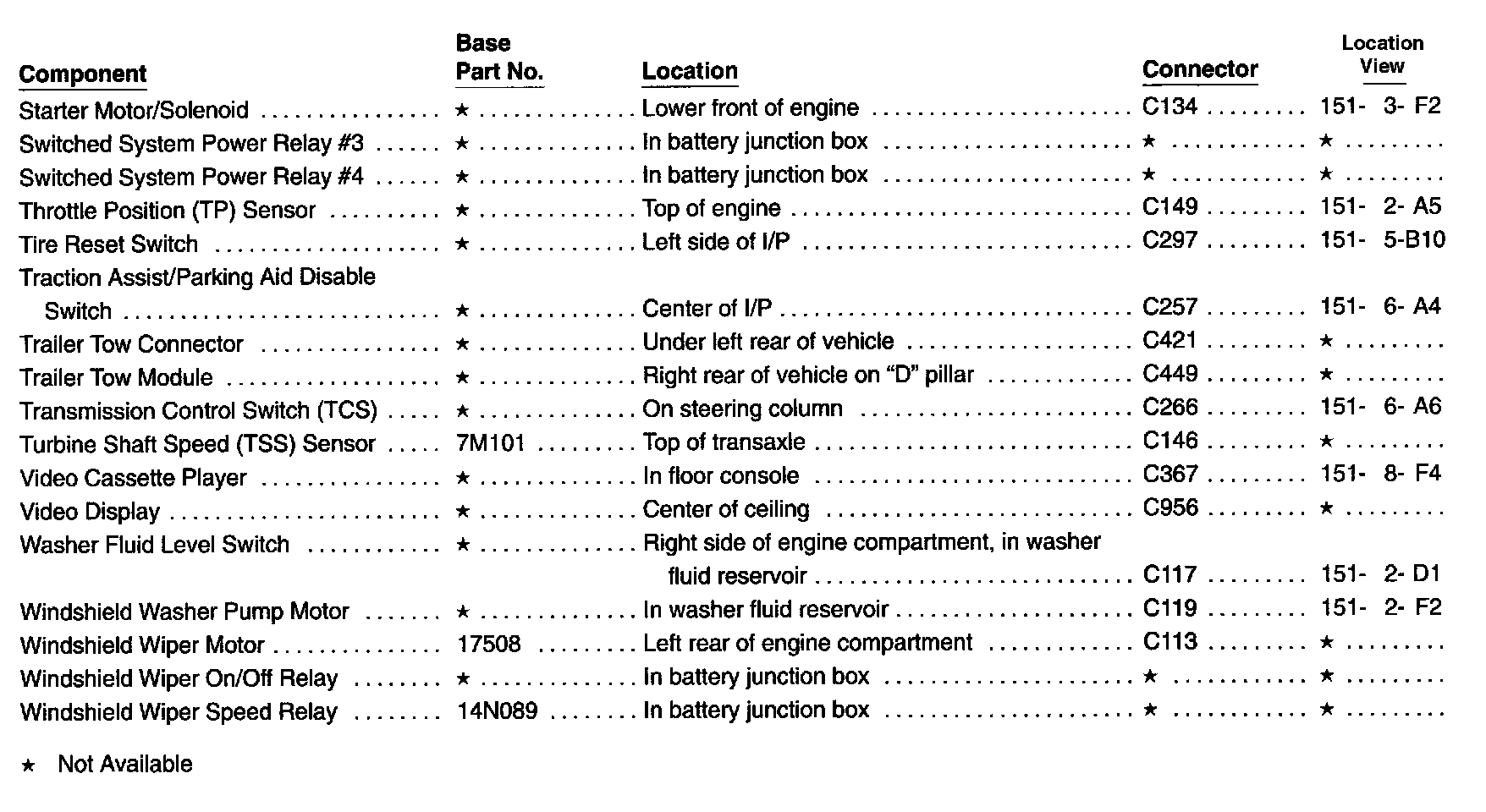

St - Wi:
