Rear Electronic Module

Multifunction Module

Rear Electronic Module

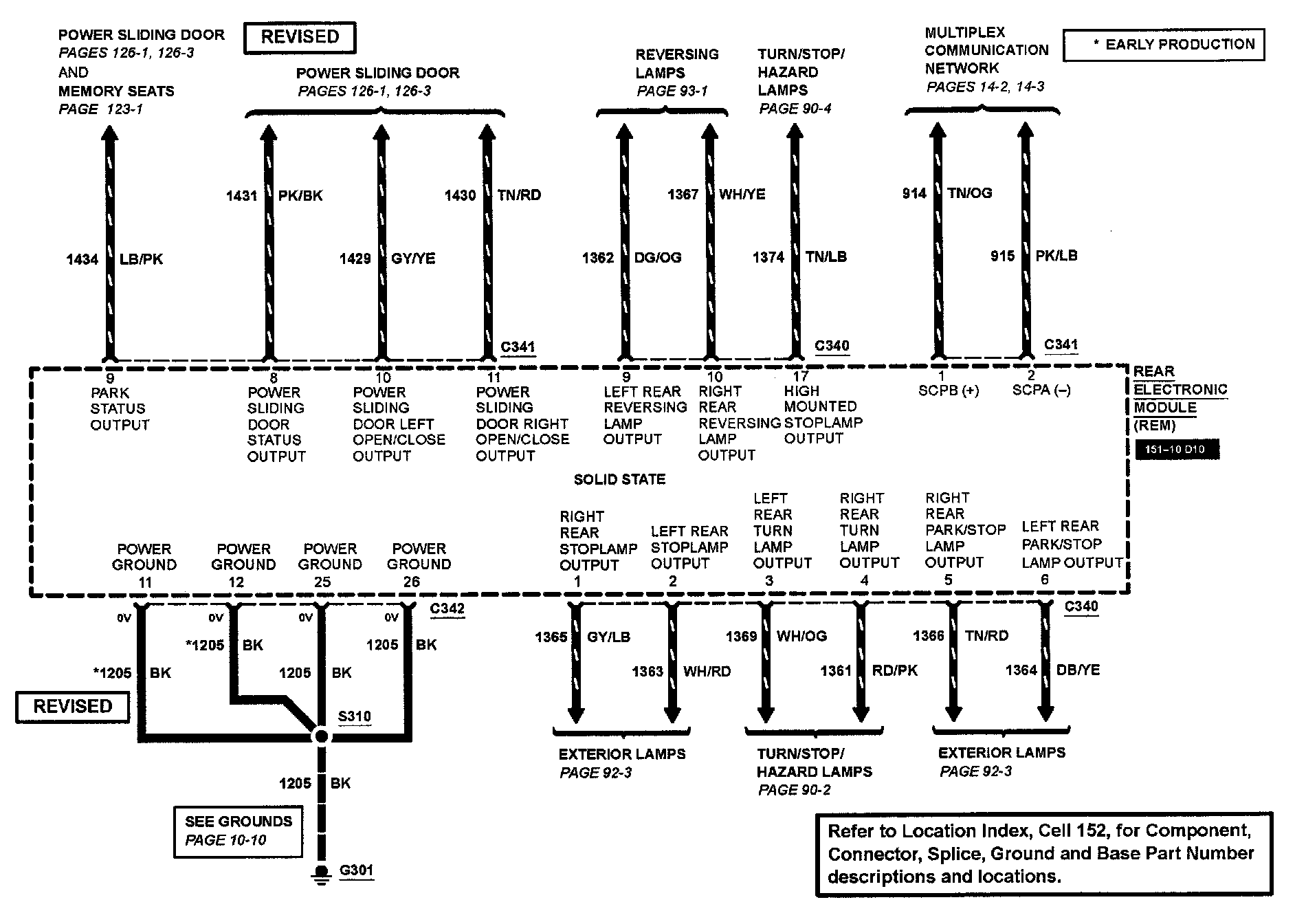

Diagram 59-5:

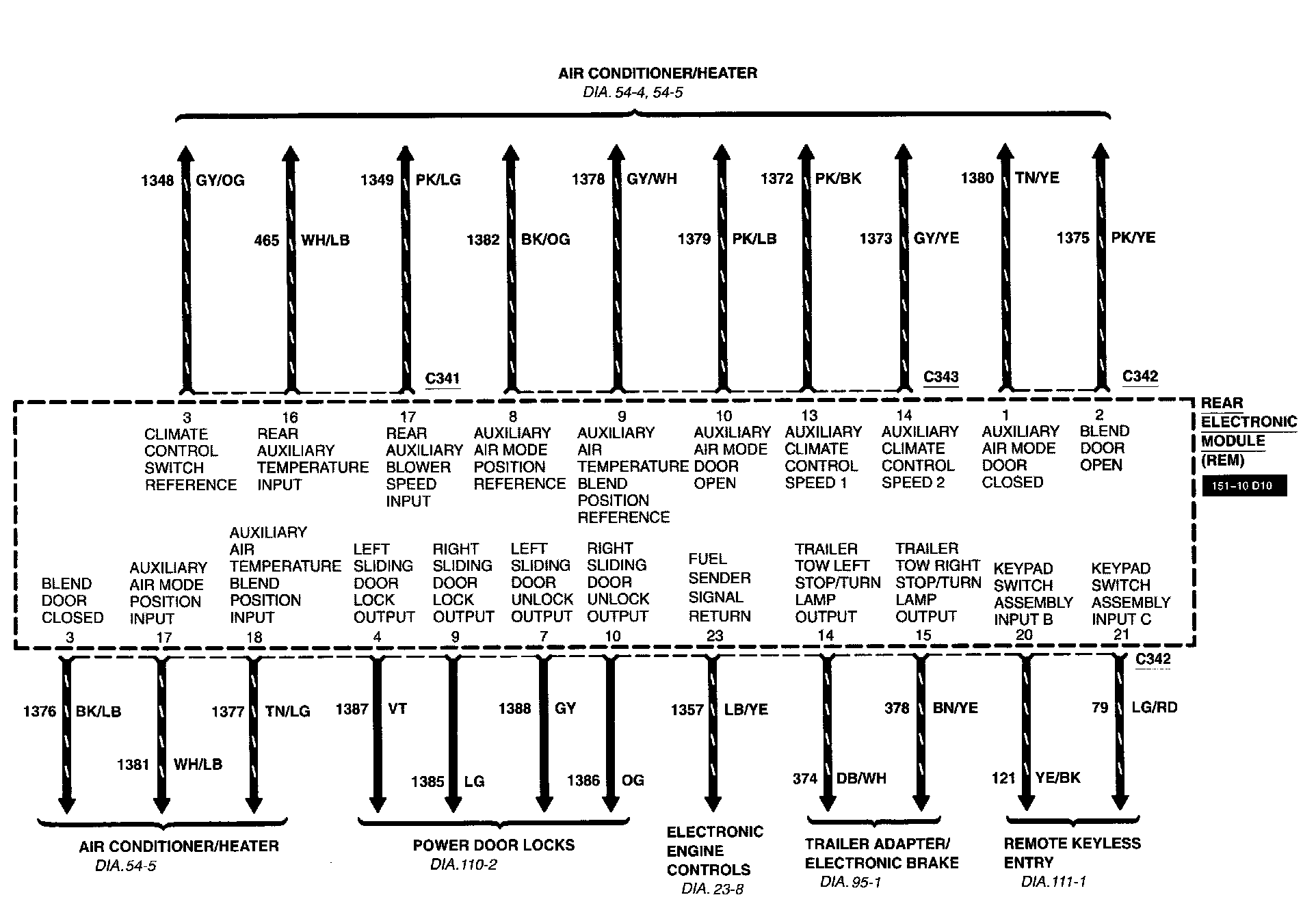

Diagram 59-6:

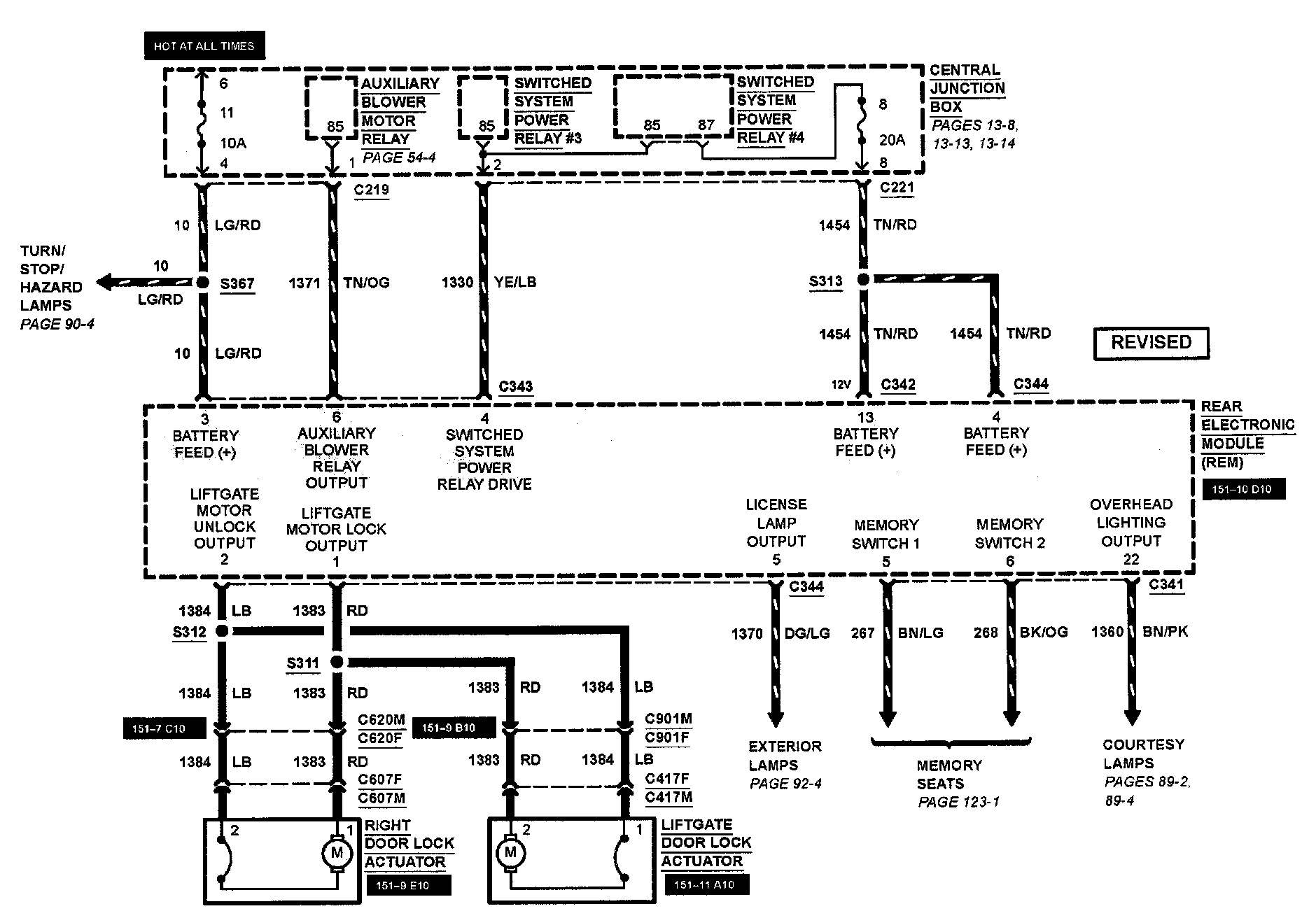

Diagram 59-7:

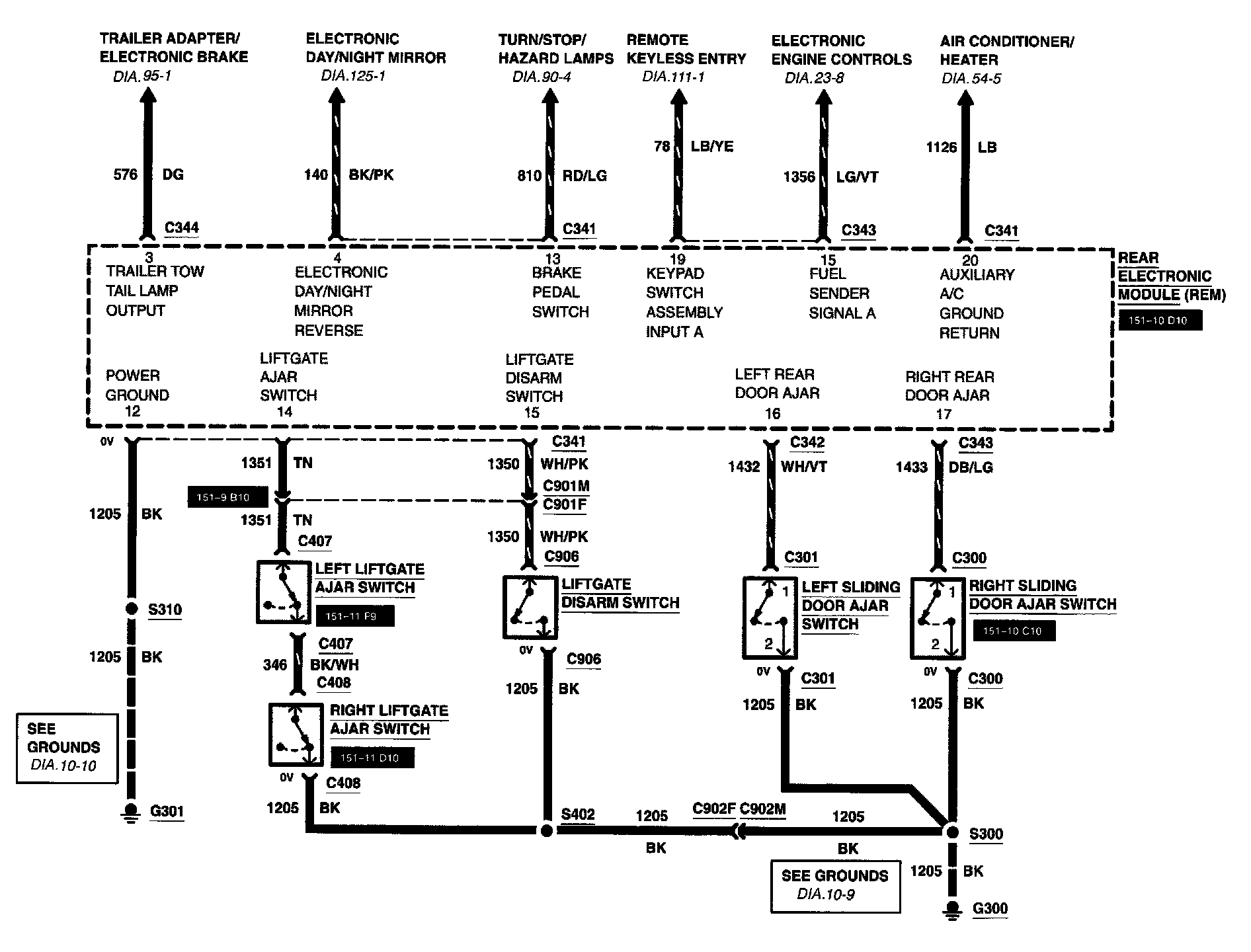

Diagram 59-8:
