Home >> Ford >> 2001 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Locations >> Engine-Upper Components

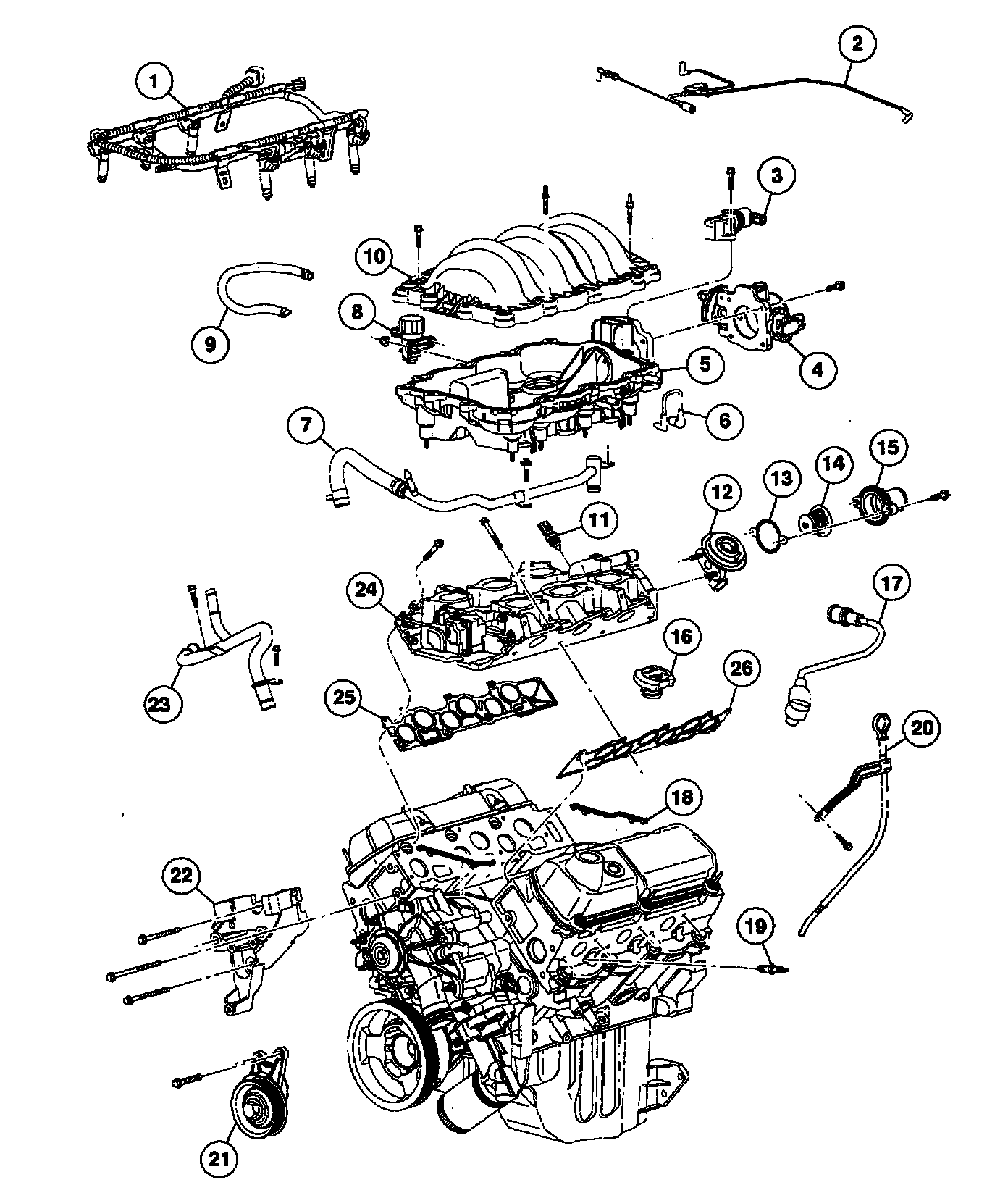

Engine-Upper Components

Engine-Upper Components

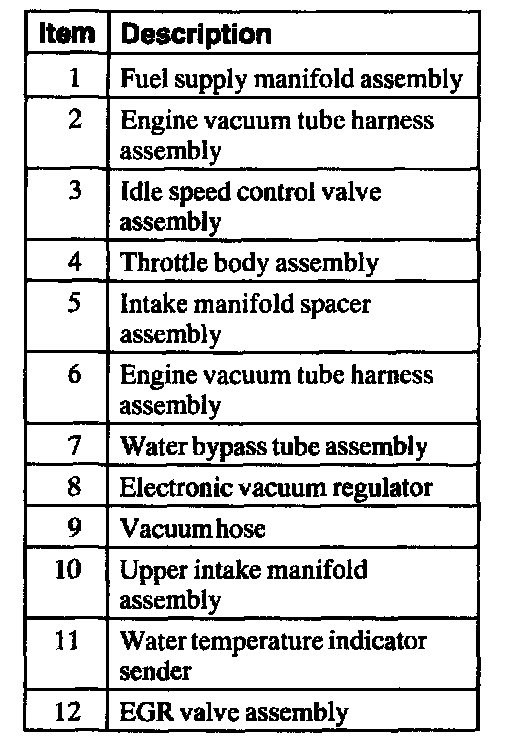

Part 1 of 3

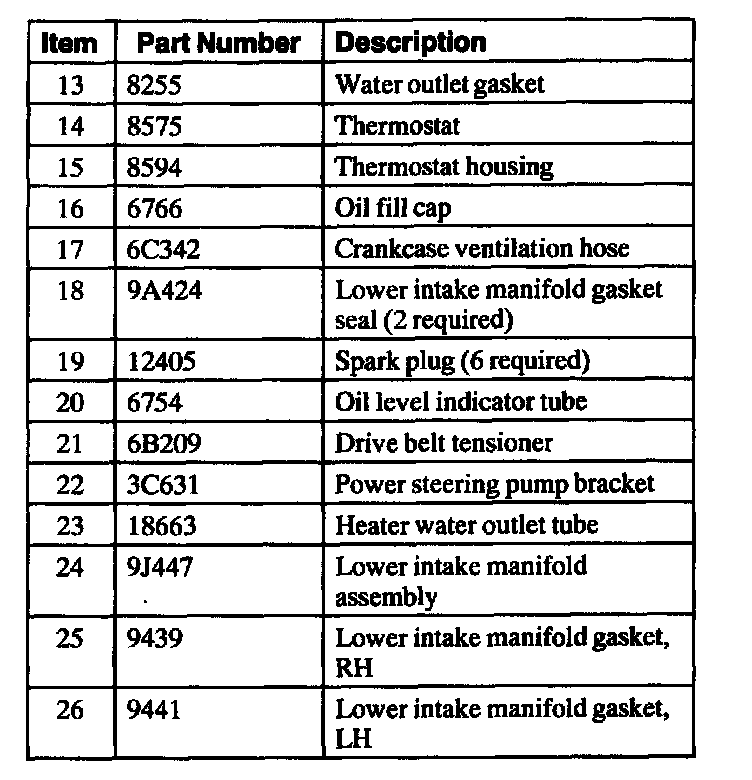

Part 2 of 3





Part 3 of 3
