Compressor Fitting HVAC: Service and Repair

Manifold and Tube Assembly: Main Climate Control

REMOVAL
1. Recover the refrigerant.
2. Raise the vehicle.

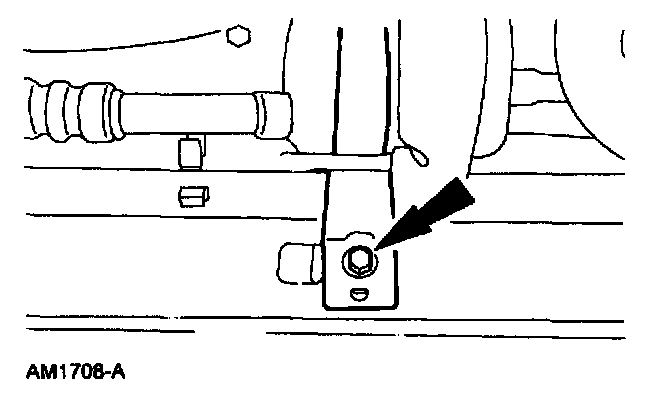

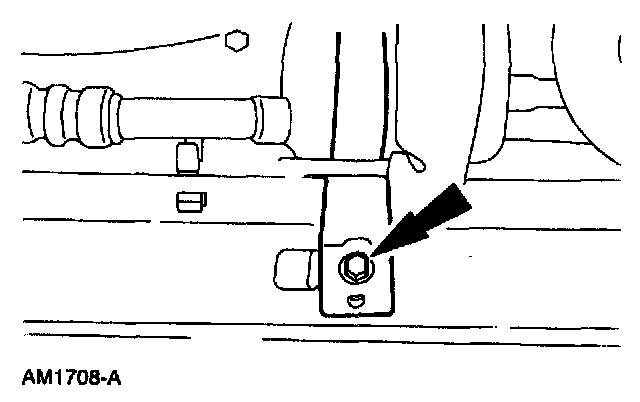

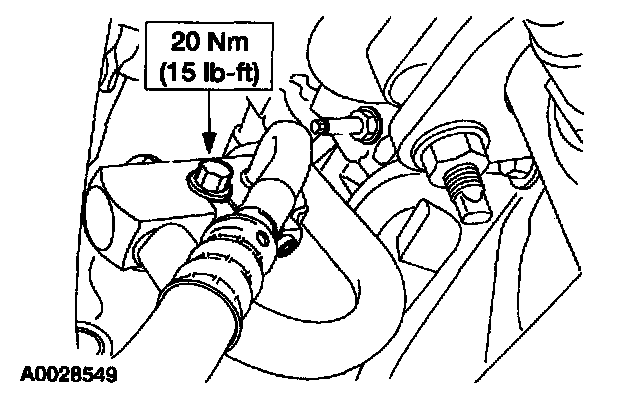

3. Remove the bolt.

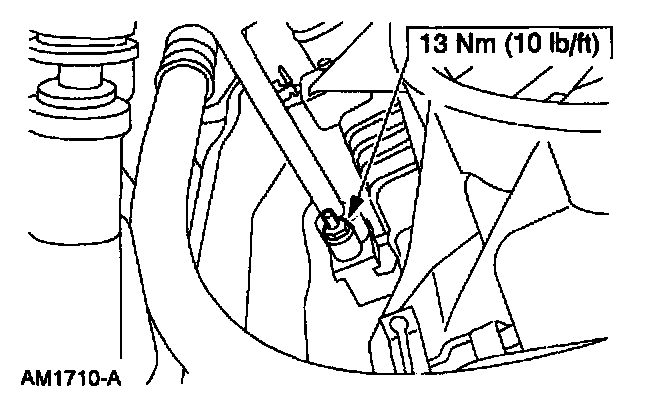

4. Remove the bolt.







5. Disconnect the A/C pressure transducer electrical connector.
6. Raise the vehicle.
7. Disconnect the manifold and tube fitting at the suction accumulator/drier.







8. Remove the retainer from the A/C muffler bracket.
9. Lower the vehicle.







10. Disconnect the A/C condenser core inlet line.
^ Disconnect the peanut fitting.







11. Remove the A/C pressure transducer, if necessary.

INSTALLATION
1. To install, reverse the removal procedure.
^ Lubricate the O-ring seals with PAG oil or equivalent.
