A/C Pressure Sensor

Air Conditioning (A/C) Pressure Transducer: Main Climate Control

REMOVAL







1. Disconnect the electrical connector.

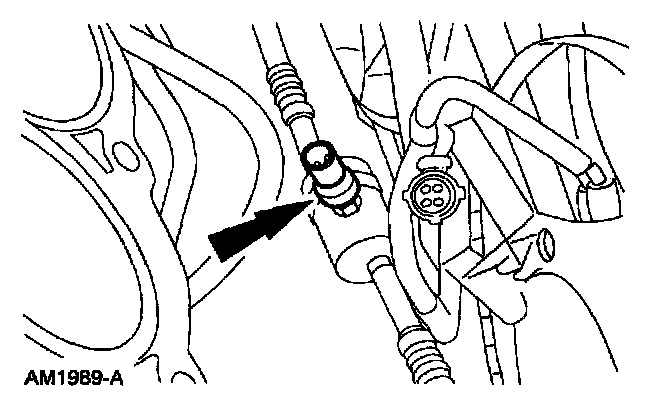

2. Remove the A/C pressure transducer.

INSTALLATION
1. To install, reverse the removal procedure.
^ Lubricate the O-ring seal with PAG Compressor Oil (R-134a Systems) or equivalent.
