Connector Locations

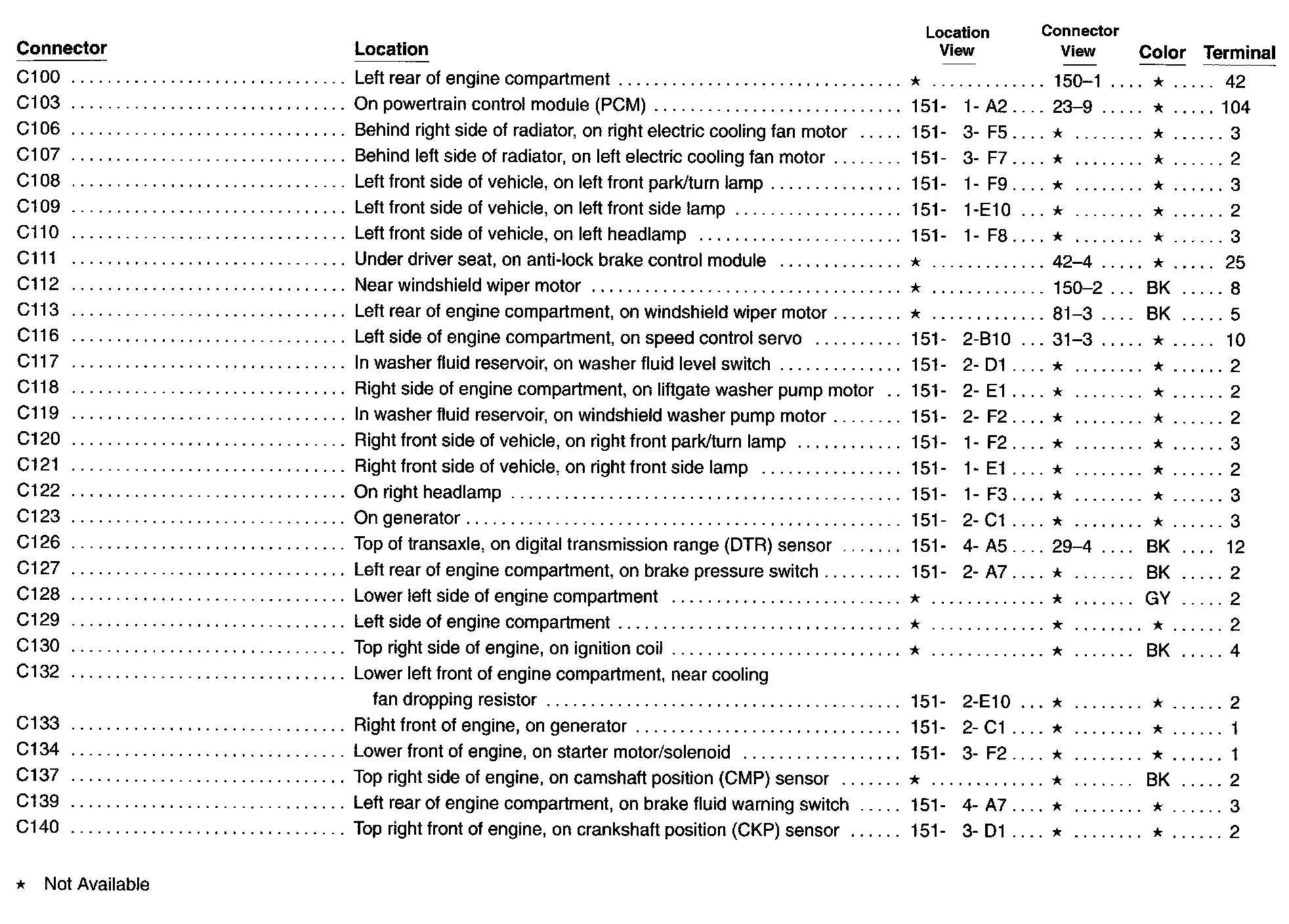

C100 - C140:

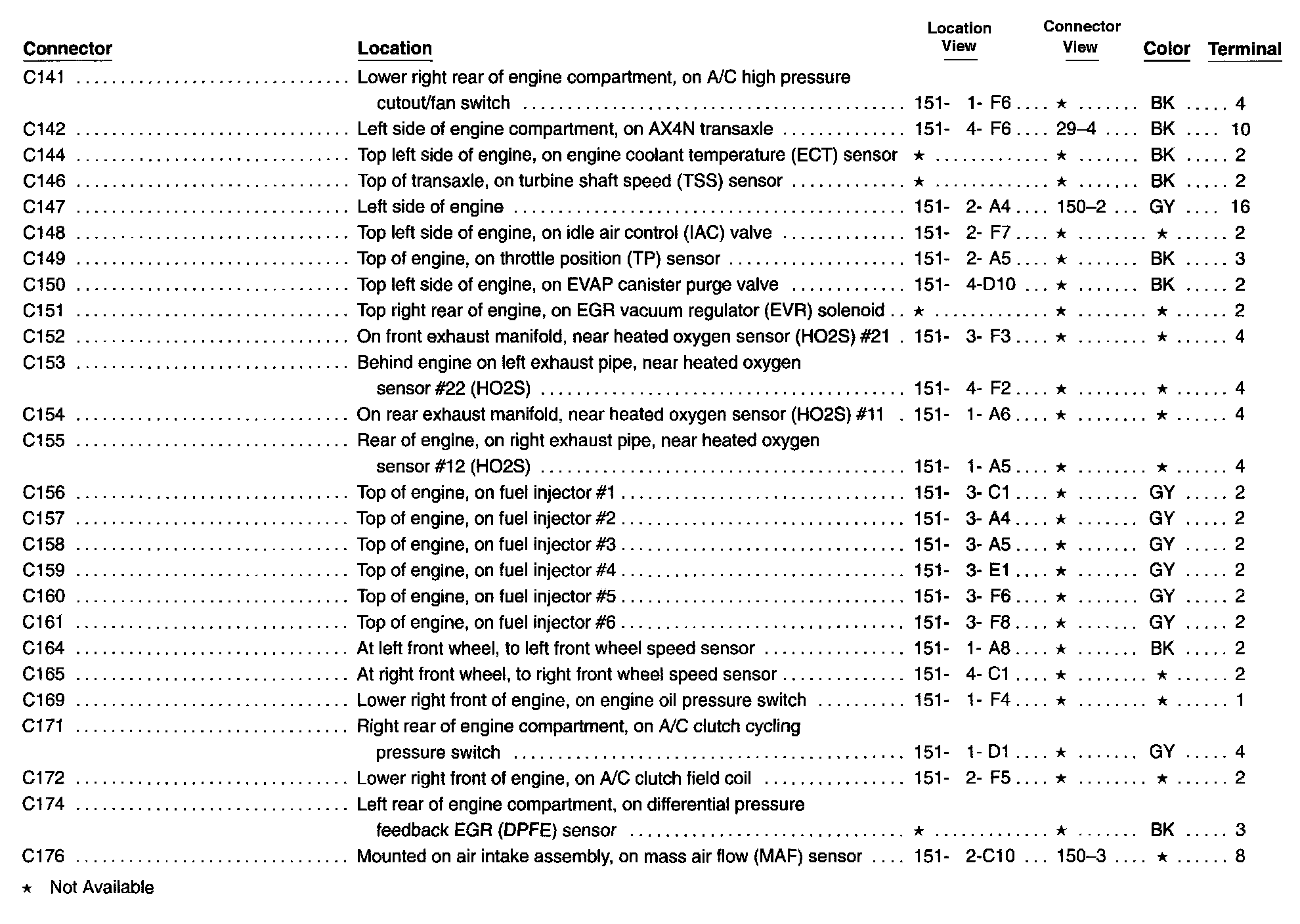

C141 - C176:

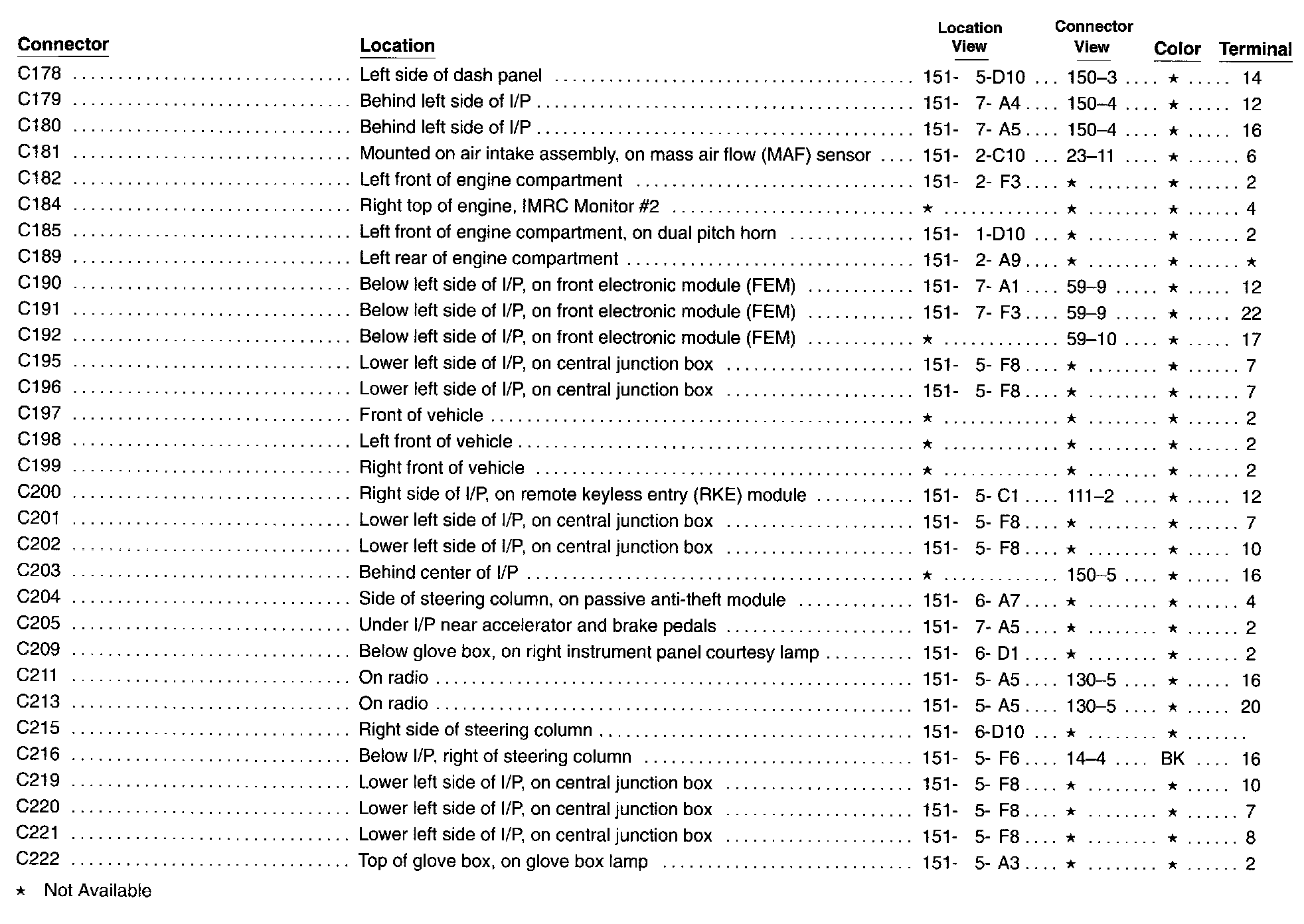

C178 - C222:

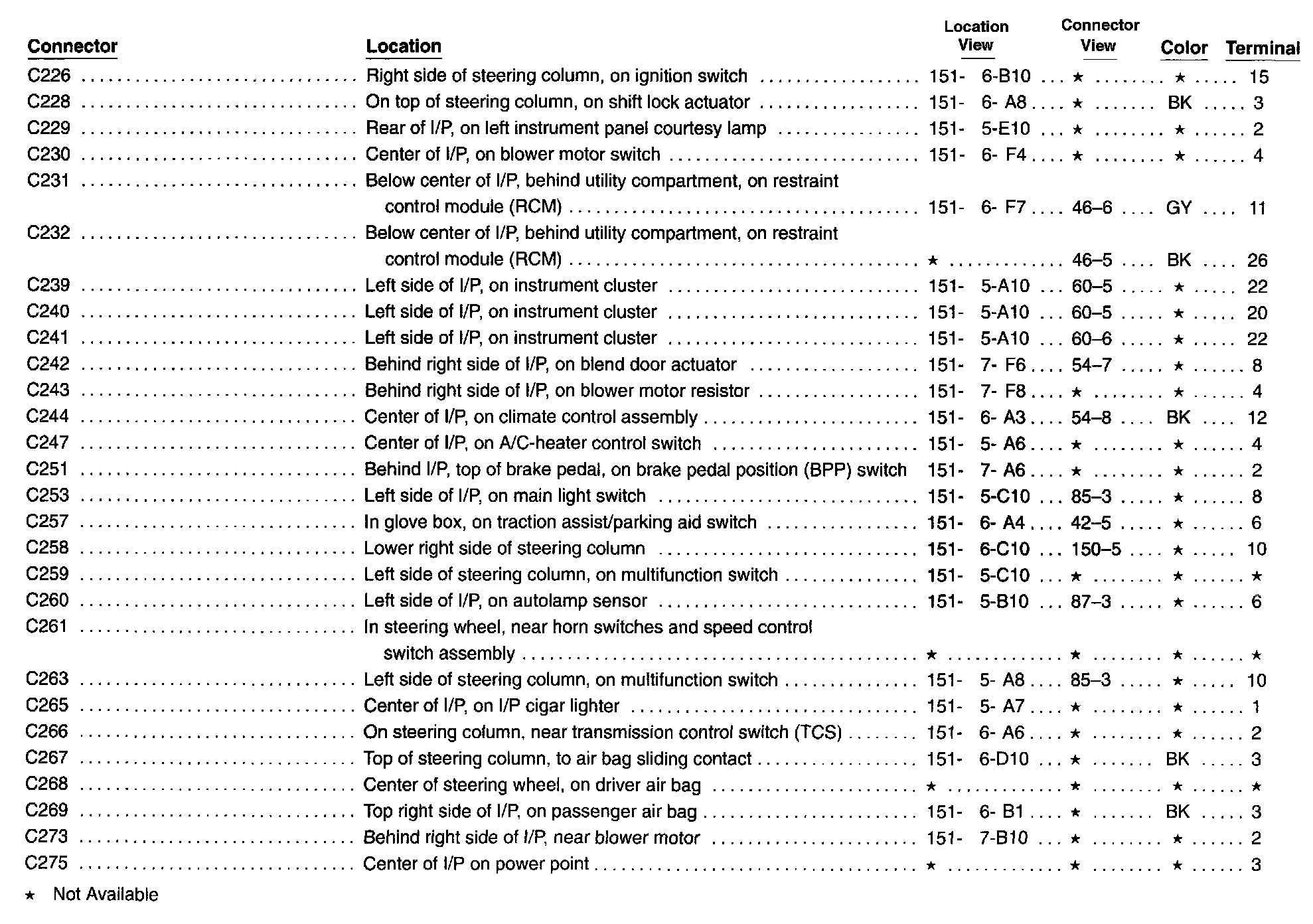

C226 - C275:

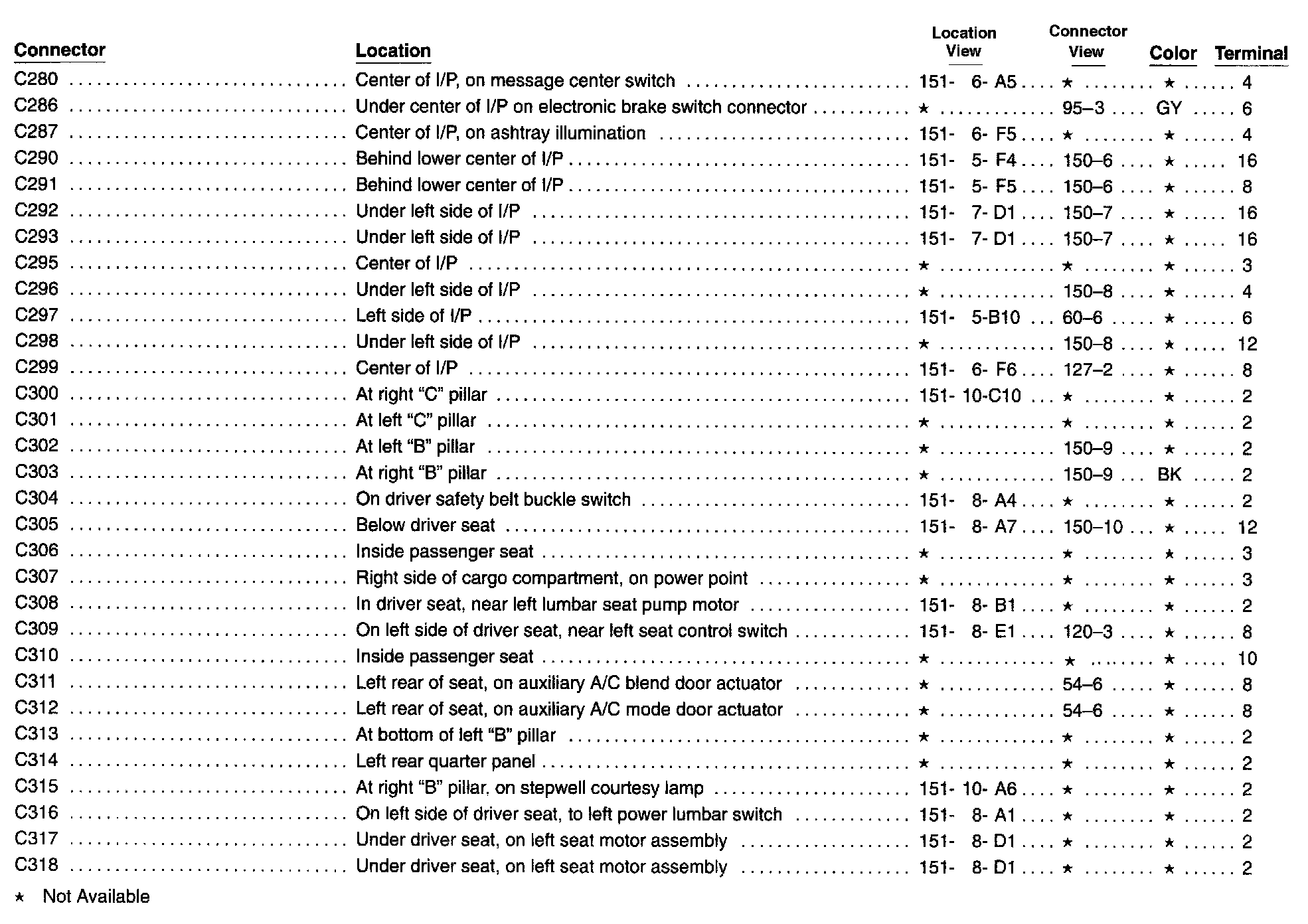

C280 - C318:

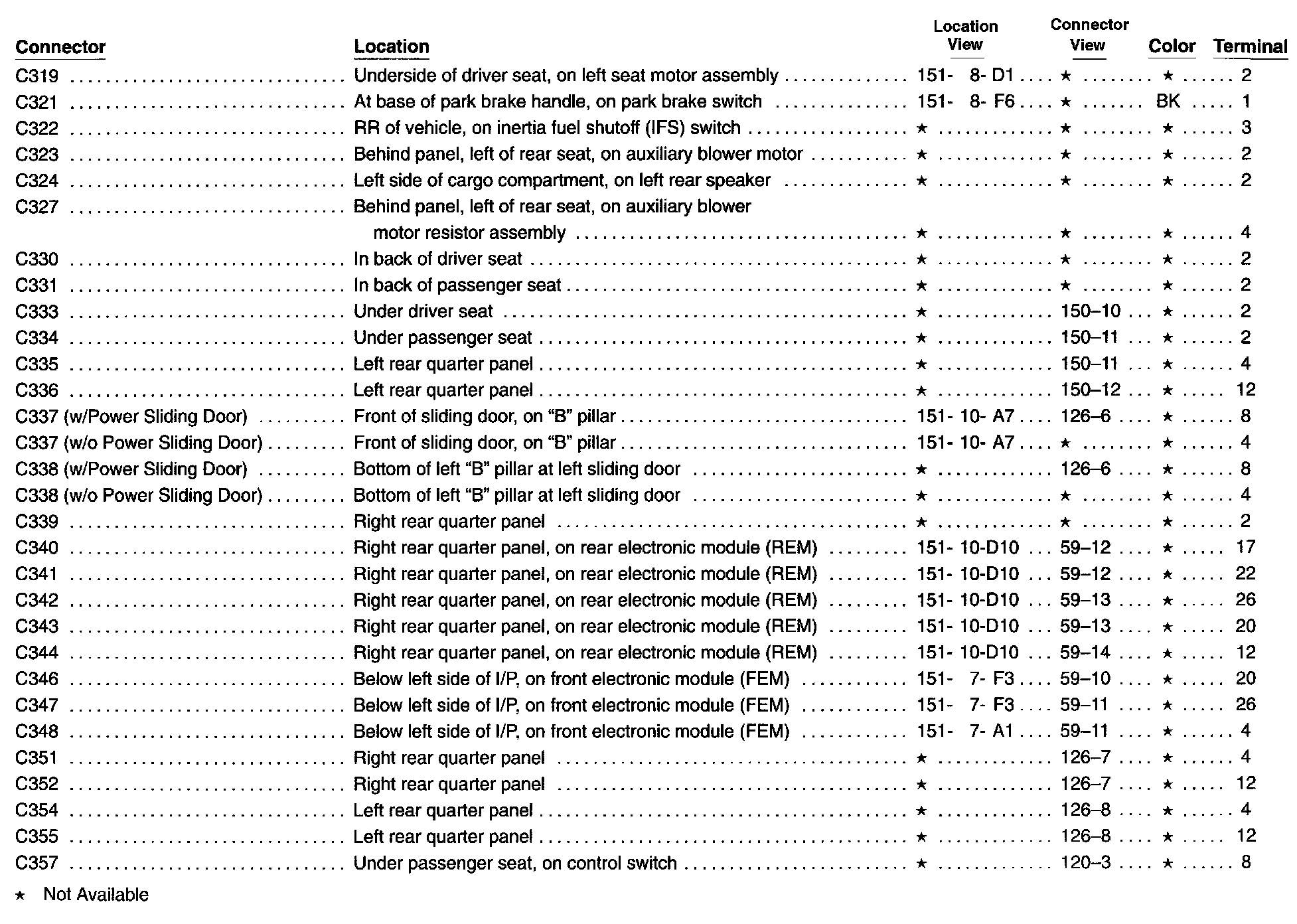

C319 - C357:

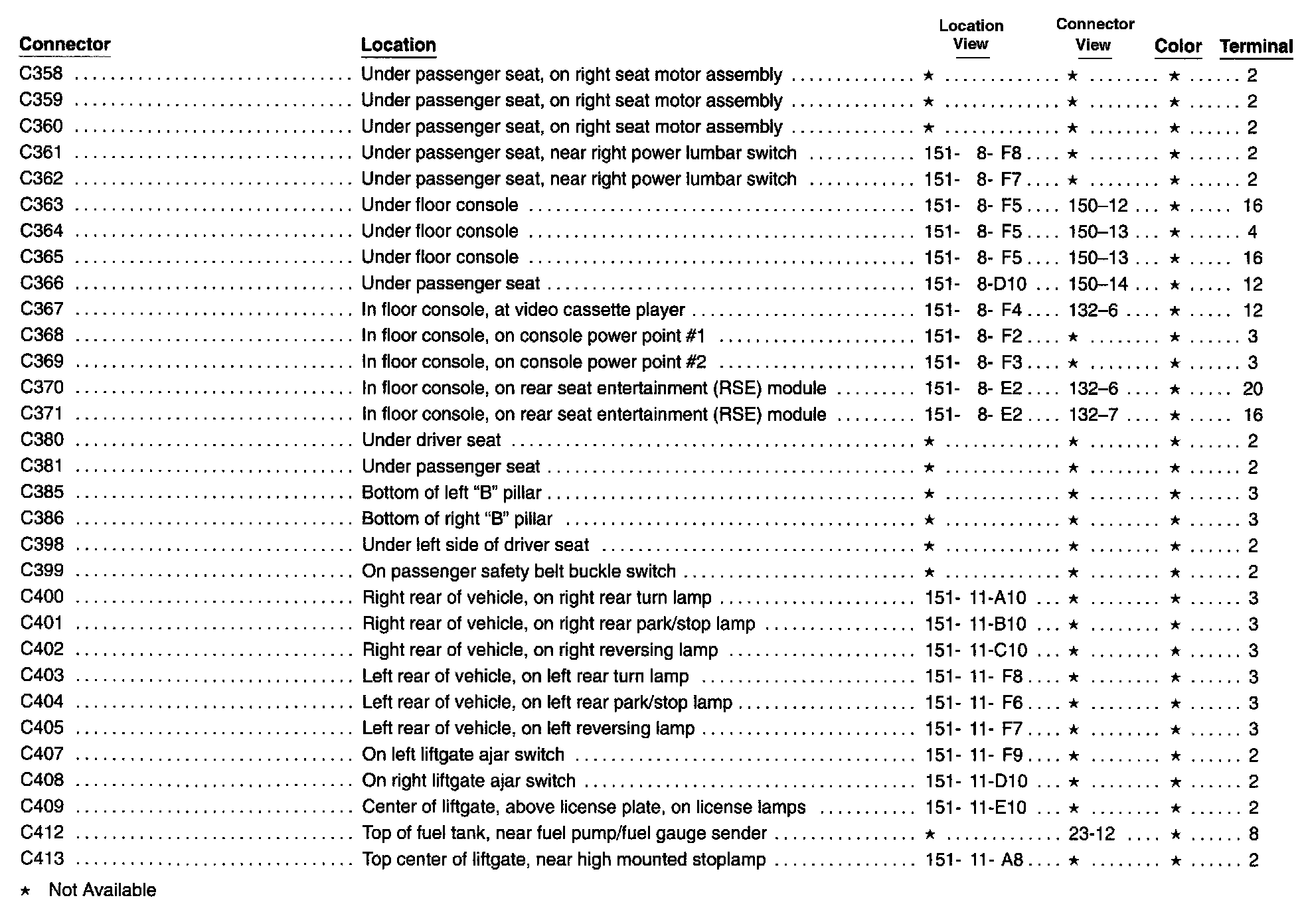

C358 - C413:

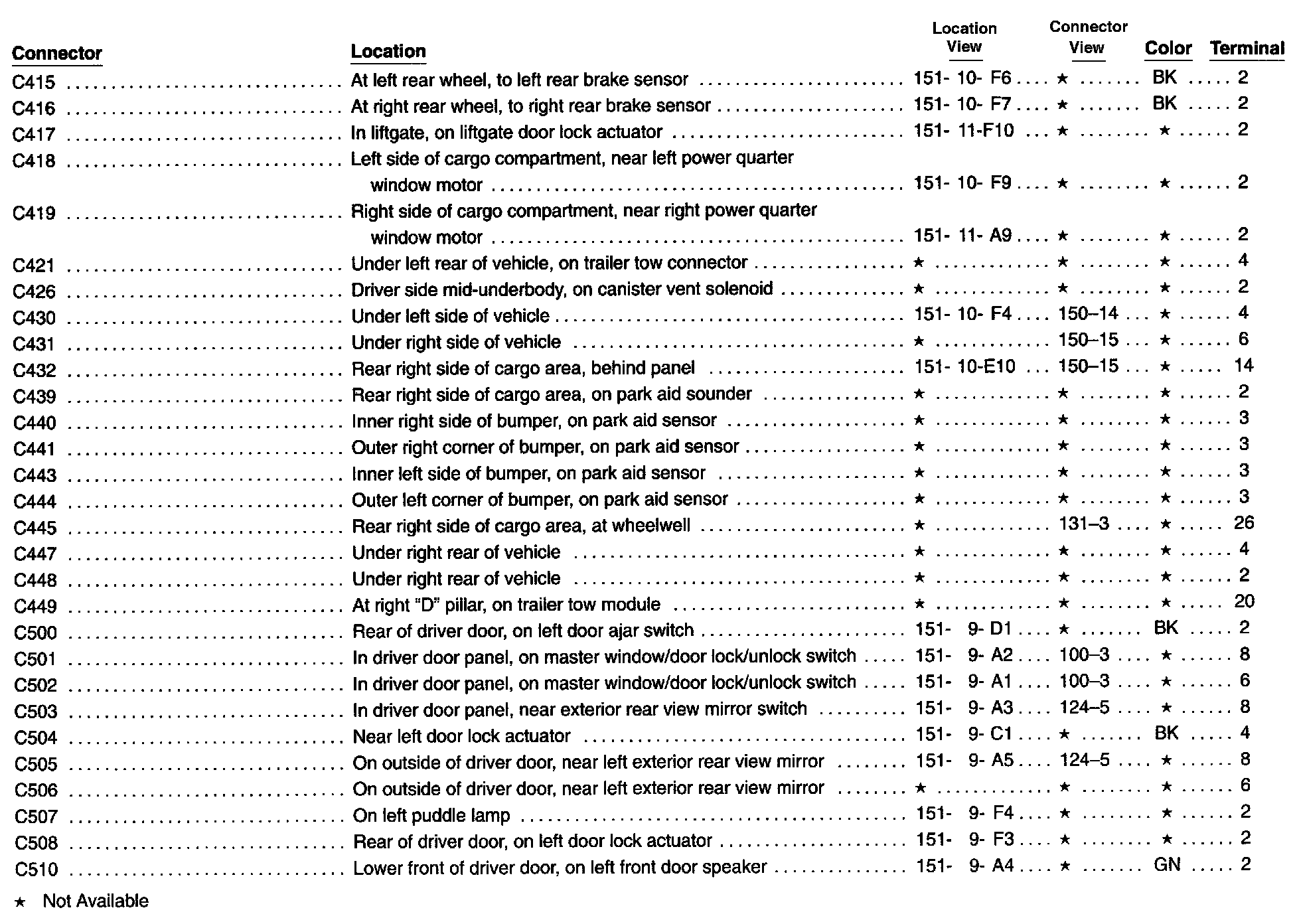

C415 - C510:

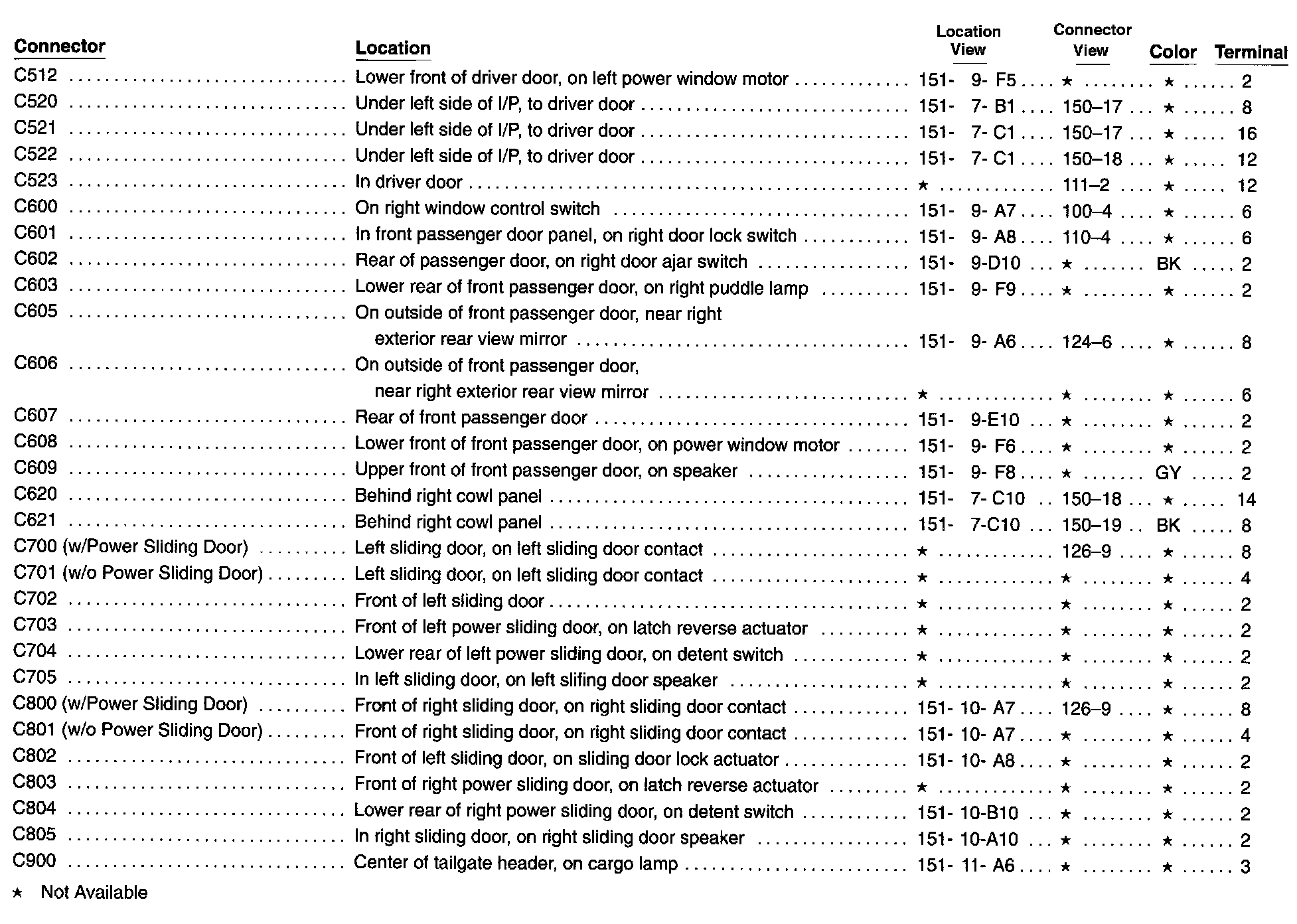

C512 - C900:

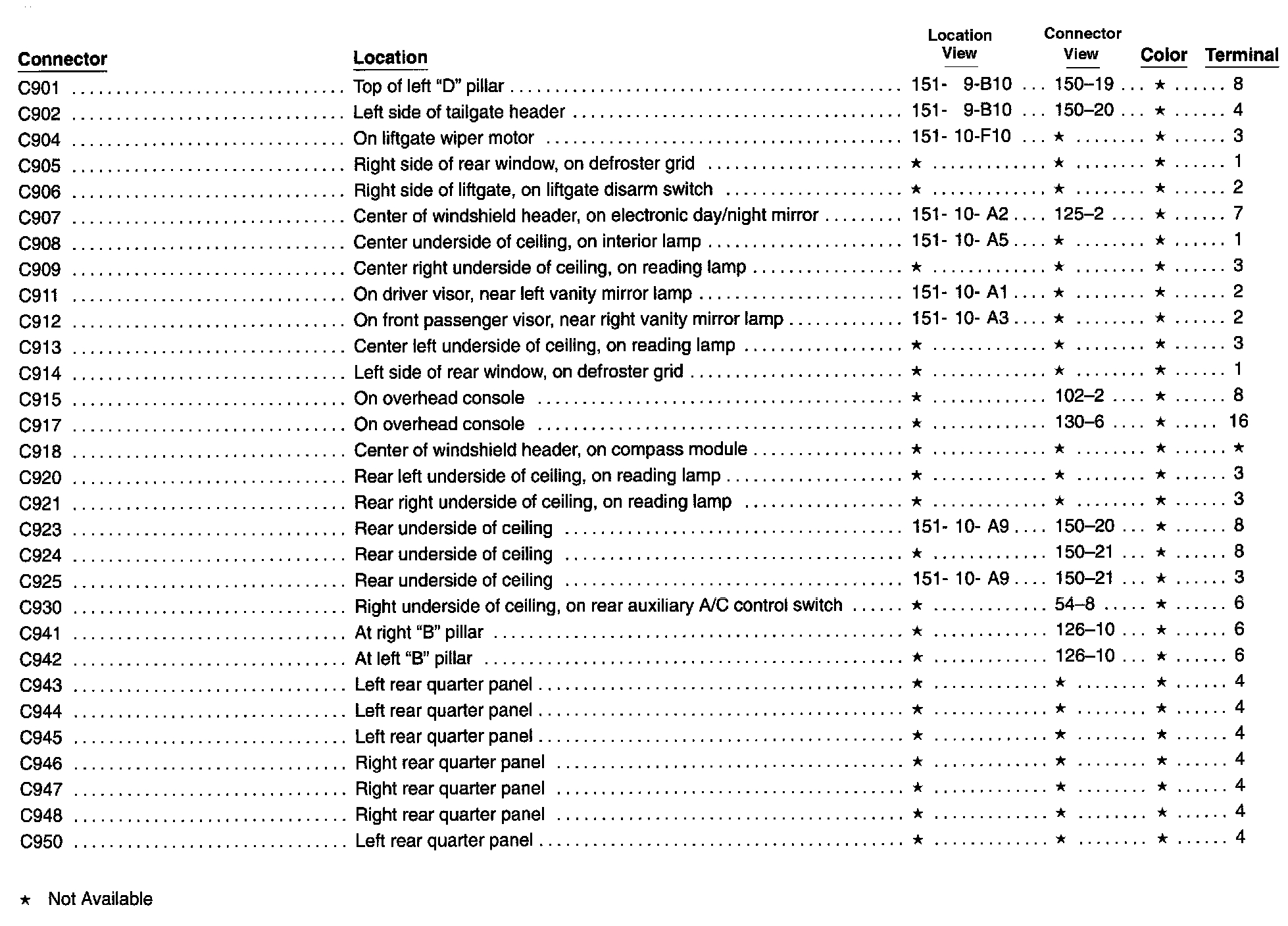

C901 - C950:

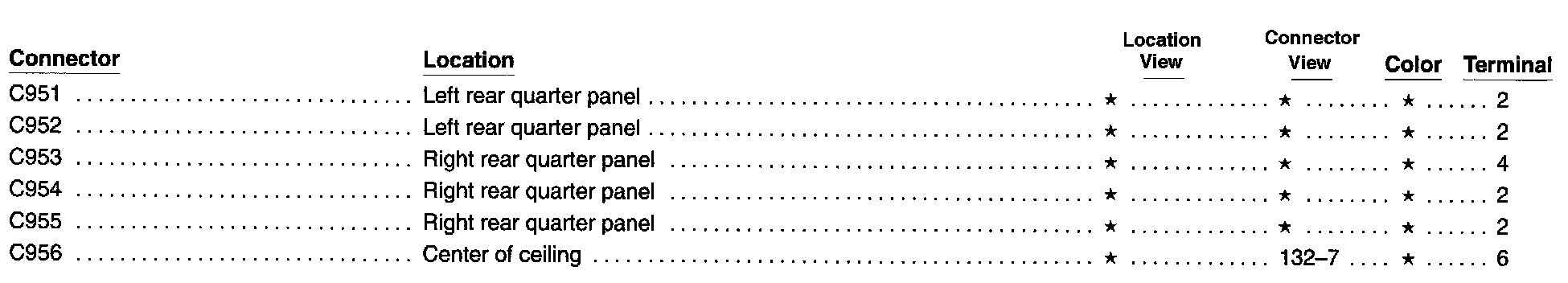

C951 - C956:
