Power Steering Line/Hose: Service and Repair

Special Service Tool(s)

Removal and Installation

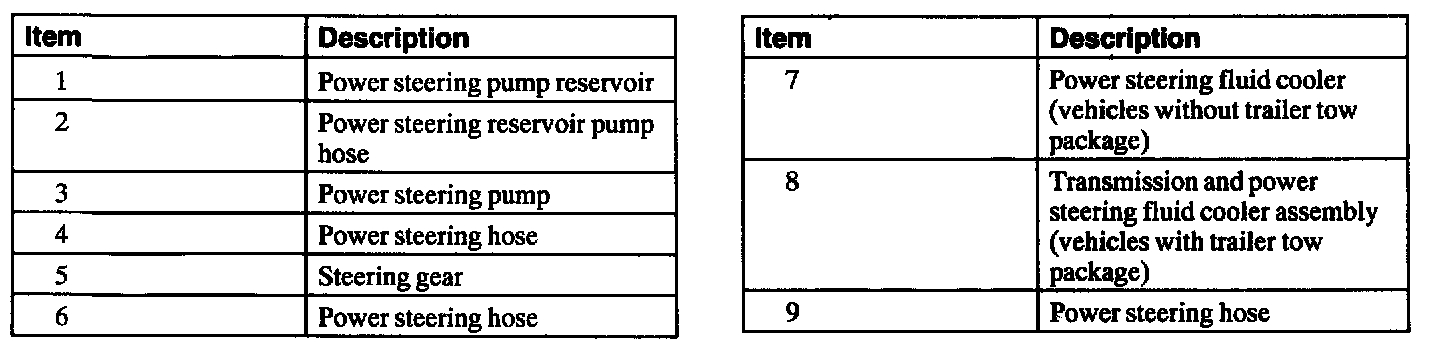

1. Refer to the System View illustration for the hose routing and retention points.





2. When connecting a fitting with a seal ring, a new seal ring must be installed.

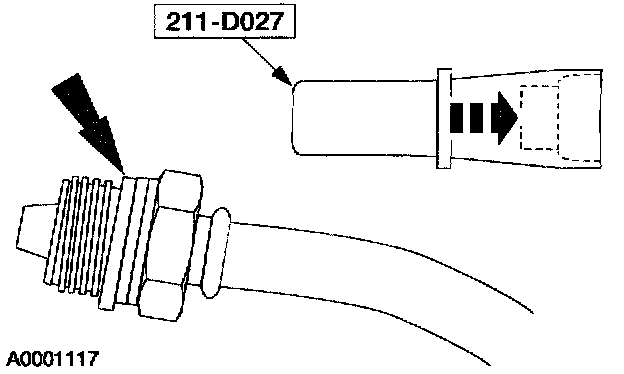

- The special tool is used to install the return line connector seal and the pressure line connector seal.
3. Fill, purge and leak check the system.
