Power Distribution Relay: Locations

Switched System Power Relay #3 and #4 are located in central junction box (CJB).

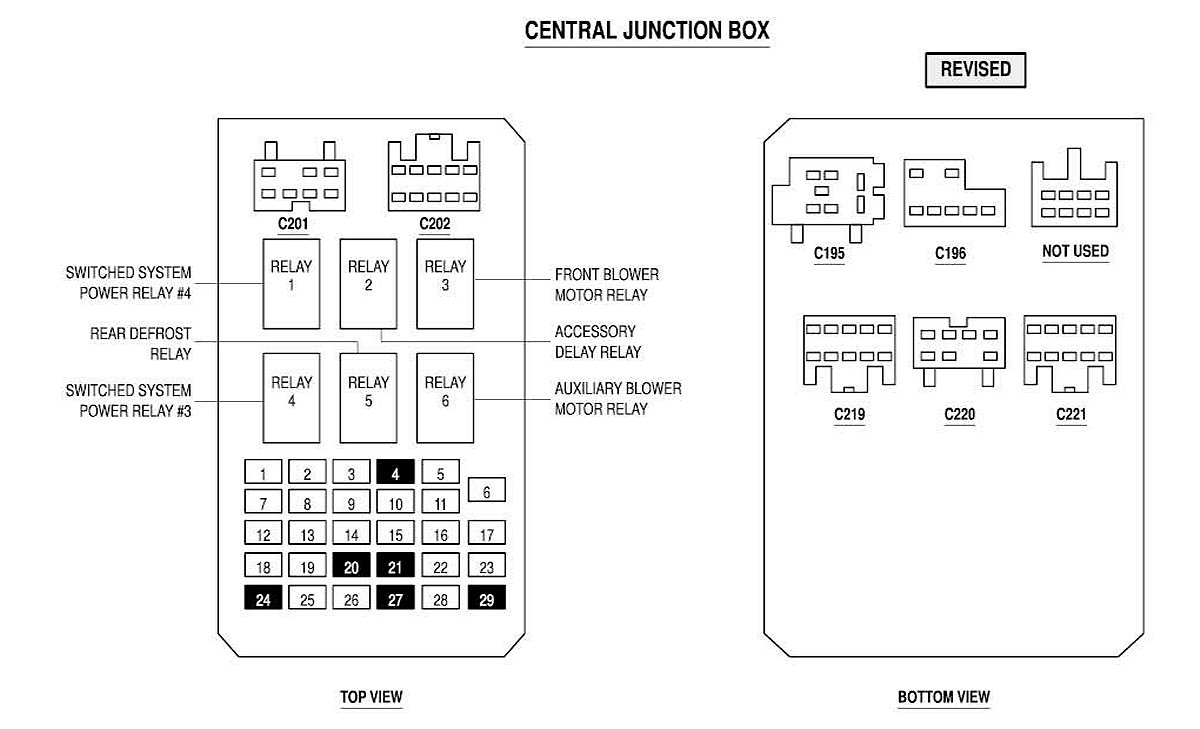

Central Junction Box

Central Junction Box (1 Of 2):

Central Junction Box (2 Of 2):
