EGR Tube: Service and Repair
REMOVAL 1.
Raise and support the vehicle.
2.

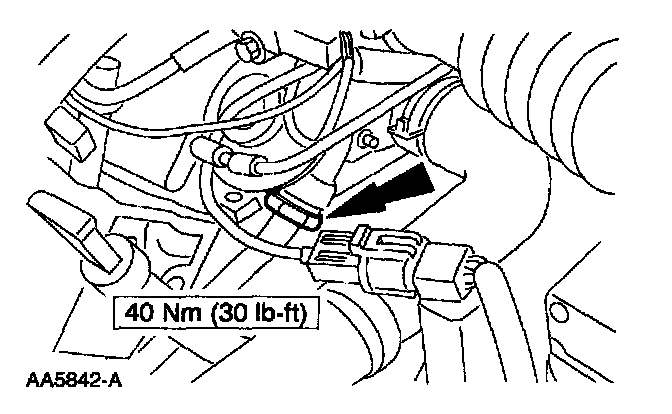

Disconnect the
Exhaust Gas Recirculation (EGR) tube nut at the manifold connector.
3.
Lower the vehicle.
4.

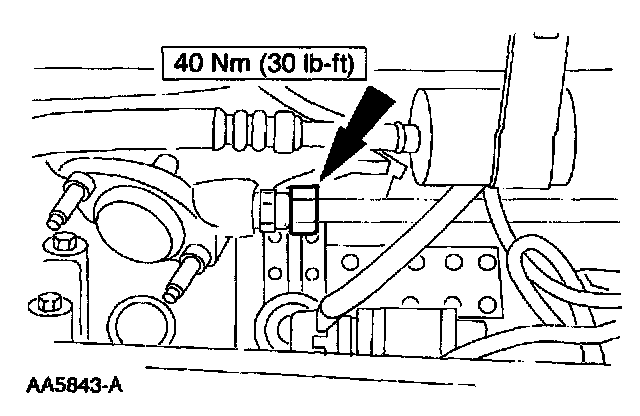

Disconnect the nut at the
EGR valve.
5.

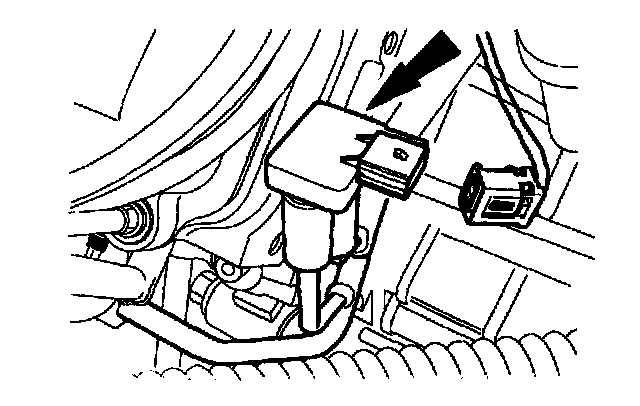

Disconnect the
differential pressure feedback EGR sensor.
6.
Remove the
differential pressure feedback EGR sensor and hoses and the EGR valve tube.
INSTALLATION 1.
To install, reverse the removal procedure.
