EGR Valve: Service and Repair
REMOVAL 1.
Remove the
Exhaust Gas Recirculation (EGR) valve tube.
2.

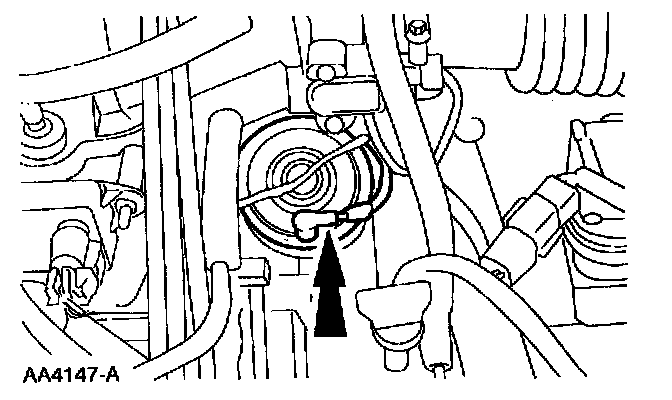

Disconnect the vacuum line from the
EGR valve.
3.

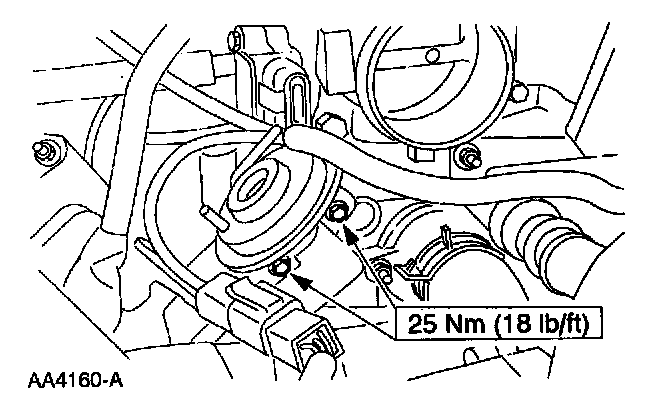

Remove the two bolts,
EGR valve and gasket.
4.
Carefully clean both sealing surfaces.
NOTE: The sealing surfaces are soft metal.
INSTALLATION 1.
To install, reverse the removal procedure.
