Ignition Coil: Service and Repair

"AllData Editors Note:

Customers have reported success using the following spark plug wire placement on the coil pack."






REMOVAL
1. Remove the cowl. Cowl
2. Disconnect the electrical connector from the ignition coil.

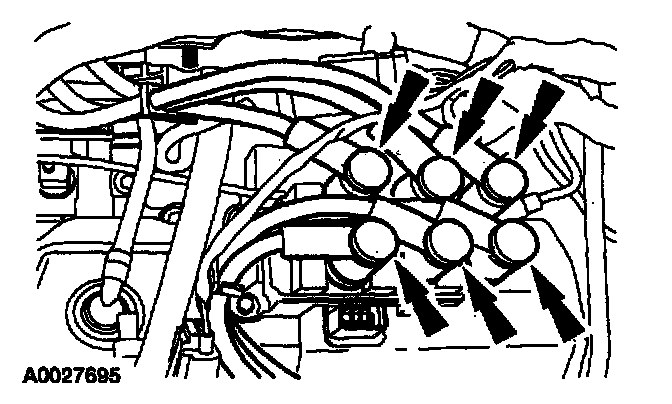

3. Disconnect the spark plug wires by twisting while pulling upward.

CAUTION: It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.

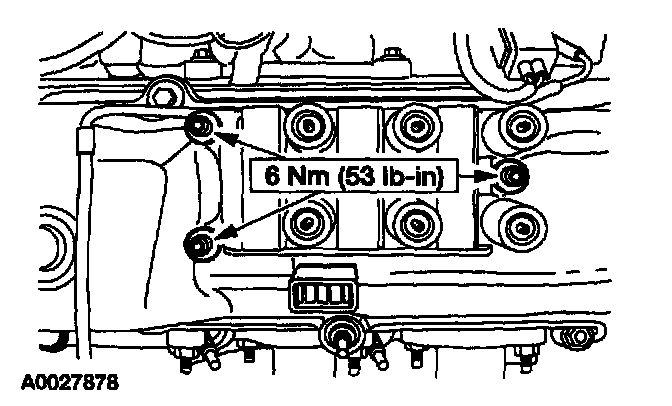

4. Remove the bolts and the ignition coil.

INSTALLATION
1. To install, reverse the removal procedure.
