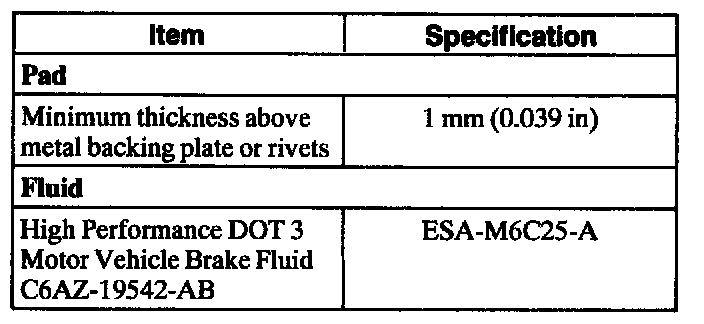

General Specifications
General Specifications
General Specifications
Note:
a: Minimum safe thickness is shown on each brake disc.
