Home >> Ford >> 2001 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Specifications >> Pressure, Vacuum and Temperature Specifications >> Transmission and Drivetrain >> System Specifications

System Specifications

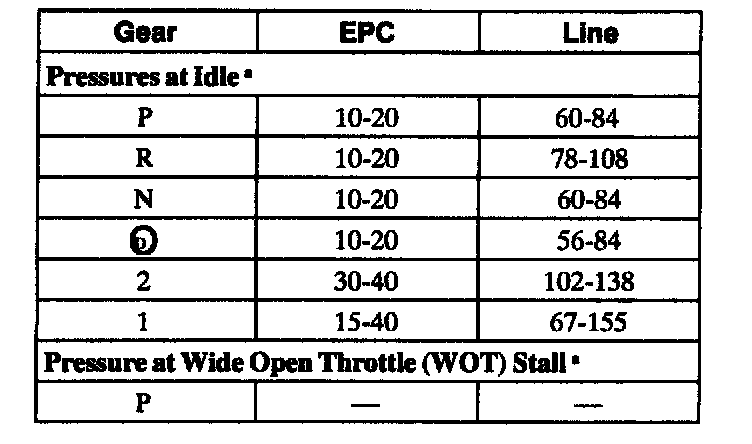

Line Pressure Chart





Part 1 of 2

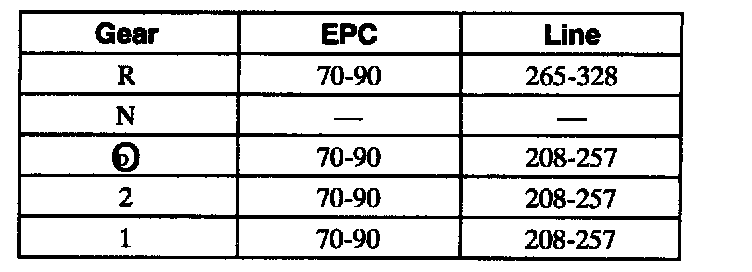

Part 2 of 2

a All pressures are in PSI and are approximate
