Alternator: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the accessory drive belt.







3. Remove the generator electrical connectors.

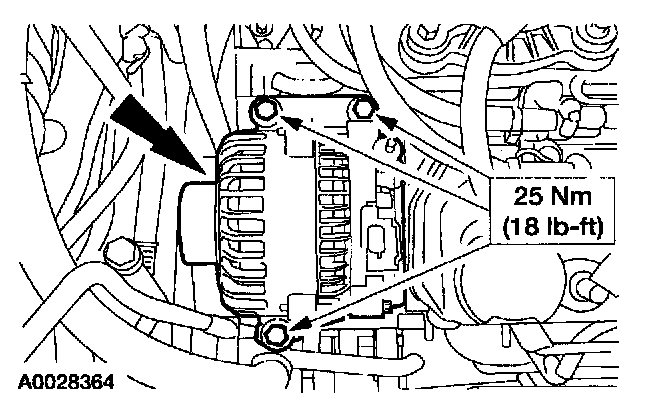

4. Remove the bolts and the generator.


INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Be sure to reinstall the ground strap to the front generator bolt.
