Home >> Ford >> 2002 >> Econoline E150 1/2 Ton V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> 4R70W

4R70W

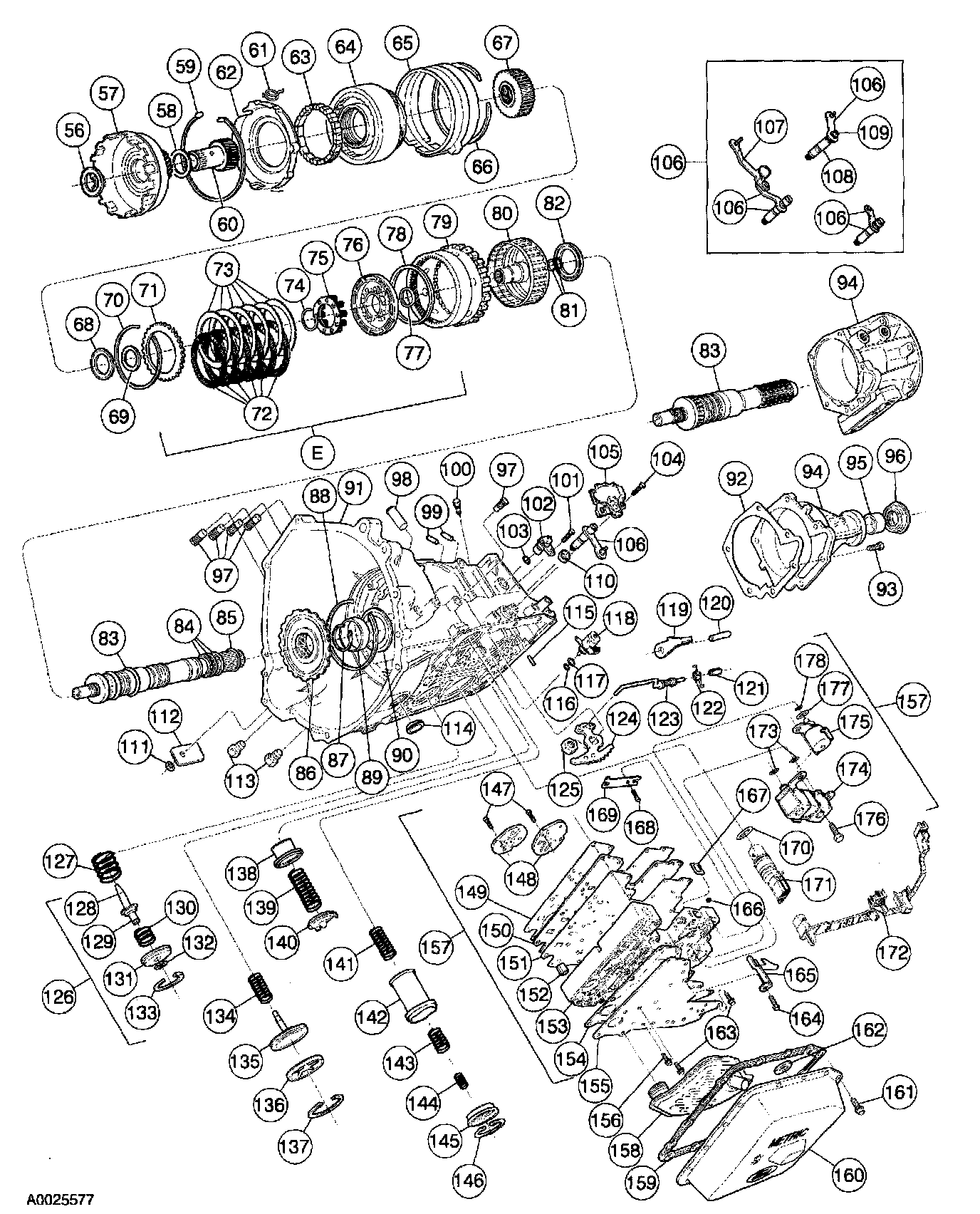

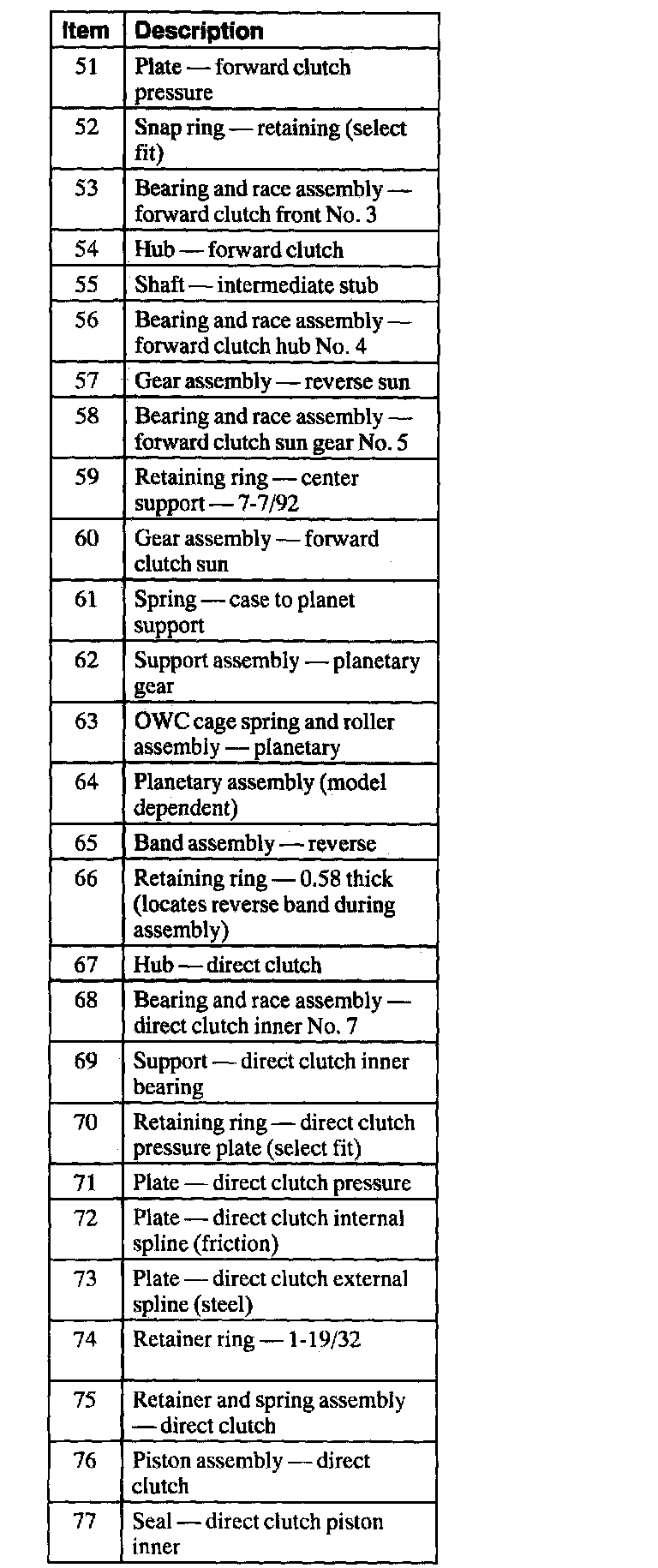

Disassembled Views





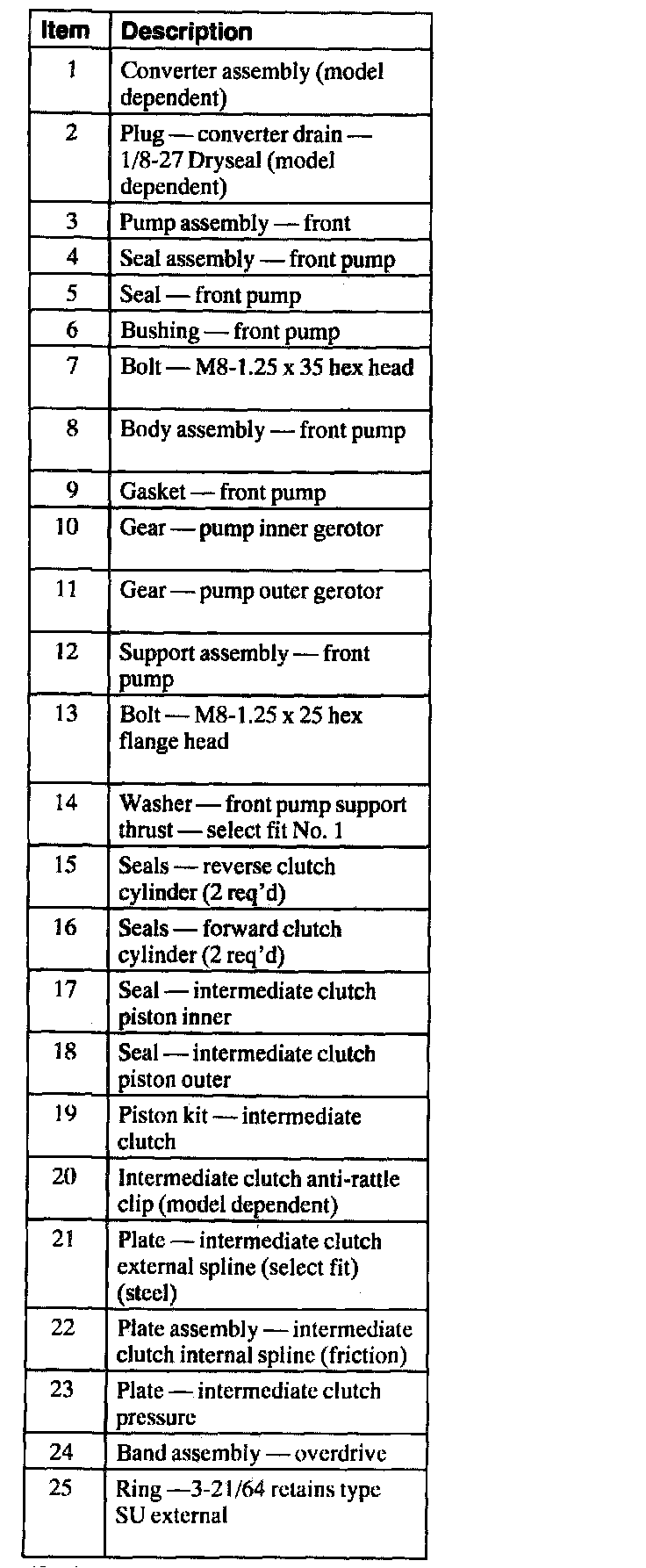

Part 1 of 10





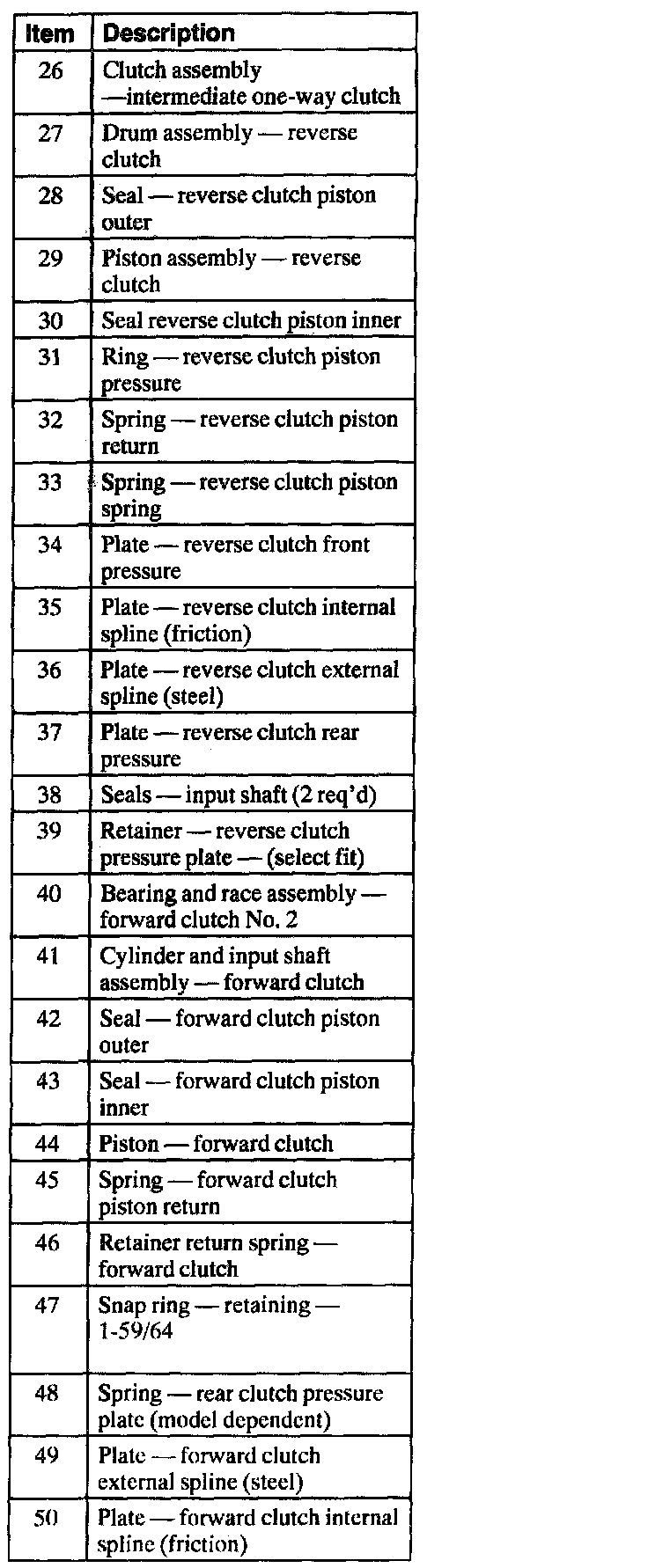

Part 2 of 10





Part 3 of 10





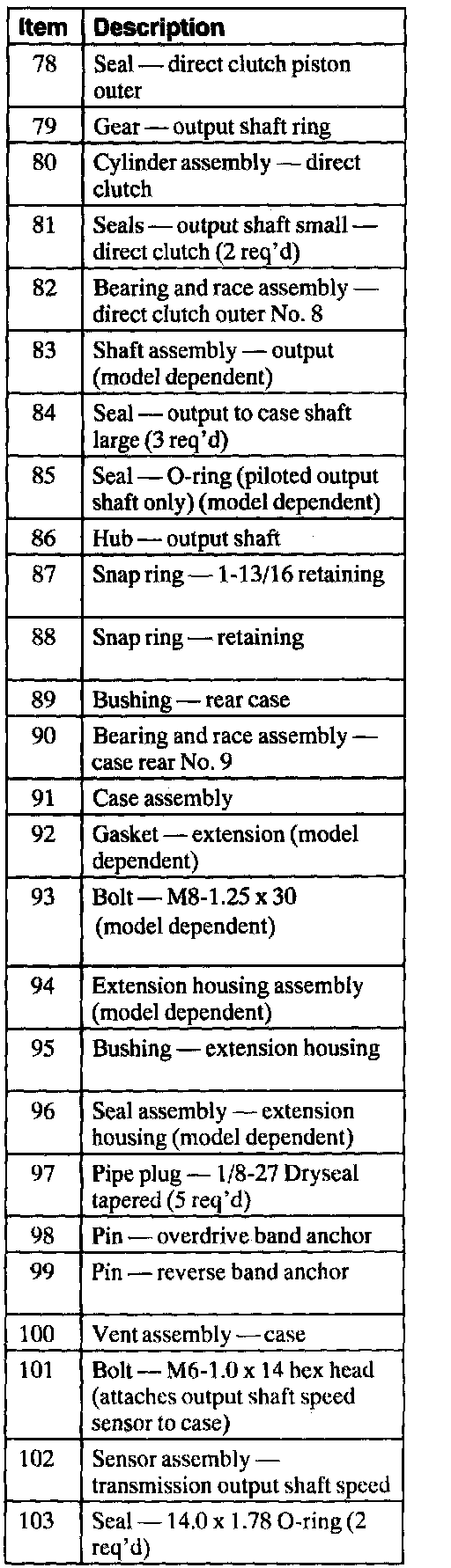

Part 4 of 10





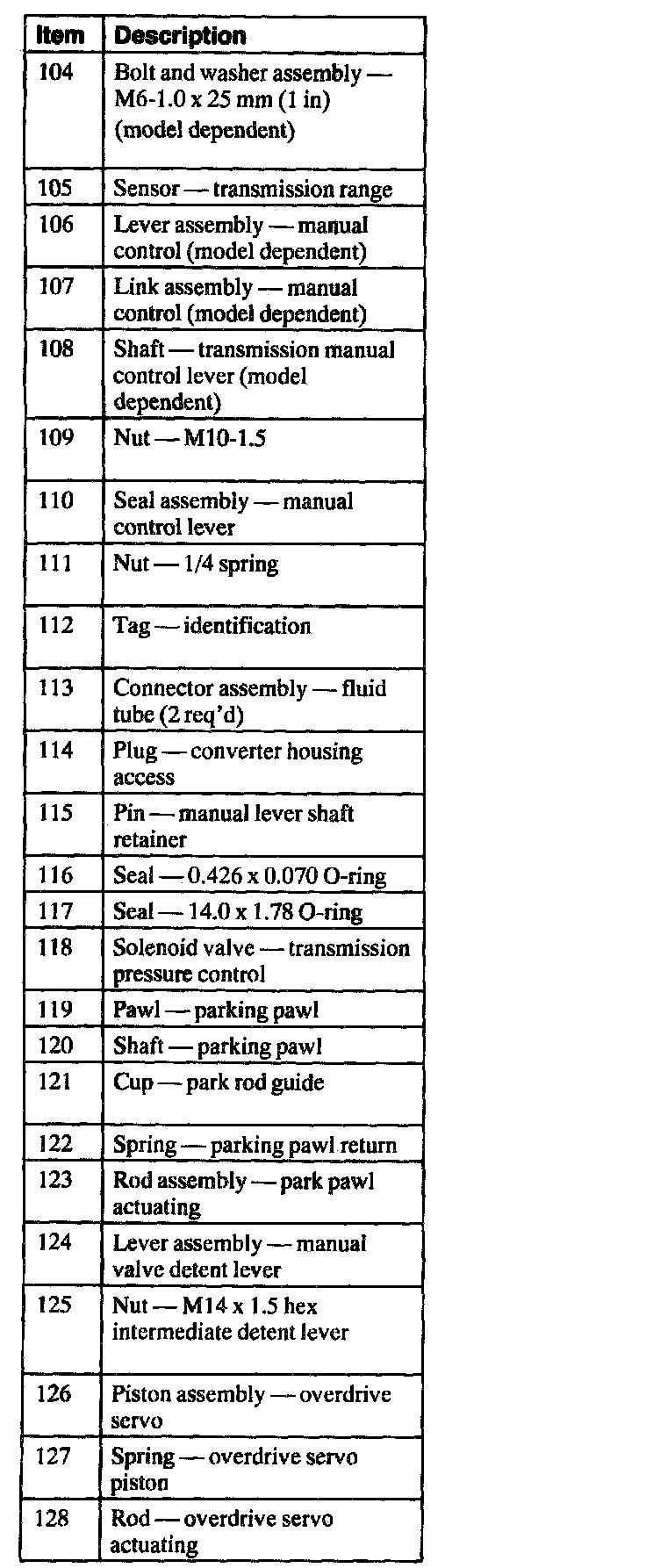

Part 5 of 10





Part 6 of 10





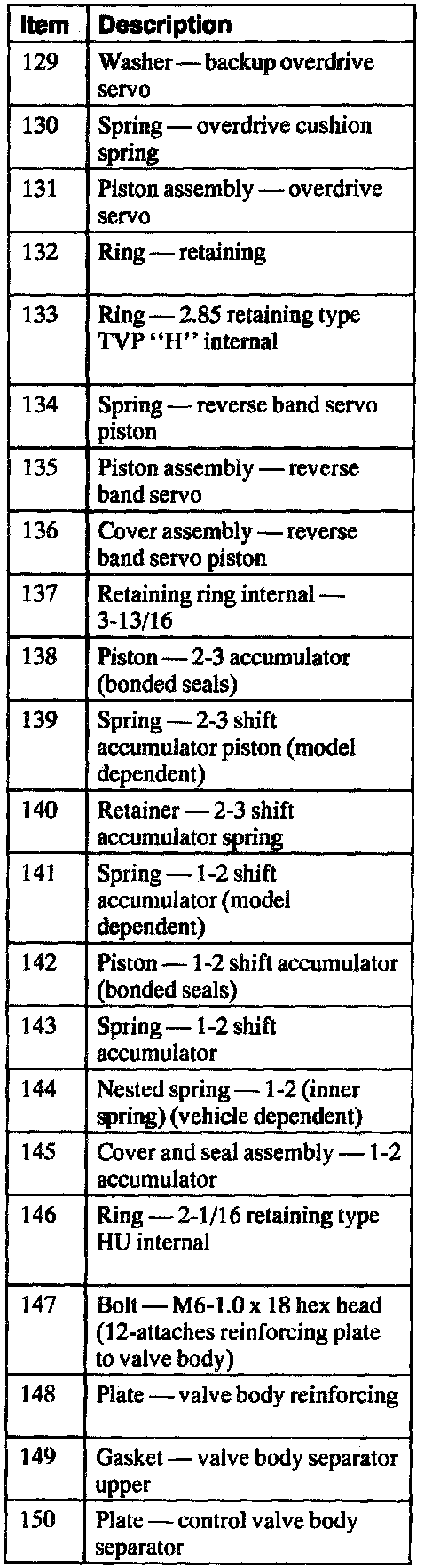

Part 7 of 10





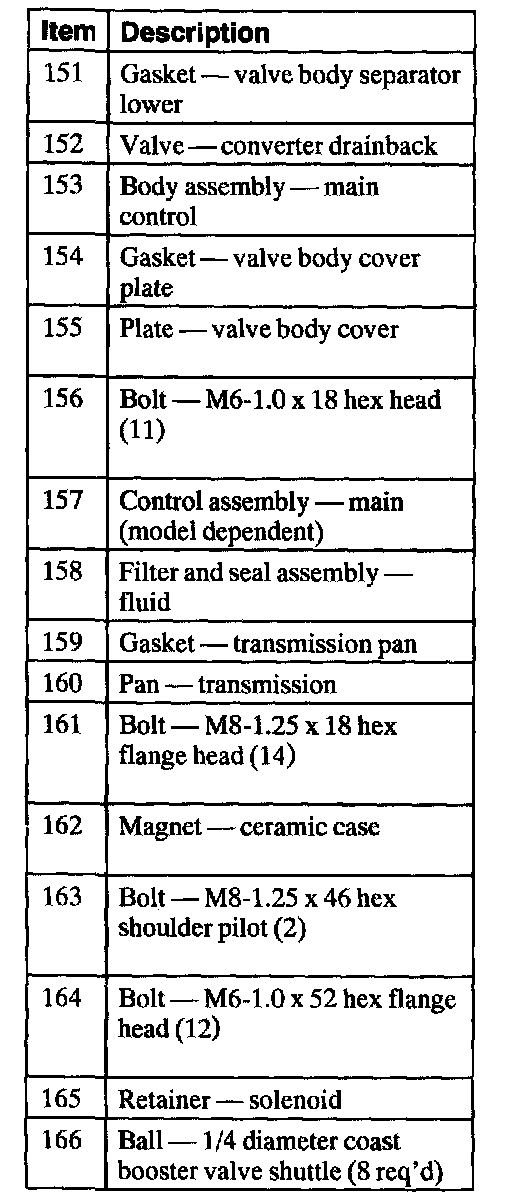

Part 8 of 10





Part 9 of 10





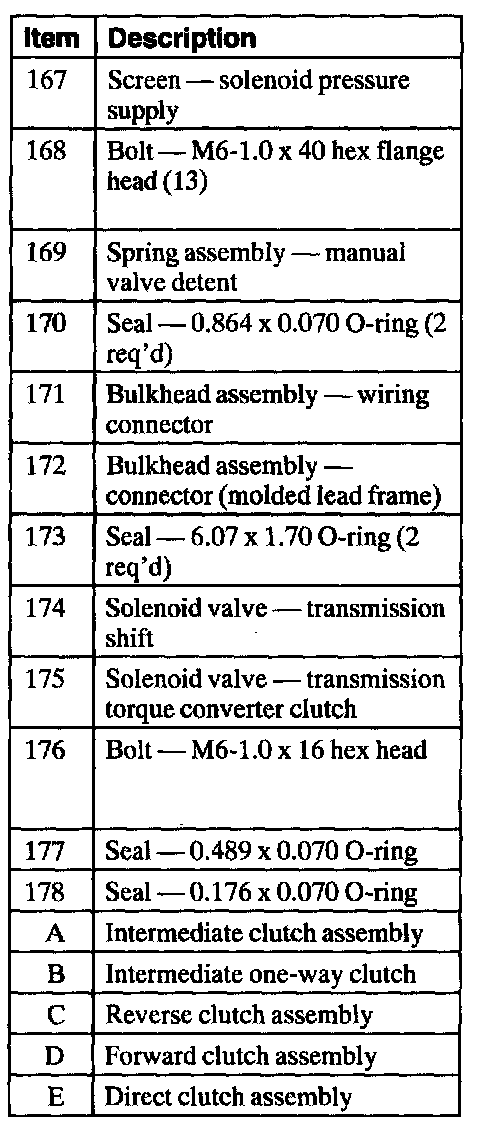

Part 10 of 10
