Auxiliary Climate Control

REMOVAL

NOTE: If a heater core leak is suspected, the heater core must be leak tested before it is removed from the vehicle.

1. If equipped, remove the third, fourth, and fifth bench seats as necessary.
2. If equipped, remove the trim panels.
^ Remove the left center bolster trim panel.
^ Remove the quarter trim rear upper panel.
^ Remove the lower rear body side trim panel.

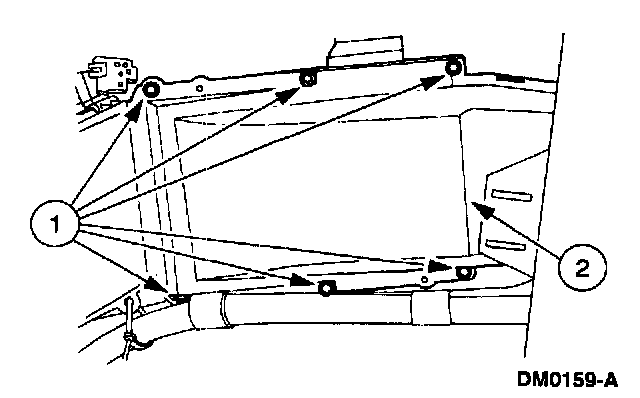

3. Remove the heater core cover.
1 Remove the screws.
2 Remove the heater core cover.







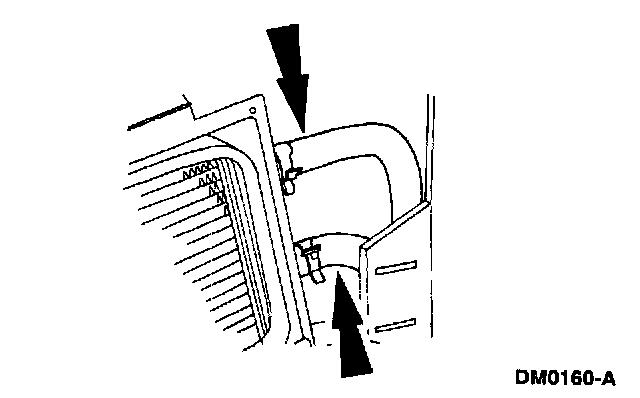

4. Clamp off the heater water hoses.







5. Disconnect the heater water hoses.

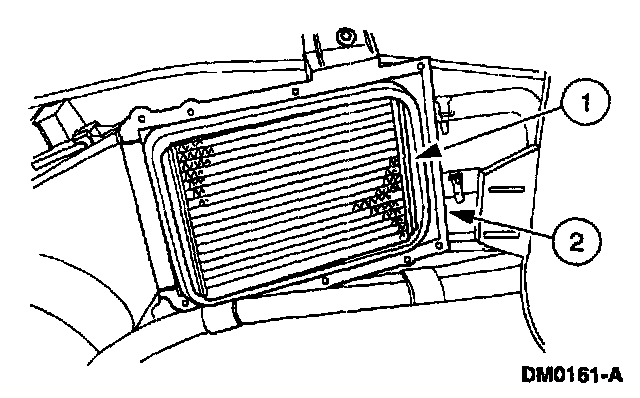

6. Remove the heater core.
1 Remove the heater core case seal.
2 Remove the heater core.

INSTALLATION
1. To install, reverse the removal procedure.
^ Lubricate the coolant hoses with MERPOL(R) or plain water, if needed.
