Home >> Ford >> 2002 >> Econoline E350 1 Ton V8-5.4L SOHC VIN L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> Test J: Video System Is Inoperative/Does Not Operate Correctly

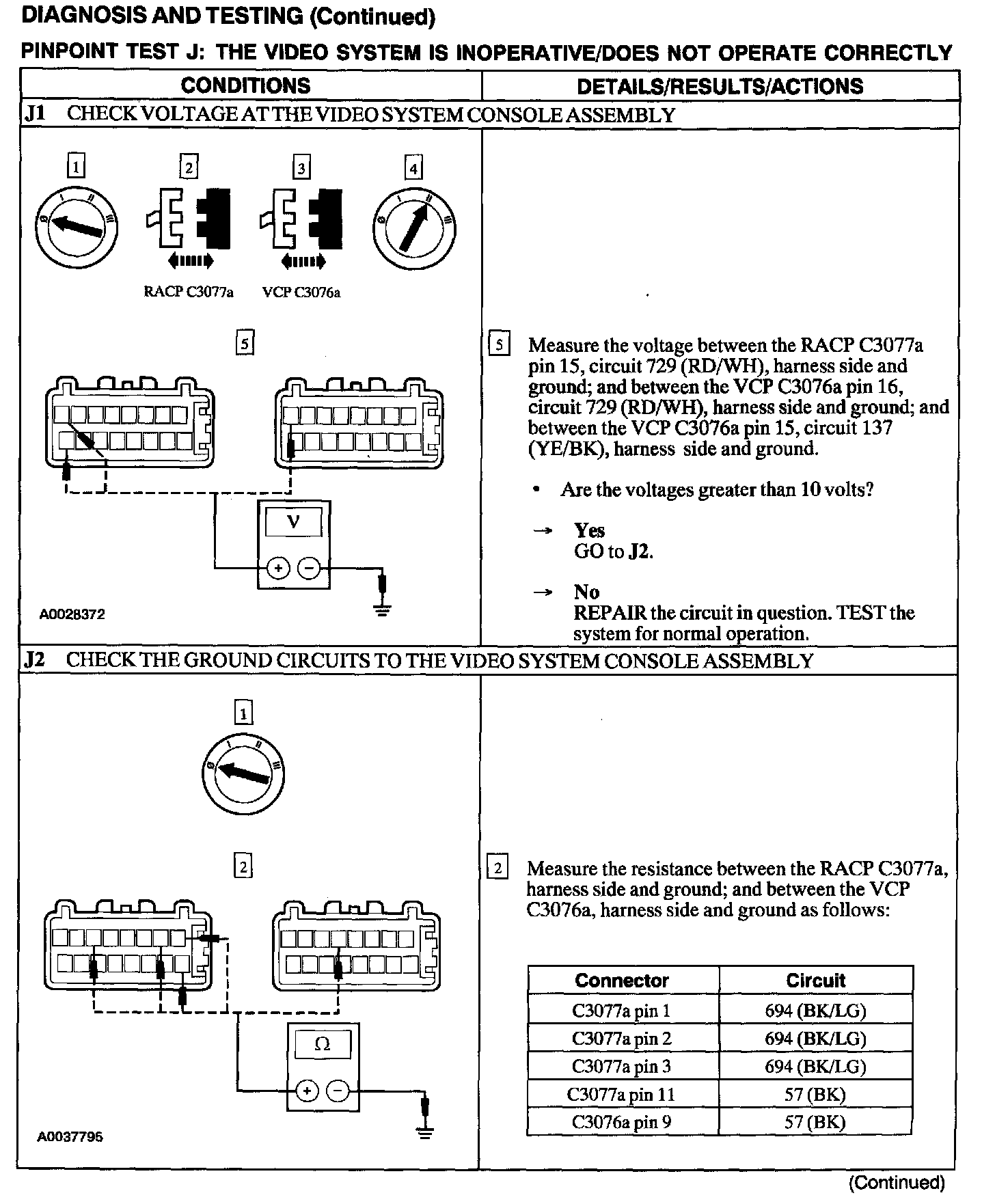

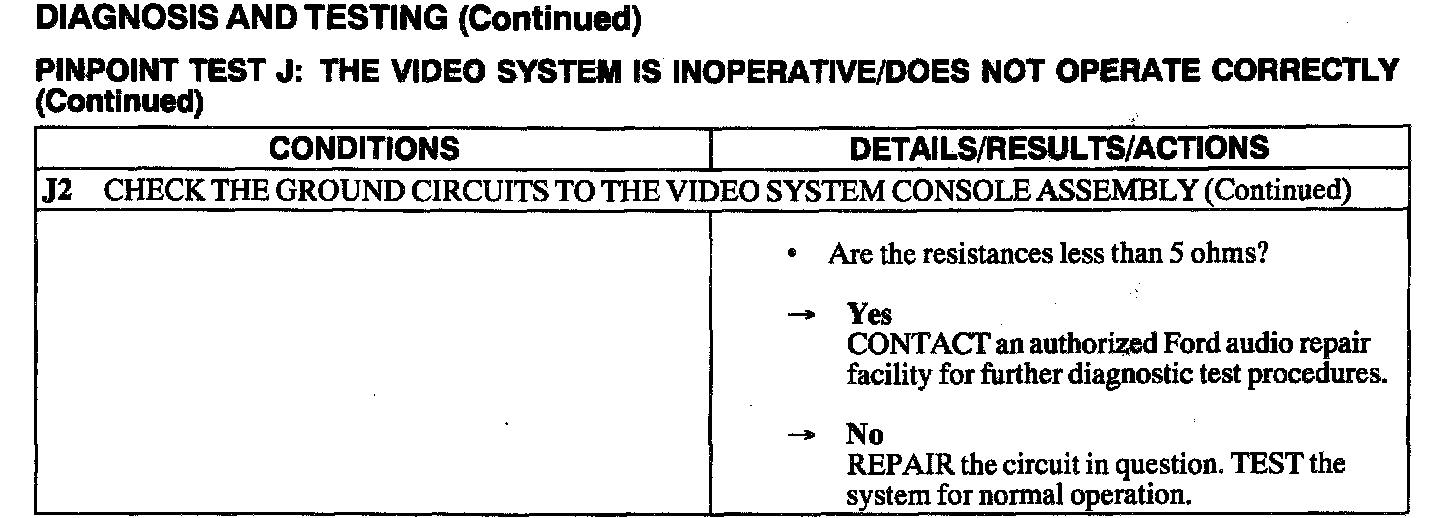

Test J: Video System Is Inoperative/Does Not Operate Correctly

J1 - J2:



J2:
