PINPOINT TEST C: DTC C1220 - YELLOW ANTI-LOCK BRAKE SYSTEM (ABS) WARNING INDICATOR FAILURE

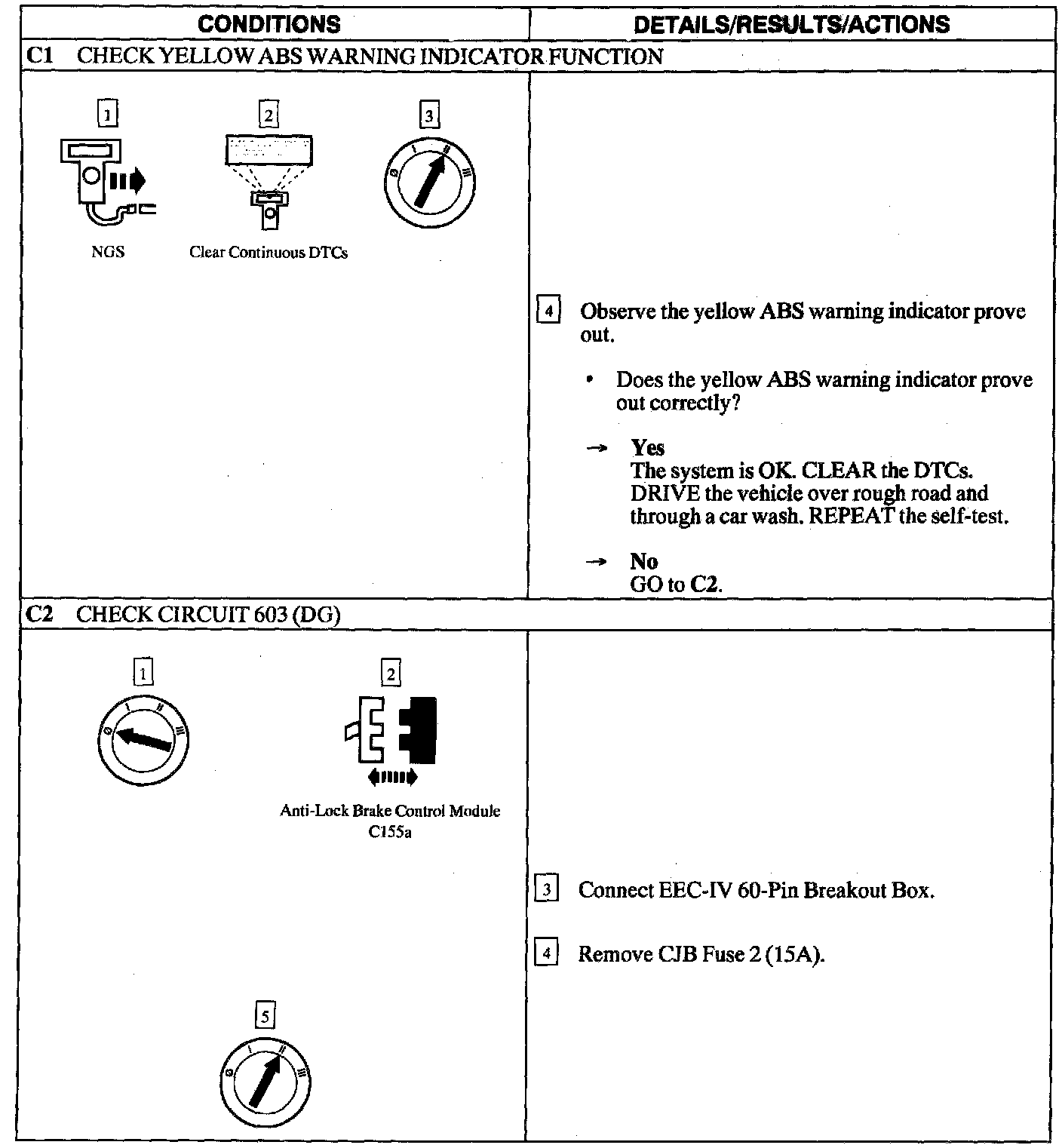

Test C1-C2:
Test C2-C3:

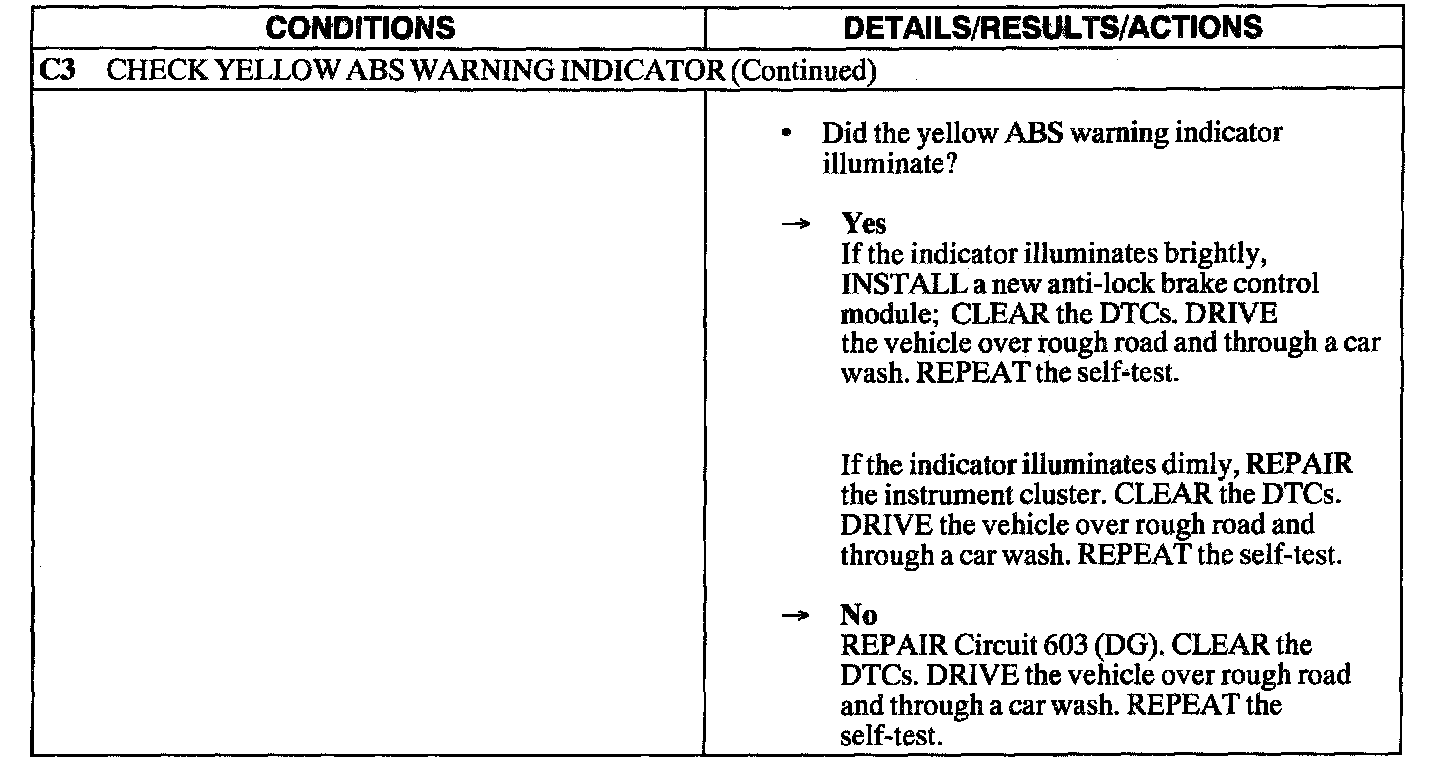

Test C3 Continued:
