Cruise Control Switch: Service and Repair

REMOVAL
1. Remove the driver side air bag module.

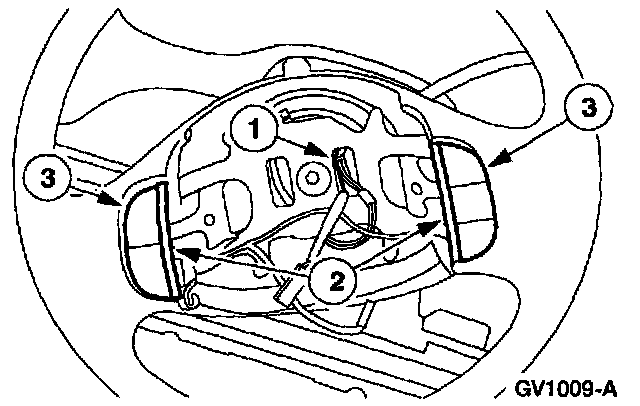

2. Remove the speed control actuator switches.
1 Disconnect the speed control actuator switch electrical connector.
2 Remove the two bolts.
3 Remove the speed control actuator switches.

INSTALLATION
1. To install, reverse the removal procedure.
