Battery Junction Box





Battery Junction Box (BJB)

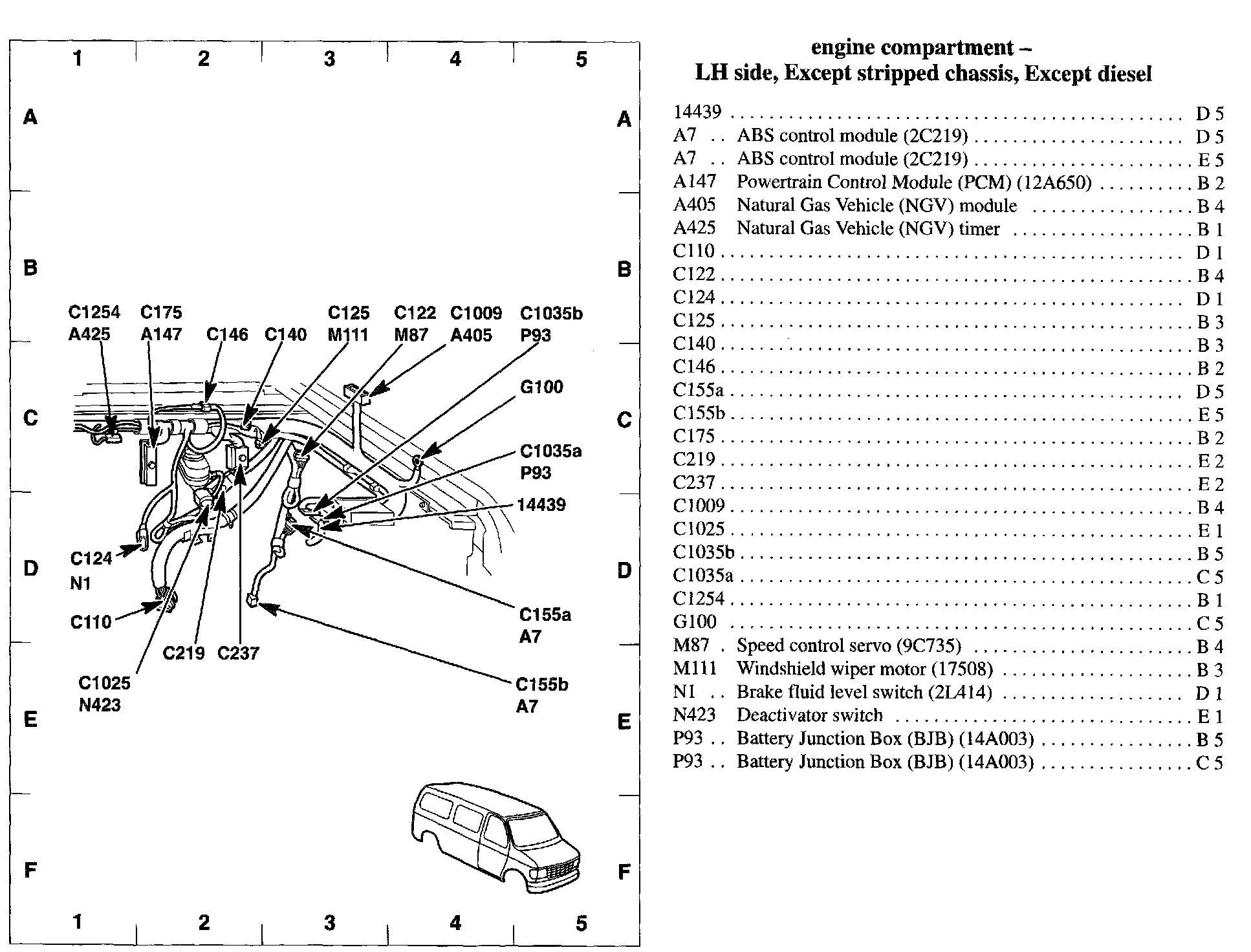

View 151-3:






Except Stripped Chassis

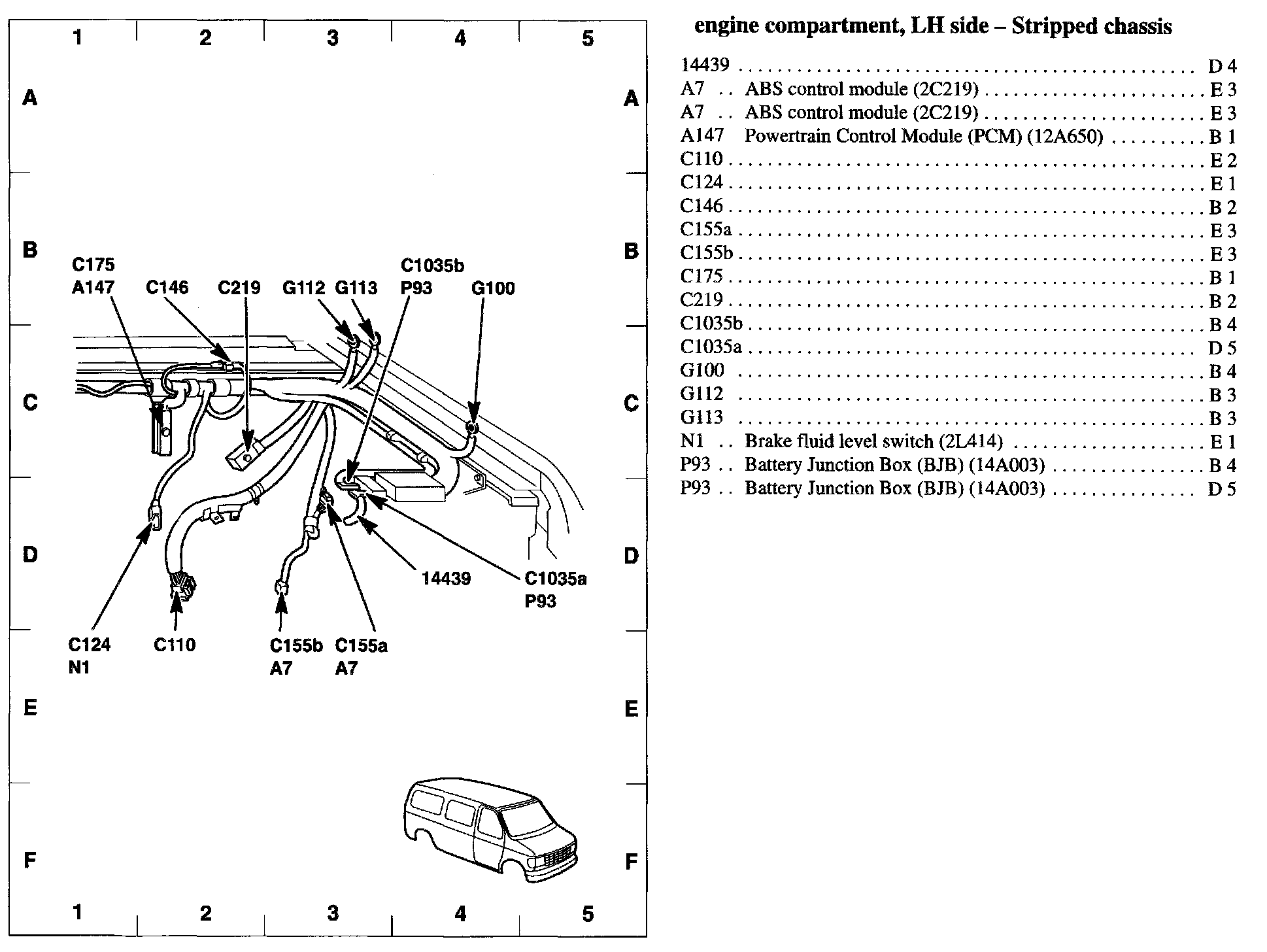

View 151-7:






Stripped Chassis
