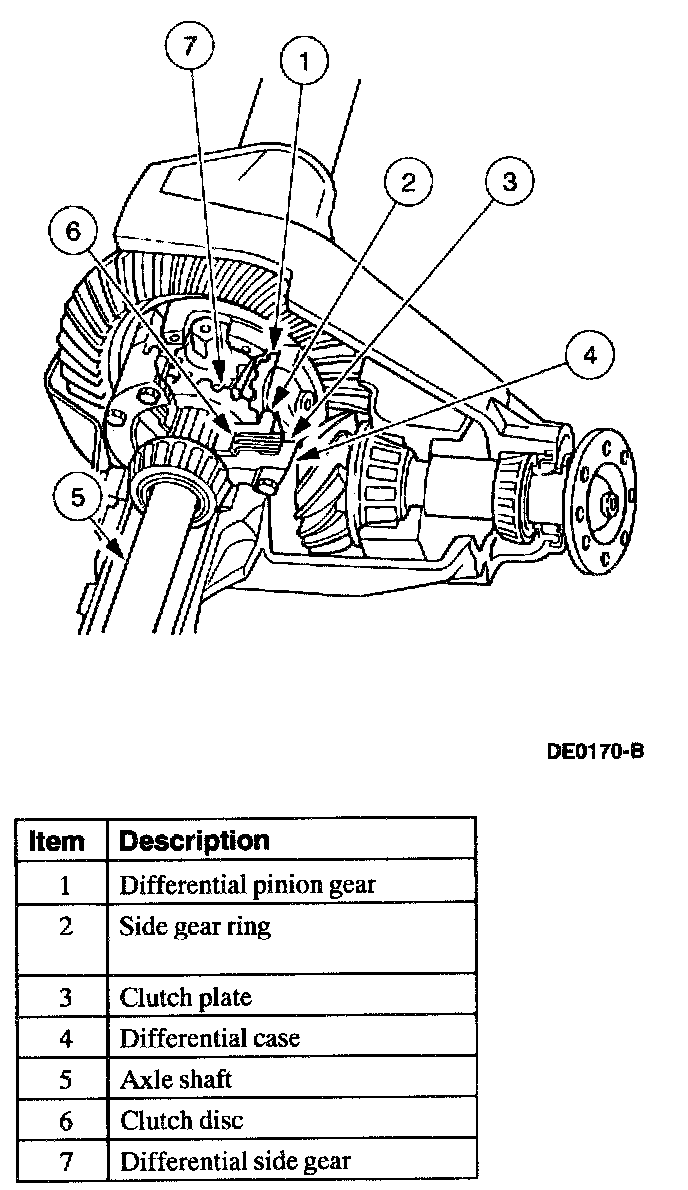

Limited-Slip Differential--Model 70-2U Power-LOK-Cutaway

Limited-Slip Differential-Model 70-2U Powr-Lok--Cutaway:
