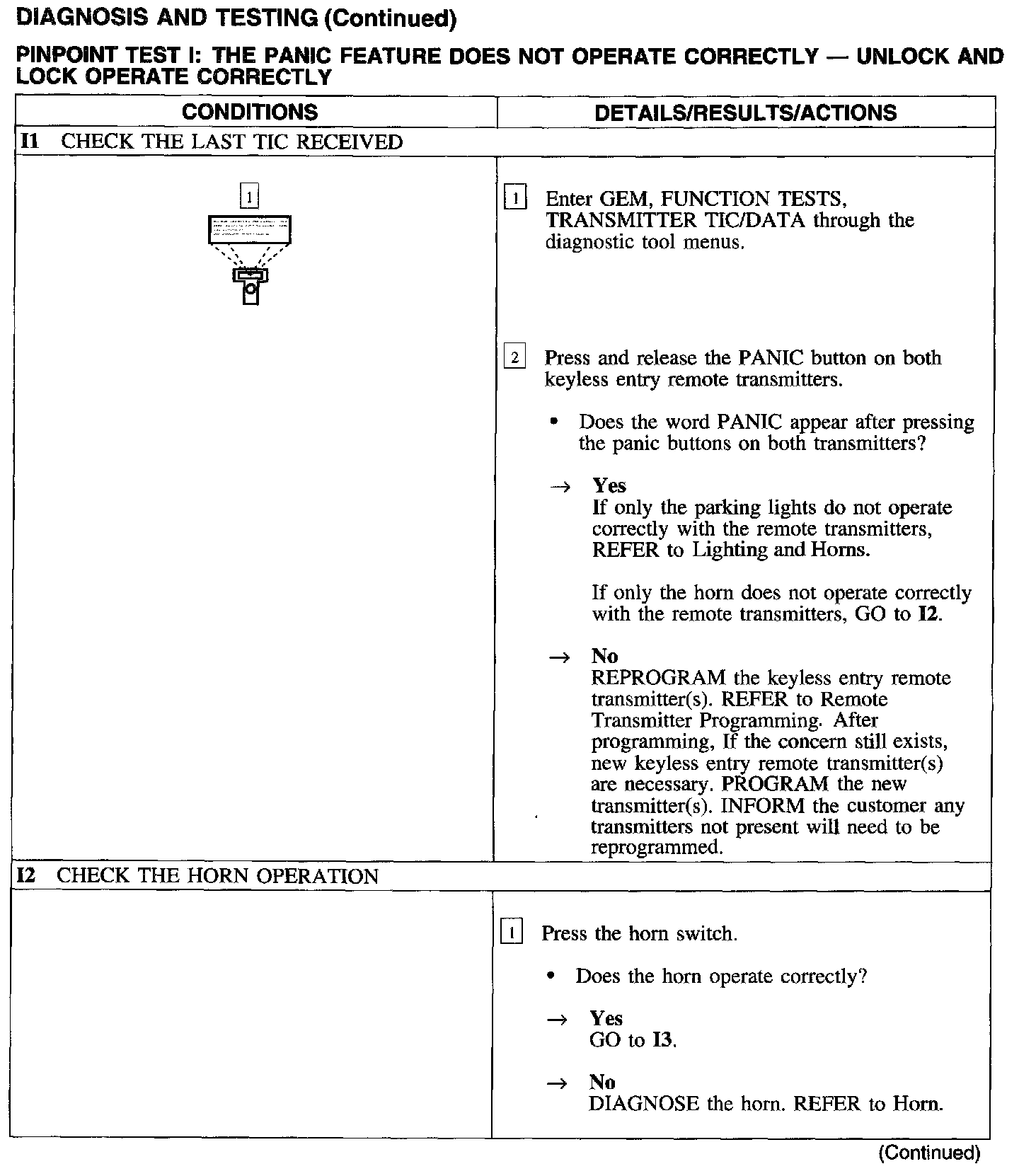

Test I: Panic Feature Oper. Incorrectly - Unlock/Lock Operates
Test I: Panic Feature Oper. Incorrectly - Unlock/Lock Operates
I1 - I2:
I3 - I5:
I5:
