Roof Opening Panel Shield

REMOVAL
1. Remove the roof opening panel.







2. Remove the water channel.

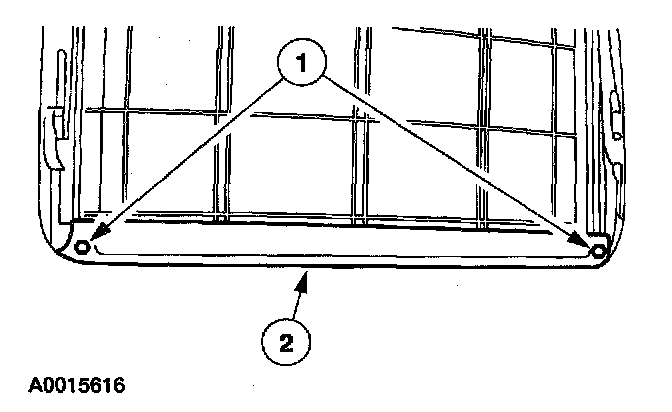

1 Remove the bolts.
2 Remove the water channel.

3. Slide the roof opening panel shield forward.







4. Remove the roof opening panel shield.

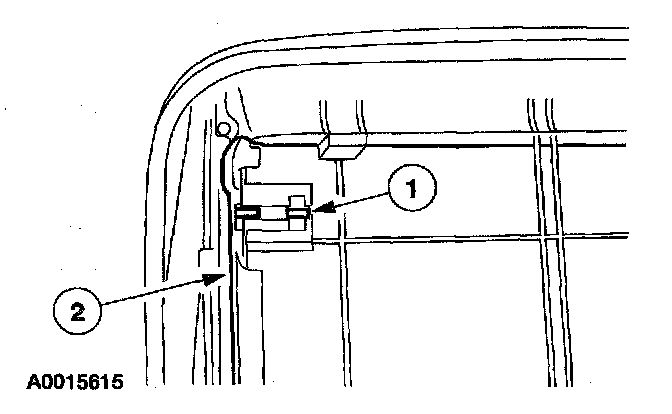

1 Disengage the four spring loaded guides.
2 Remove the roof opening panel shield.

INSTALLATION
1. To install, reverse the removal procedure.
