Escape 4WD L4-122 2.0L DOHC VIN B Zetec SFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>

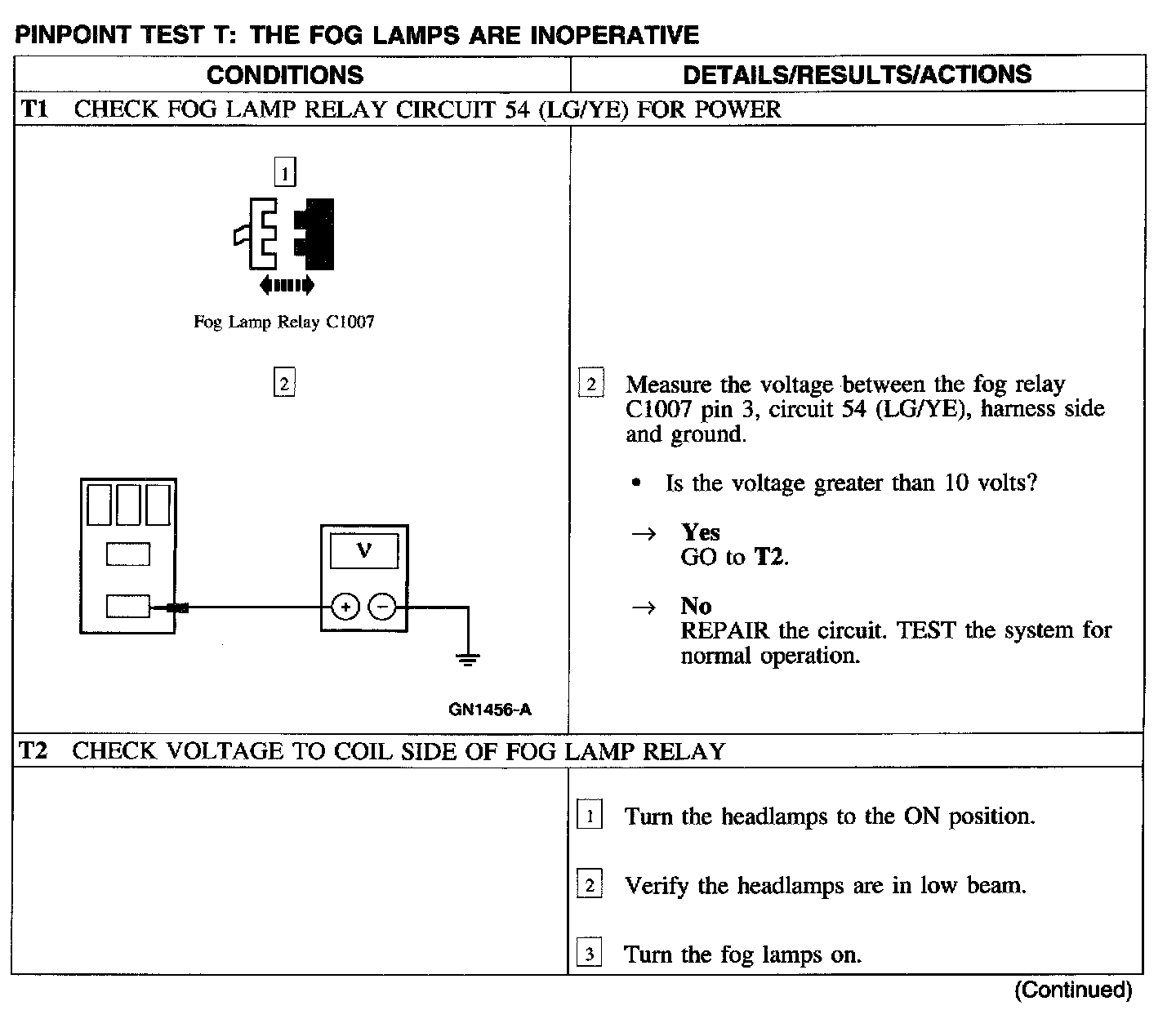

Test T: Fog Lamps Are Inoperative
Test T: Fog Lamps Are Inoperative
T1 - T2:
T2 - T4:
T4 - T6:
T6:
