Tests KD: Electric Exhaust Gas Recirculation (EEGR) System

Note, Schematic and Connectors:






Schematic, Test KD1 - KD3:

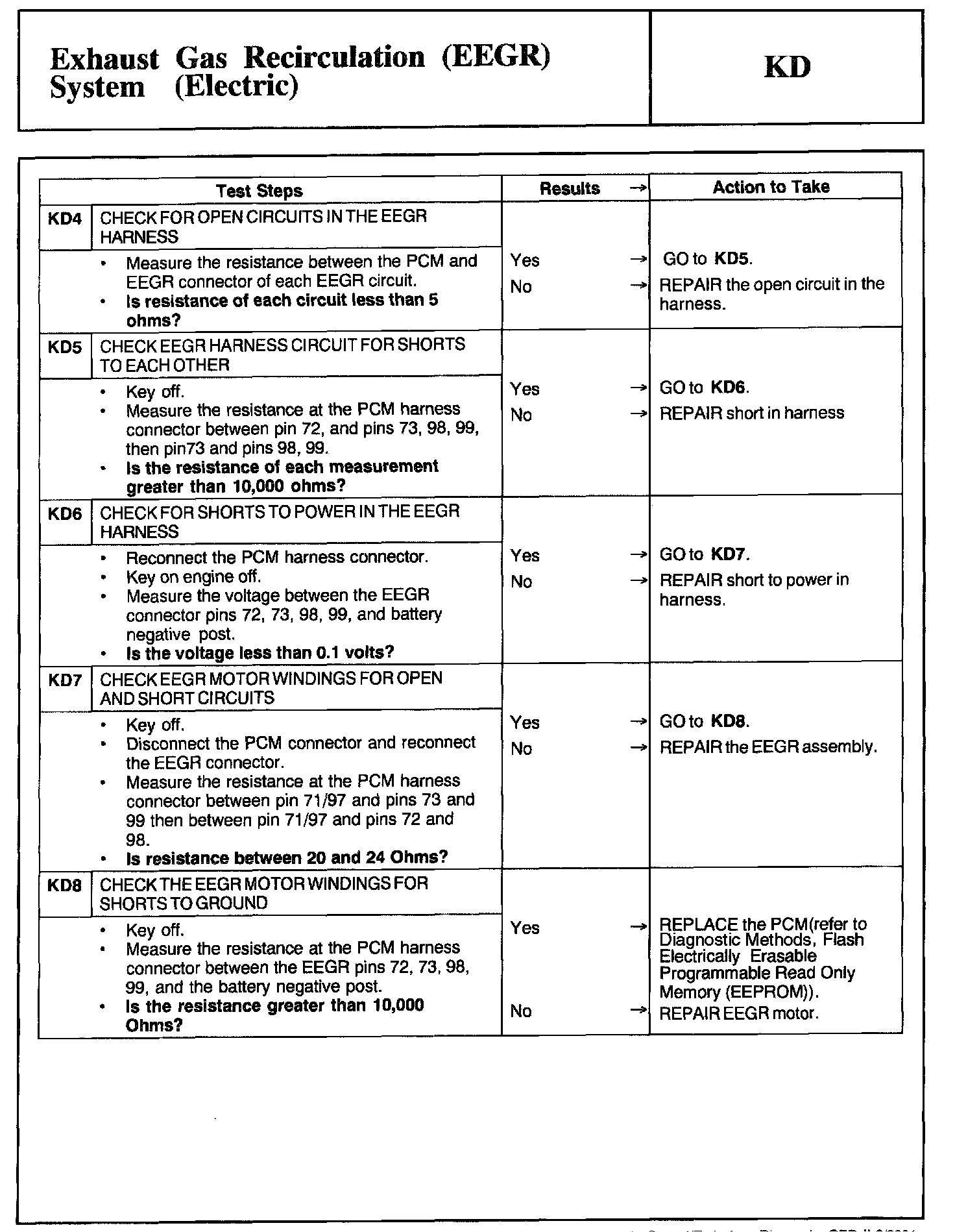

KD4 - KD8:






KD9:
