Front Fender: Service and Repair

FENDER - FRONT

Removal







1. If equipped, remove the stone guard.
1 Remove the screw.
2 Remove the pushpins.
3 Remove the lower clip.
4 Remove the stone guard.

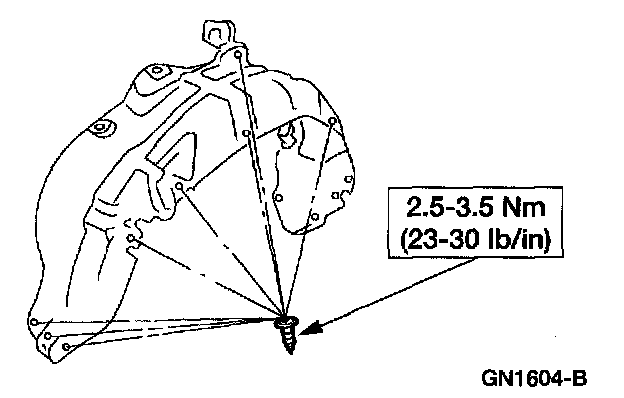

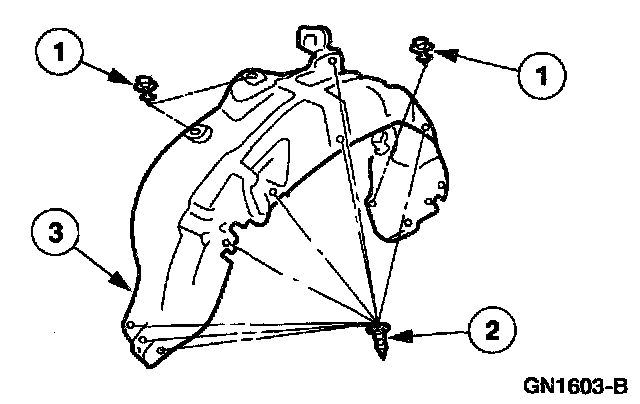

2. Remove the front fender splash shield (16103).
1 Remove the pushpins.
2 Remove the screws.
3 Remove the front fender splash shield.

3. Remove the radiator grille opening panel reinforcement (8A284).

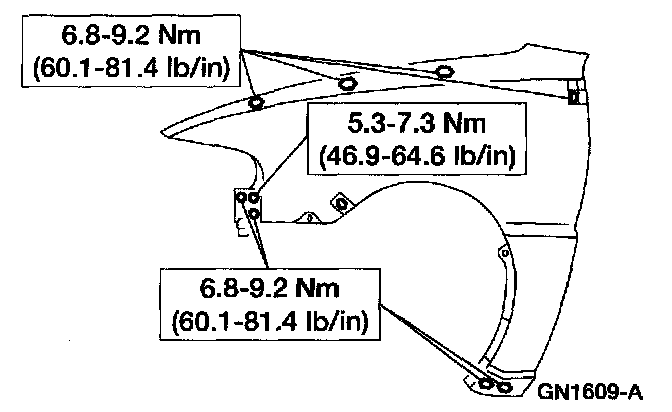

4. Remove the front fender (16005).
1 Remove the bolts.
2 Remove the nut.
3 Remove the front fender.

Installation

















1. To install, reverse the removal procedure.
