Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram
Transaxle Connector Layouts

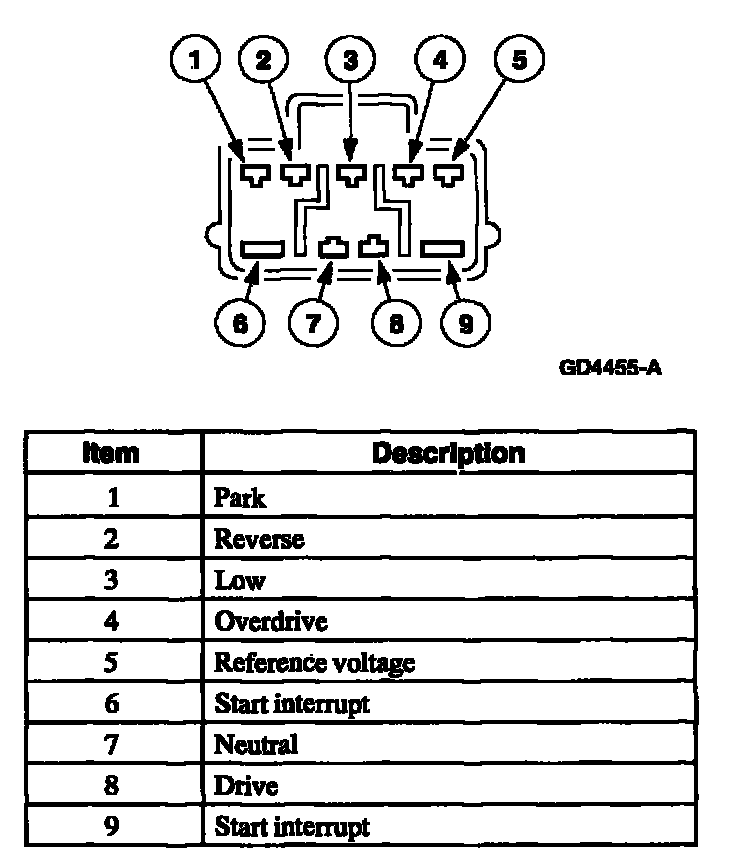

Digital Transaxle Range Sensor C122 Harness Side

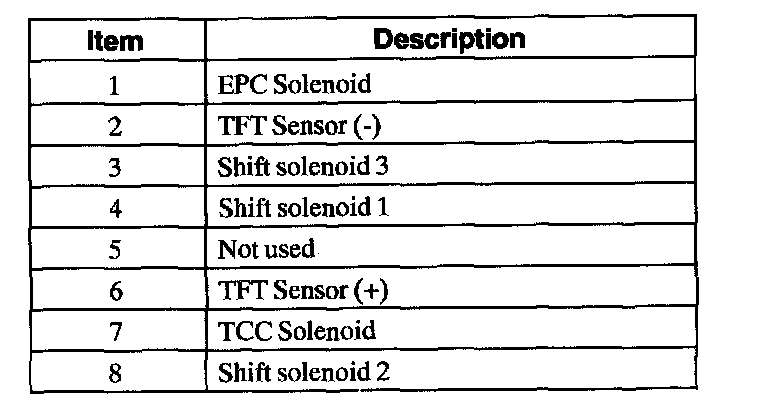

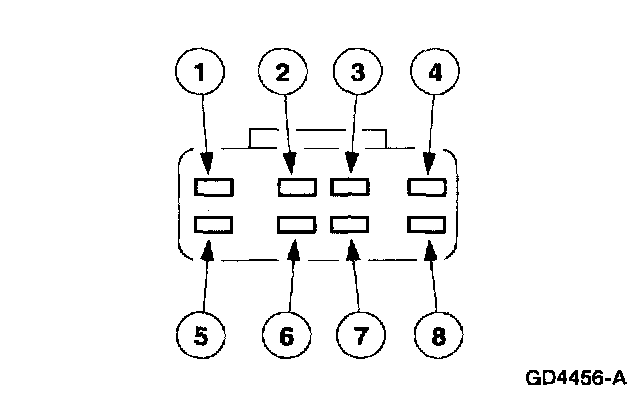

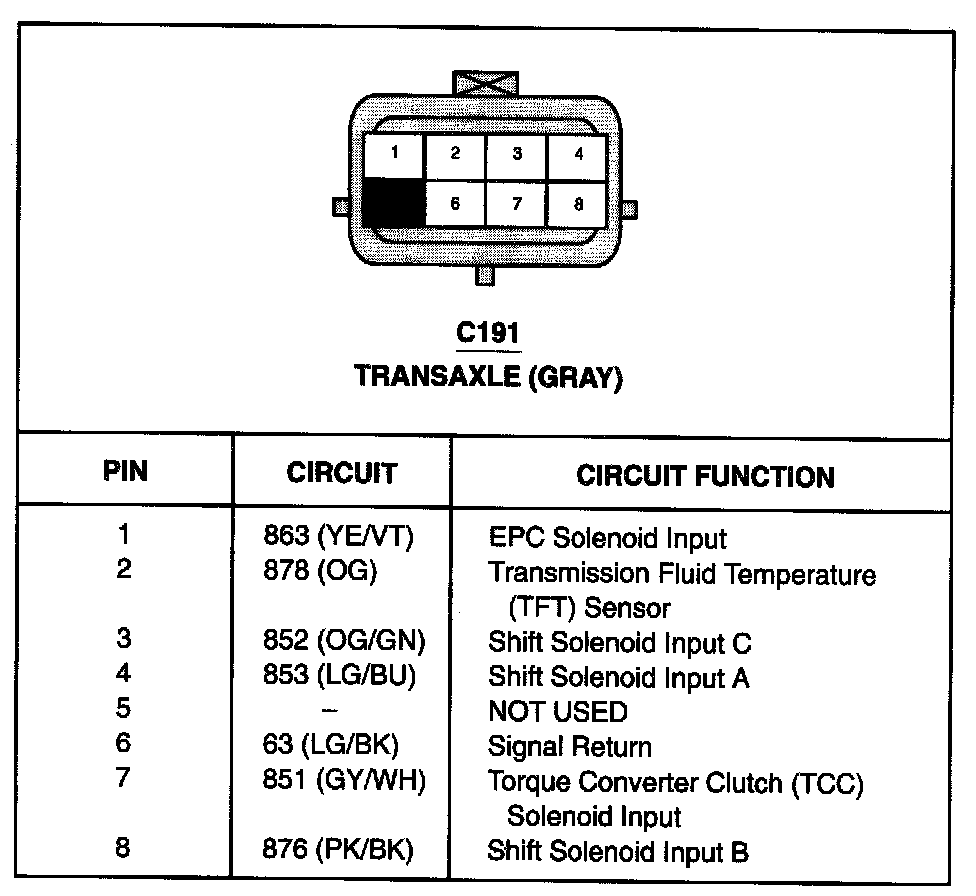

Transaxle Harness C191 Harness Side
