Flywheel
Flywheel RunoutMaximum Runout mm (in)
0.2 (0.008)
Clutch Disc Lining ThicknessFlywheel Side mm (in)
3.5(0.138)
Pressure Plate Side mm (in)
3.8(0.150)
Torque Specifications Flywheel-To-Crankshaft Bolts
73-91 Nm (54-67 ft. lbs.)

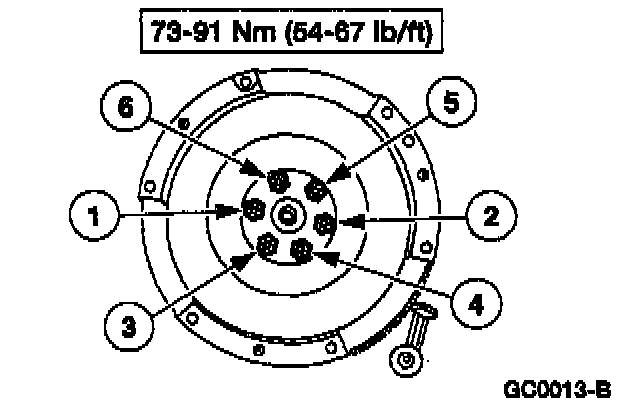

Flywheel Sequence to specification
