Master Window Regulator Control Switch
1.
Key OFF.
2.
Remove and disconnect the master window regulator control switch.
Part 1:
Part 2:
3.

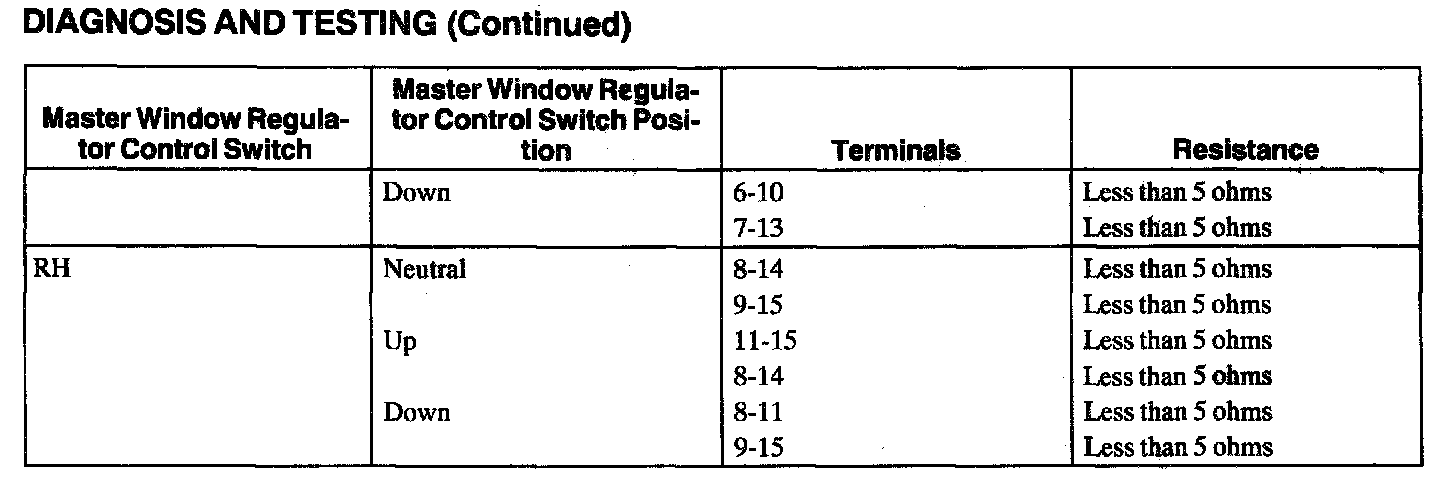

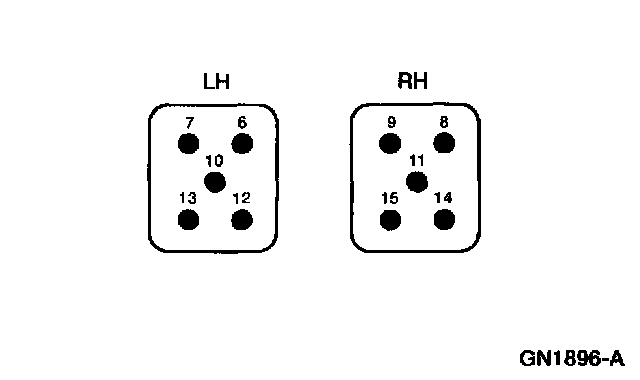

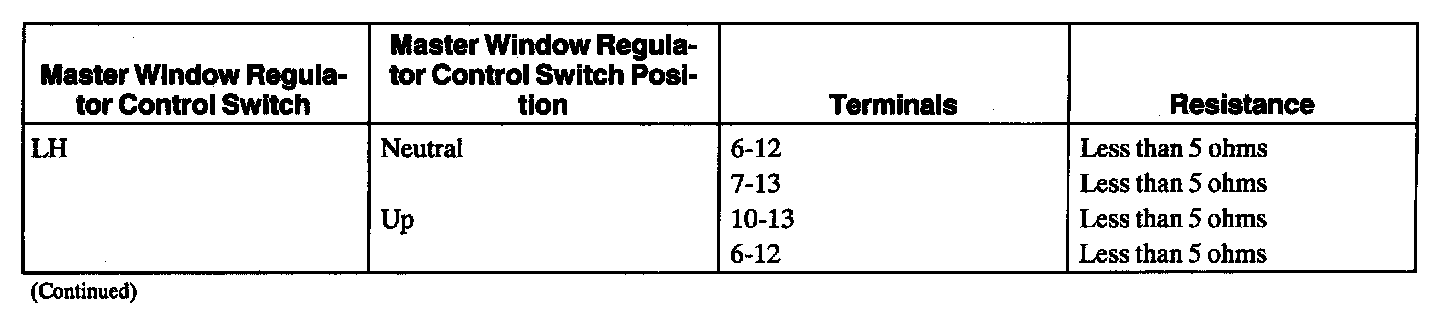

Measure the resistance between the following terminals:
4.
If the master window regulator control switch fails any of the above tests, replace it. Otherwise, return to the pinpoint test.
