Trunk / Liftgate Lock Cylinder: Service and Repair
REMOVAL 1.
Remove the liftgate
trim panel.
2.

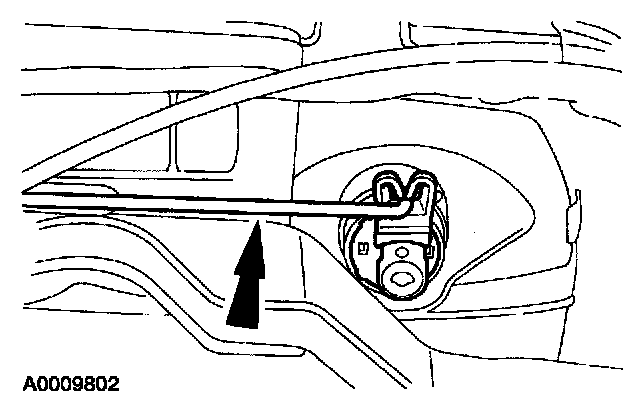

Release the lock cylinder rod.
3.

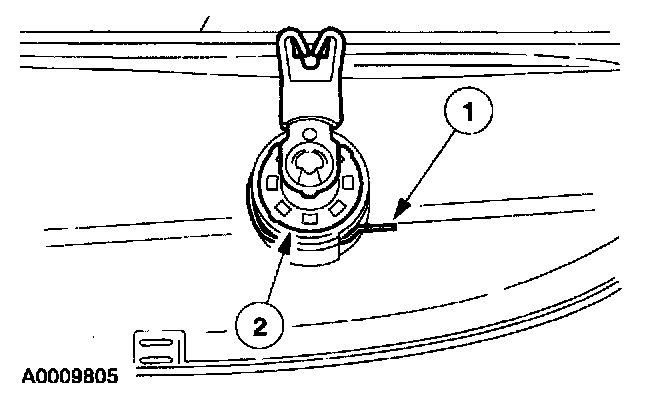

Remove the lock cylinder.
1
Remove the clip.
2
Remove the lock cylinder.
INSTALLATION 1.
To install, reverse the removal procedure.
