Interior Mirror

Rear View Mirror Replacer:

SPECIAL TOOL(S)

REMOVAL







1. Disconnect the wire and position the wiring cover aside (if equipped).

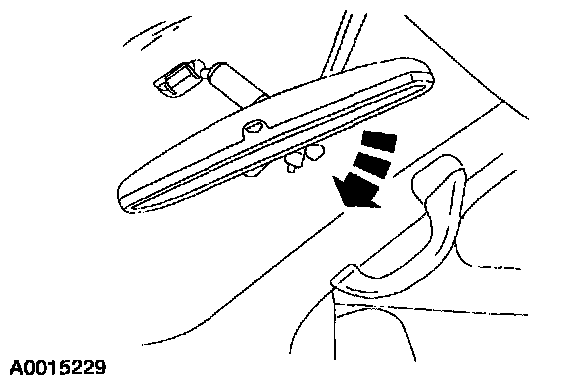

2. With the mirror rotated to the vertical, pull downward until the mirror releases.

INSTALLATION

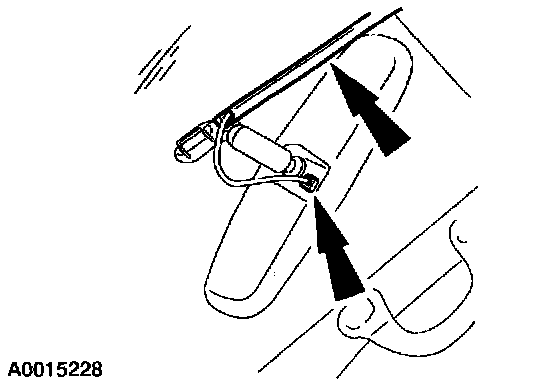

1. Position the mirror on the mounting button.

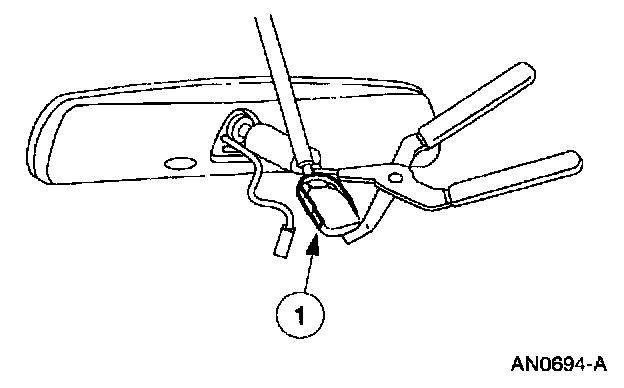

2. Seat the mirror using the Rear View Mirror Replacer.
^ After making sure that the mirror is positioned correctly, use the special tool to lock the mirror in place.

3. Connect the wire (if equipped).
4. Install the wiring cover (if equipped).
