Tailgate Latch: Service and Repair

REMOVAL







1. Open the tailgate.

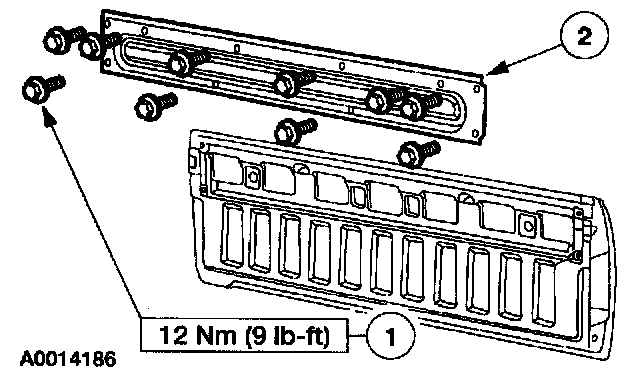

2. Remove the tailgate access panel.
1 Remove the screws.
2 Remove the tailgate access panel.

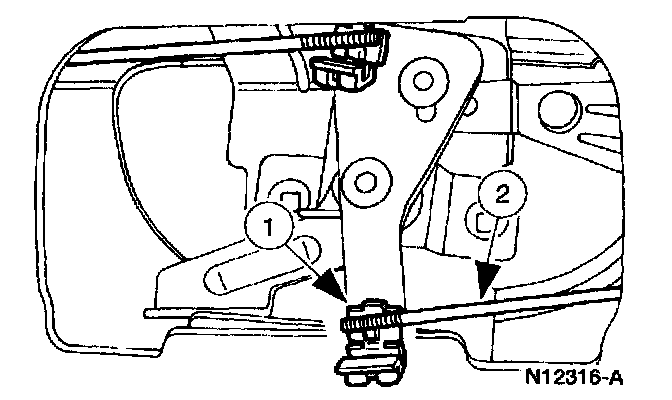

3. Disconnect the tailgate latch remote control actuating rods.
1 Open the locking clips.
2 Disconnect the rods.

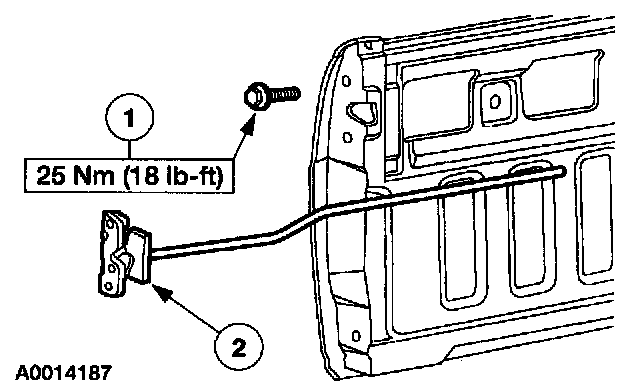

4. Remove the tailgate latch (RH shown, LH similar).
1 Remove the two screws.
2 Remove the tailgate latch.

INSTALLATION
1. To install, reverse the removal procedure.
^ If necessary, use Multi-Purpose Grease Spray F5AZ-19G209-AA or equivalent meeting Ford specification ESR-M1C159-A to lubricate the latches.
