Test X: Temp Control Inop W/Front/Rear Aux Controls

X1:

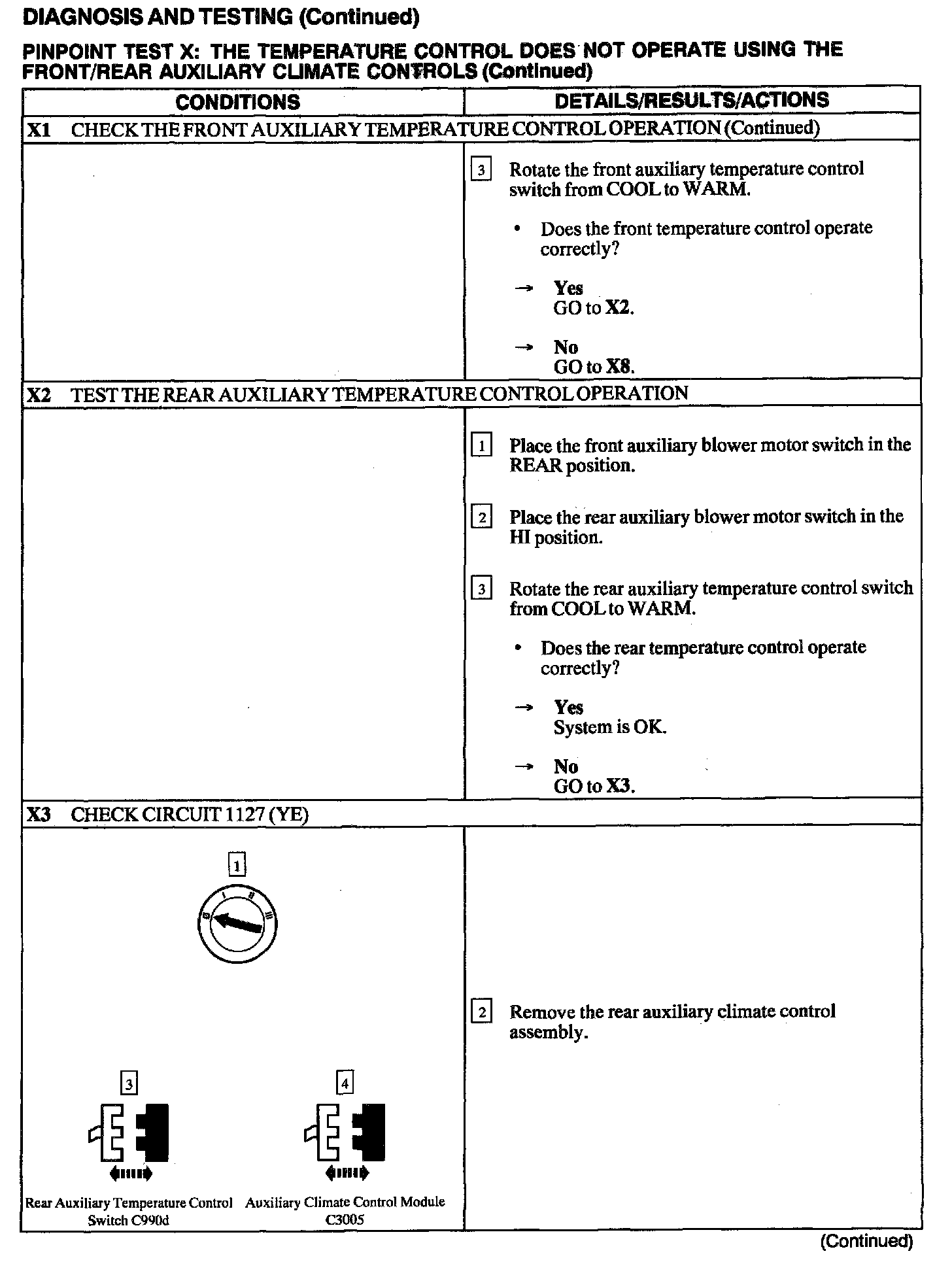

X1 - X3:

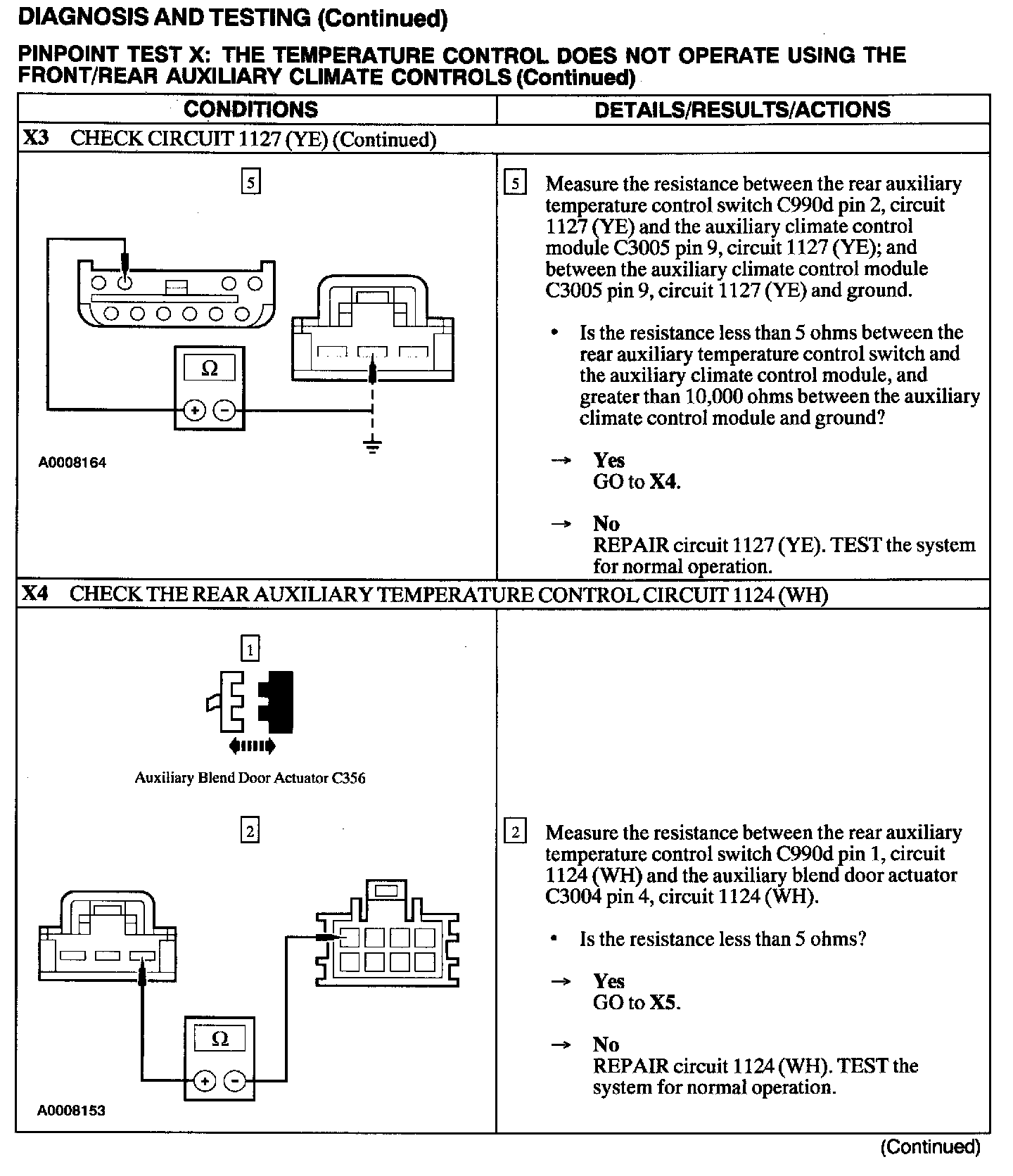

X3 - X4:

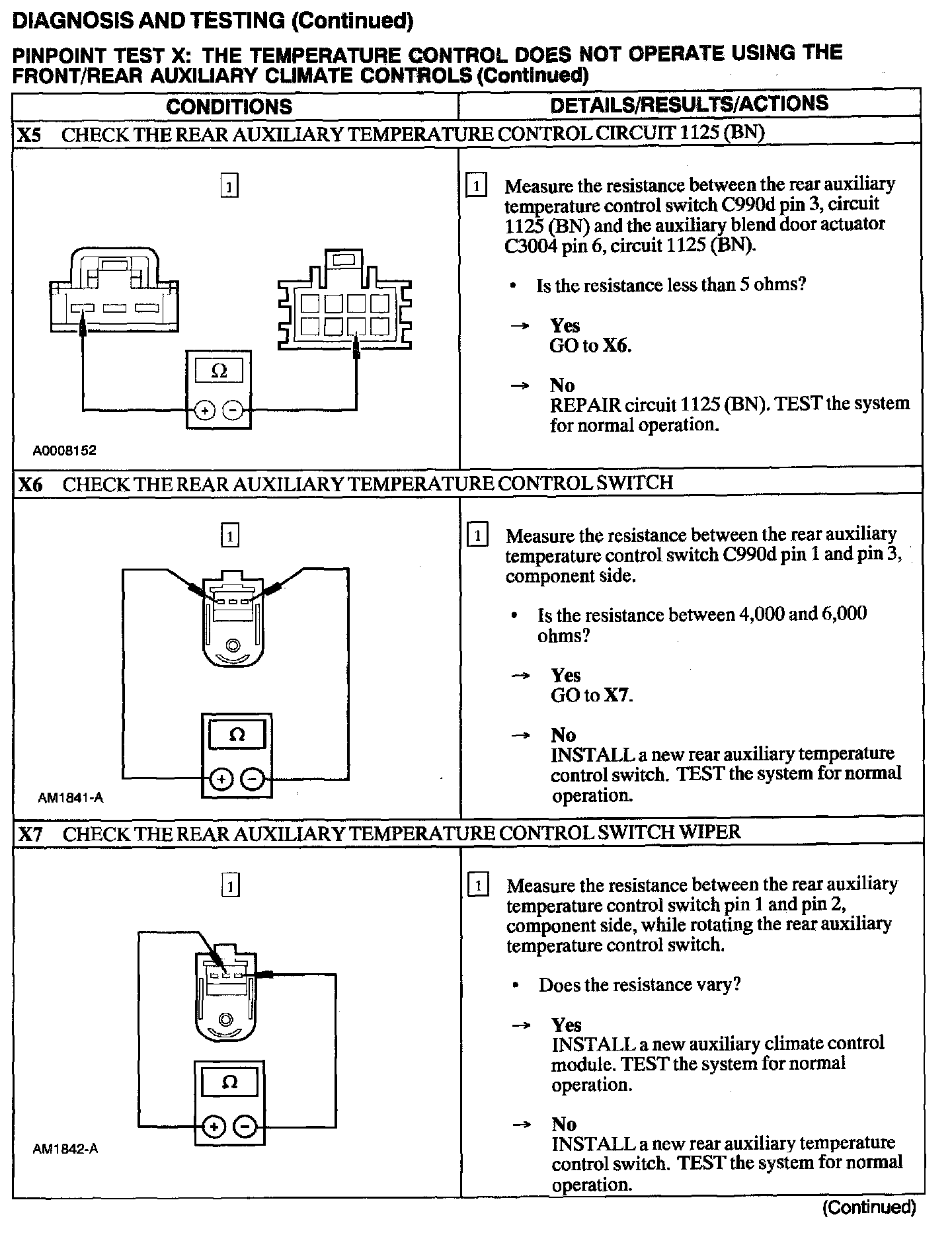

X5 - X7:

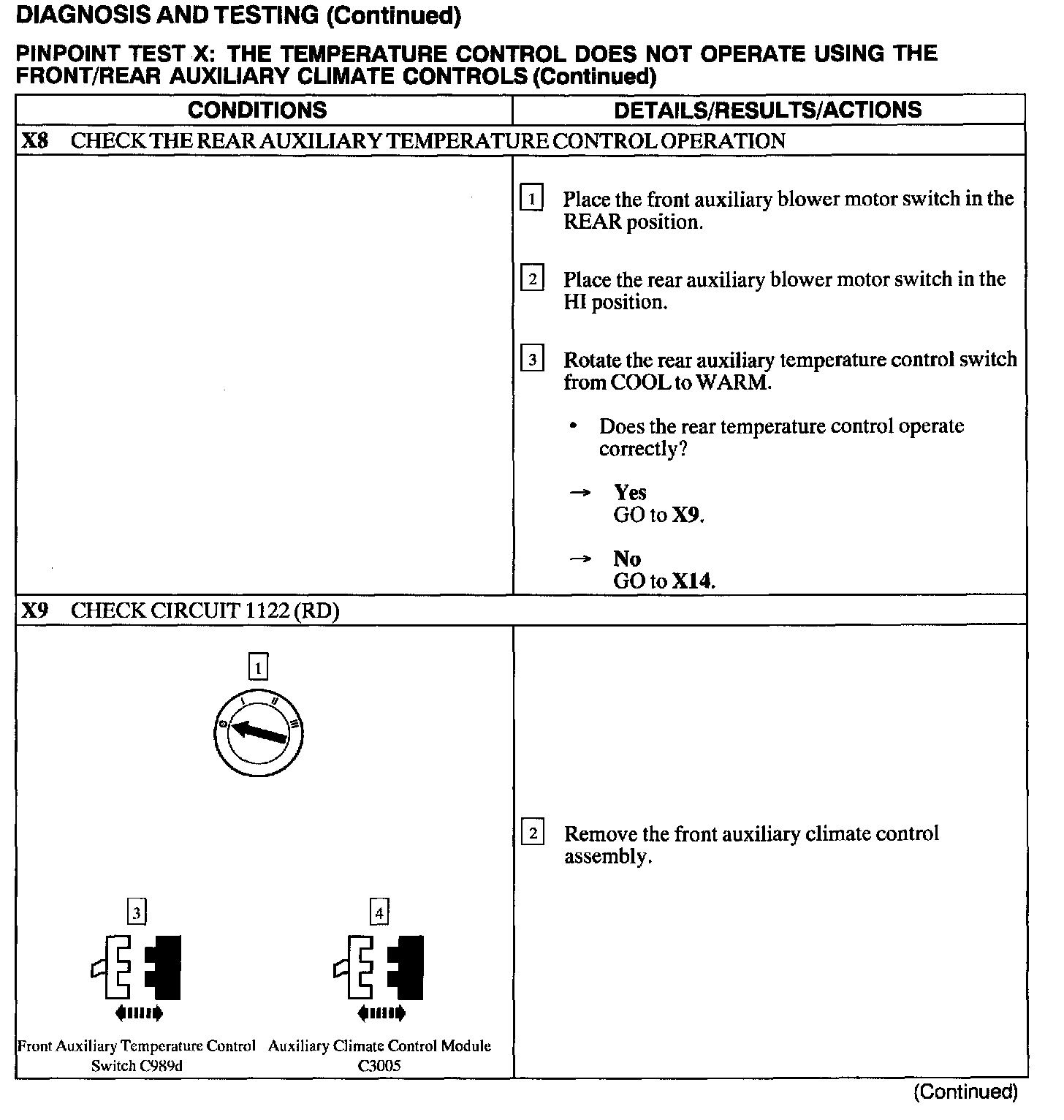

X8 - X9:

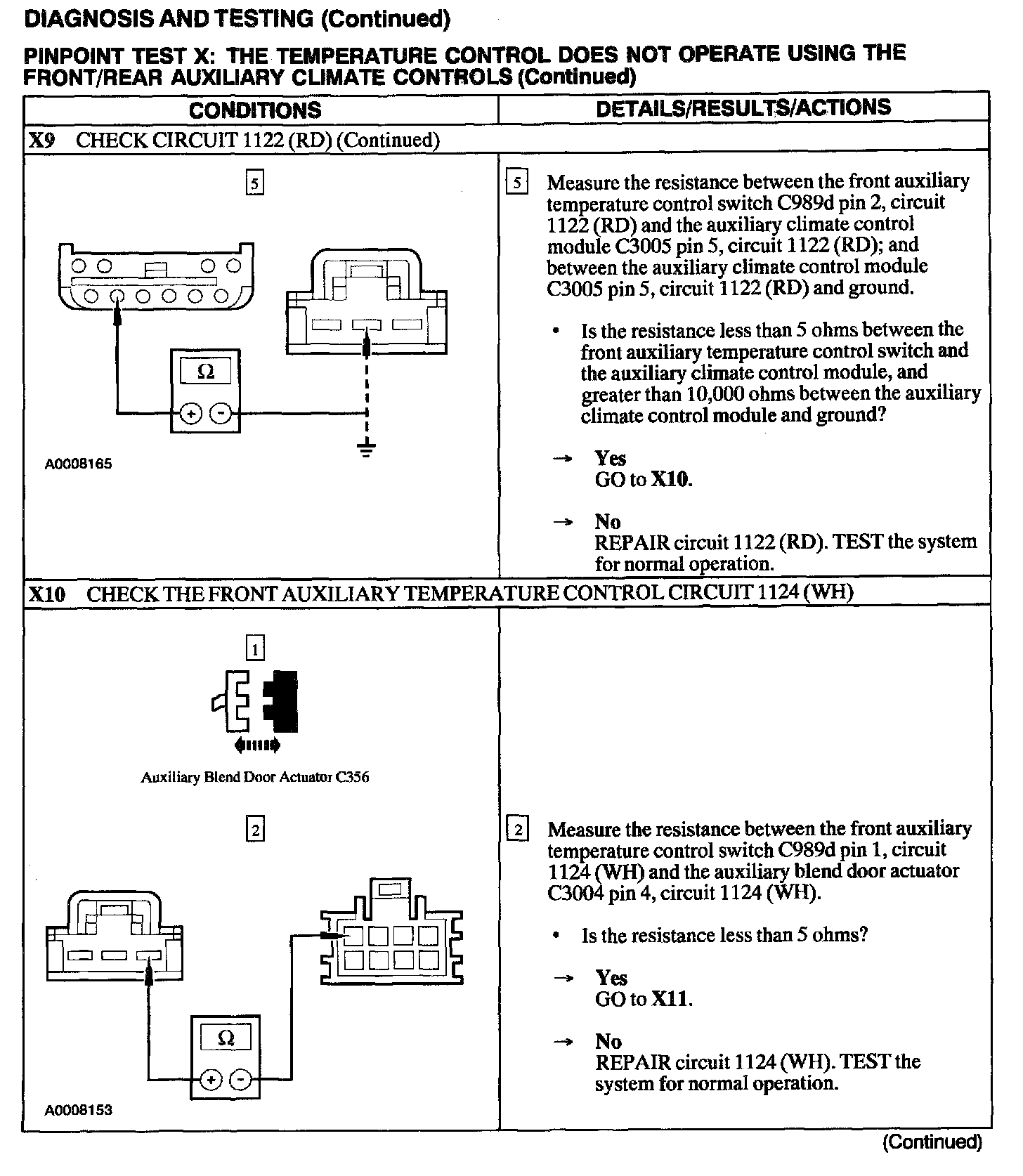

X9 - X10:

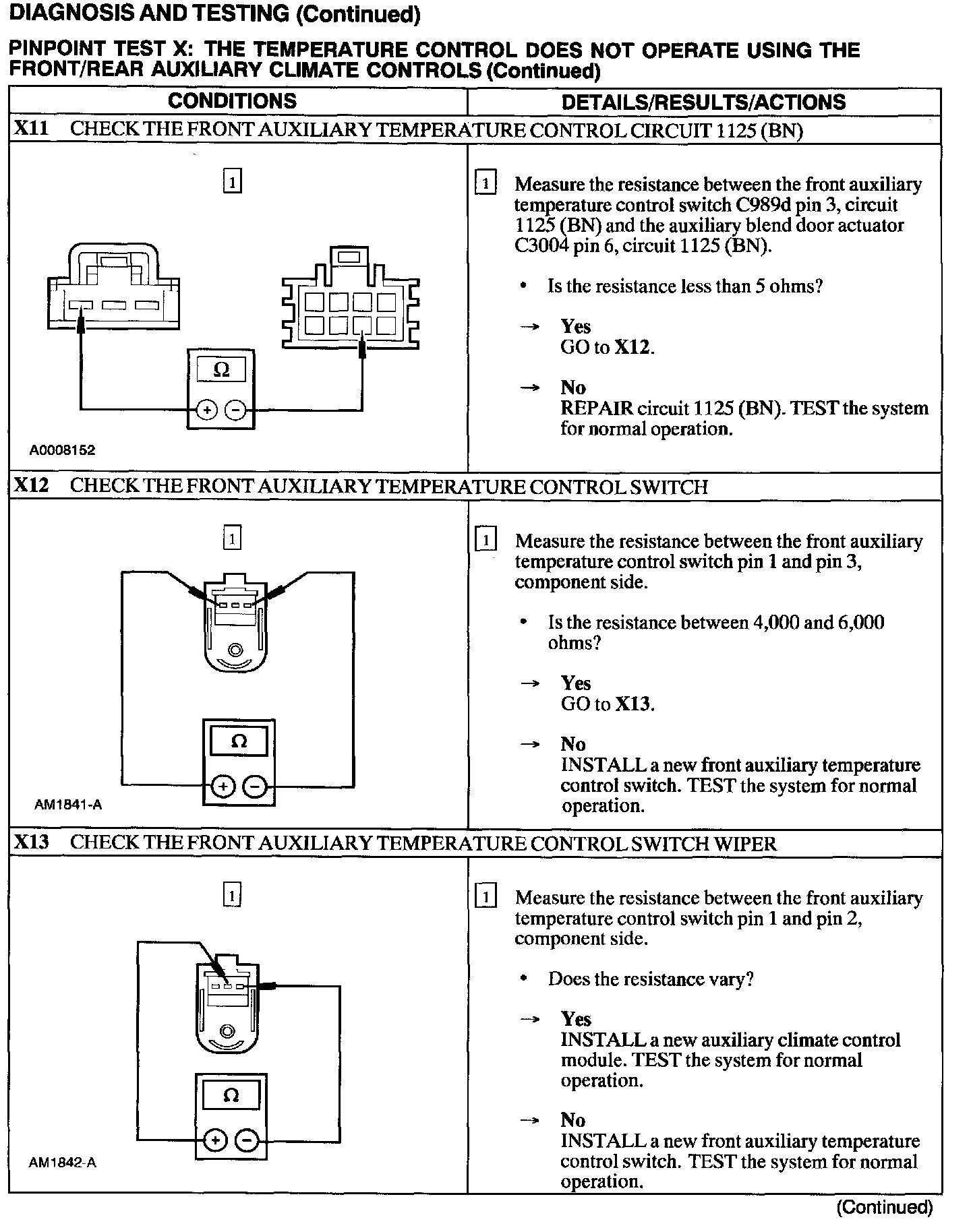

X11 - X13:

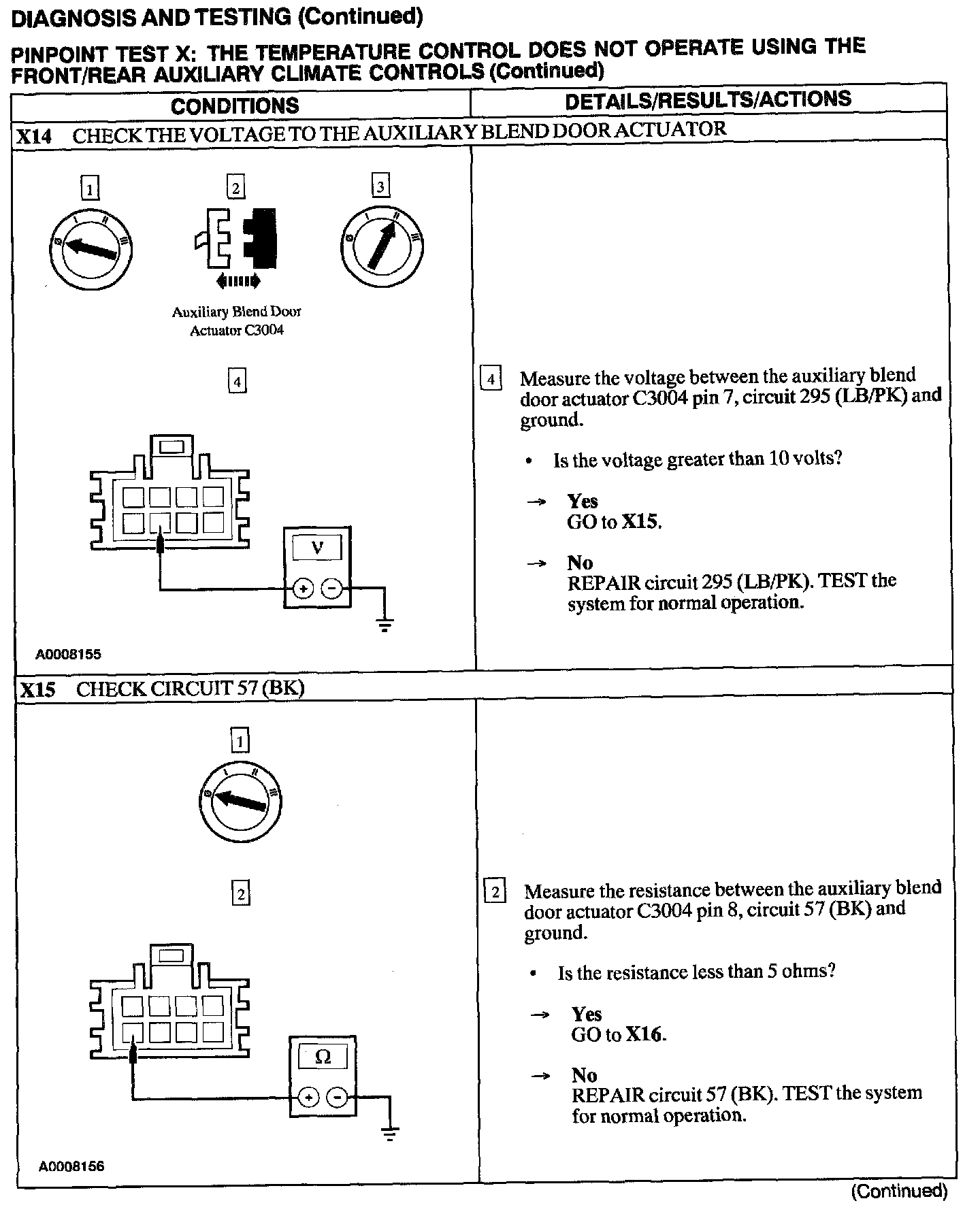

X14 - X15:

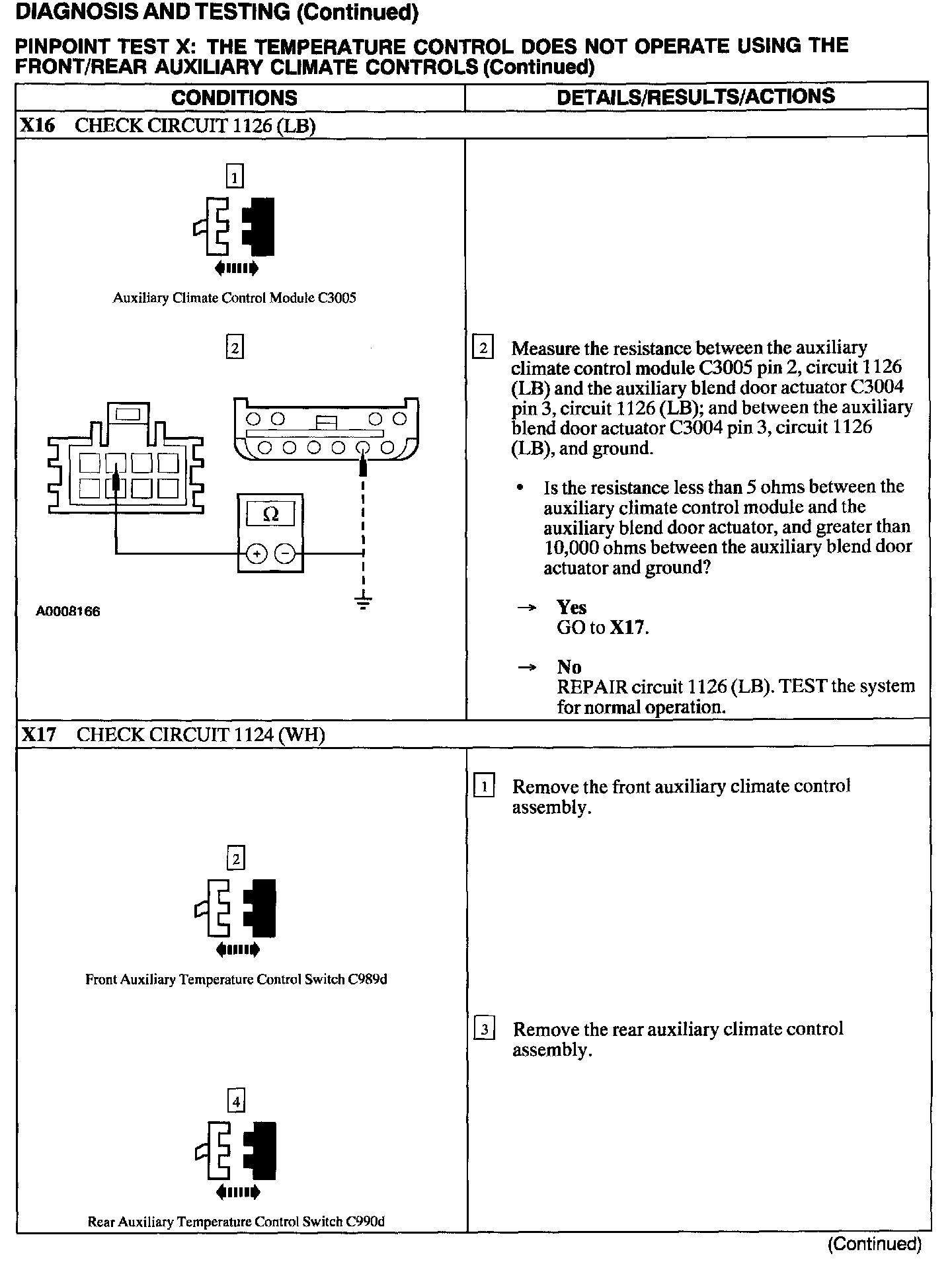

X16 - X17:






X17 - X18:

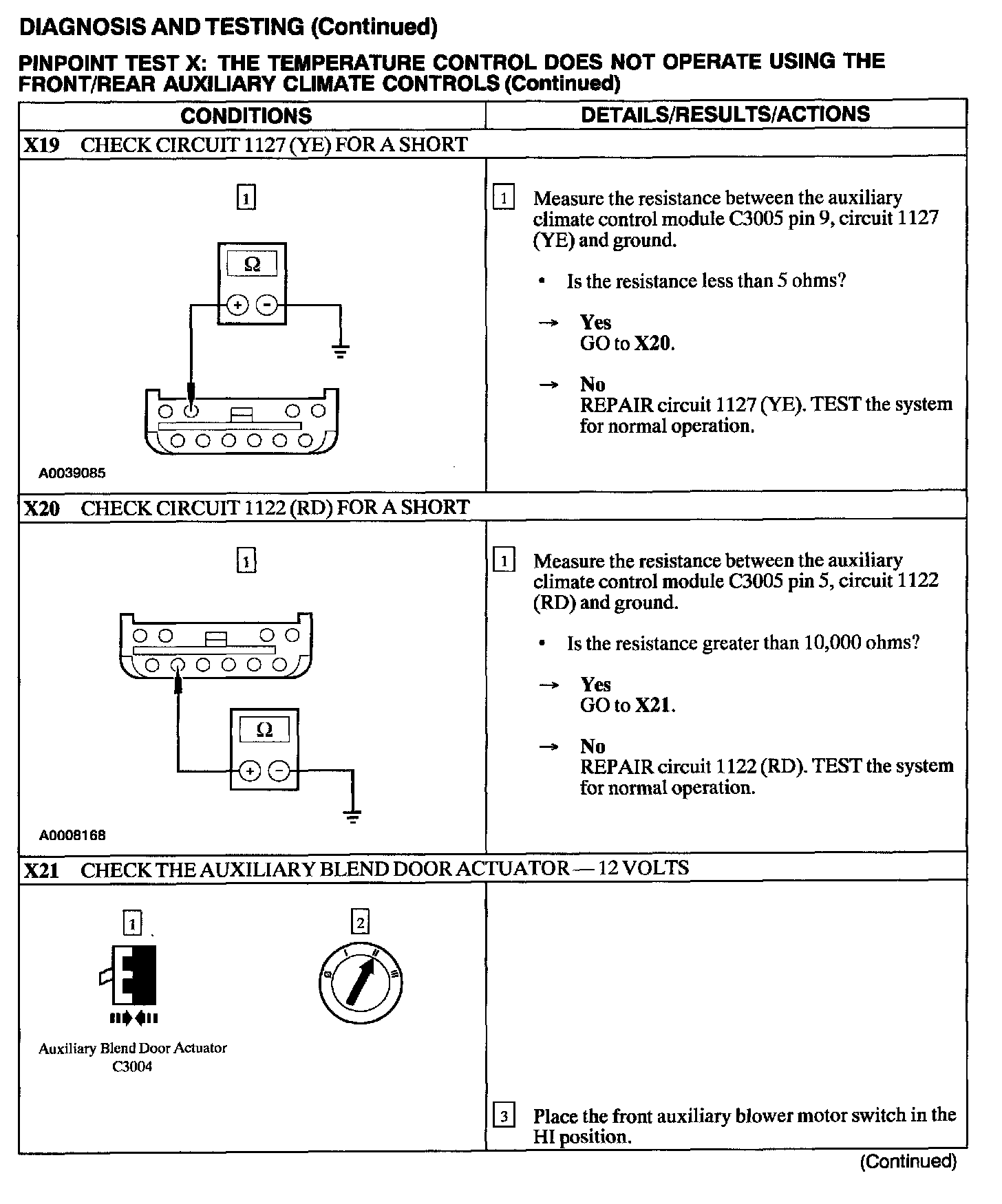

X19 - X21:

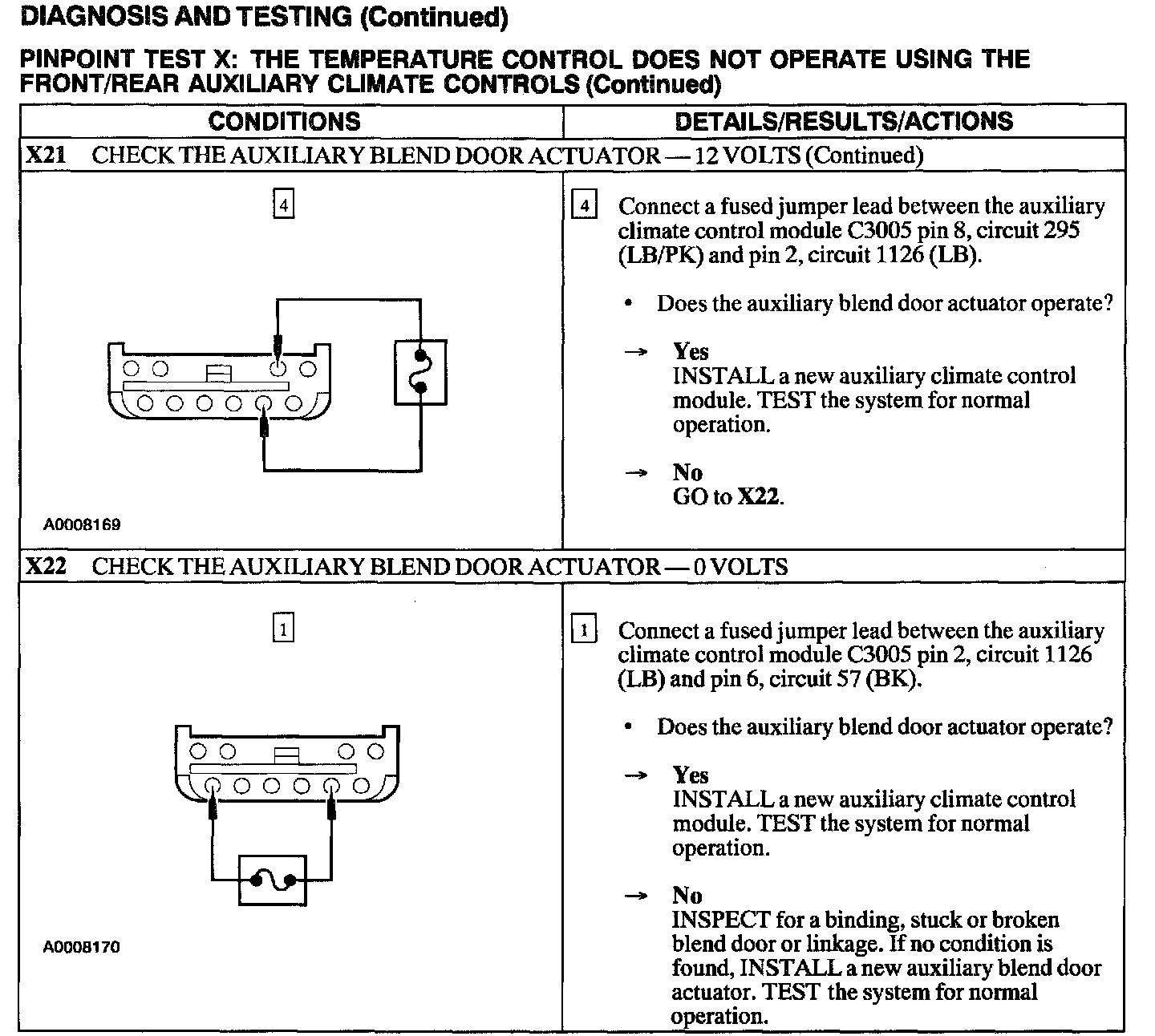

X21 - X22:
