Tests DD: Accelerator Pedal (AP) Sensor

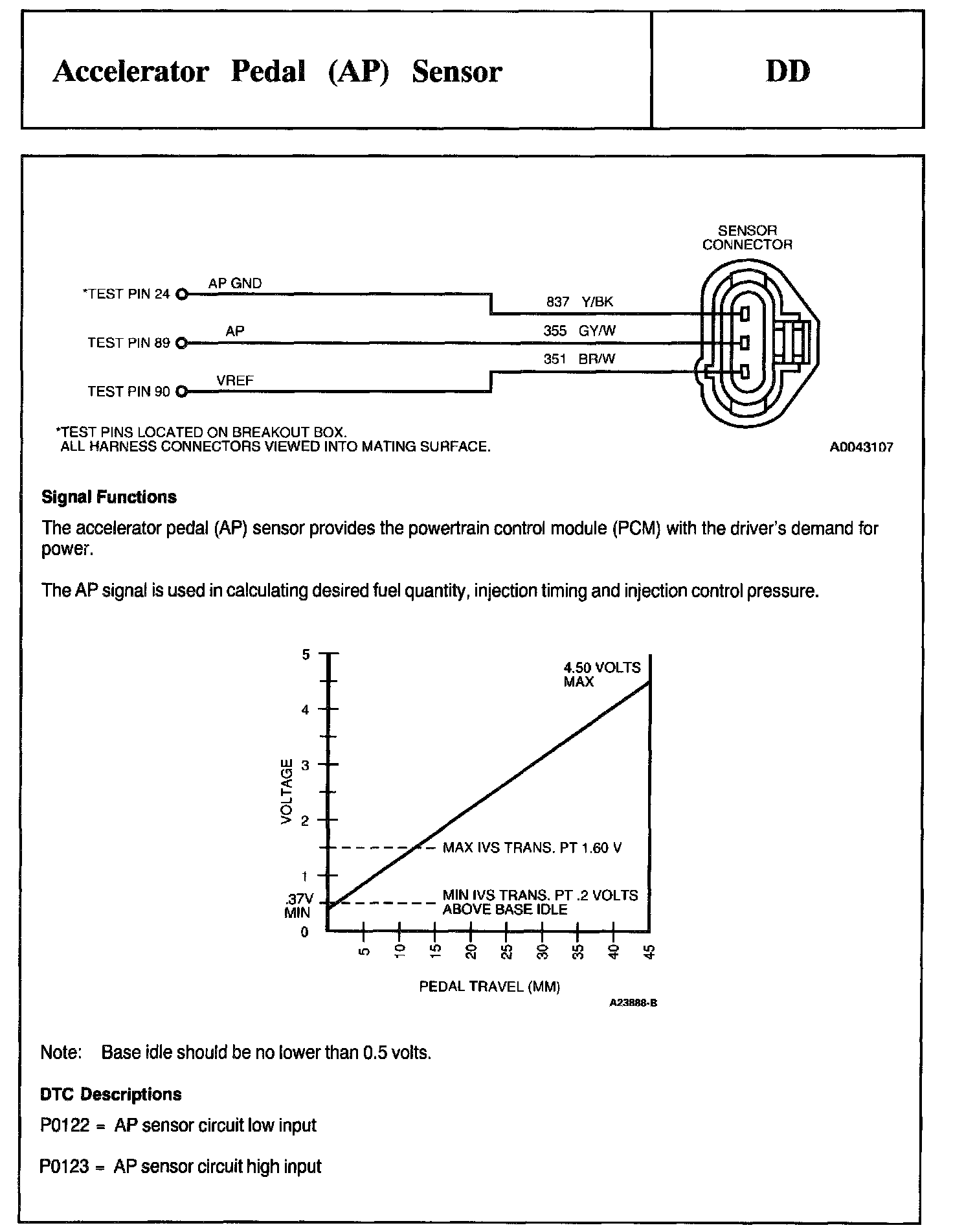

Schematic, Graph and Description:

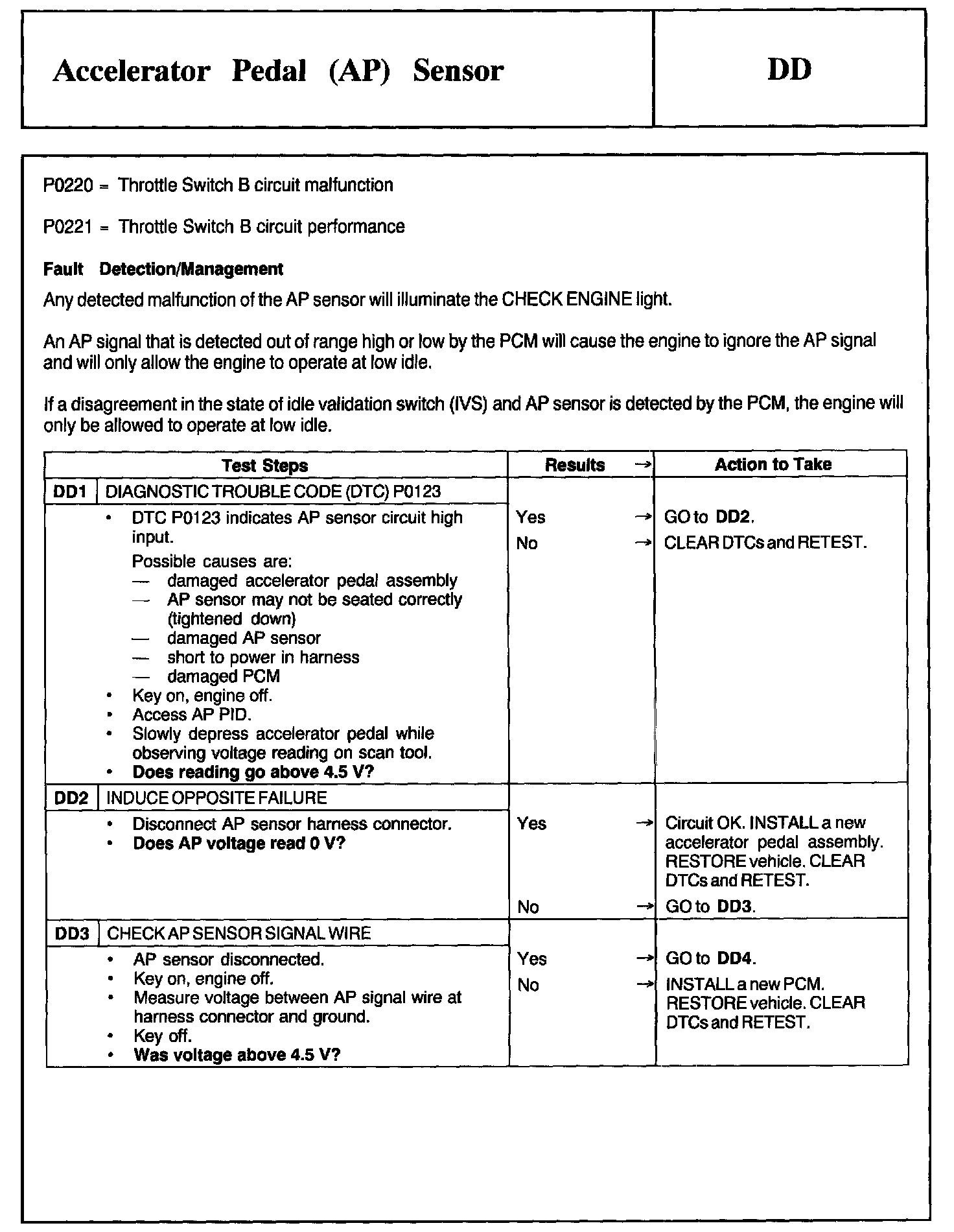

Description, Test DD1 - DD3:

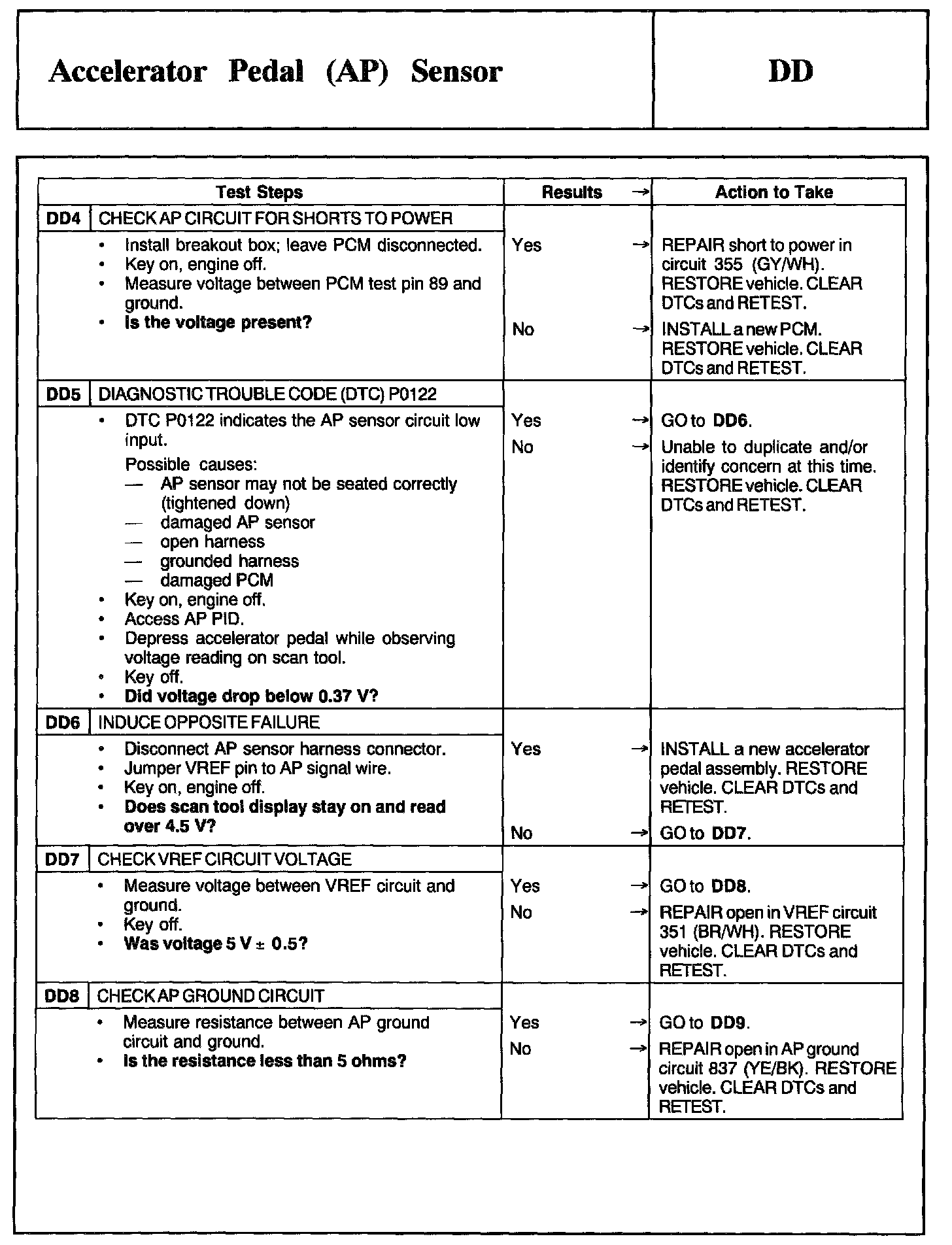

DD4 - DD8:

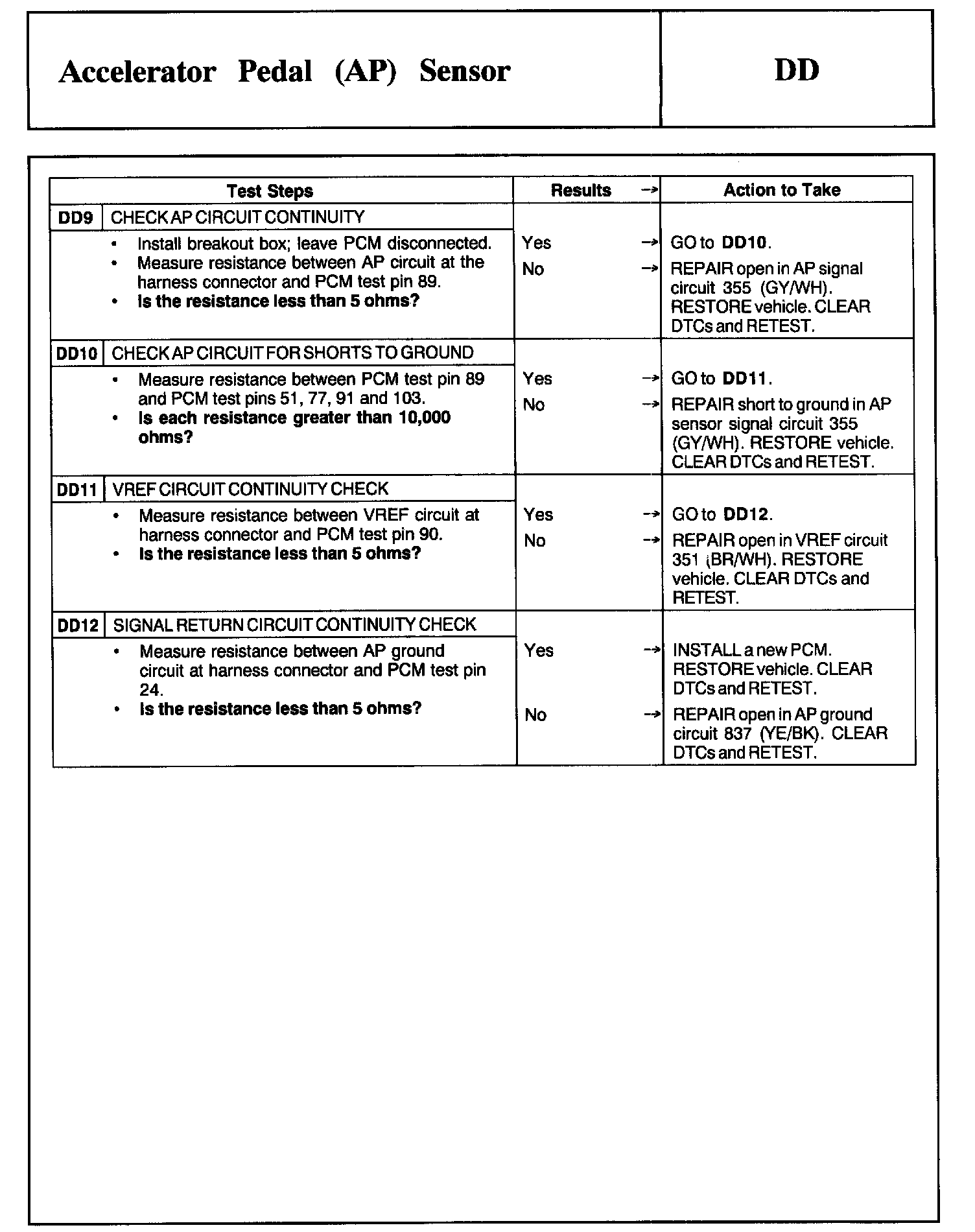

DD9 - DD12:
