Tests DL: Vehicle Speed Sensor (VSS)

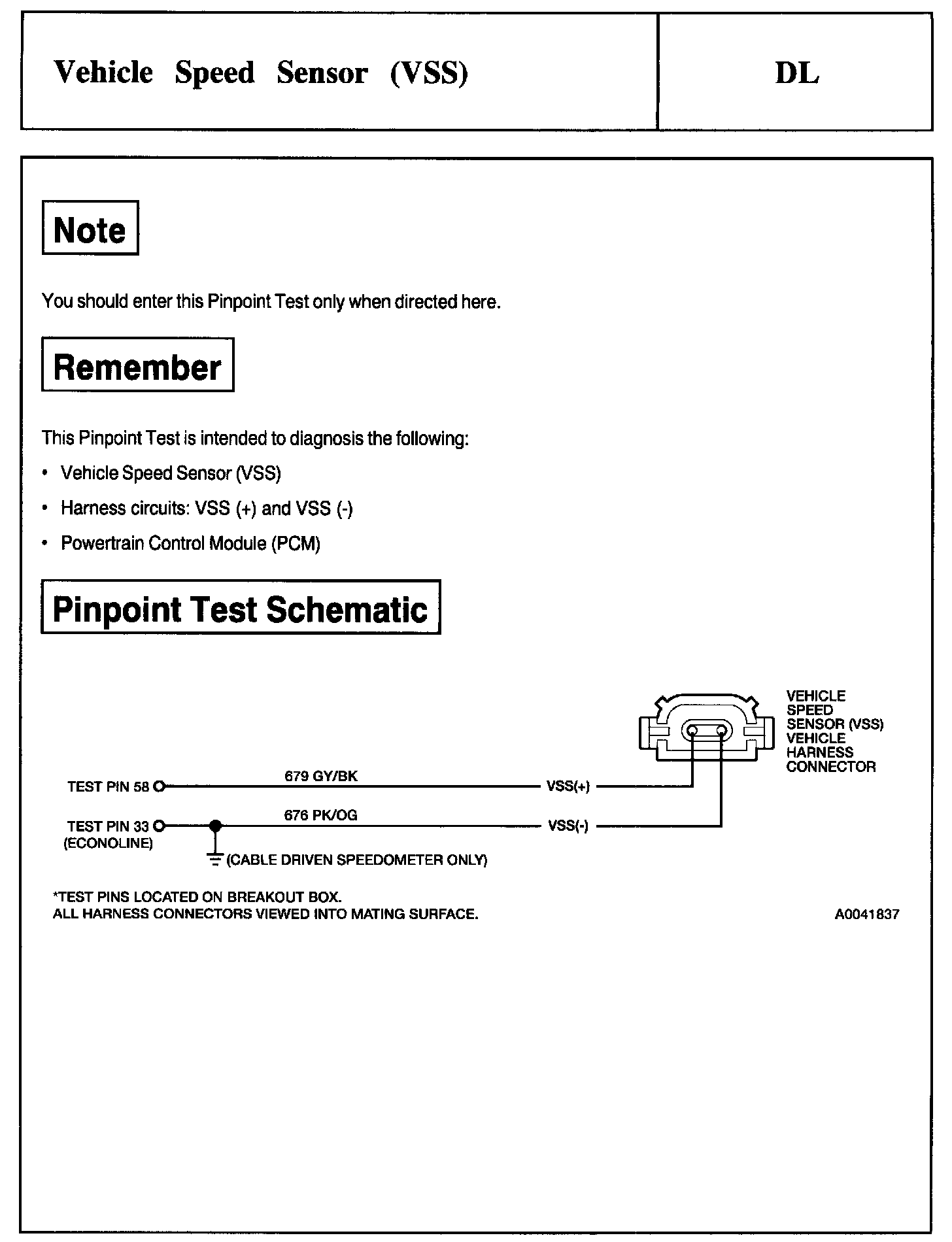

Note, Remember and Schematic:

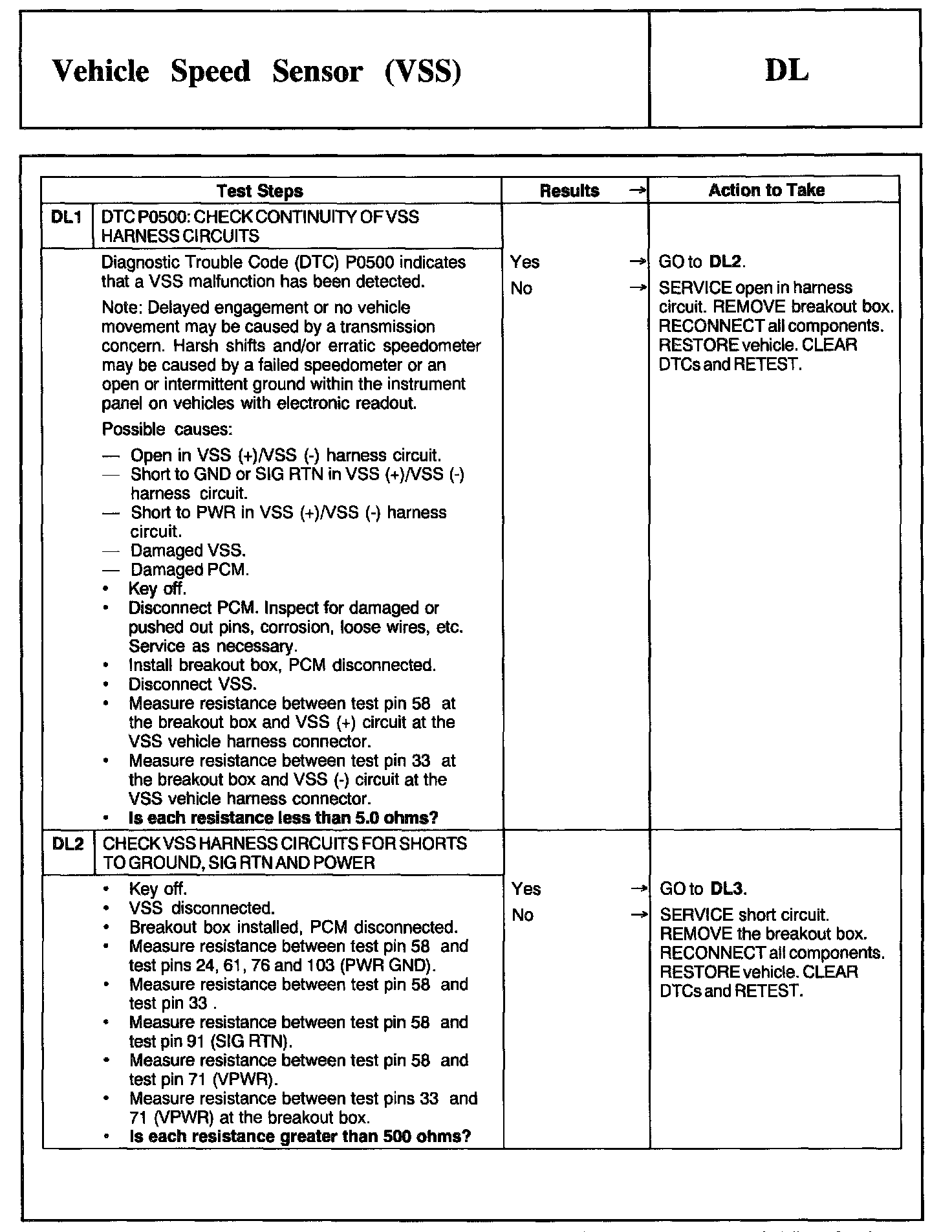

DL1 - DL2:

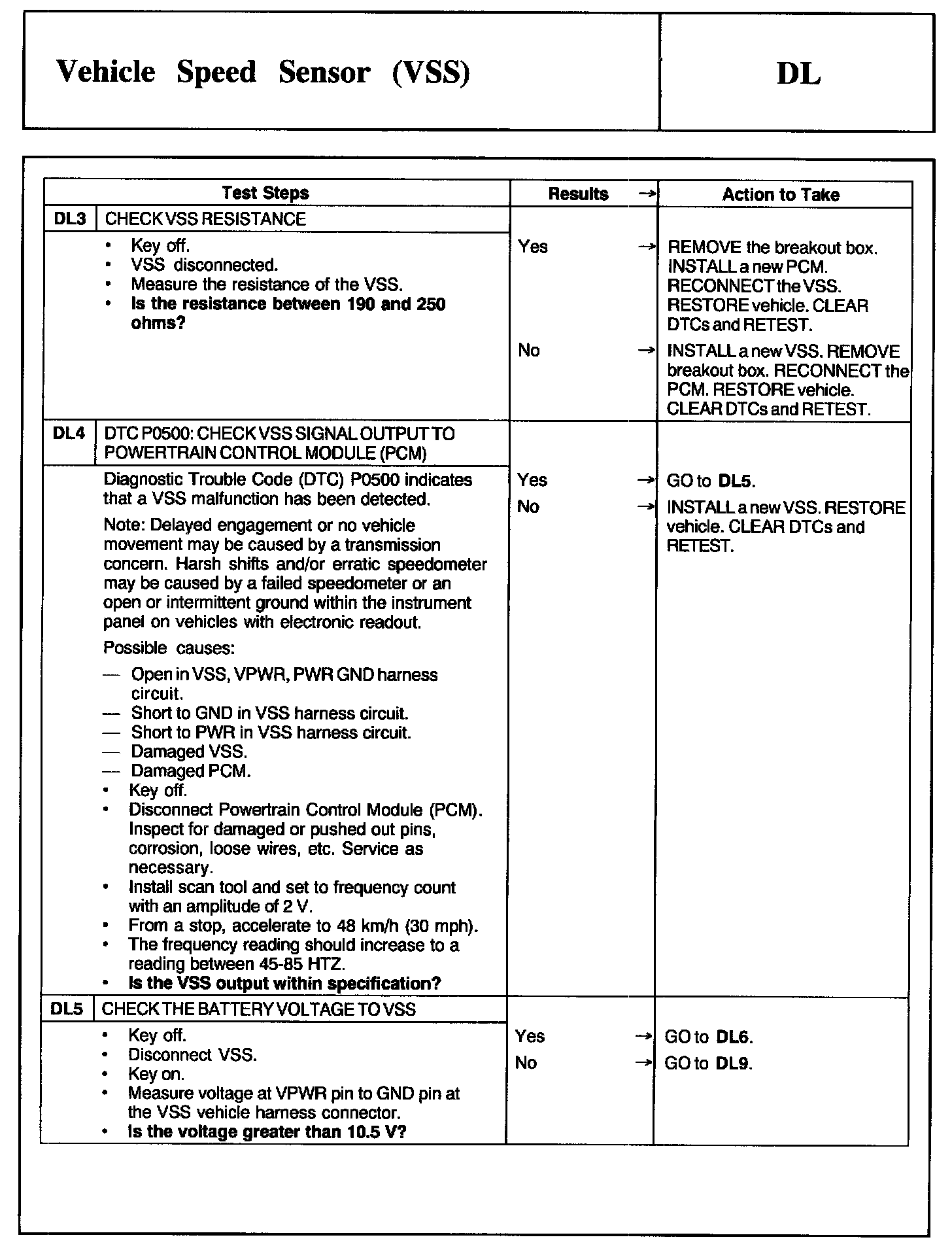

DL3 - DL5:

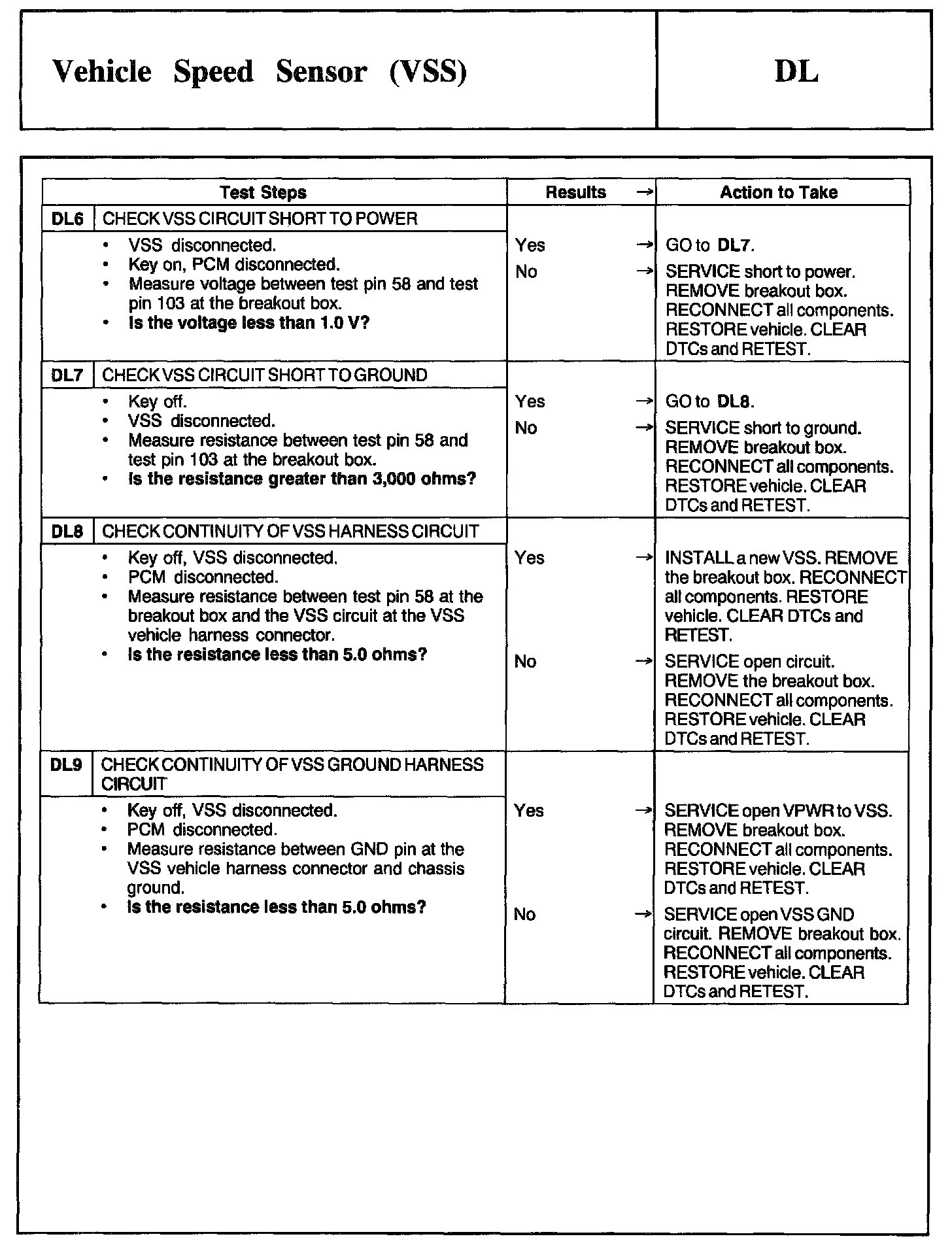

DL6 - DL9:

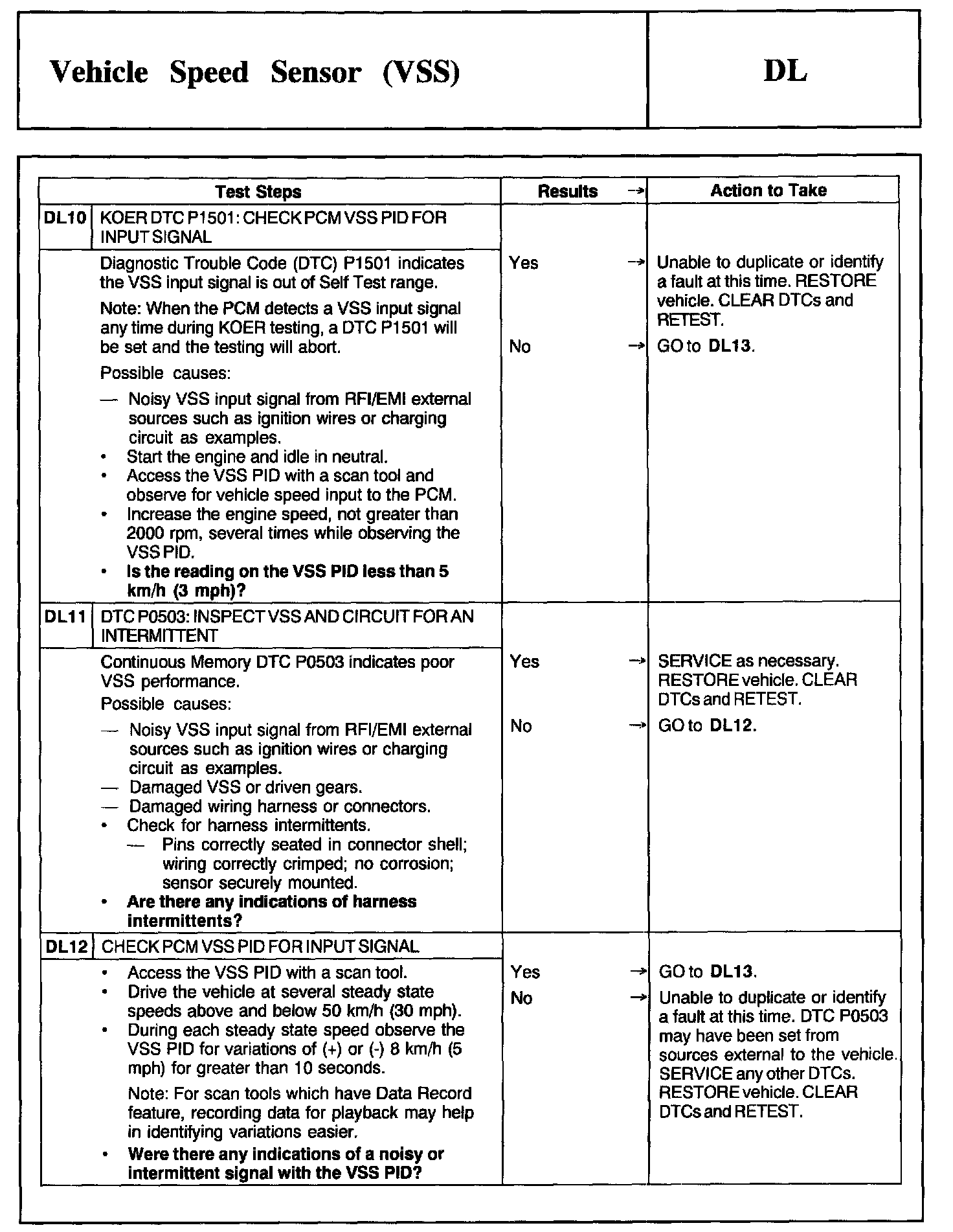

DL10 - DL12:

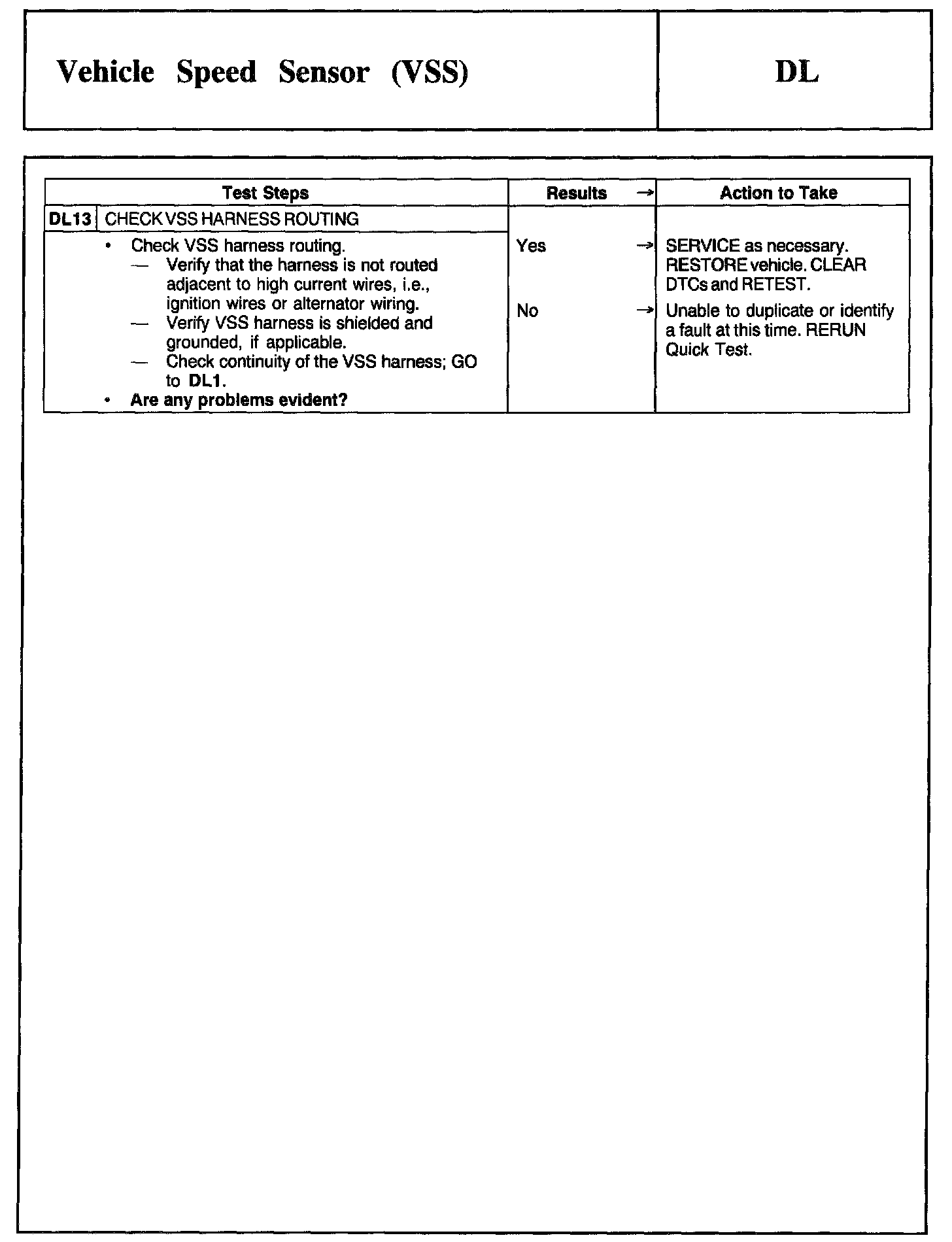

DL13:
