Tests KB: Exhaust Back Pressure Regulator (EPR)

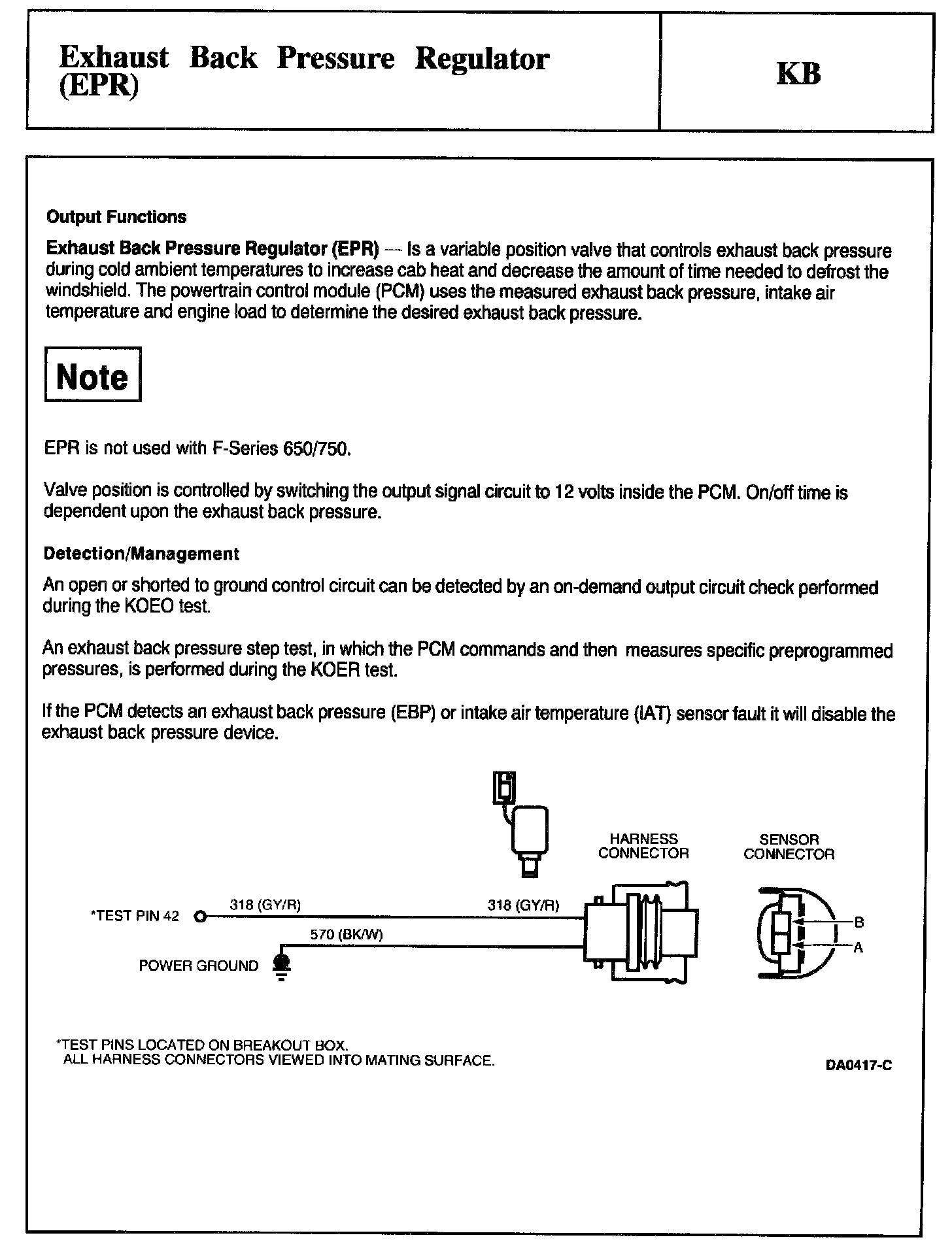

Description, Note And Schematic:

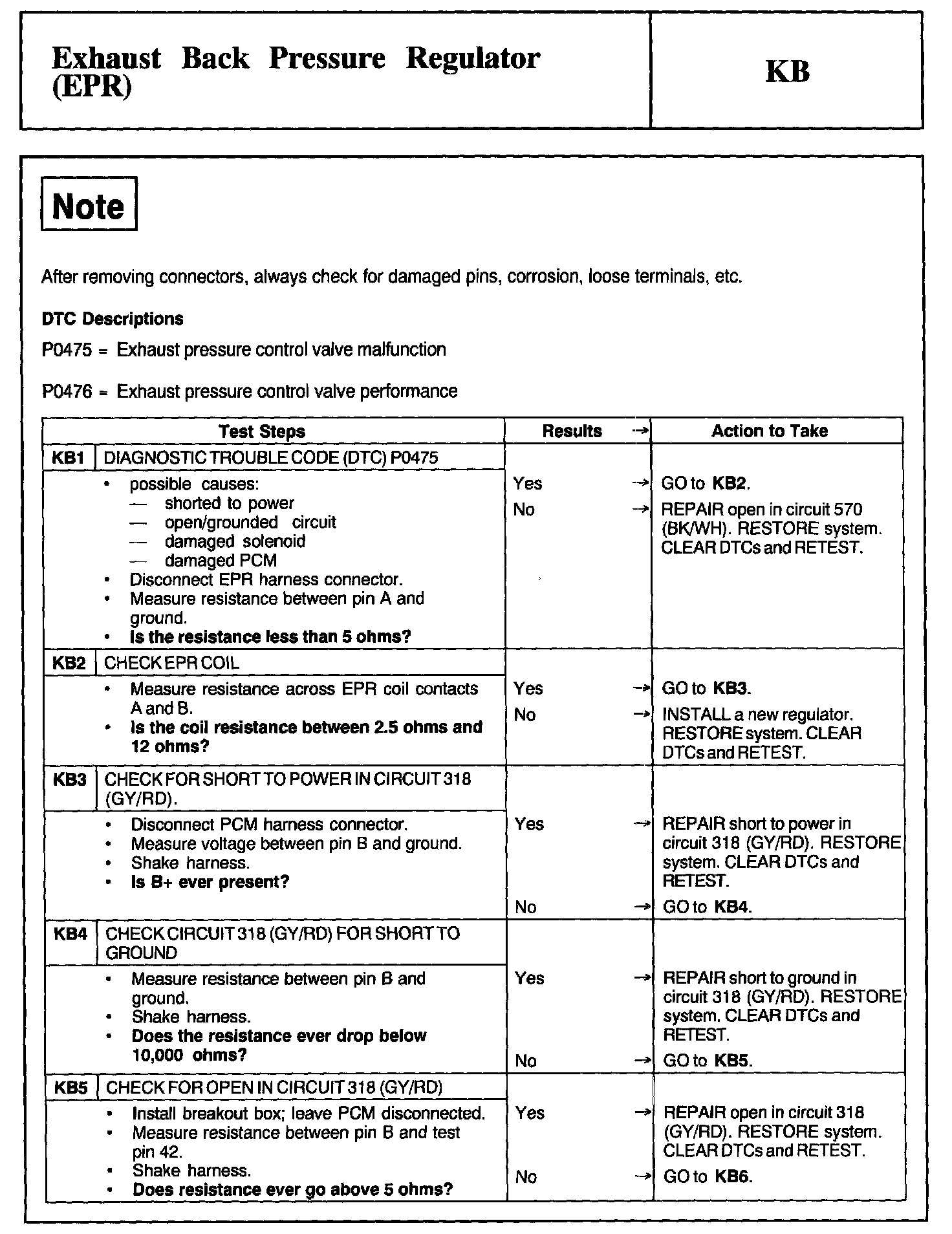

Note, Test KB1 - KB5:

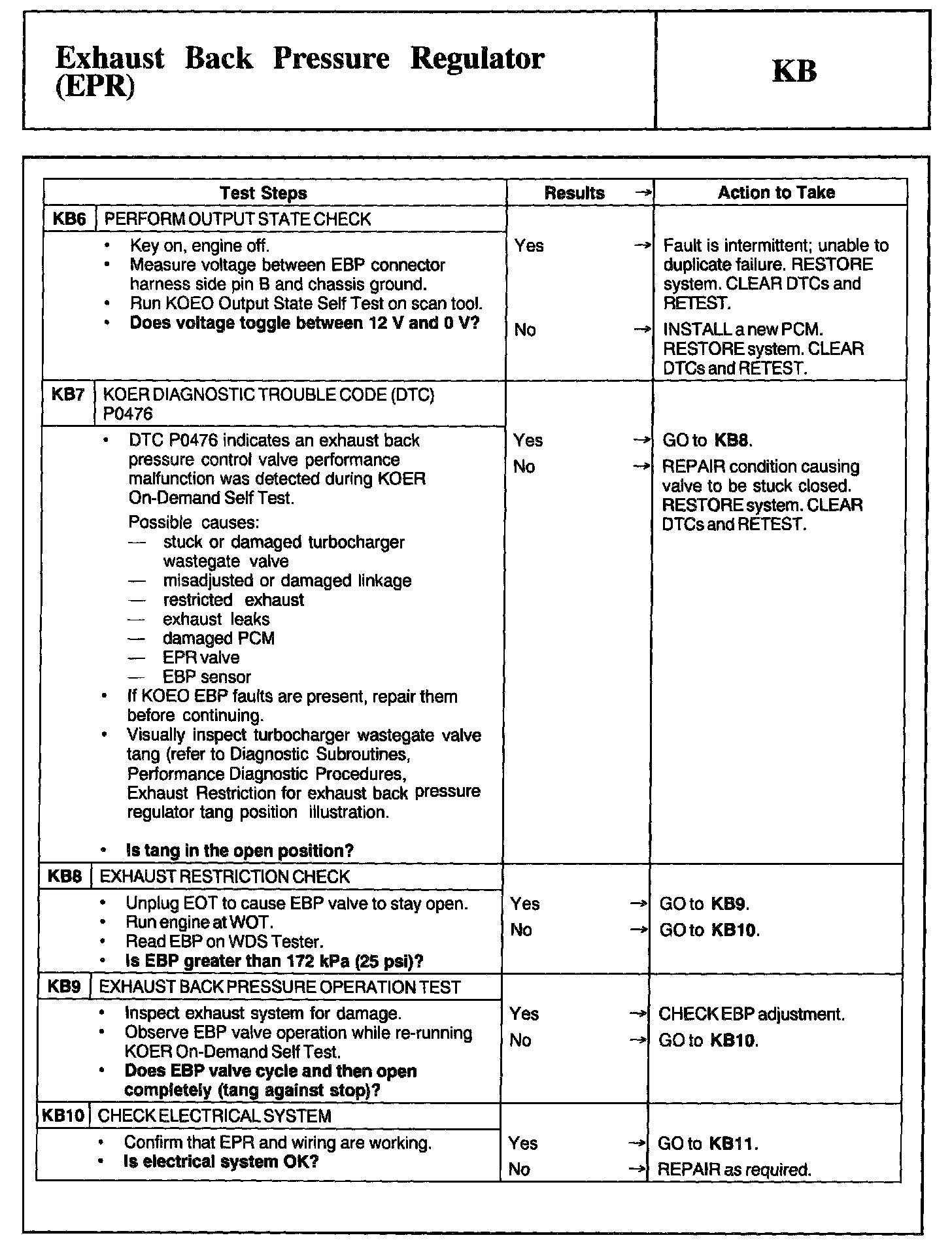

KB6 - KB10:

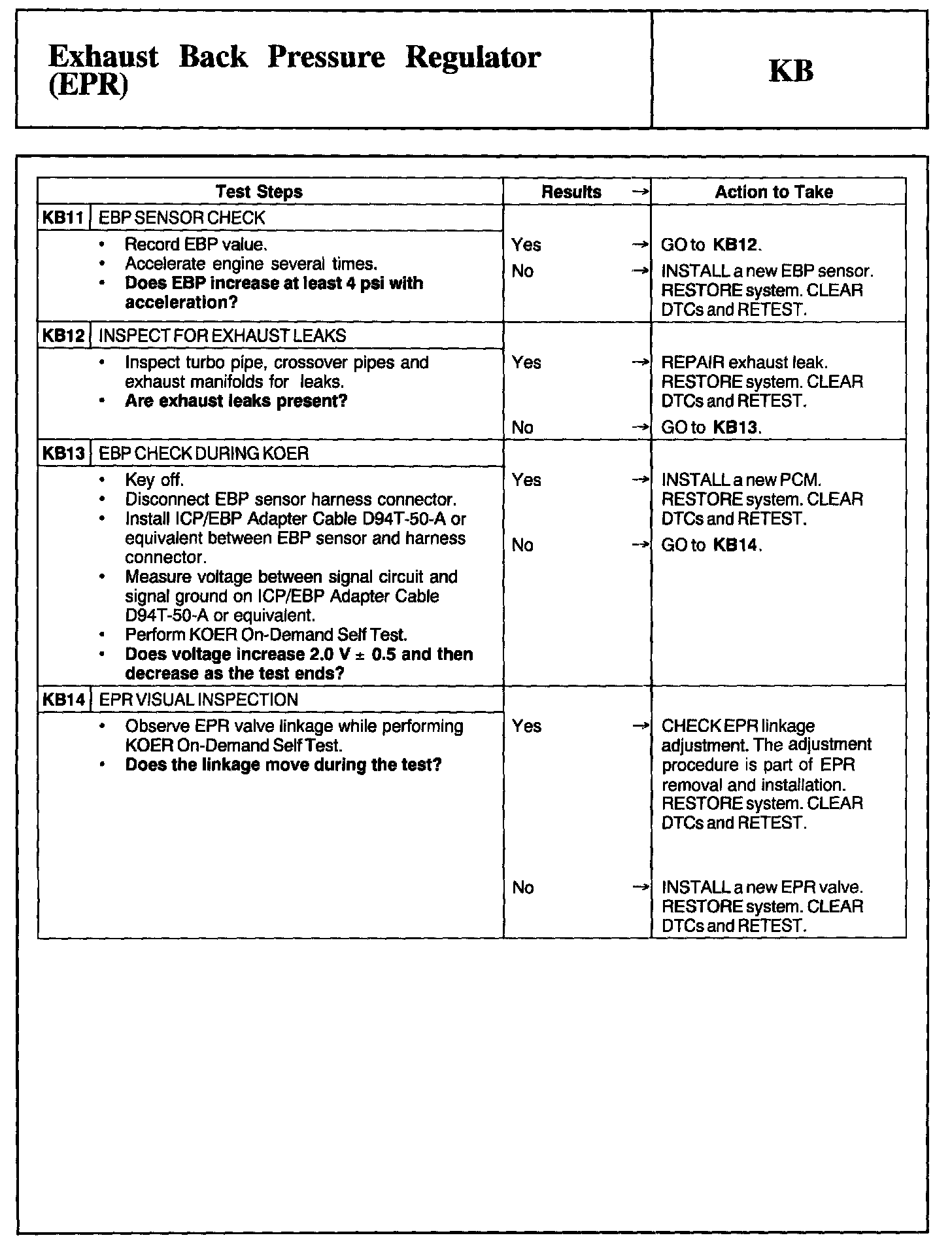

KB11 - KB14:
