Tests QB: Glow Plug System (California)

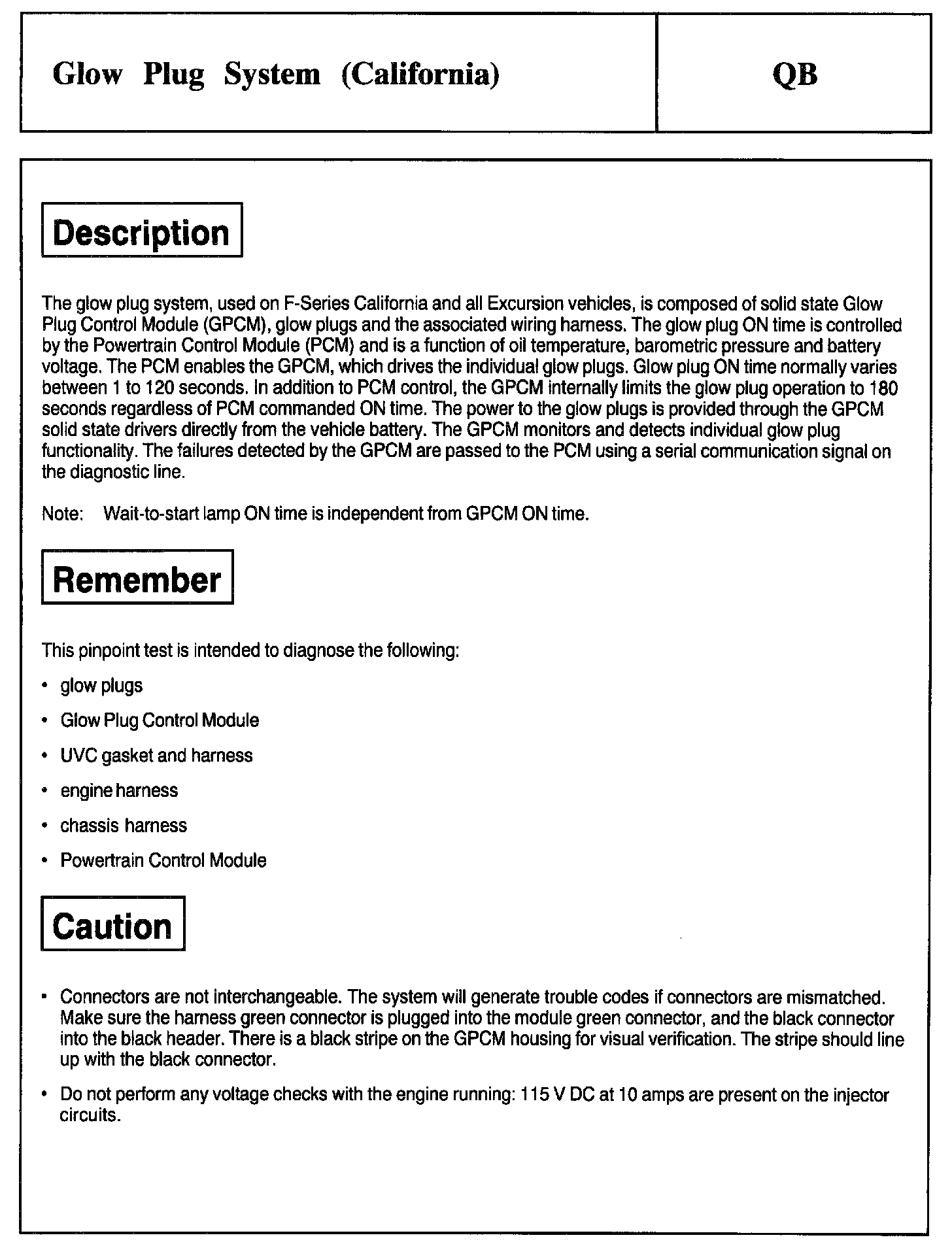

Description, Remember and Caution:

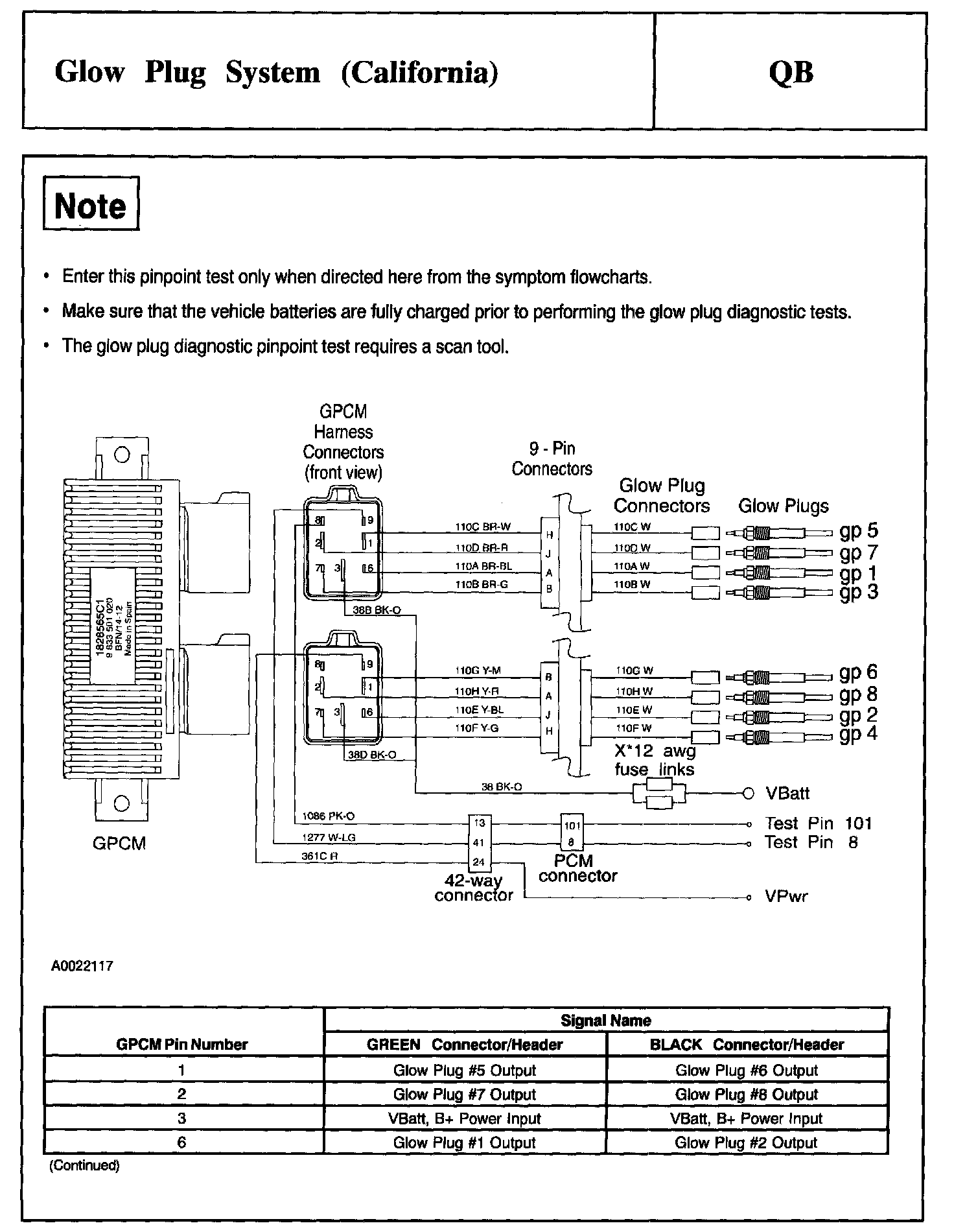

Note, Schematic and Table:






Table, Description and Caution:






QB1 - QB3:

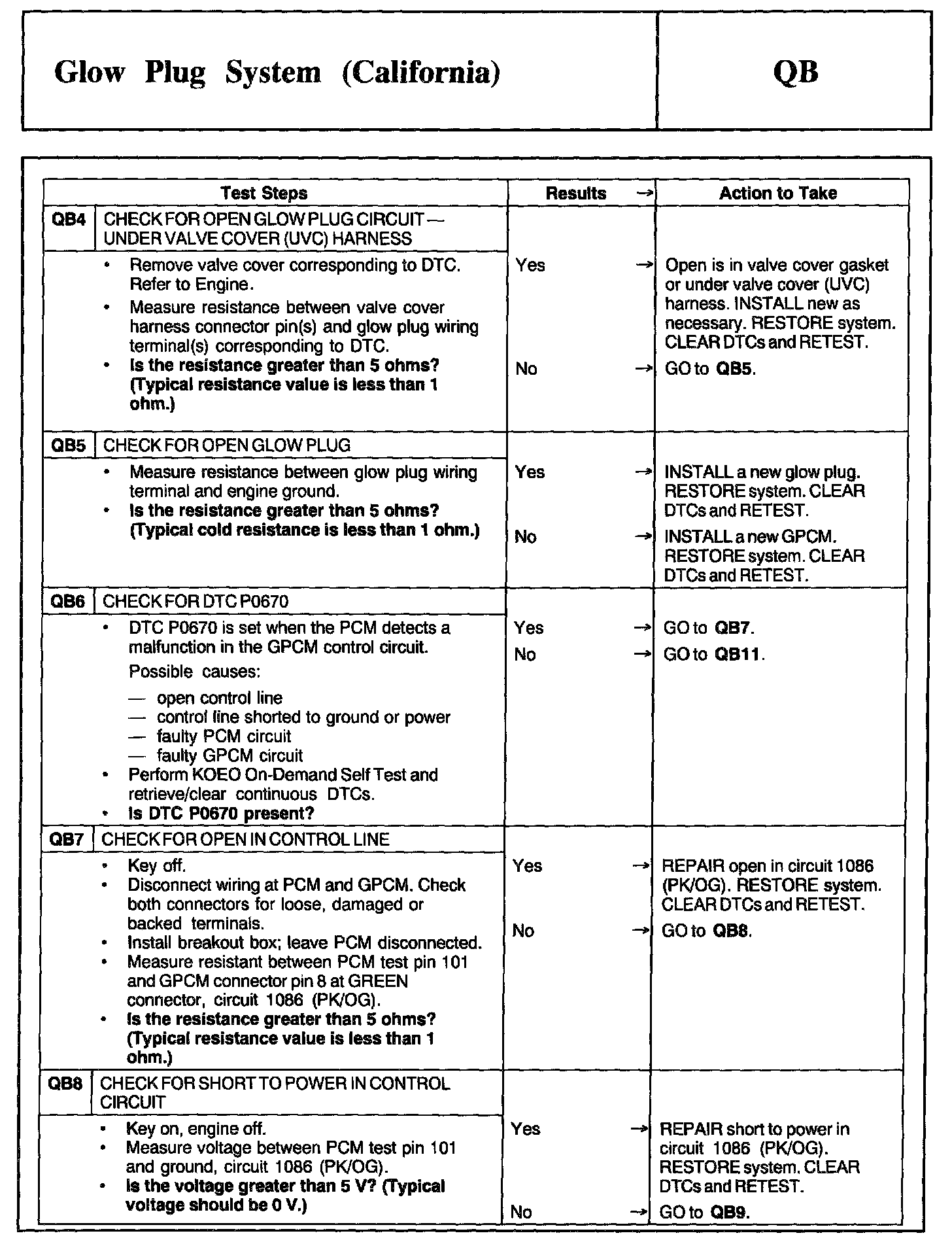

QB4 - QB8:

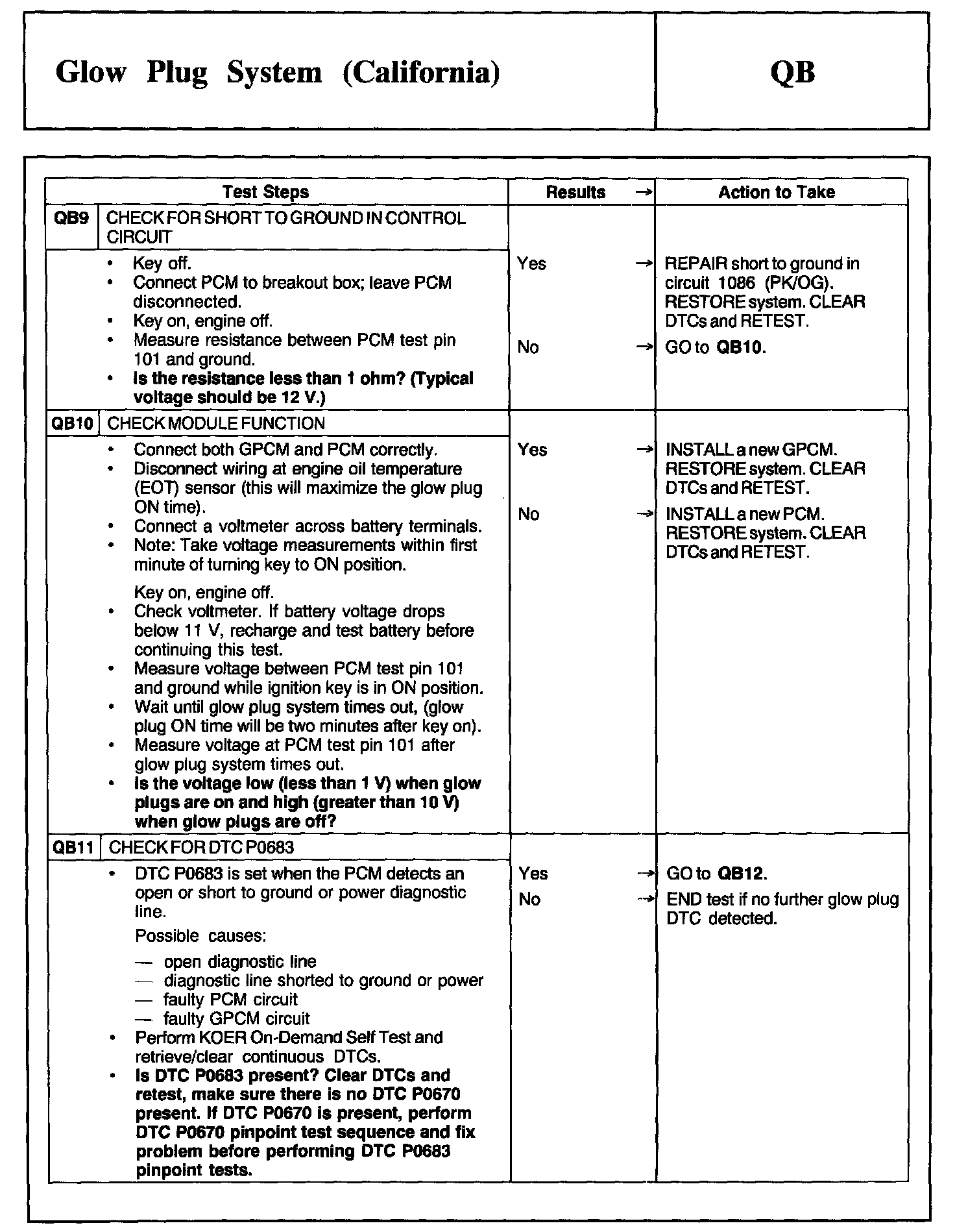

QB9 - QB11:

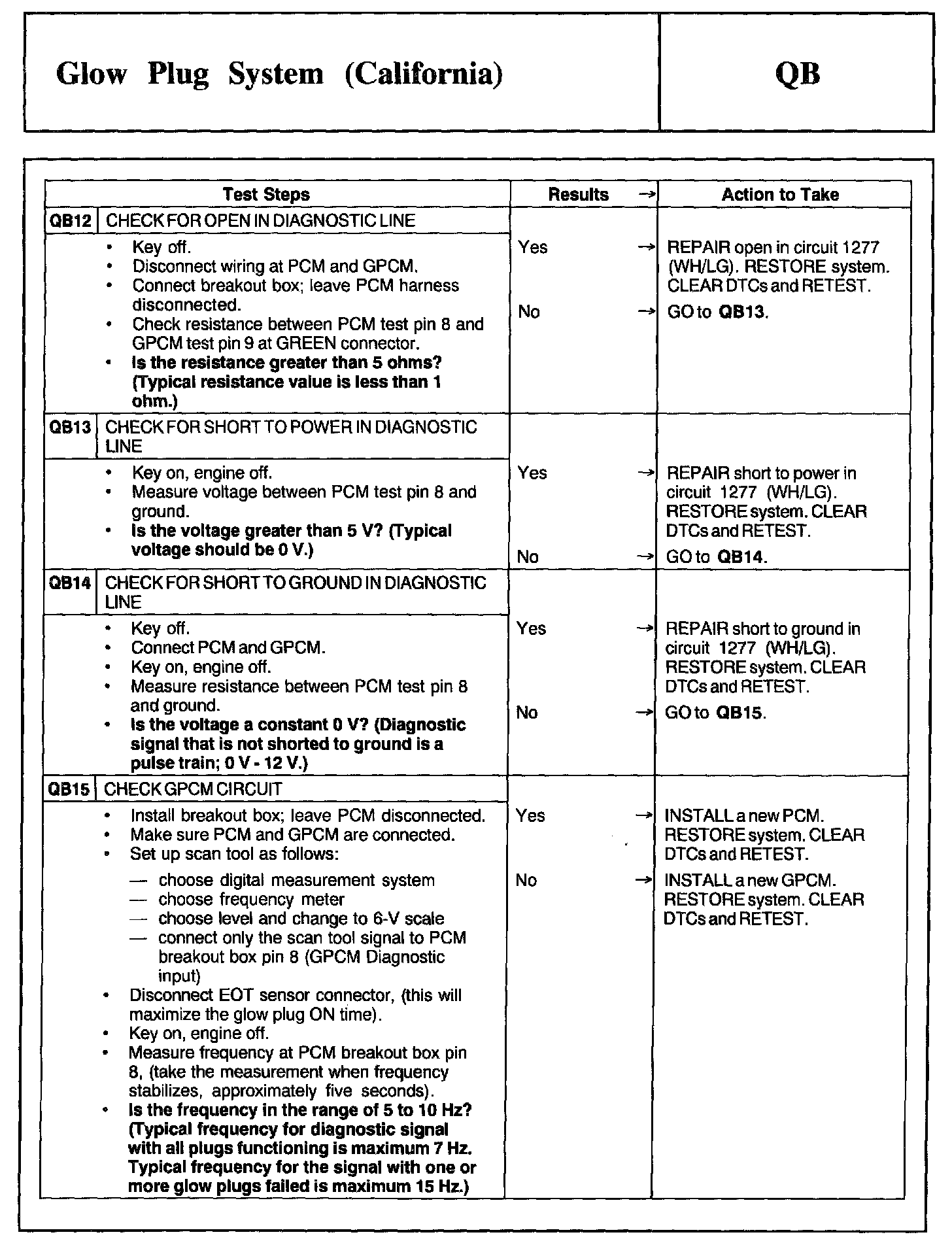

QB12 - QB15:
