DTC Condition/Cause Charts

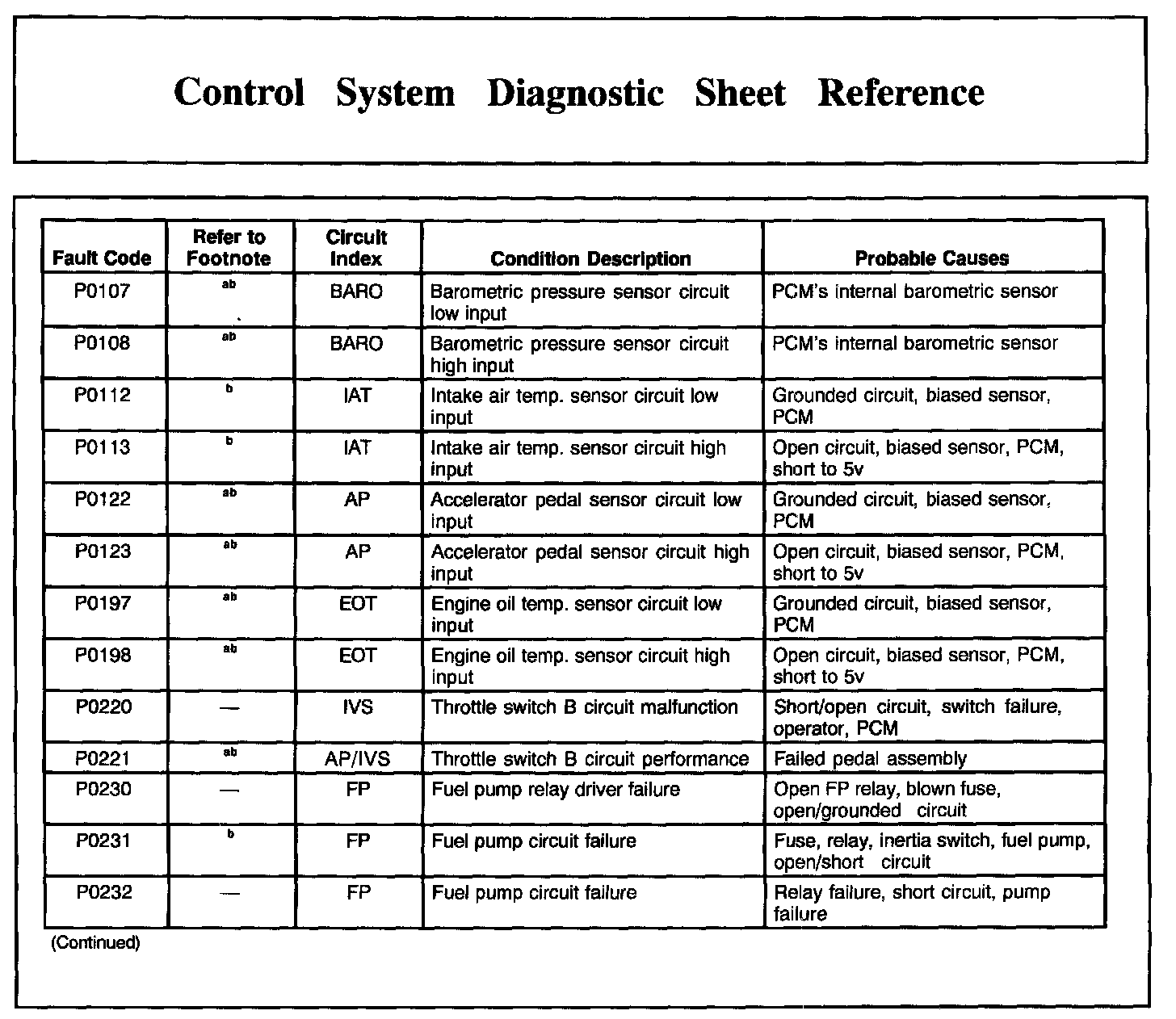

P0107-P0232:

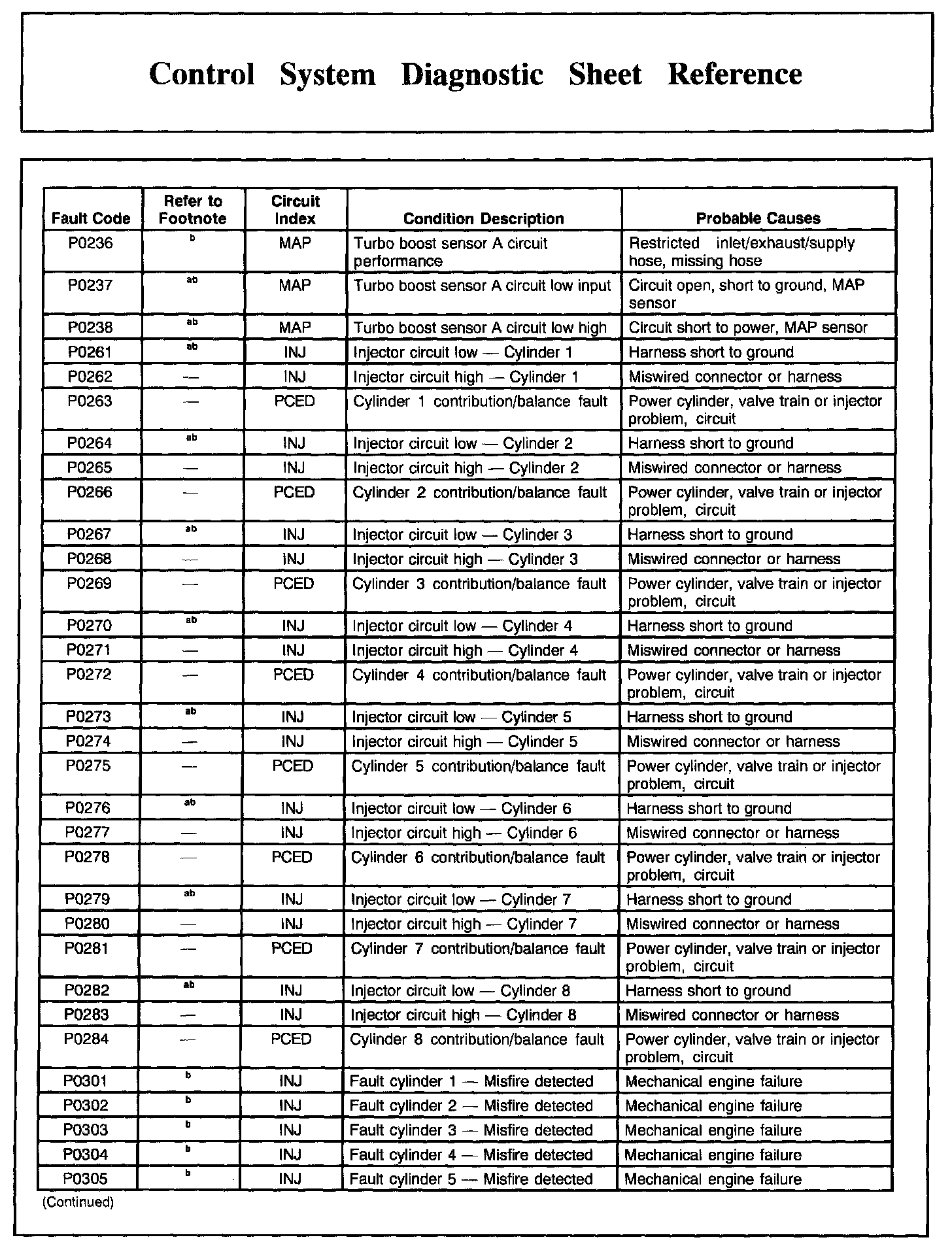

P0236-P0305:

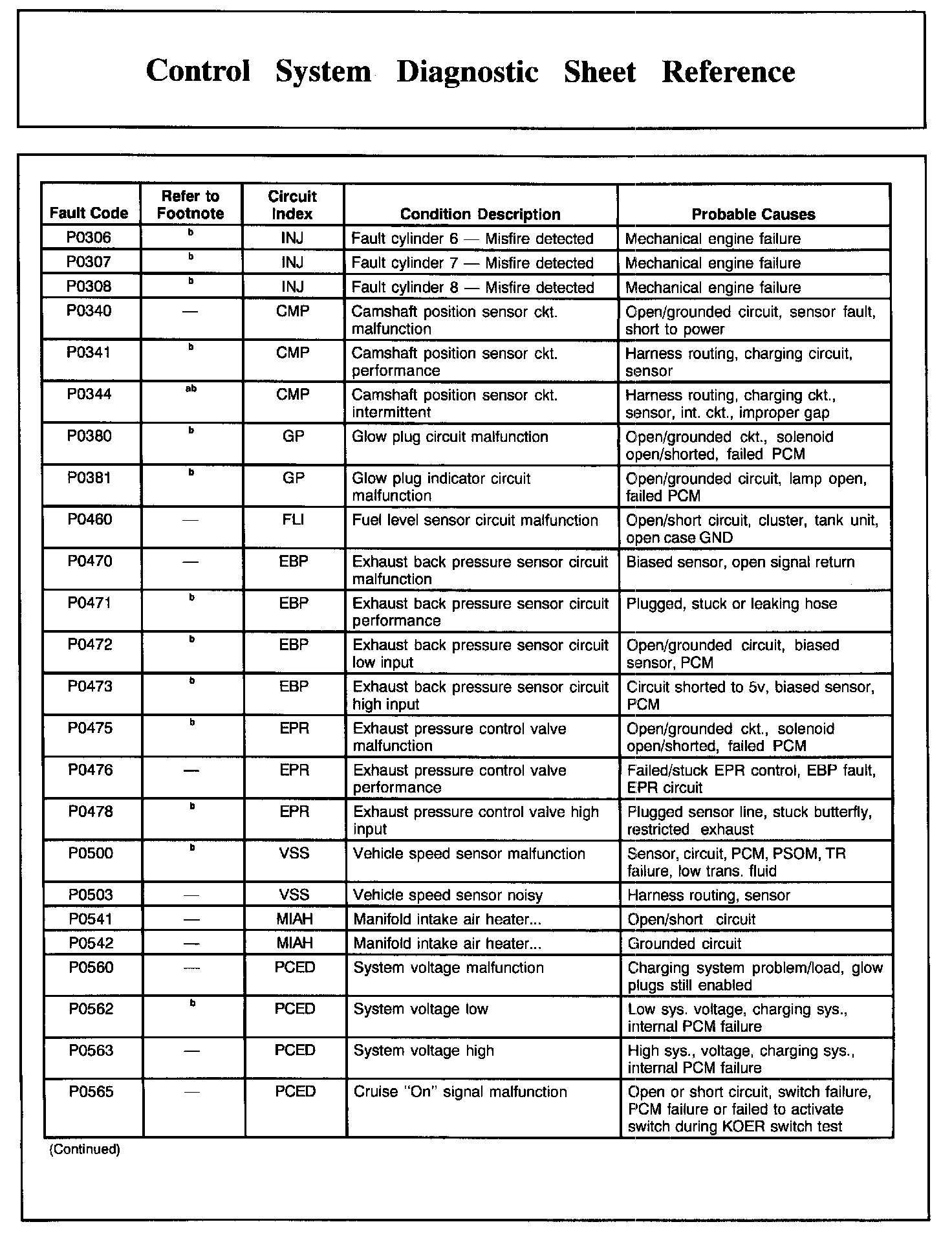

P0306-P0565:

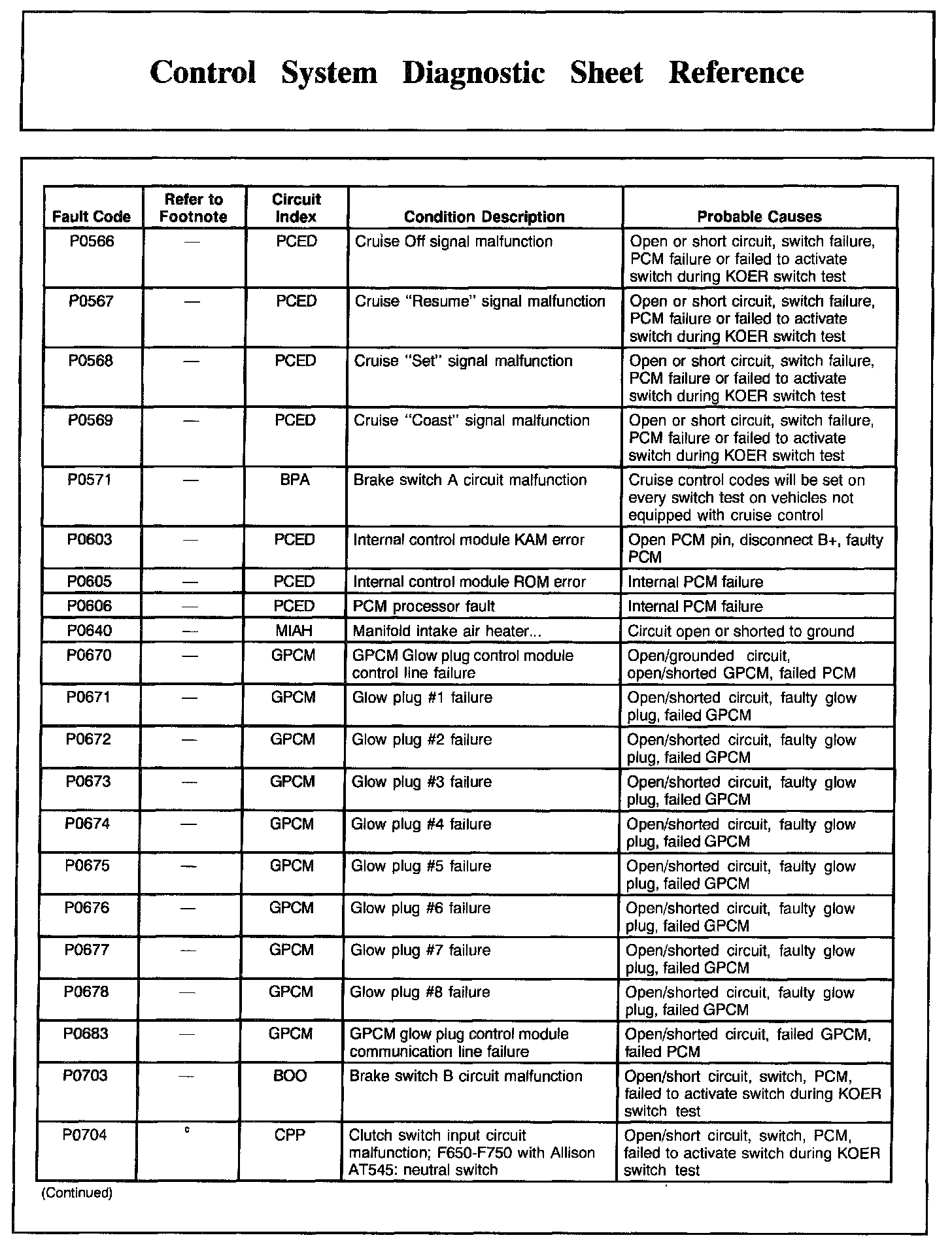

P0566-P0704:

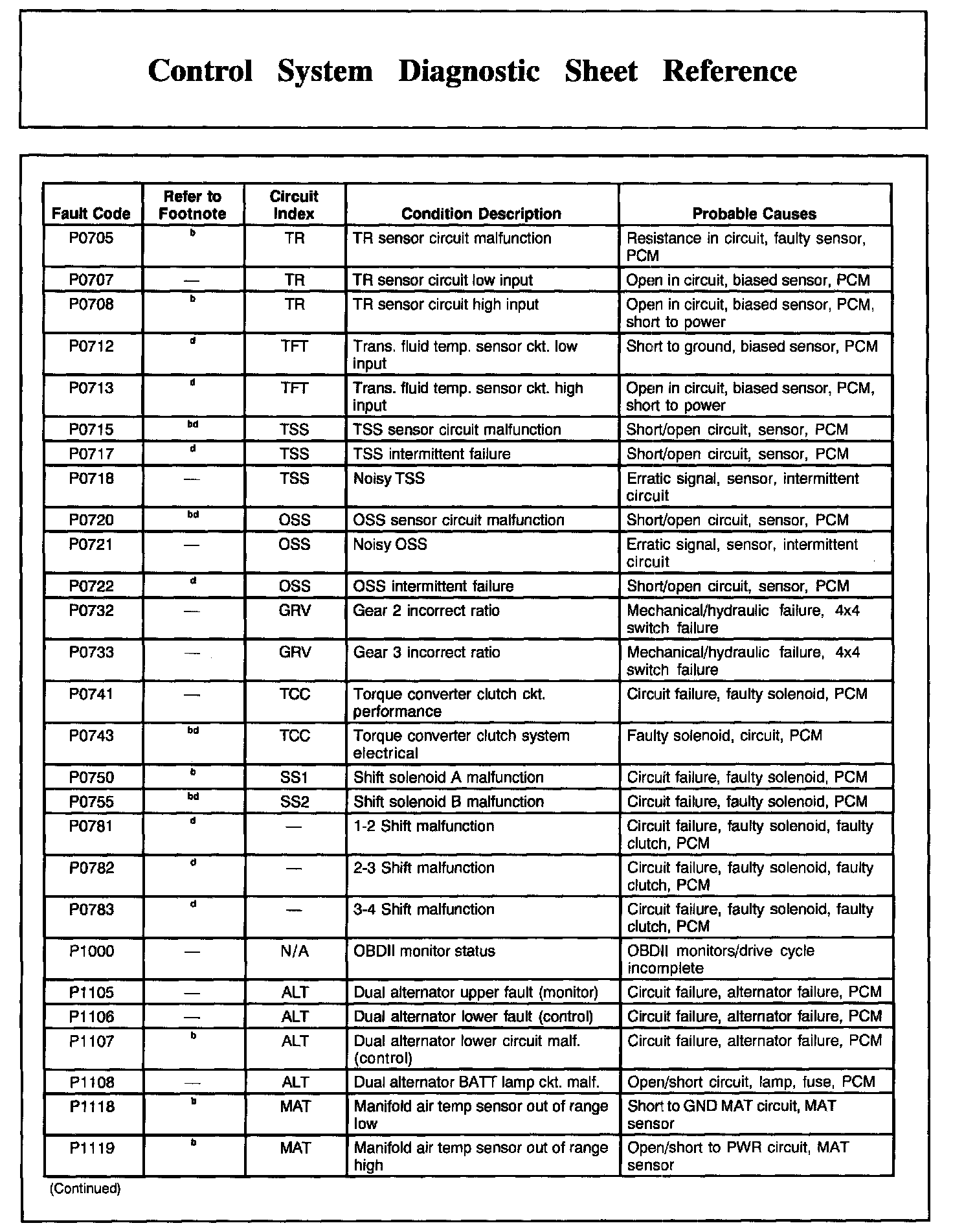

P0705-P1119:

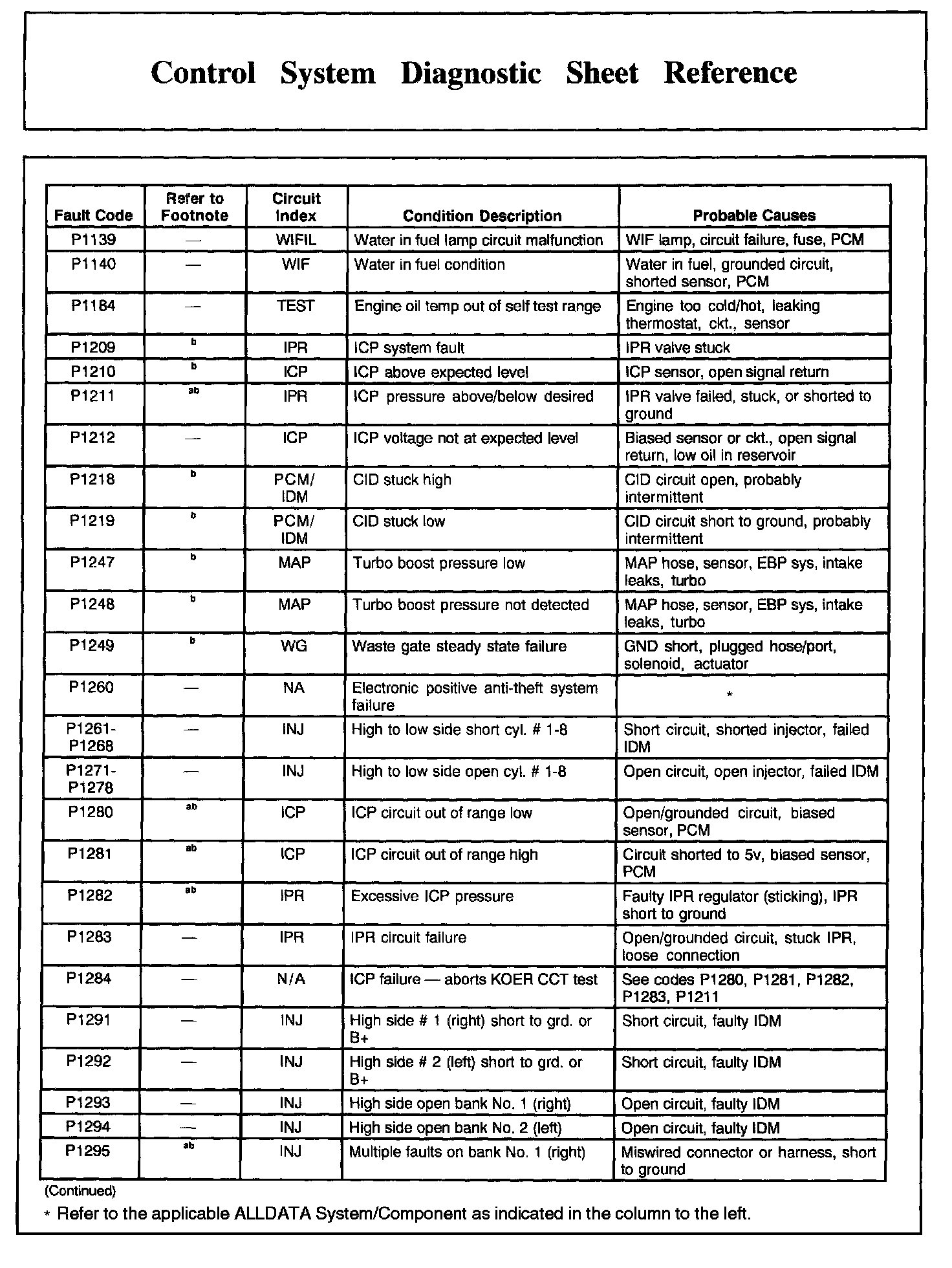

P1139-P1295:

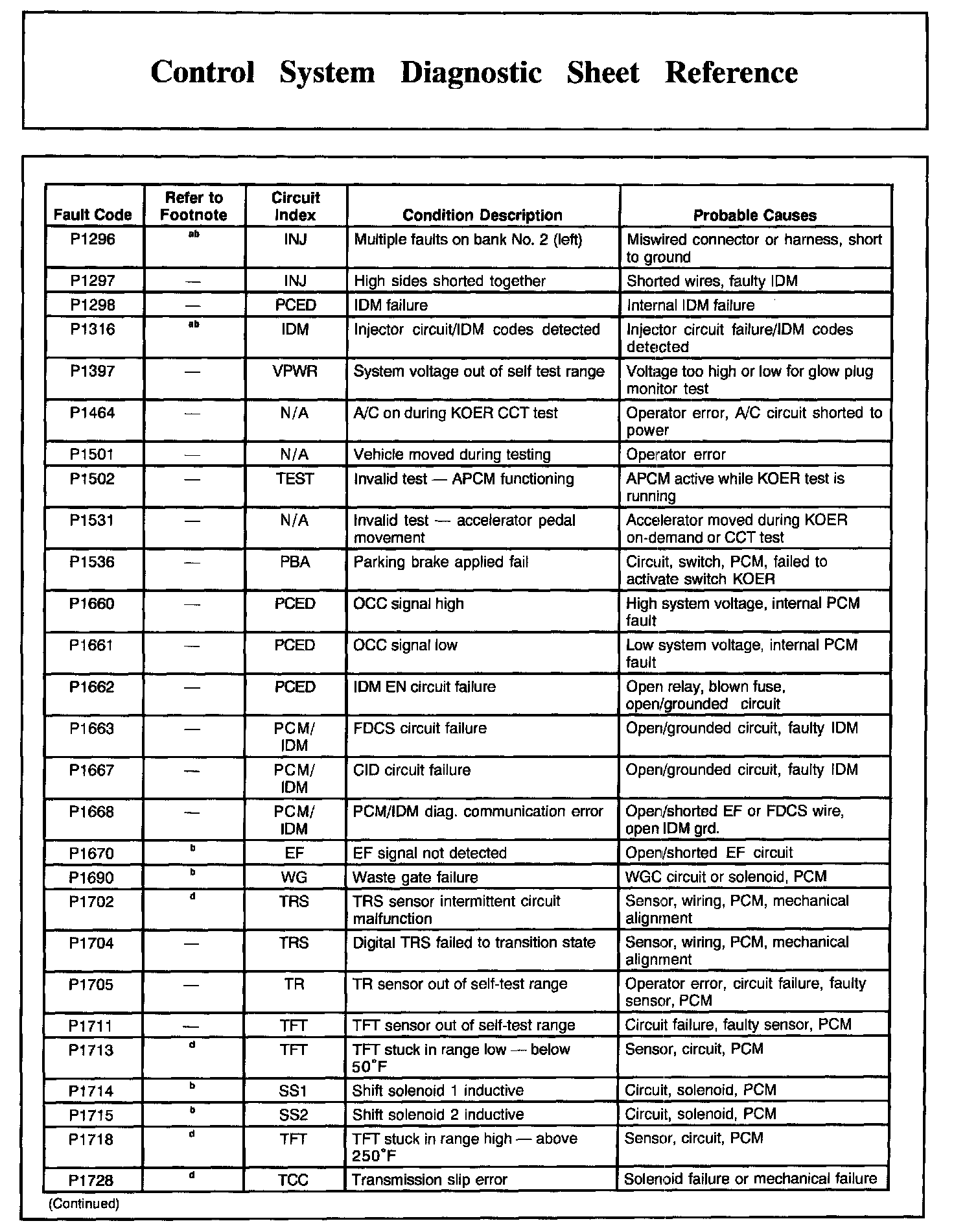

P1296-P1718:

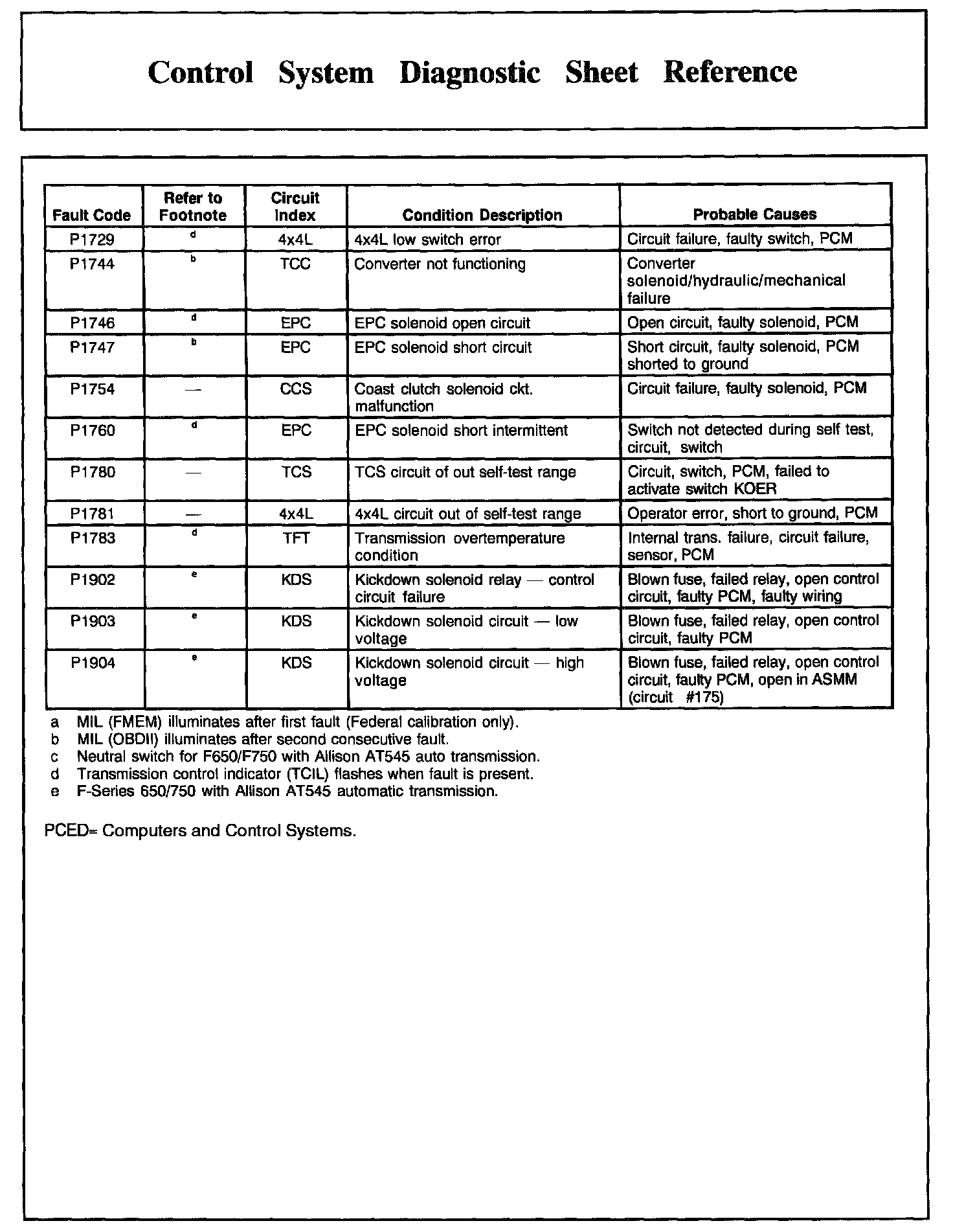

P1729-P1904:
