Symptom Charts

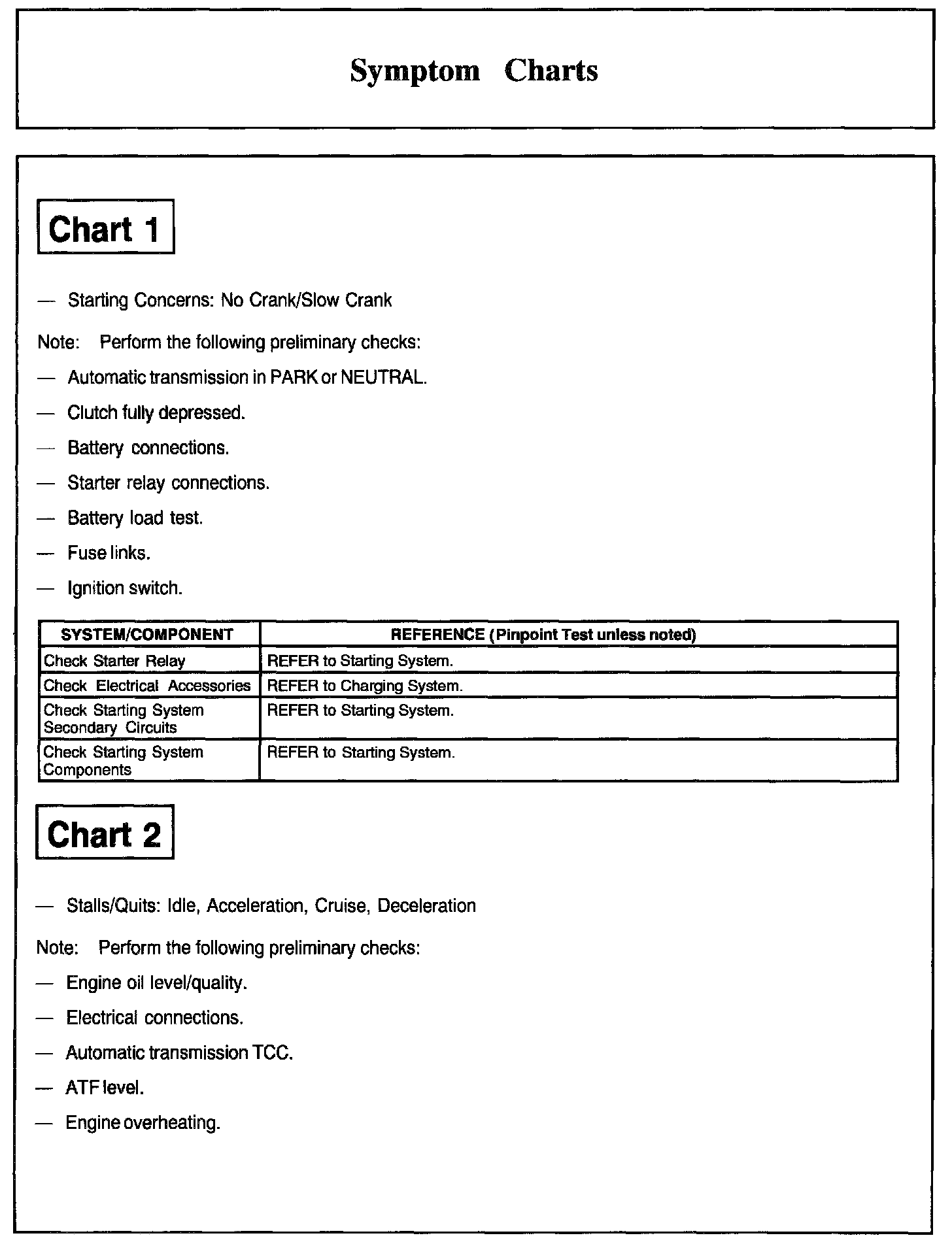

Symptom Chart, Chart 1 - 2:

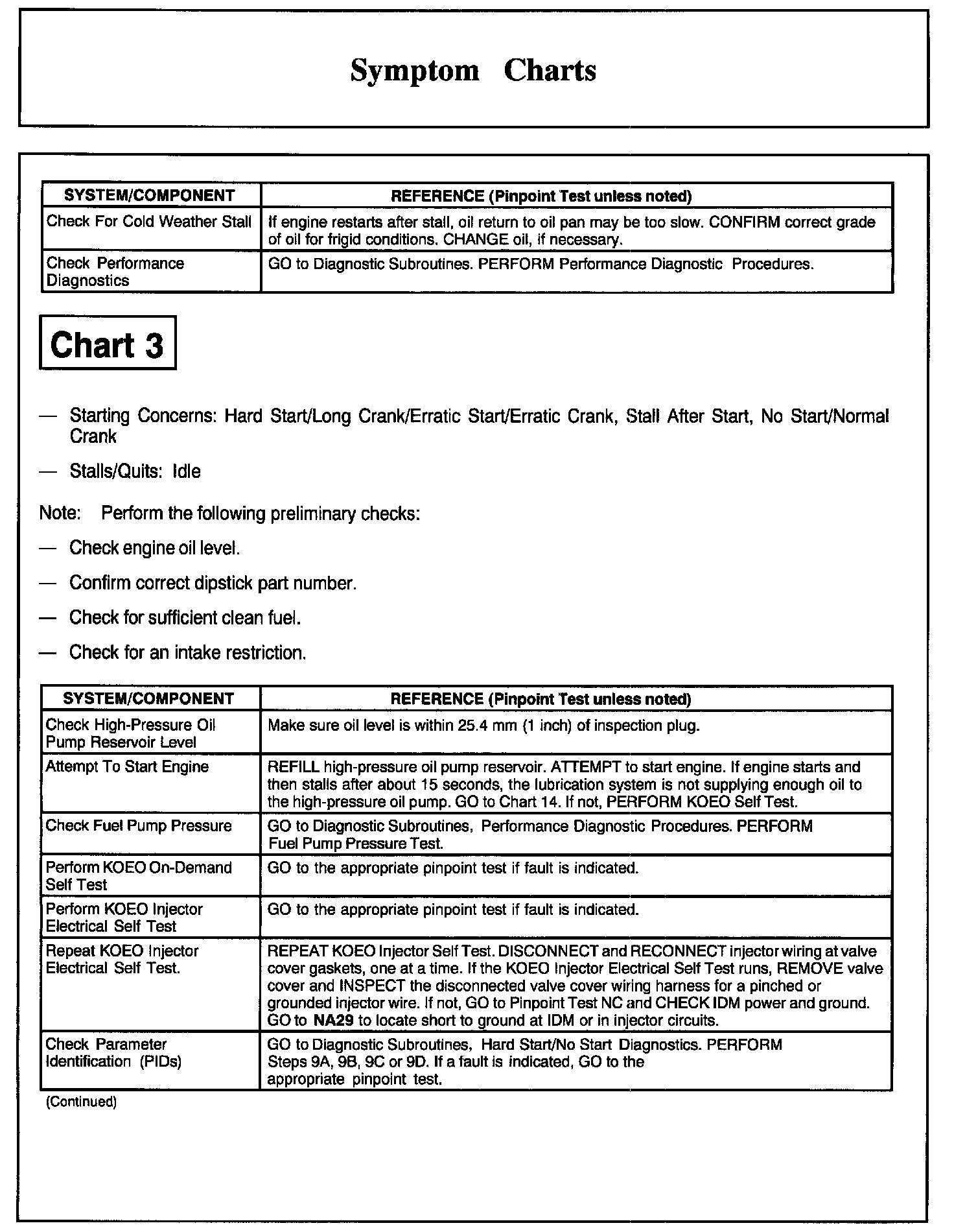

Symptom Chart, Chart 2 - 3:

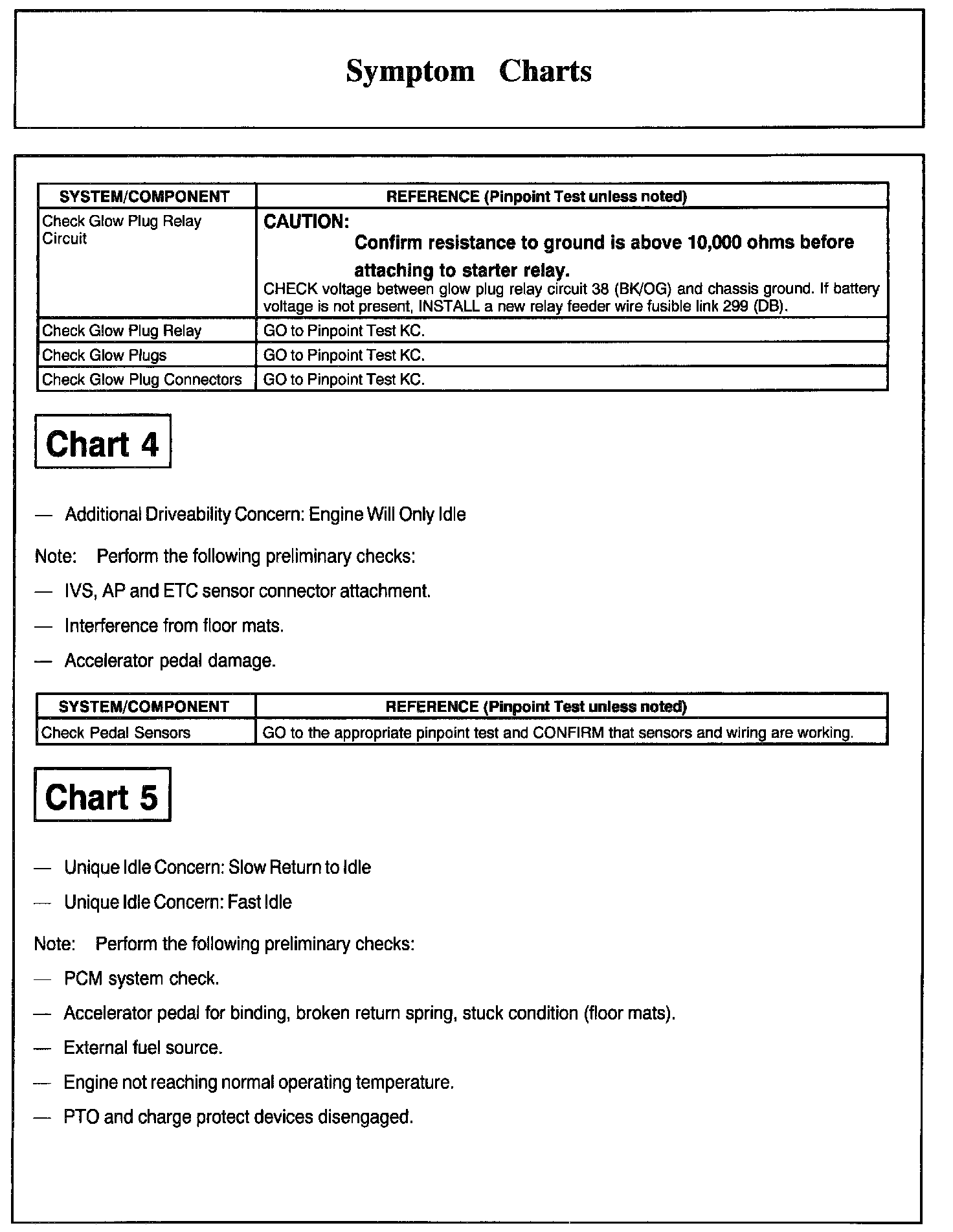

Symptom Chart, Chart 3 - 5:

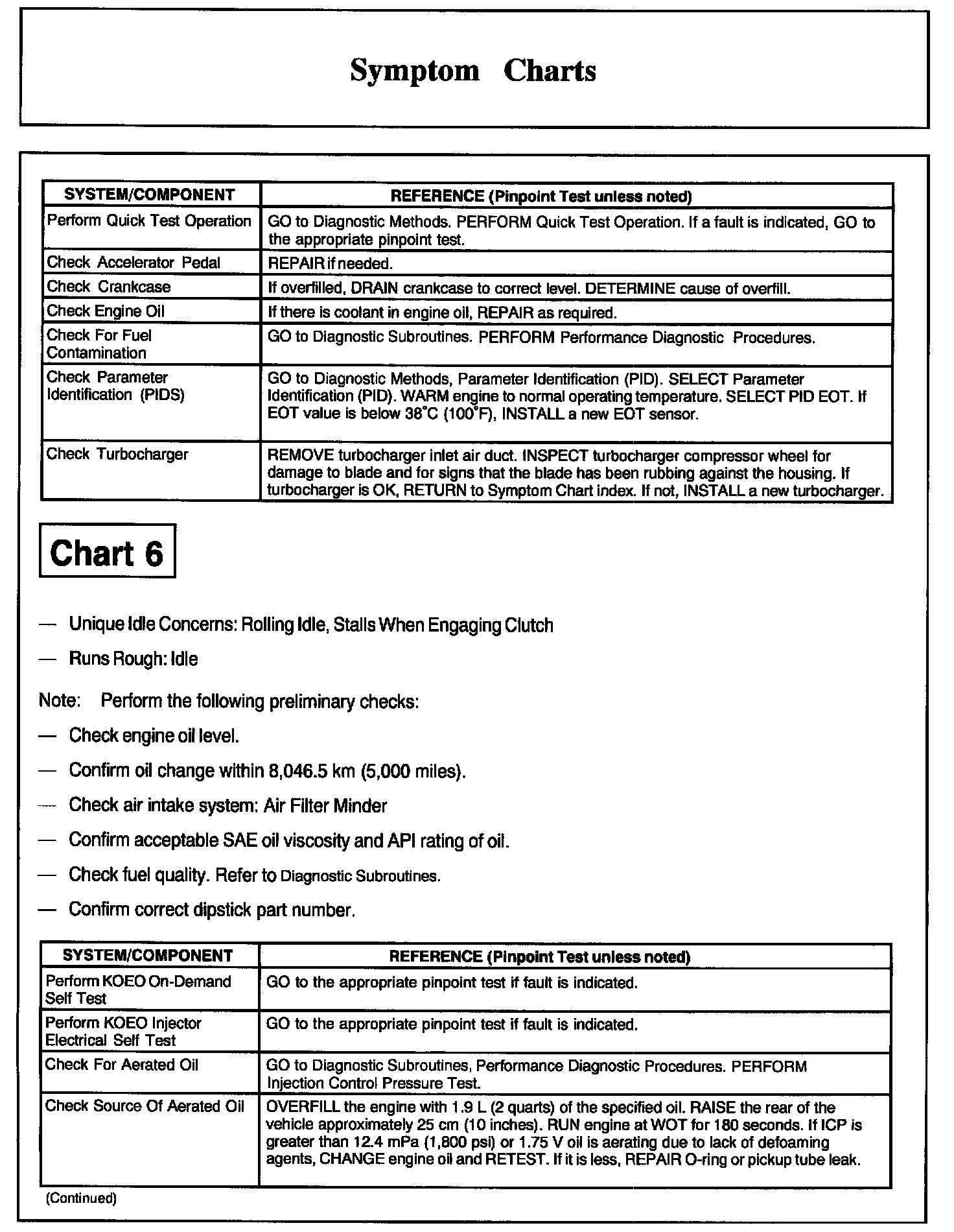

Symptom Chart, Chart 5 - 6:

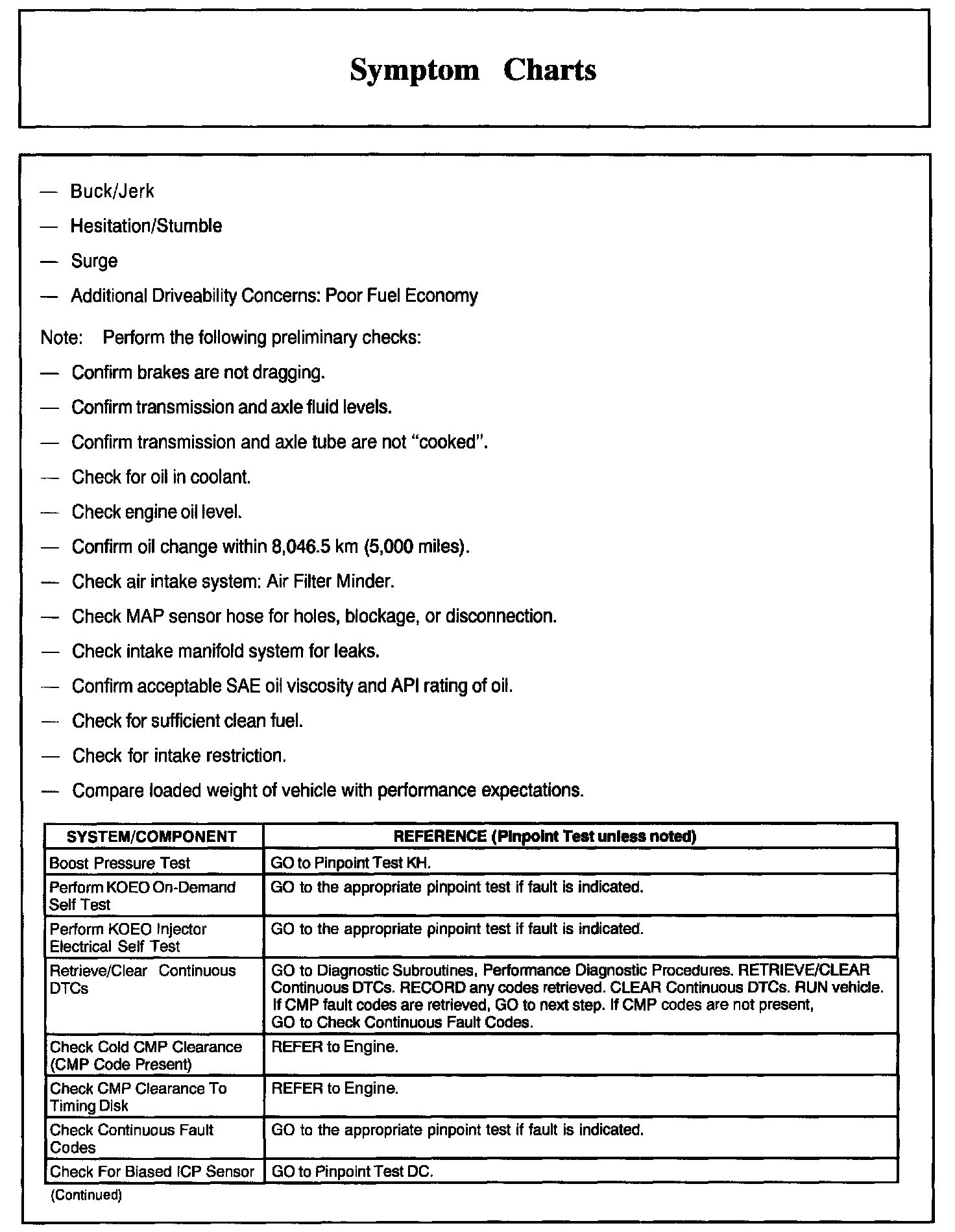

Symptom Chart, Chart 6 - 7:

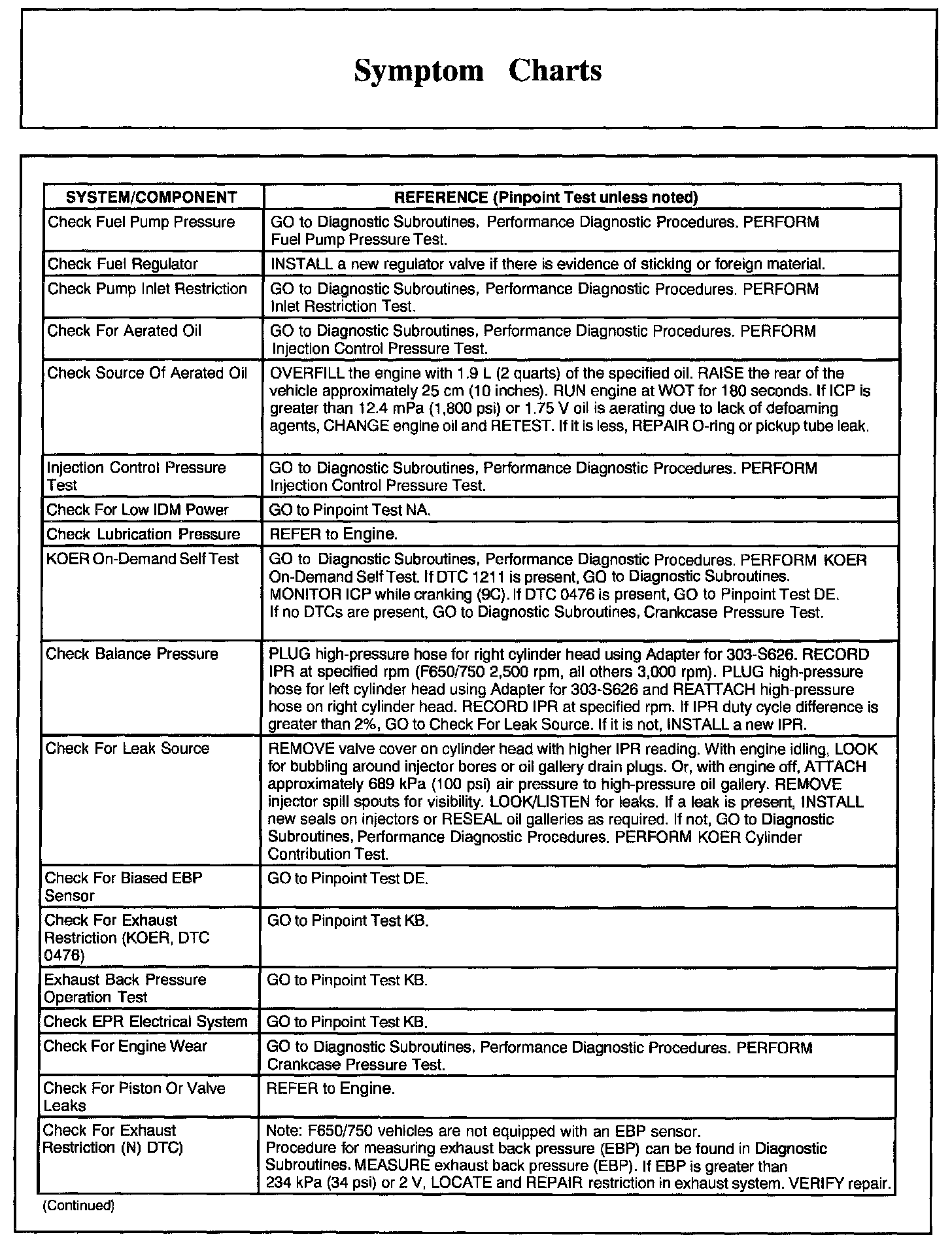

Symptom Chart, Chart 7:






Symptom Chart, Chart 7:

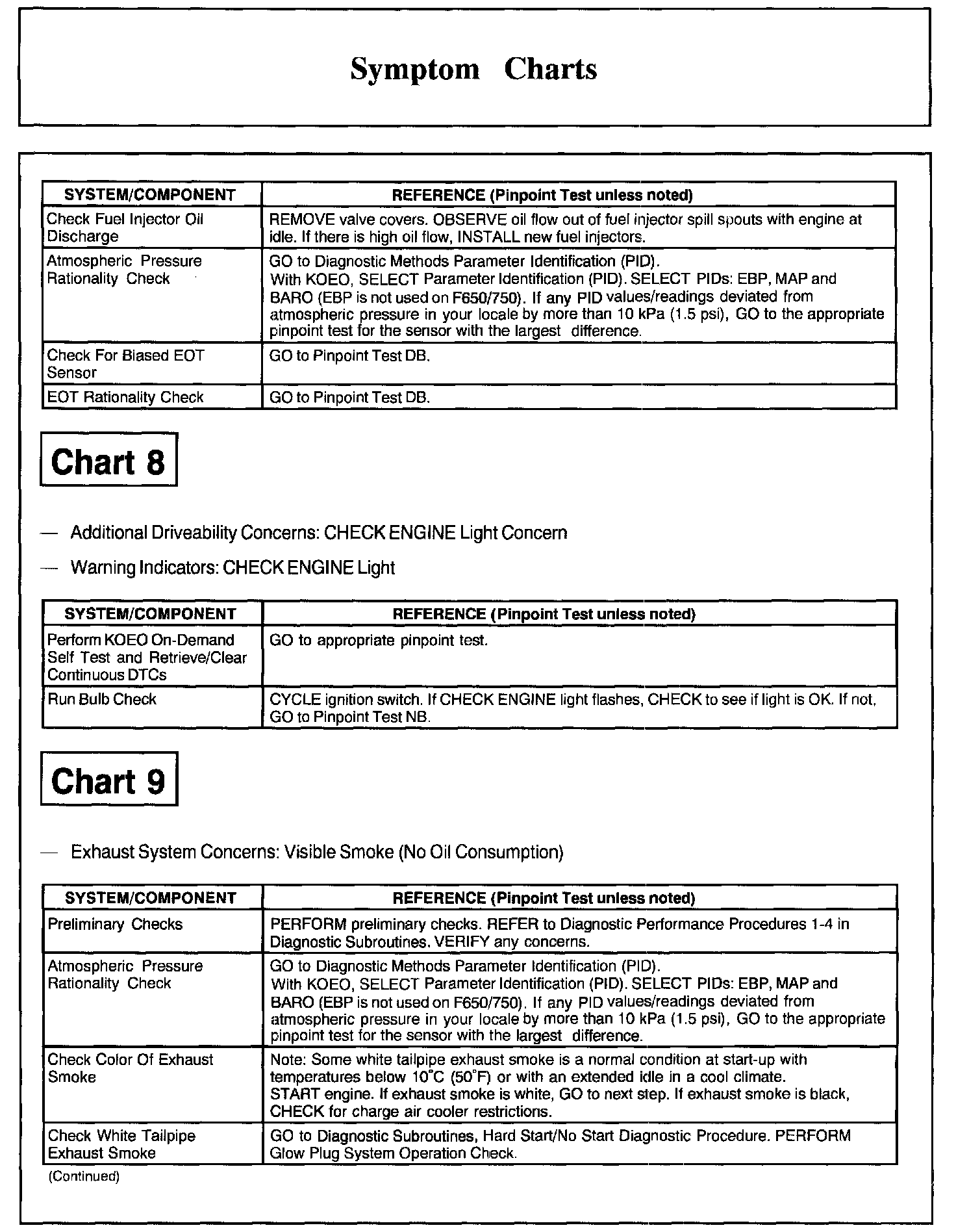

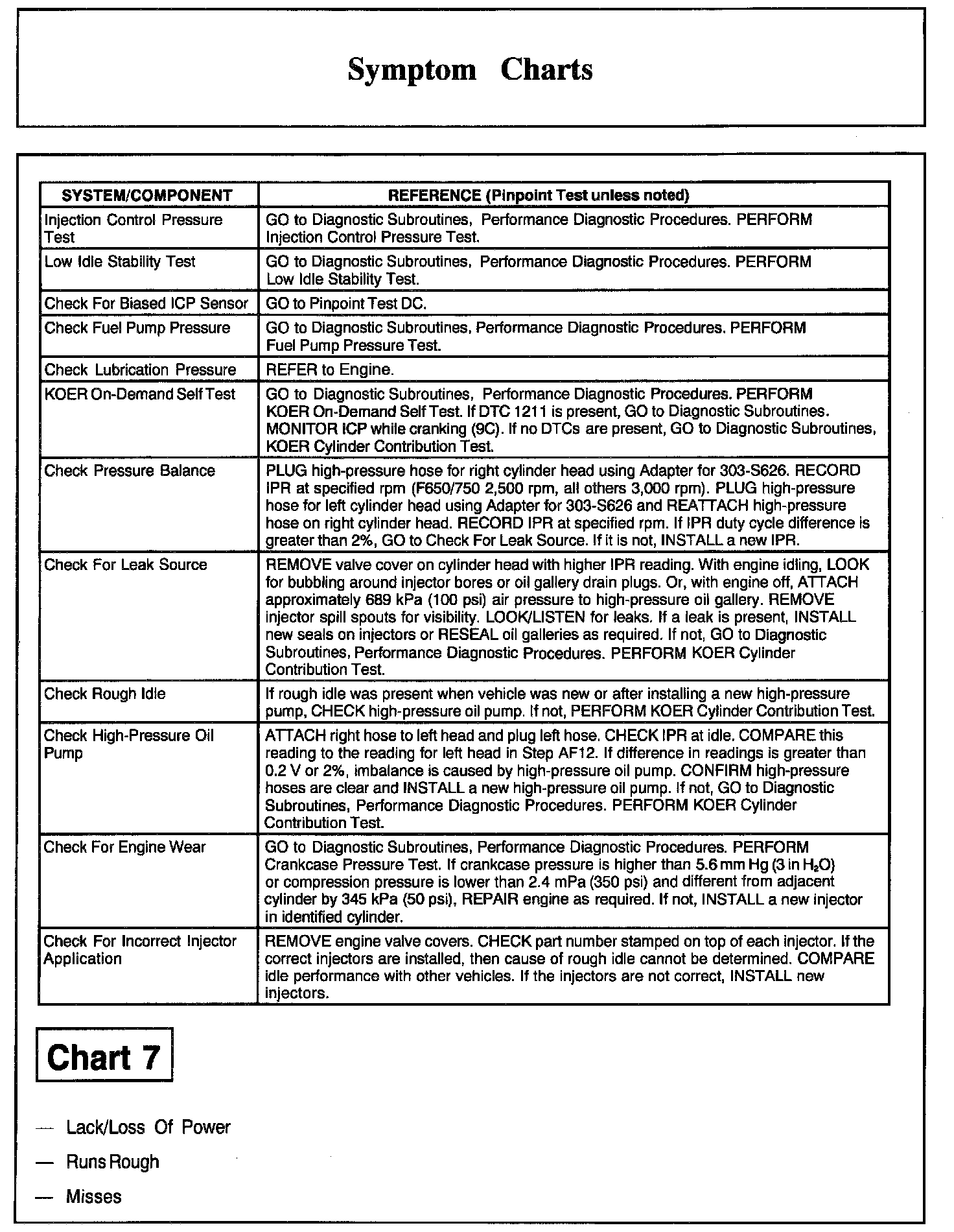

Symptom Chart, Chart 7 - 9:

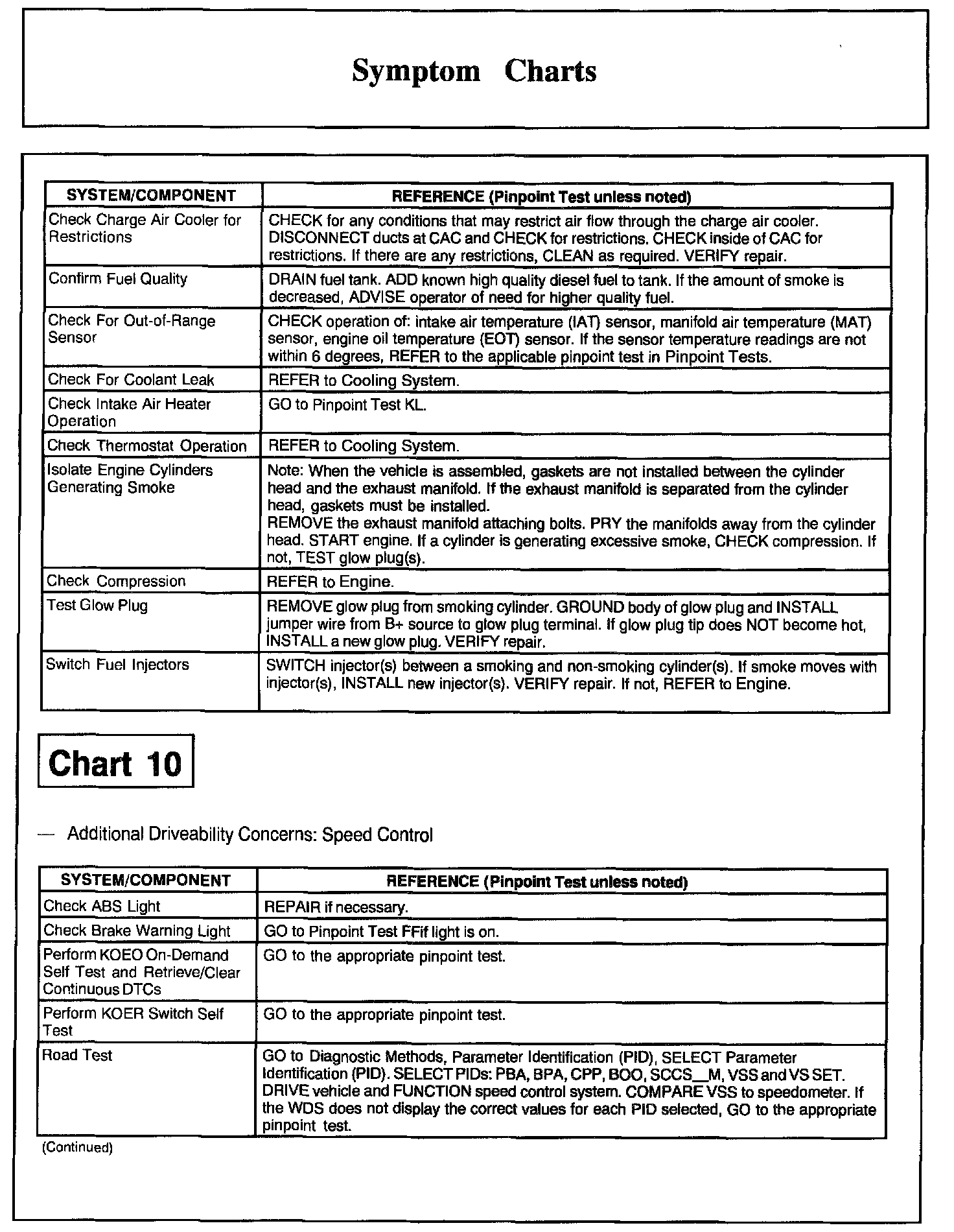

Symptom Chart, Chart 9 - 10:

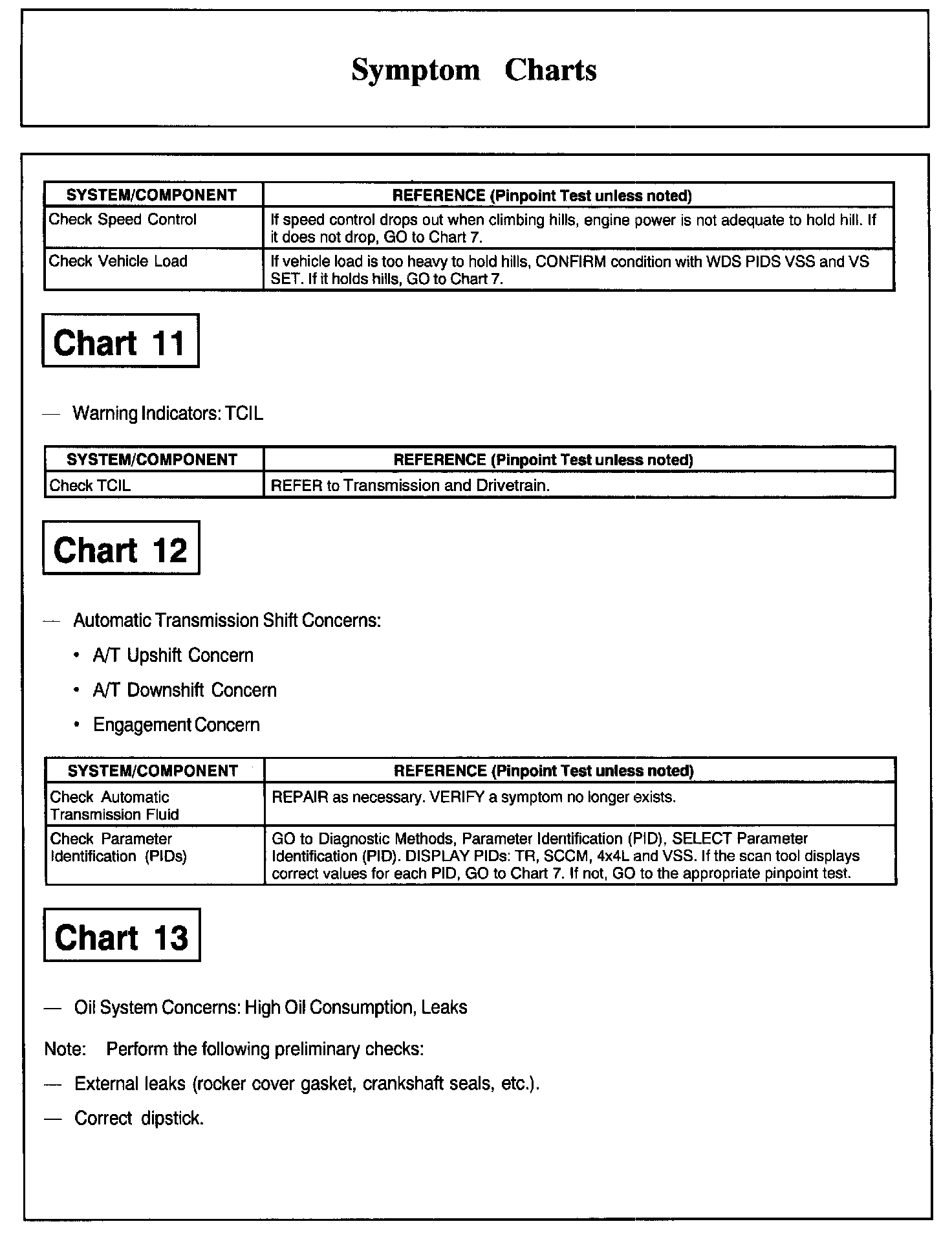

Symptom Chart, Chart 10 - 13:






Symptom Chart, Chart 13 - 14:
