Transmission

Automatic Transaxle/Transmission

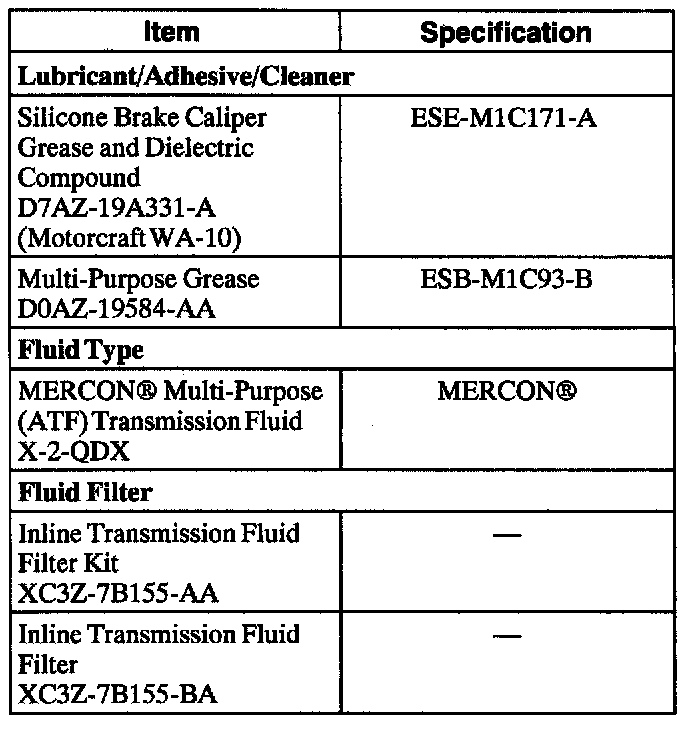

General Specifications

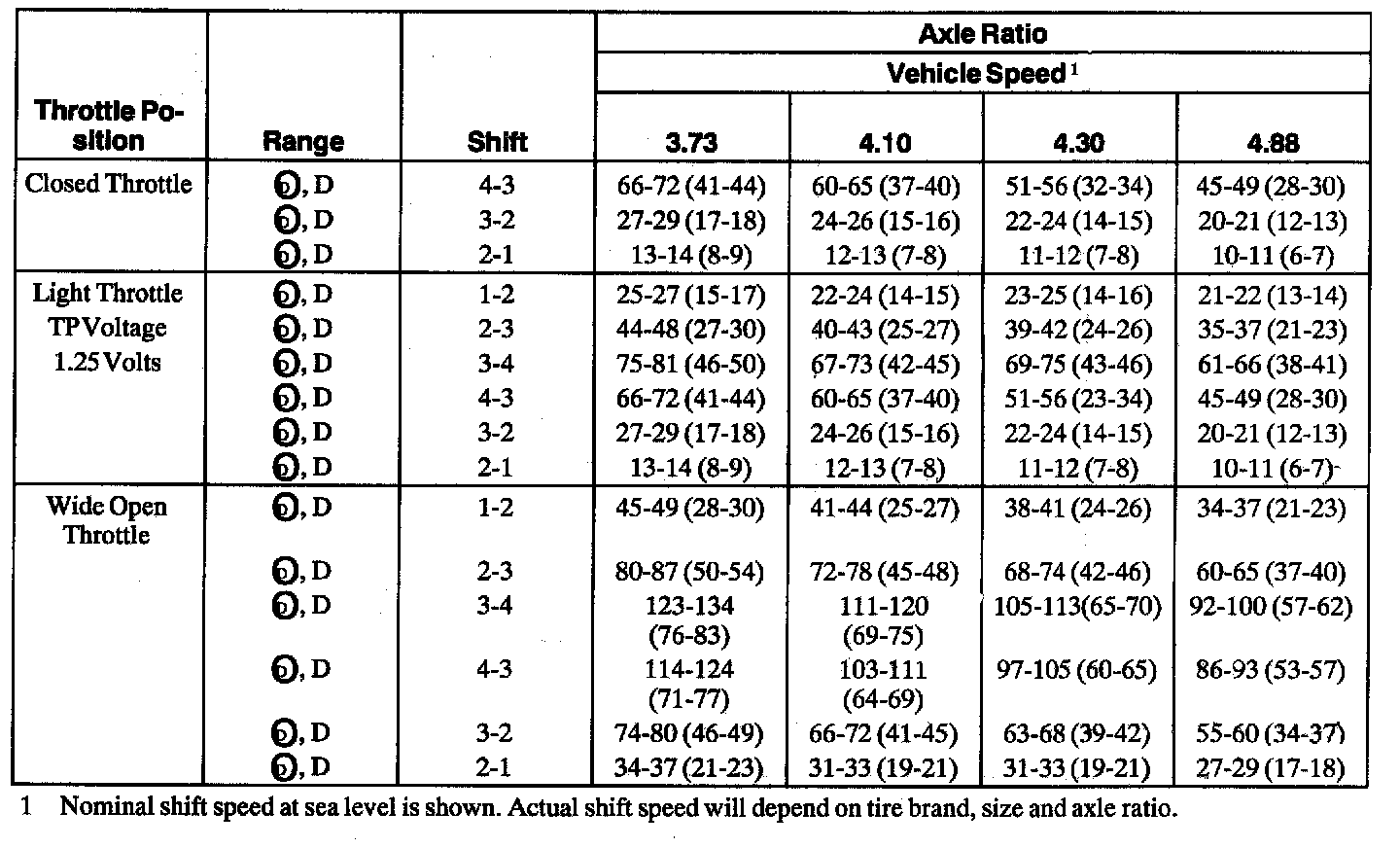

Applications Shift Speeds-Approximate* Km/h (MPH) (F-250, F-354, F450, F550, Super Duty with 7.3L DITD)

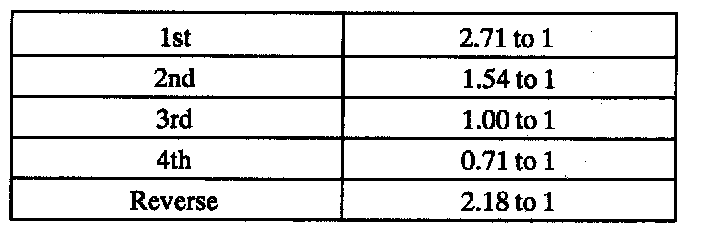

Gear Ratio








a Plus one apply plate.
b A non-selective snap ring.
c Plus a steel wave cushion spring installed between the front pressure plate and a steel separator plate.
d Plus a steel wave cushion spring installed between the reverser clutch piston and a steel separator plate.

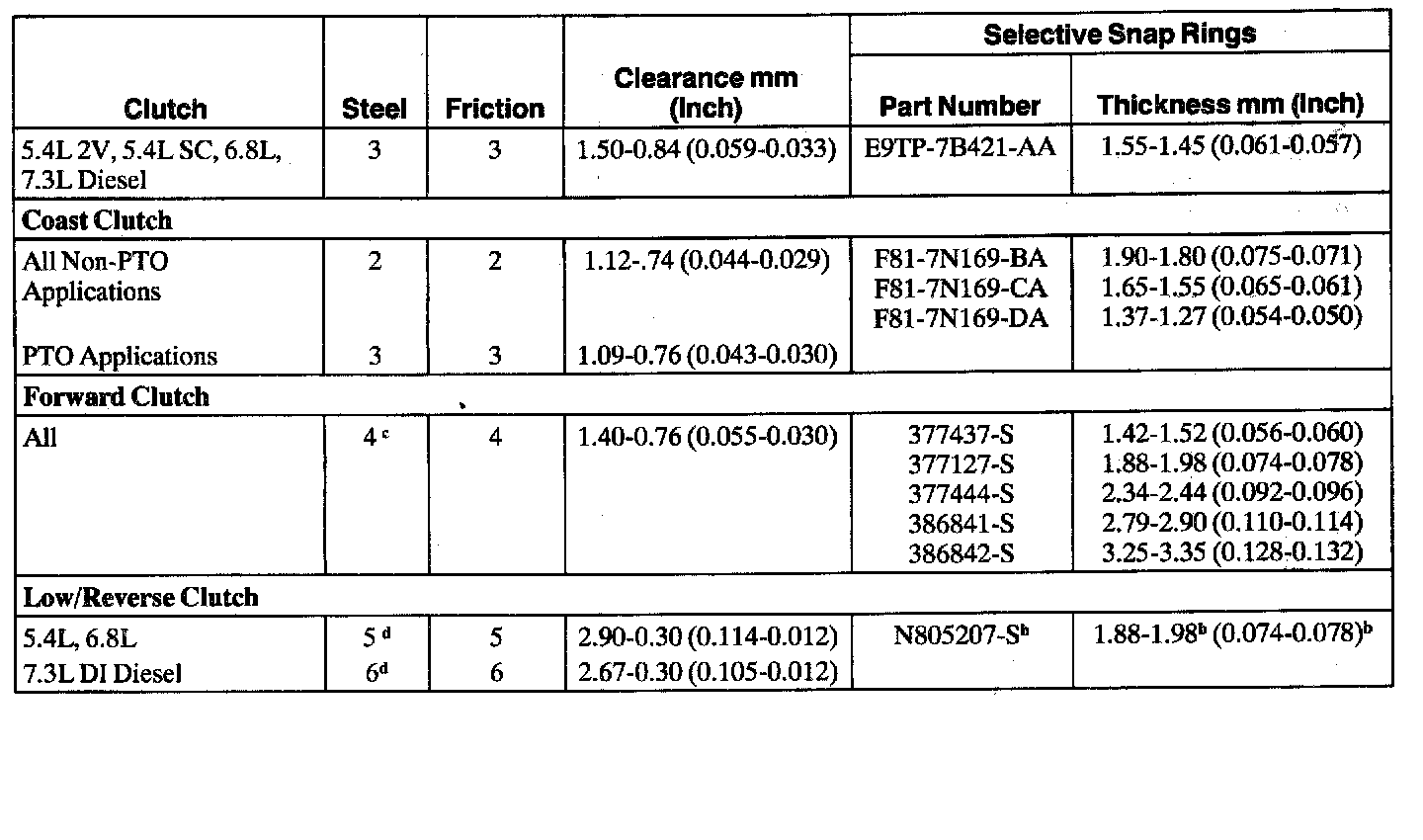

Clutch Plate Usage and Clearance Specifications

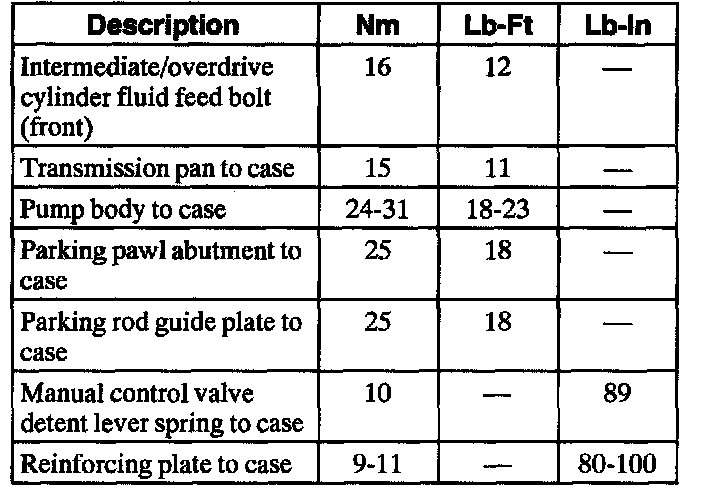

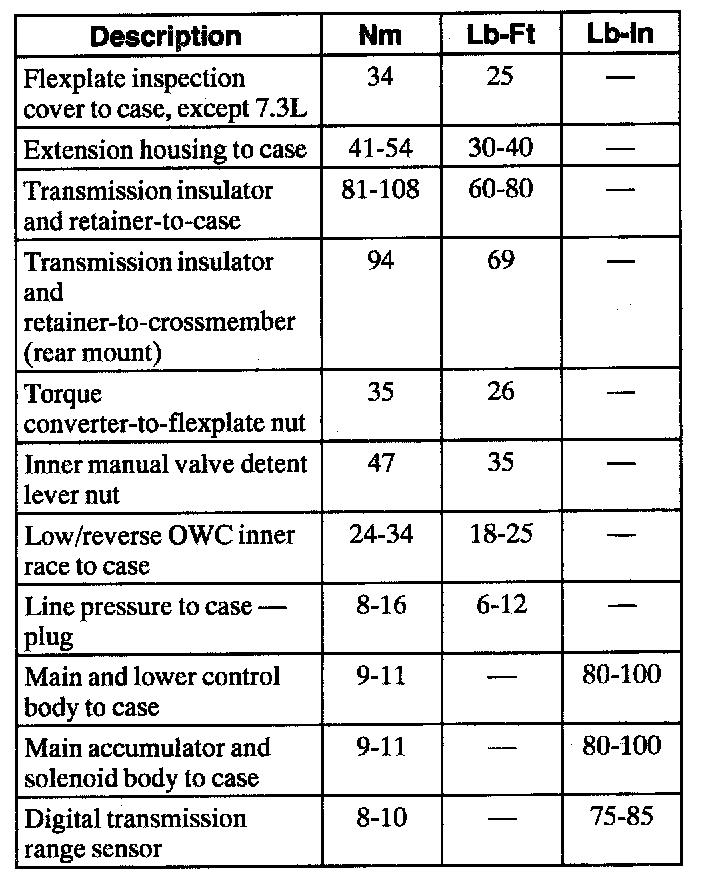

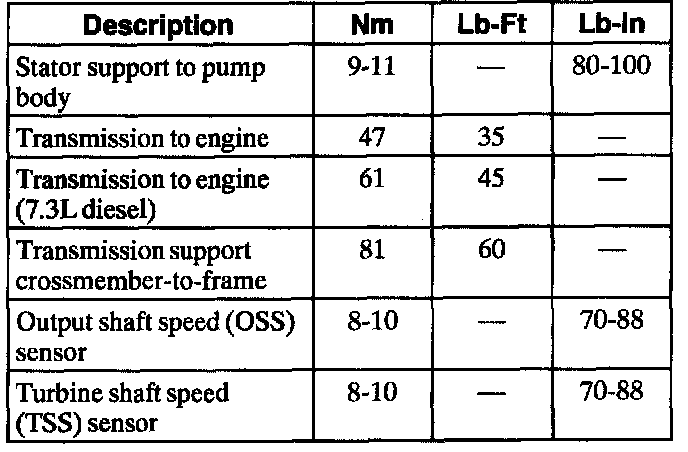

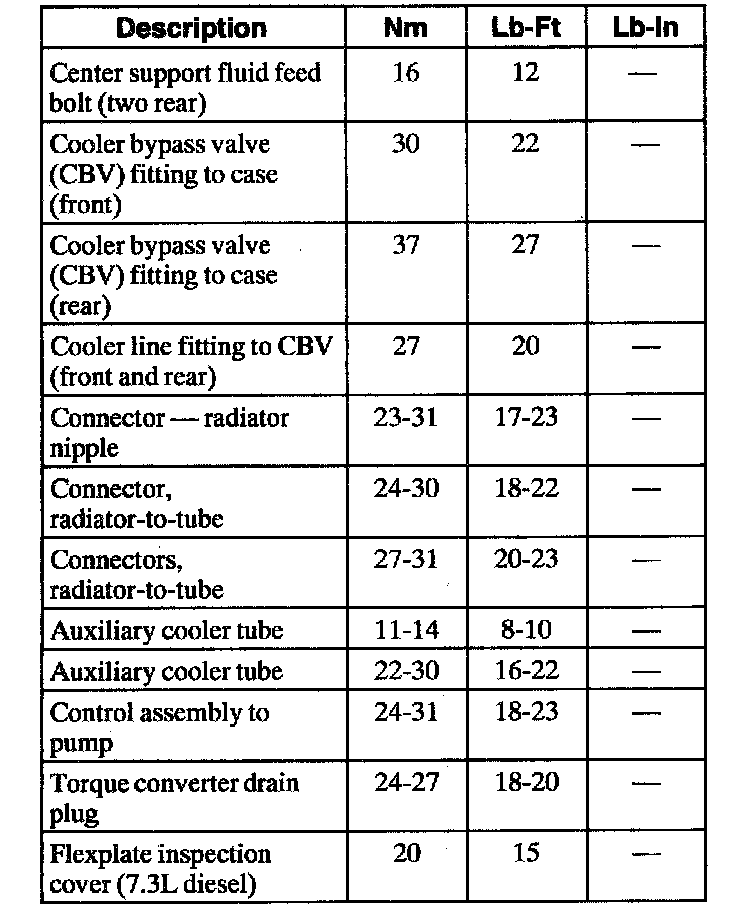

Torque Specifications

Flex Plate Bolts
Totque: 121 Nm (89 ft. lbs.)

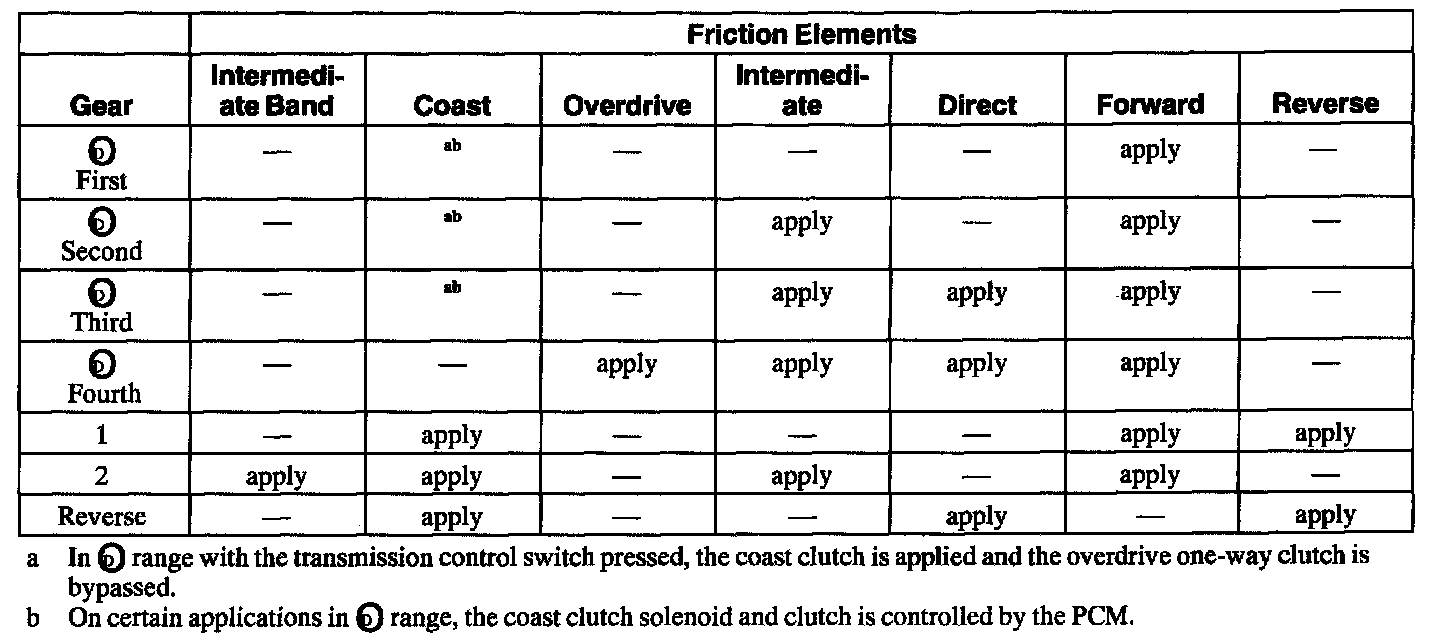

Band/Clutch Application Chart

Friction Elements








O/R - Overrunning
CC - Coast Friction Clutch Applied
BA - Band Applied

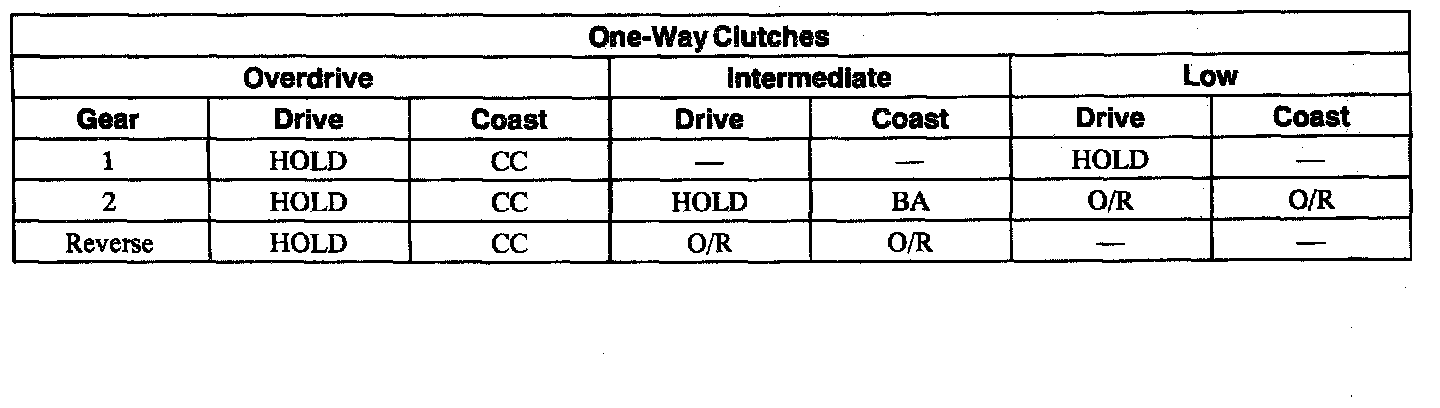

One-Way Clutches
