Flywheel: Service and Repair

Flywheel

Removal
1. Prepare the vehicle for flywheel removal.
1 Remove the Transmission.
2 Remove the clutch pressure plate and disc.





2. Remove the flywheel.

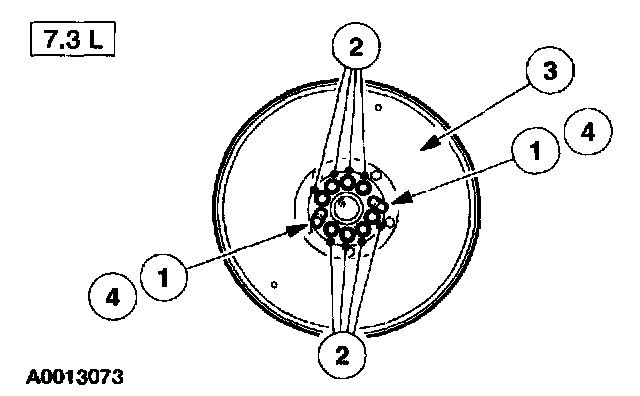

1 Remove the bolts. Install the guide studs.
2 Remove the bolts.
3 Remove the reinforcing ring, and the flywheel and ring gear assembly.
4 Remove the guide studs.

Installation





1. Install the flywheel.
1 Install the guide studs.
2 Install the flywheel and ring gear assembly, and the reinforcing ring.
3 Install the bolts.
4 Remove the guide studs. Install and tighten the bolts to specification.
2. Restore the vehicle to operating condition.
1 Install the clutch disc and pressure plate.
2 Install the transmission.
