Windshield Washer Pump: Service and Repair

REMOVAL
1. Remove the battery tray.

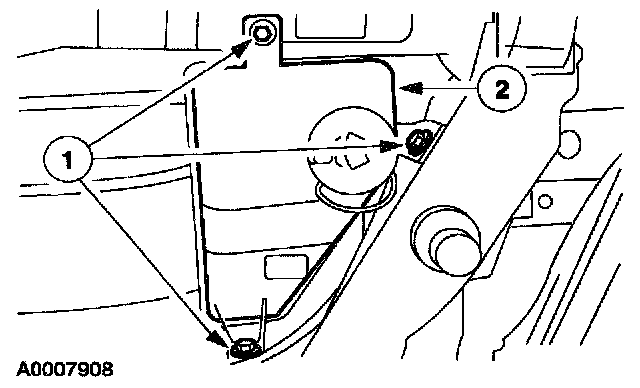

2. Position windshield washer fluid reservoir aside.
1 Remove the bolts.
2 Position windshield washer fluid reservoir aside.

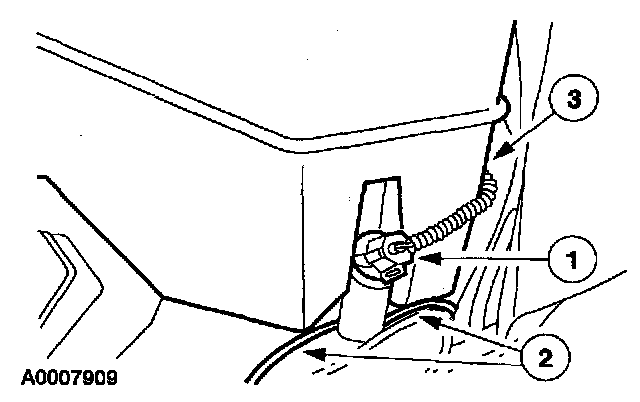

3. Remove windshield washer fluid reservoir.
1 Disconnect the electrical connector.
2 Disconnect the windshield washer hose. (If equipped, disconnect the rear window washer hose).

WARNING: WINDSHIELD WASHER SOLUTION CONTAINS METHANOL WHICH IS POISONOUS OBSERVE ALL CAUTIONS AND WARNINGS INDICATED ON LABEL OF WASHER SOLUTION CONTAINER.

NOTE: Windshield washer fluid should be collected in a container after the windshield washer hose is disconnected.

3 Remove the windshield washer fluid reservoir.

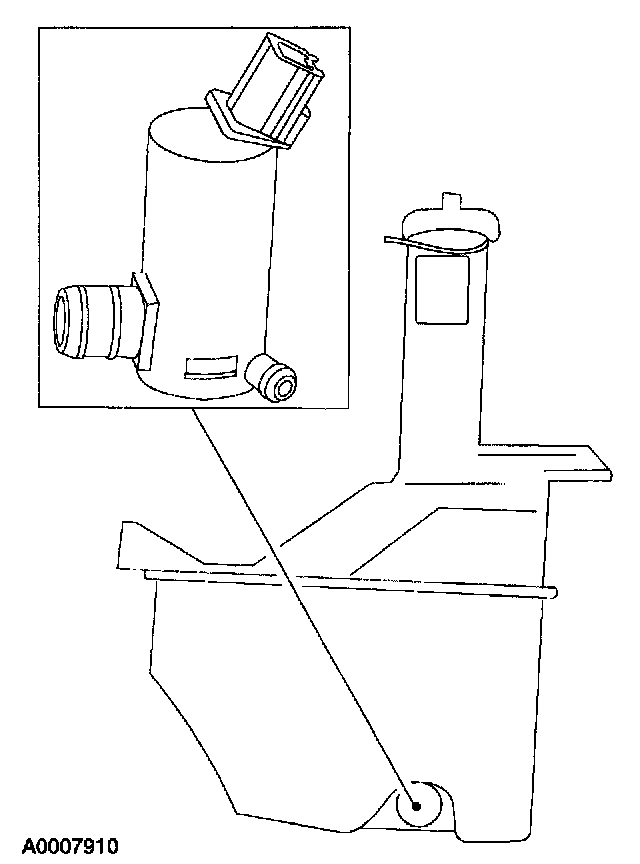

4. Remove the windshield washer pump.

INSTALLATION
1. To install, reverse the removal procedure.

CAUTION: Do not make electrical connection prior to filling the windshield washer reservoir. Do not operate the windshield washer pump prior to filling the windshield washer reservoir.
